Summary
- Define a hierarchical structure of models.
- The structure is set in the object property information.
How to Run
- Ribbon Menu > [Base] Tab > [Tree] Group > Structure Tree

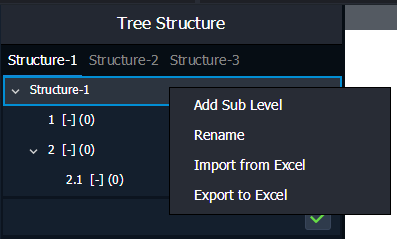

Explanation

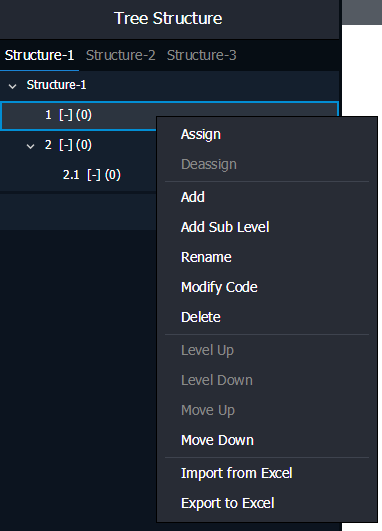

[Assign]
Assigns selected objects on the view to that level.
[Deassign]
Unassign objects assigned to the selected level.
[Add]
Adds the same level as the selected level.
[Add Sub Level]
Adds a sub level to the selected level.
[Rename]
Rename the selected level.
[Modify Code]
Modifies the code value of the selected level.
[Delete]
Delete the selected level.
[Level UP]
Changes the selected level to one higher level.
[Level Down]
Changes the selected level to one lower level.
[Move UP]
Moves the selected level up within the same level.
[Move Down]
Moves the selected level down within the same level.
[Import from Exel]
Imports structure information defined by the user in Excel.
[Export to Excel]
Export the current structure information to Excel.
[Import from Base Structure]
Imports Structure information defined in Base mode.
The Import from Base Structure function is only available in library mode.
Among the structures defined in Base mode, you can import the Structure you want to use in Library mode.
Reference Materials
Structure
