Summary
- Run animation by continuously playing the Named Views.
How to Run
- Ribbon Menu > [Model] Tab > [Tools] Group > Named View
Explanation

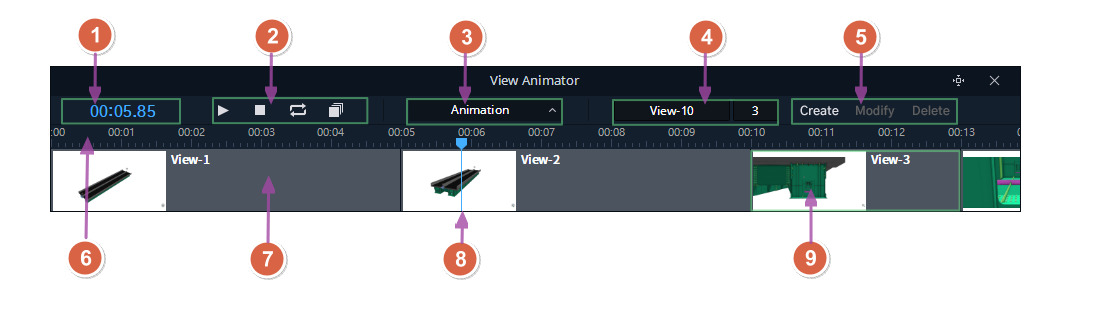

View Animator User Interface
Runs the View settings for animation.
(1) Current Time
Indicates the time at the point where the Time Marker is located.
(2) Play(Pause) / Stop / Repeat / Entire Group Button
Play(Pause) : A button to play or pause the animation.
Stop : Pressing the button stops playback and moves the Time Marker to 0 seconds.
Repeat : When ON, Play will repeat the entire playback section.
Entire Group : When ON, Play will play all Named View Groups sequentially.

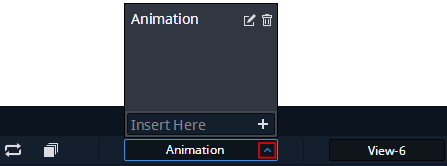

(3) ViewGroup
Displays the Named View Groups that are currently displayed.
Allows you to create or delete new groups.
(4) View Name / Duration
View Name : Set the name of the view.
Duration : Sets the duration of the playback.
(5) Create / Modify / Delete Button
Create
Generate a View for the camera angle in the current workspace.
Generate a View with the duration entered in the Work panel
Default duration = 3.0 sec
After creation is complete, a Time Marker is placed at the end of the generated View.
Modify
Modifies the camera angle of the selected view to the camera angle of the current workspace.
Modifies the value of the selected View, regardless of its position on the Time Marker.
Delete
Delete the selected View.
Note
To pan and rotate the View for setup, it is convenient to use the Ctrl + Wheel buttons.
- To rotate the view, hold down the Ctrl key and the mouse wheel button and drag to rotate.
- To pan the view, hold down the wheel button and drag to move it.
- To reposition the view, hold down the Ctrl key and scroll the mouse wheel button.
(6) Time Ruler
Indicates the time for the track.
(7) Track
The space in which the View is located.
(8) Time marker
Represents the position of the View as it appears in the current workspace.
Function execution
The initial state is located at 0 Sec.
Move
Hold and drag the triangular part at the top of the time marker.
The workspace is updated as you move.
Modify the camera angle of the workspace
You can rotate the angle of the screen while the Time marker is stationary.
In this case, the moment you move the Time marker by dragging it, the view will switch to the saved one.
(The information of the angle you turned will disappear.)
If you click Modify while changing the screen angle, it will modify the View to its current state.
(9) View
When you click a view once
The information in the view is displayed in the work panel and can be modified or deleted.
The position of the time marker does not change, so there is no change in the workspace.
When you double-click a view
The information of the view is displayed on the work panel, and you can modify / delete it.
The Time marker moves to the start position of the View, and the taskbar changes to the start position.
When changing the Duration value of a view in the work panel
Clicking the Modify button increases or decreases the width of the view by the value entered.
