Summary
- This function checks the coordinates of the coordinate extraction data defined in the Extract function.
How to Run
- Ribbon Menu > [Model] Tab > [Tools] Group > Coordi. Extract > Confirm
Explanation

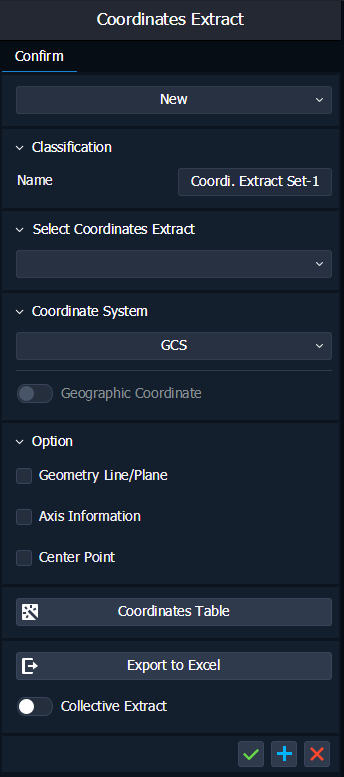

[Tab] Confirm
[Coordinates Extract Set]
Adds a new Coordinates Extract Set or checks or edits the selected Coordinates Extract Set.
[Classification]
Name : Enter a name for the coordinate extraction set.
[Select Coordinates Extract]
Select the coordinates extraction data to check. Coordinates extraction data defined in the Extract function is registered as a list.
[Coordinate System]
Coordinate System : Select the coordinate output standard.
GCS
UCS
Geographic Coordinate : Sets whether to output coordinates based on the geographic coordinate system.
[Option]
Set coordinate output options.
Geometry Line/Plane : Sets whether to include the coordinate data for the geometry line of a 1D member or the geometry plane of a 2D member in the coordinate output.
Axis Information : Set whether to include the coordinate data of the direction vector or axis such as Reference Axis, Normal, Major Axis in the coordinate output.
Center Point : Sets whether to include the coordinate data of the centroid(gravity center) of Line, Face, Solid in the coordinate output.
[Coordinates Table]
A dialog to check the extracted coordinate data is executed.
[Export to Excel]
Exports the extracted coordinate data in the form of an Excel file.
[Collective Extract]
Sets the range of coordinate extraction sets to be exported to Excel.
Off : Coordinate data for the currently selected Set is output to Excel.
On : Coordinate data for all registered sets is output to Excel.
Reference Materials
Coordinate Extract (Extract)
