Summary
- Measures values using the measure tool.
How to Run
- Ribbon Menu > [Model] Tab > [Tools] Group > Measure
Explanation

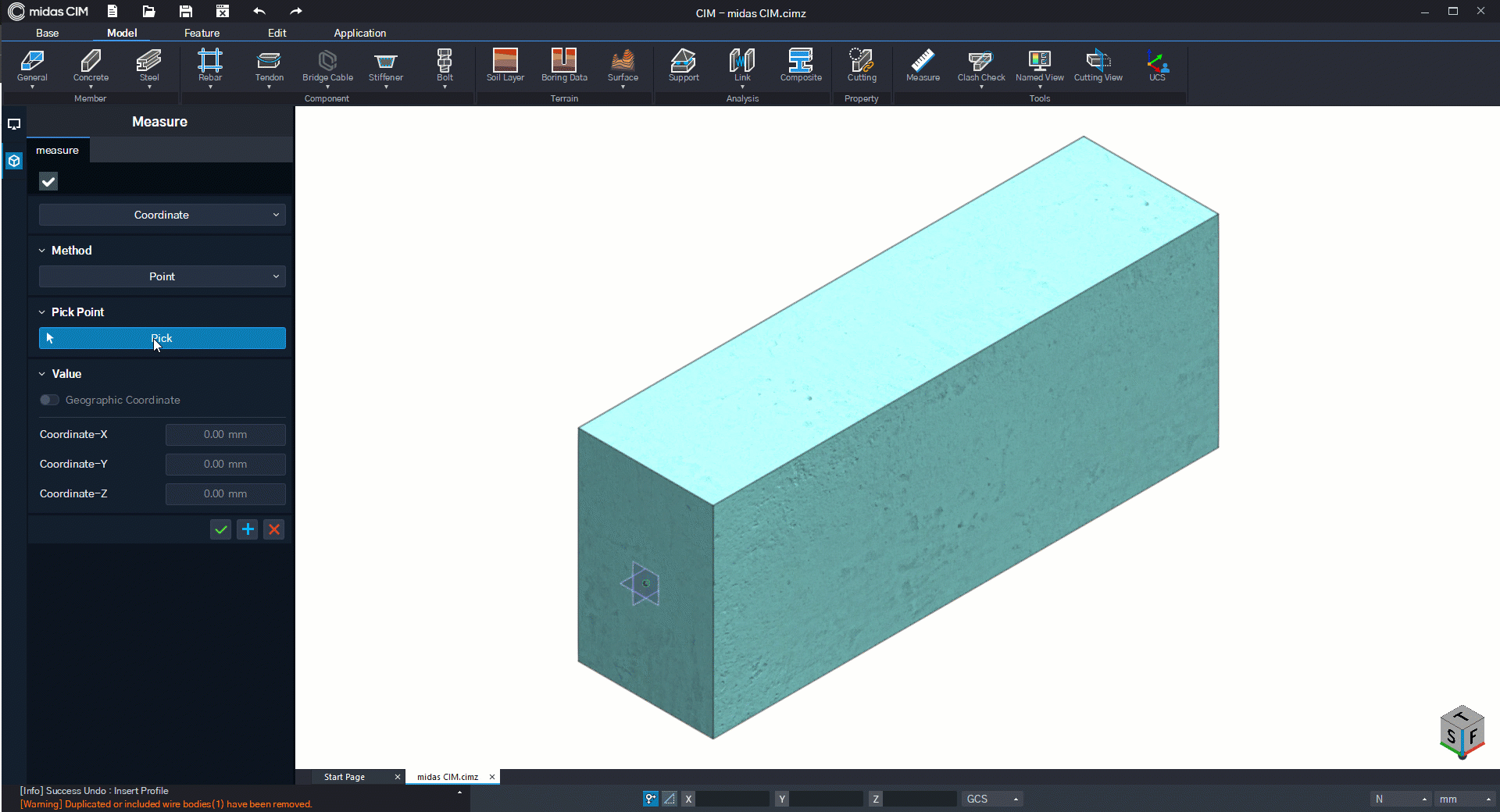

Coordinate Measure
Measure coordinates.
[Classification]
Select coordinats.
[Method]
Select the method to measure coordinate.
Point : Select the coordinates manually.
Select Vertex : Select the existing vertex.
By Layout : Select layout, and enter the station for which you want to get coordinates.
[Value]
The x, y, z coordinates of the selected point ared displayed.
Slope Measure
Measure slope.
[Classification]
Select the slope.
[Select Path]
Set the reference path.
[Pick Point on Face]
Select a point on the surface to measure the slope from the path.

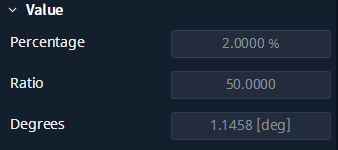

[Value]
Displays the slope (%), the ratio of horizontal distance to vertical distance 1, and the slope angle value.
Distance Measure
Measure distance.
[Classification]
Select the distance(Length).
[Method]
Select the method to measure coordinate.
Point-Point : Measures the distance between two points.
Point-Sub Shape : Mesures the shortest distance between a point and a sub-shape.
Between Sub Shapes : Measures the shortest distance between two sub-shapes.
Curve Length : Measures the sum of one or more edges.
[Value]
Displayed the measured value.

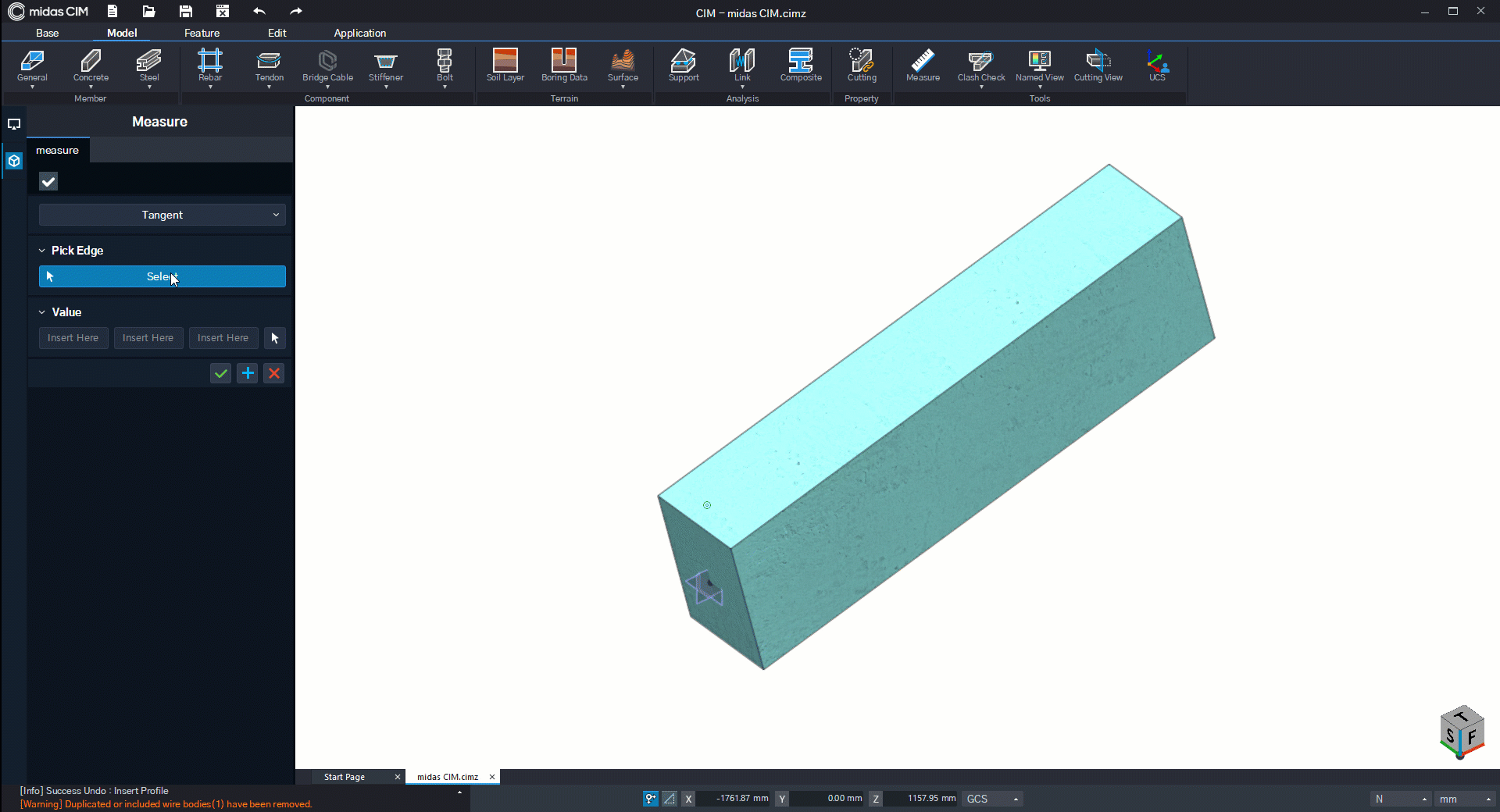

Tangent Measure
Measure the direction vector.
[Classification]
Select the tangent.
[Pick Edge]
Select the edge to measure.
[Value]
The direction vector of the selected edge is displayed.
Angle Measure
Measure angle.
[Classification]
Select the angle.
[Method]
Select the method to measure the angle.
3 Points : Select the start point, center point, end point to measure the angle in between.
Line-Line : Measure the intersecting angle between the two edges.
[Value]
Display the measured distance.
Area Measure
Measure area.
[Classification]
Select the area.
[Method]
Select the method to measure area.
Select Face(s) : Measure the area of the selected faces.
Select Body(s) : Measure the surface area of the selected bodies.
[Value]
Display the measured area.

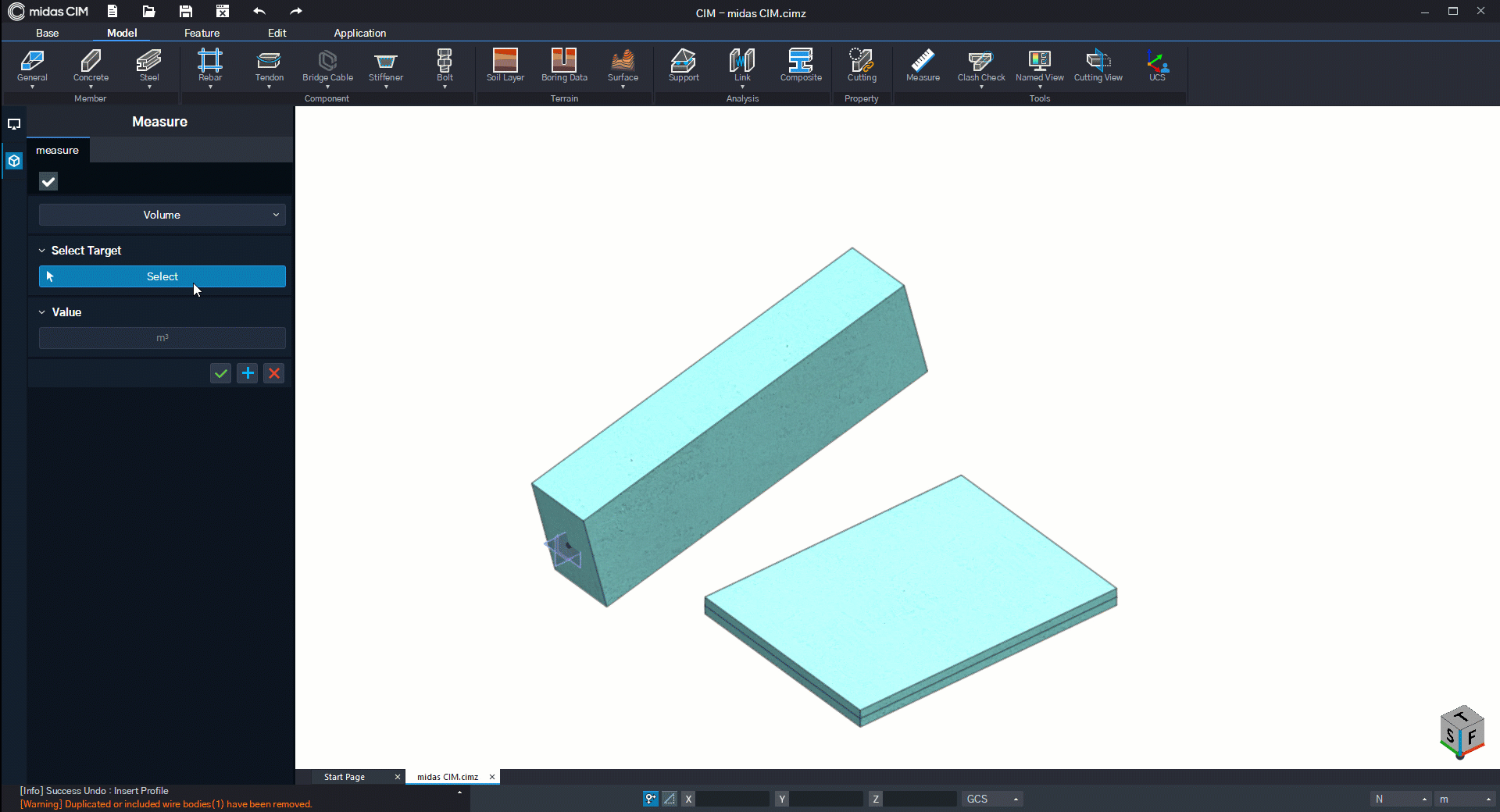

Volume Measure
Measure volume.
[Classification]
Select volume.
[Select Target]
Select the 3D body to measure volume.
[Value]
Displays the measured volume.
