Summary
- Set the Cutting View where the user can cut and view the desired location.
How to Run
- Ribbon Menu > [Model] Tab > [Tools] Group > Cutting View
Explanation

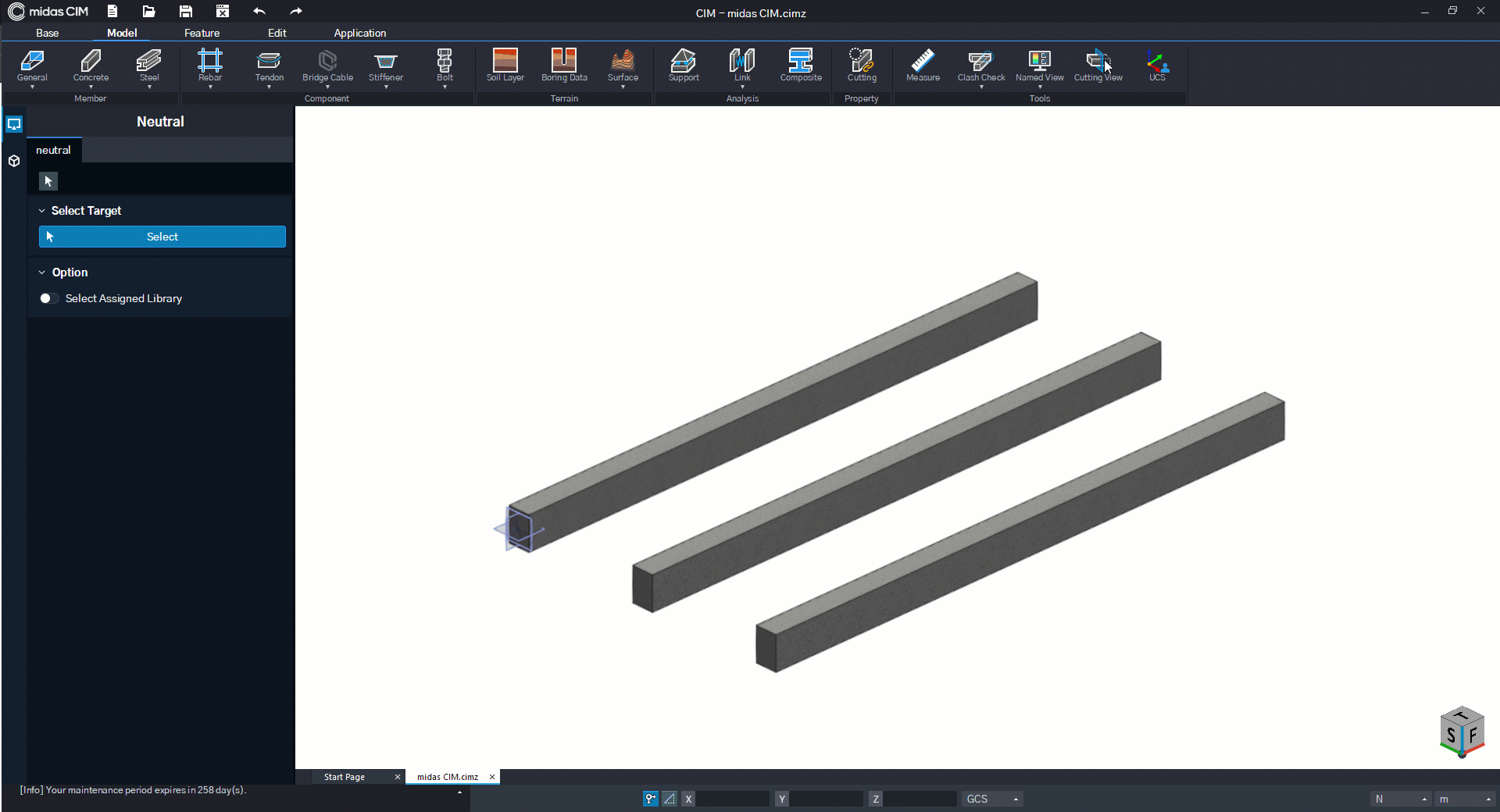

Define Plane Method
Sets the Cutting View by cutting into sections parallel to the selected path.
[Classification]
Set the ID and name of cutting view.
[Method]
Select the define plane.
[Define Plane]
Select the desired cutting position or plane parallel to the cutting position.
Note
Reference - Define Plane
[Distance]
Sets the vertical distance from the selected plane to the desired Cutting View.
[Visible Part]
When On, the opposite model divided into Cutting View is shown on the screen.

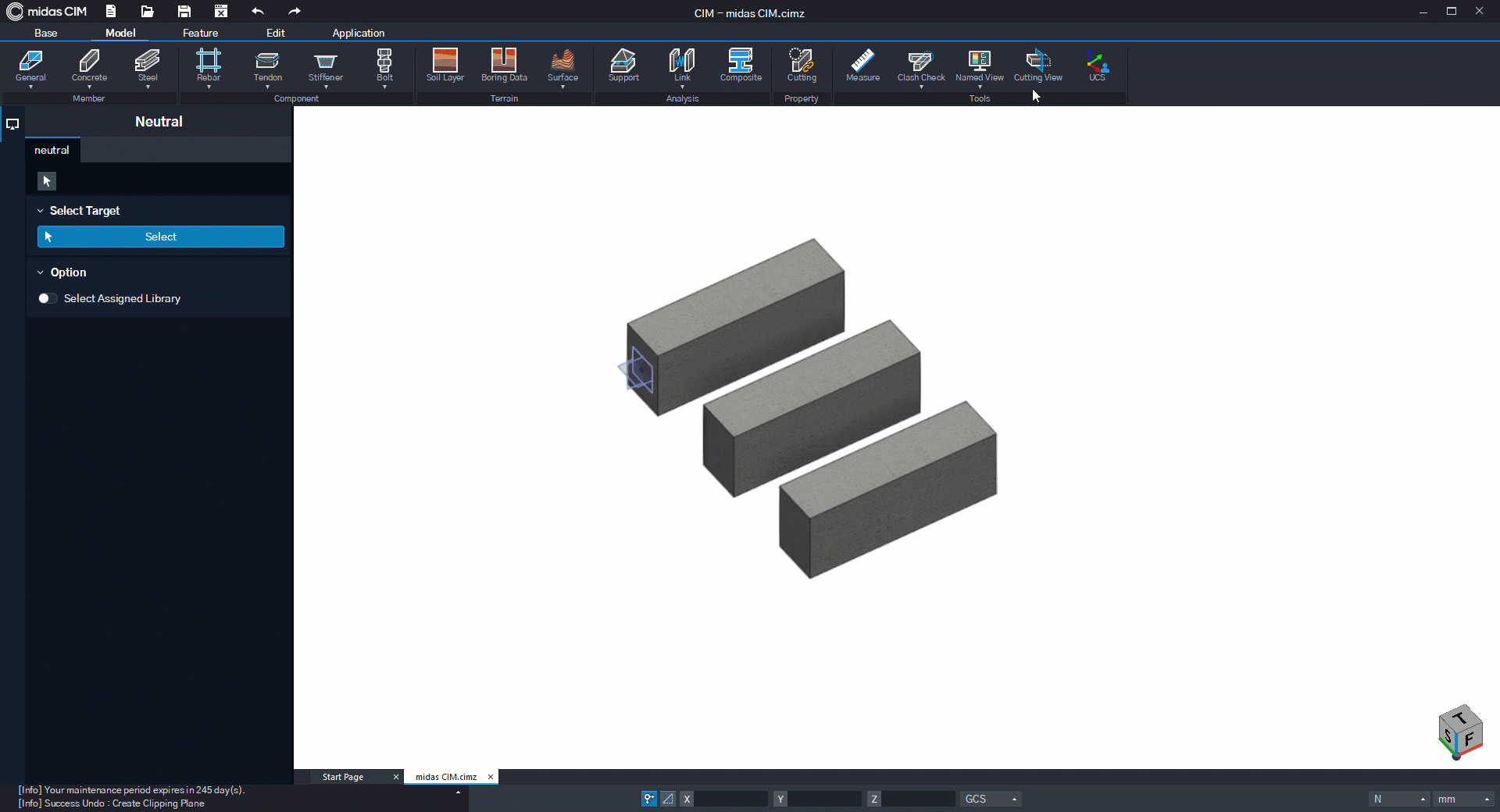

Define Path Method
Sets the Cutting View by cutting into sections perpendicular to the selected path.
[Classification]
Set the ID and name of cutting view.
[Method]
Select the define path.
[Define Path]
Select a path vertical from the desired cutting view.
[Distance]
Moves the Cutting View created perpendicular to the selected Path by the distance set in the Path direction.
[Visible Part]
When On, the opposite model divided into Cutting View is shown on the screen.
