Summary
- Ability to perform an actual interference review based on an interference review template and check the results.
How to Run
- Ribbon Menu > [Model] Tab > [Tools] Group > Clash Check > Generate
Explanation
Clash Check Feature

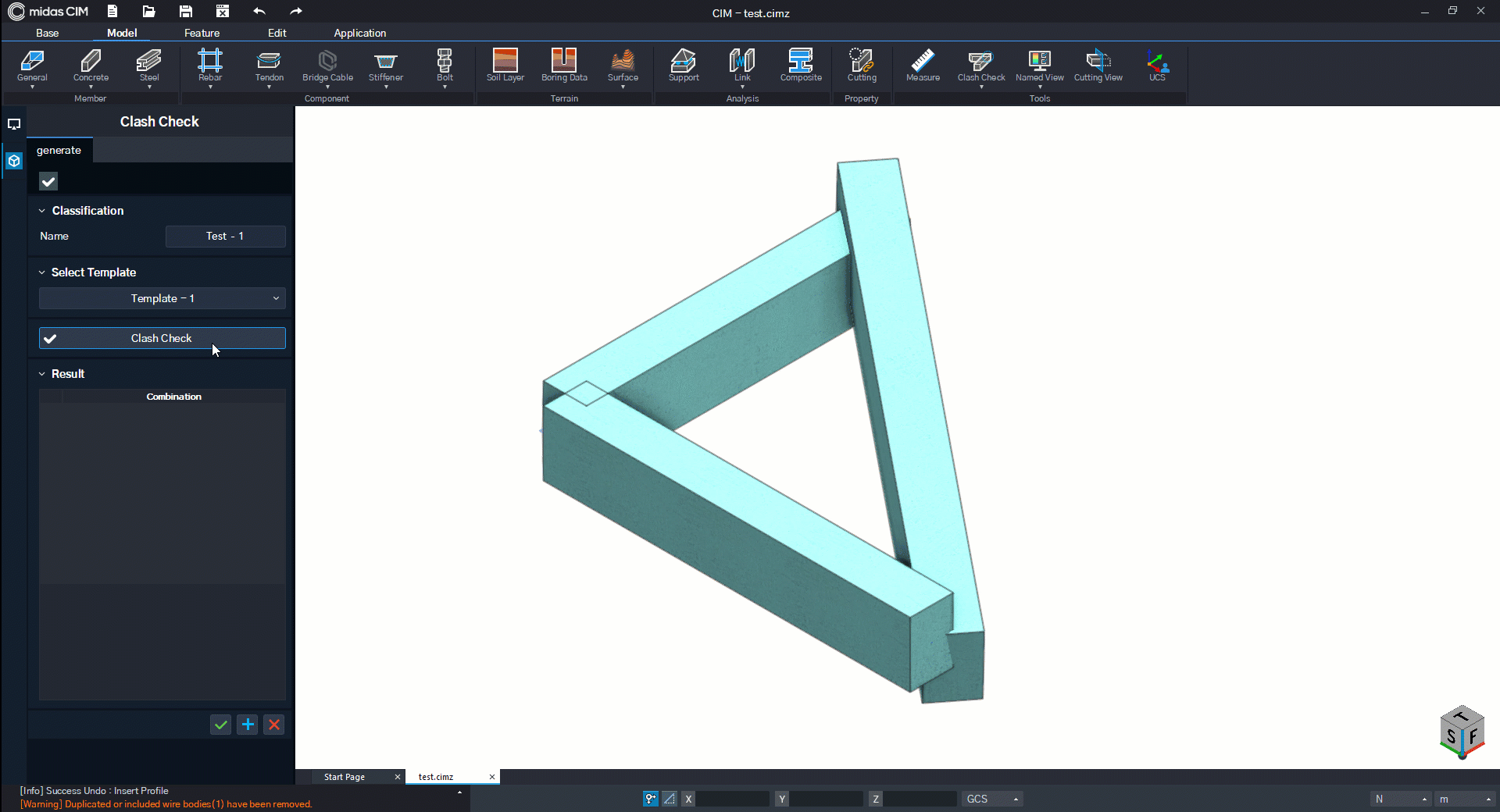

Perform an interference review using the template created earlier.
[Classification]
Set the name of the clash check.
[Select Template]
Select the previously created clash check template and click Clash check button.
[Result]
The result of clash check is displayed. Click apply to add to work tree.
Detailed Explanation (Using the Clash Check Results)
- The performed clash review can be found in the worktree.
- Double click on the clash check pair in the worktree to select that object and right click->Show Only to display only that object.
- After avoiding interference by changing the location of the clash object or modifying the value, right-click the clash result list in the work tree → Update the clash review result through Regenerate.
