Summary
- Create a template to check for clash.
How to Run
- Ribbon Menu > [Model] Tab > [Tools] Group > Clash Check > Template
Explanation

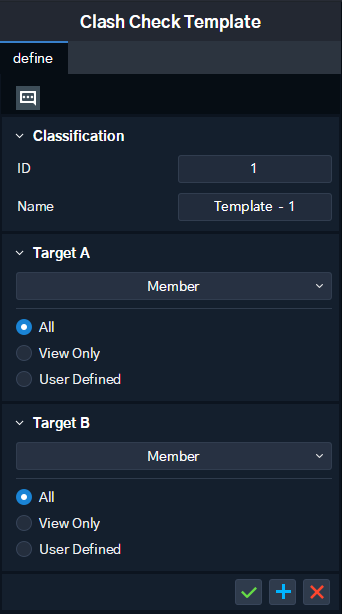

Clash Check Template Definition
Define the template to check for clash.
[Classification]
Set the ID and name of templates.
[Target A]
When checking for clash between Target A and Target B, select the objects in Target A.
[Target B]
When checking for clash between Target A and Target B, select the objects in Target B.
Member, Rebar, Tendon, Stiffener objects can be selected by type.
All : Indicates all objects.
View Only : Indicates the objects displayed in the workspace.
User Defined : Select objects manually.

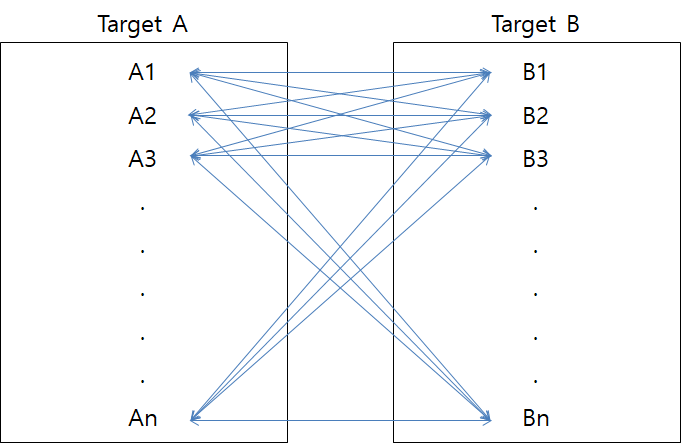

Review interference through 1:1 correspondence between the object selected for Target A and the object selected for Target B.
If Target A is An and Target B is Bn, the number of interference reviews will be (Anx Bn).

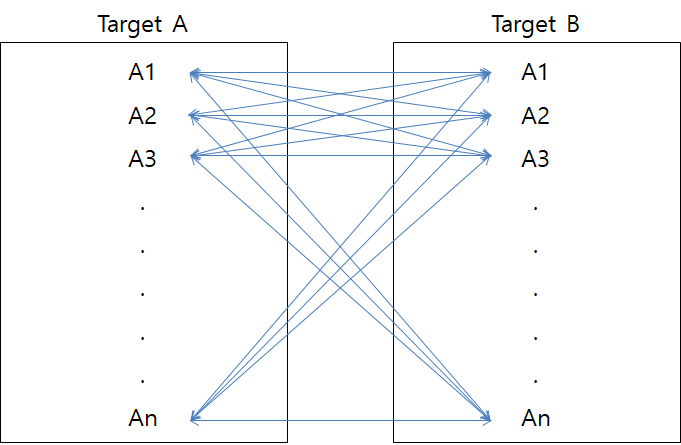

If the user wants to review interference between objects within the same group, the user can set the same object group for Target A and B.
