Summary
- Constrain an object to a single constraint point.
How to Run
[Point Library Mode]
- Ribbon Menu > [Point Library] Tab > [Expression Entity] Group > Single Point
Explanation

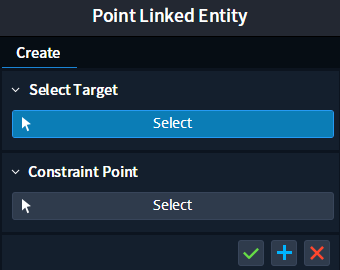

Create a Single Point Linked Entity

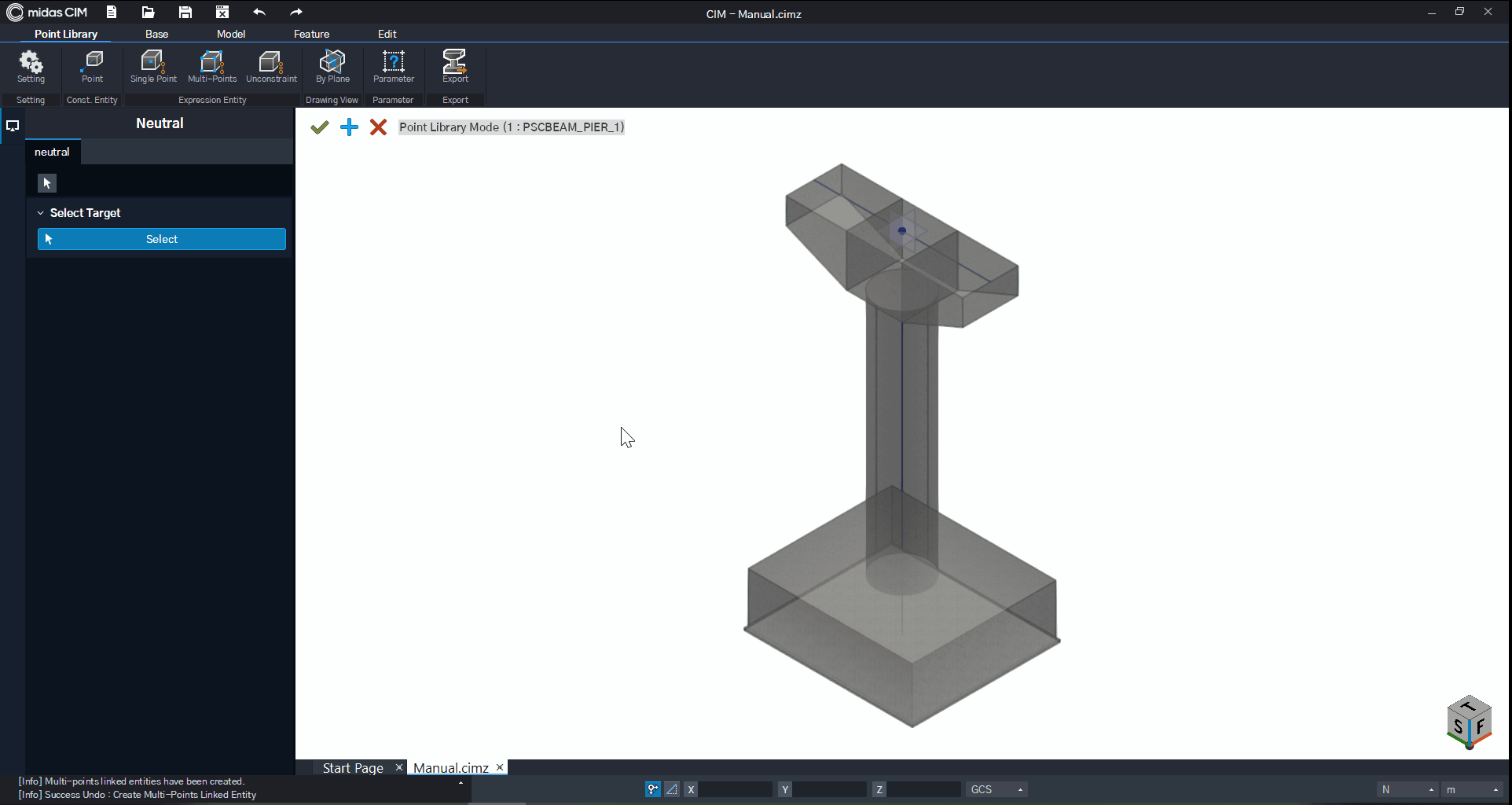

This feature constrains objects to an existing single Constraint Point.
Note
Once the library is assigned to Base mode, all constrained objects are assigned to Base mode based on the library’s origin. After calculating the relative position of the Constraint Point based on the origin, the corresponding Constraint Point is used to calculate the relative position of the object that becomes the library's origin for placement reference.
[Select Target]
Selects the Target object to Link to the Constraint Point.
[Constraint Point]
Selects the Constraint Point by clicking the Select button.
