Summary
- Create Constraint Points to constrain objects.
How to Run
[Point Library Mode]
- Ribbon Menu > [Point Library] Tab > [Constraint Entity] Group > Point
Explanation

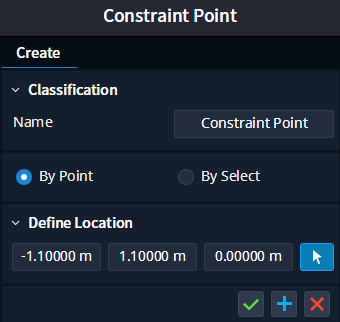

Constraint Point Feature
Create Constraint Points at specific locations.
[Classification]
Name : Name of the constraint point
[Define Location]

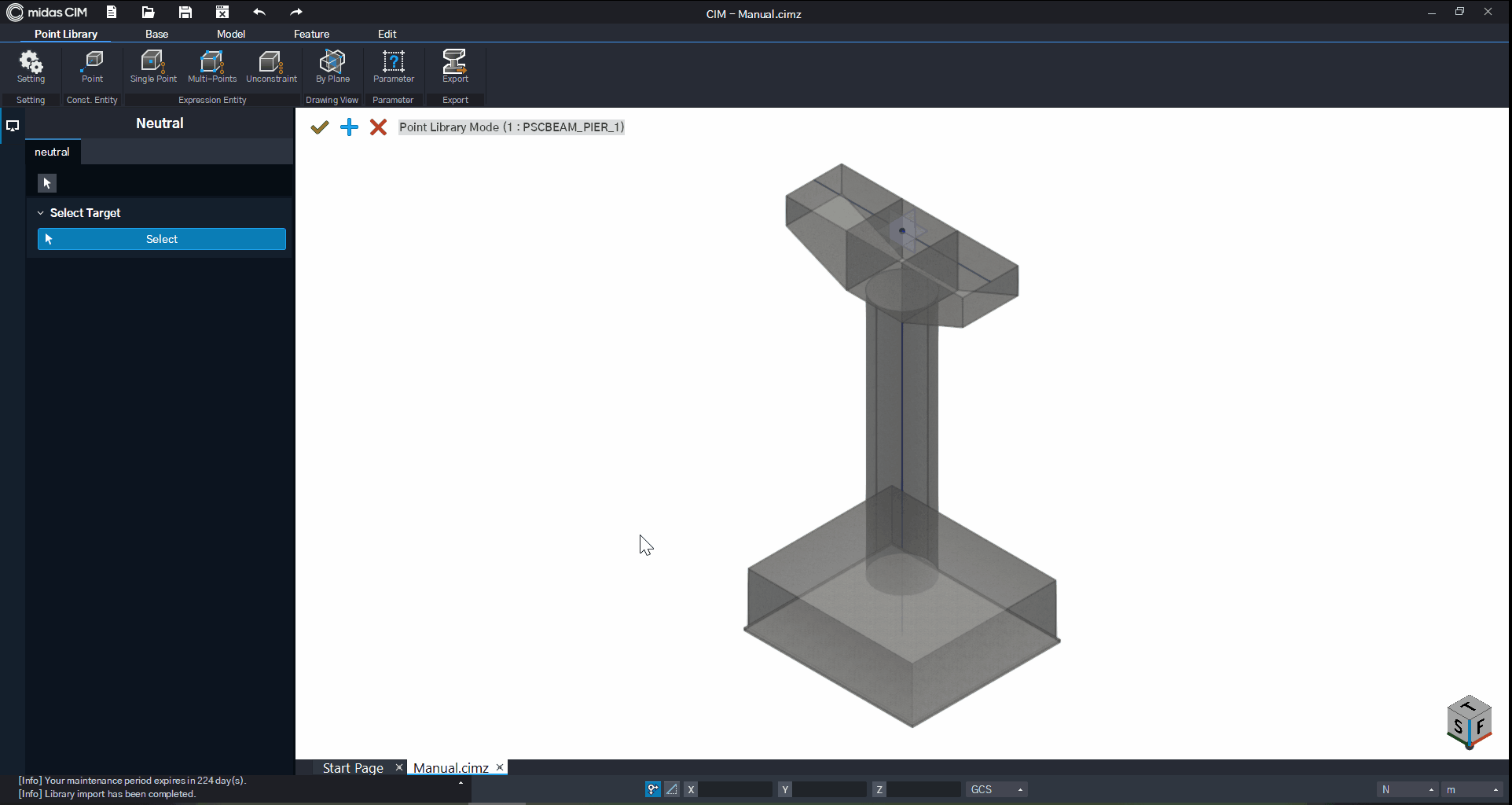

By Point : Click a point to create a Constraint Point at that location.
By Select : Select a Point or a Vertex of an object to create a Constraint Point at that location.

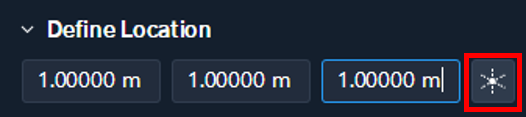

Directly place objects : Click the coordinate button and place objects directly.

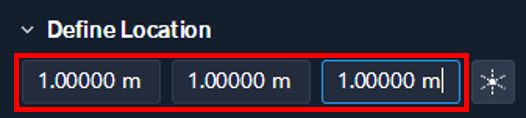

Enter coordinates to place objects : Enter the coordinates of the location where to place the object.
Multiple Constraint Points can be generated by clicking on the Add button.
The feature to create multiple Constraint Points are used in conjuction with the Multi-Points Linked Entity feature.
Note
Multi-Points Linked Entity
Note
The created Constraint Point can be parameterized to modify the shape by changing the parameter value.
Reference - Parameter Definition Functions(Point Library)
Reference - Parameter Link and Shape Change(Point Library)
Reference - Shape Change using Property Window(Point Library)
