Variation Group

Summary

• This is a function that allows the longitudinal curves of Path Linked Entities to be expressed as smooth continuous curves.

How to Run

[Curve Library Mode]

• Ribbon Menu > [Curve Library] Tab > [Expression Entity] Group > Path Linked > Variation Group

Explanation

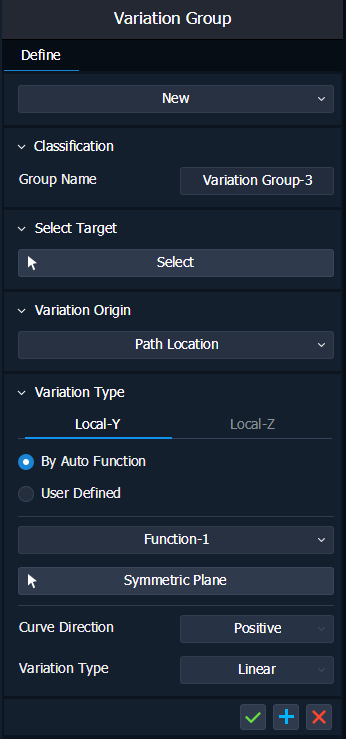

[Tab] Define

[Variation Group]

Adds a new Variation Group or checks or edits the selected Variation Group.

[Classification]

Group Name : Enter the name of the Variation Group.

[Select Target]

Select Path Linked Entity to be included in Variation Group.

[Variation Origin]

(per Vertex Set) Sets the base line for calculating Δd (difference in distance from the baseline) of the start and end sections.

Left-Bottom

Center-Bottom

Right-Bottom

Left-Center

Center-Center

Right-Center

Left-Top

Center-Top

Right-Top

Path Location

[Variation Type]

Sets the Variation Setting method.

By Auto Function : Interlocks curves from registered Auto Functions.

User Defined : The user defines the curve himself.

Select Auto Function : Select an Auto Function to interlock the curve. Only Auto Functions registered in the current mode can be selected.

Select Symmetric Plane : Select Constraint Plane to be applied as Symmetric Plane. Symmetric Plane means the location where the tangent of the variation curve is parallel to the X-axis.

Curve Direction : Sets the direction in which the curve is calculated from the Symmetric Plane.

Positve : The curve is calculated in the unit length direction of the current mode.

Negative : The curve is calculated in the opposite direction to the Unit Length of the current mode.

Variation Type : Select the type of variation of the curve.

Linear

Parabolic

Cubic

Polynomial

Order : Enter the order of the curve. It is activated only in case of ‘Variation Type : Polynomial’.

Reference Materials

Auto Function
