Summary
- Enter the library classification information (Ex. Names) and set the space.
How to Run
[Curve Library Mode]
- Ribbon Menu > [Curve Library] Tab > [Setting] Group > Setting
[Assembly Unit Mode]
- Ribbon Menu > [Assembly Unit] Tab > [Setting] Group > Setting

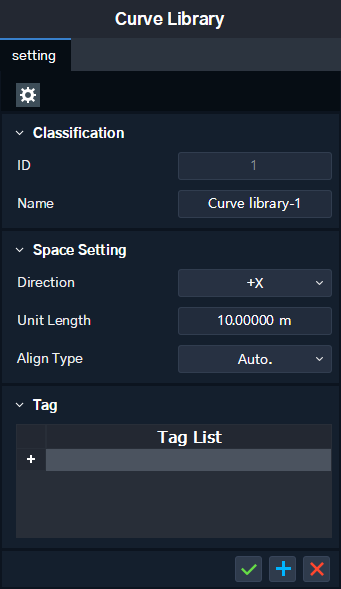

Explanation
[Classification]
The library’s classification information is entered into the Point Library.
ID : Unique number ID of the library
Name : Name of the Library
[Space Setting]
Sets the library space.
Direction : Sets the direction of the space.
Unit Length : Sets the length of the space.
Align Type : Sets the direction when the Constraint Plane that comprises the library space is assigned to the parent mode.
Tangential : When the library is assigned to the parent mode, the constraint plane is set vertical to the assigned path.
Parallel : When the library is assigned to the parent mode, the constraint plane is set to the Global-Z axis direction.
Auto. : Make sure to set the placement orientation in the direction set when assigning the library, not through the curve library.
[Tag]
Enter the library’s tag information.
