Summary
- Confirm or edit the property information of a Rigid Constraint Path.
How to Run
- Select the Rigid Constraint Path on the screen
Explanation

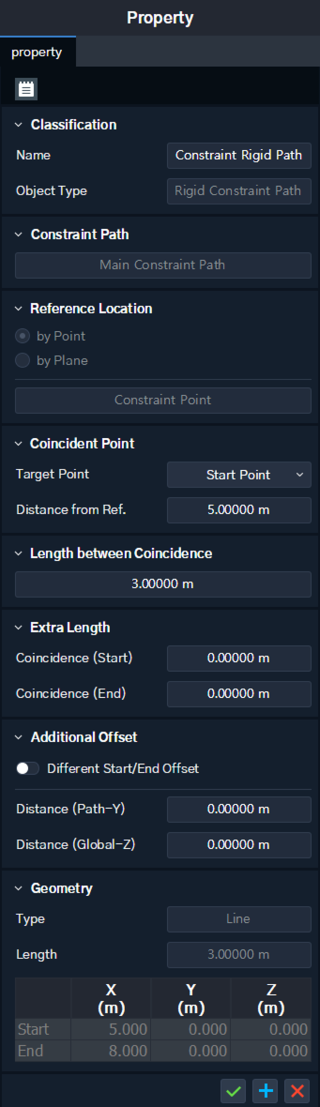

Common Tab
[Classification]
Confirm or edit the classification properties of a Rigid Constraint Path.
Name : Name
Object Type : Object Type
[Constraint Path]
Confirm the type of the Constraint Path selected when creating the corresponding Rigid Constraint Path.
[Coincident Point]
Target Point : When placing Rigid Constraint Path, select the base point for distance calculation.
Distance from Ref. : Comfirm or edit the distance the Target Point is away from the Ref.
[Length between Coincidence]
Confirm or edit the length of the Rigid Constraint Path.
[Extra Length]
Coincidence (Start) : Confirm or edit the additional length in the Start direction of the Rigid Constraint Path.
Coincidence (End) : Confirm or edit the additional length in the End direction of the Rigid Constraint Path.
[Additional Offset]
Confirm or edit the separation distance of the corresponding Rigid Constraint Path from the entered Y and Z axes.
[Geometry]
Confirm the geometric properties of an object.
Note
Reference - Geometry Properties
