Summary

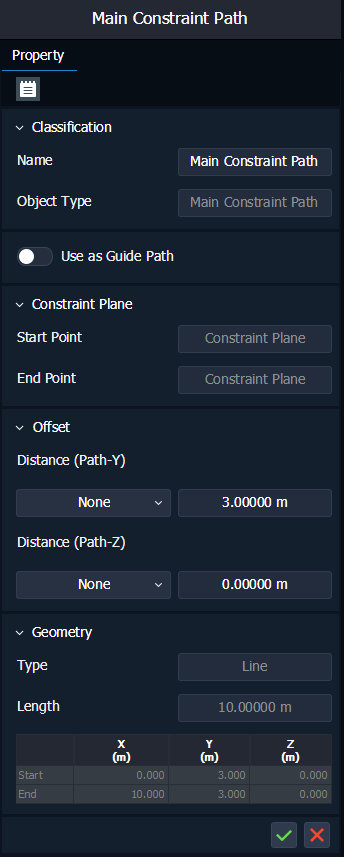

- Confirm or edit the property information of the Main Constraint Path.
How to Run
- Select the Main Constraint Path on the screen
Explanation
Common Tab
[Classification]
Confirm or edit the classification properties of a Constraint object.
Name : Name
Object Type : Object Type
[Offset]
Confirm or edit the separation distance of the Main Constraint Path from the Default Constraint Path.
Distance (Path-Y)
When None is selected, directly input the offset distance in the Y-axis direction without interlocking parameters.
When selecting a parameter(Coordinate Type), the corresponding parameter and the offset distance in the Y-axis direction are interlocked.
Distance (Path-Z)
When None is selected, directly input the offset distance in the Z-axis direction without interlocking parameters.
When selecting a parameter(Coordinate Type), the corresponding parameter and the offset distance in the Z-axis direction are interlocked.
[Geometry]
Confirm the geometric properties of an object.
Note
Reference - Geometry Properties
