Summary
- Create a reference line.
How to Run
[User Section Mode]
- Ribbon Menu > [User Section] Tab > [Parametric Tools] Group > Ref. Line
Explanation

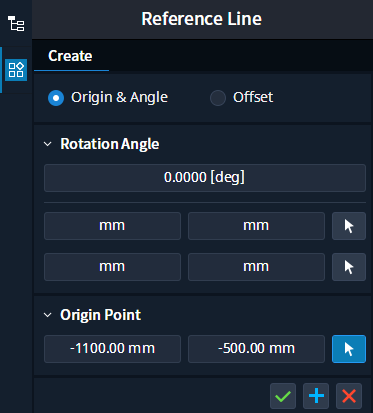

Origin & Angle Method
This is a method to create a reference line through the coordinates at the origin and the angle of rotation of X axis.
[Method]
Origin & Angle : Enter the angle of rotation between the origin and the X-axis to create a reference line.
Offset : Select an existing reference line and enter a separation distance from that reference line to create a new reference line.
[Rotation Angle]
Enter the rotation angle based on the x-axis.
[Origin Point]
Select where the origin of the reference line will be placed to create a new reference line.

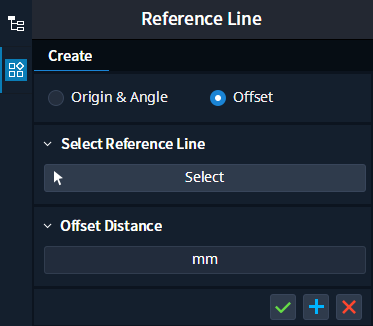

Offset Method
This is a method to create the reference line with input of offset distance from the prior selected reference line.
[Method]
Origin & Angle : Enter the angle of rotation between the origin and the X-axis to create a reference line.
Offset : Select an existing reference line and enter a separation distance from that reference line to create a new reference line.
[Select Reference Line]
Select an exisiting reference line.
[Offset Distance]
Enter the separation distance from the selected reference line to create a new reference line.
