Summary
- Change the values in the object’s property window to change the user-defined section shape.
How to Run
[User Section Mode]
- Reference Line
Select the reference line on the screen
- Dimension
Run Works Tree
Right click on the Dimension in the Works Tree
Click on Property under Context Menu
Explanation

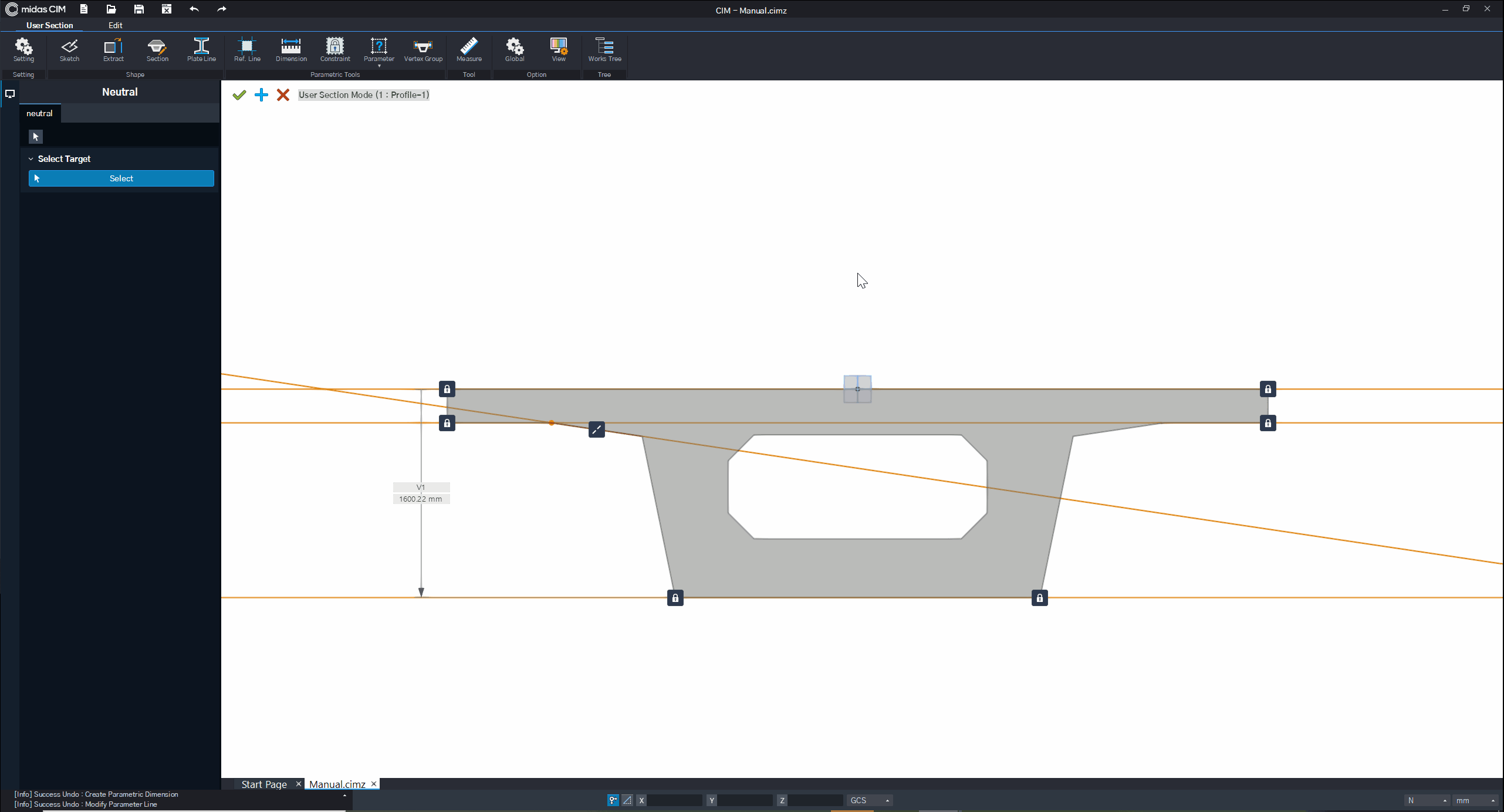

Change the Reference Line Angle to Change the User-Defined Section Shape
Change the reference line angle to change the section shape through interoperability.
[Rotation]
Parameter : To use the parameters to change the section shape, select the section dimensions to parameterize.
Value : Parametrize and change the rotation angle of the reference line to change the section shape.
Note
After linking the parameters, the value for the rotation block cannot be entered manually.
Note
The user can change the section shape by changing the values in the property window only if dimension and constraint conditions are appropriately connected.

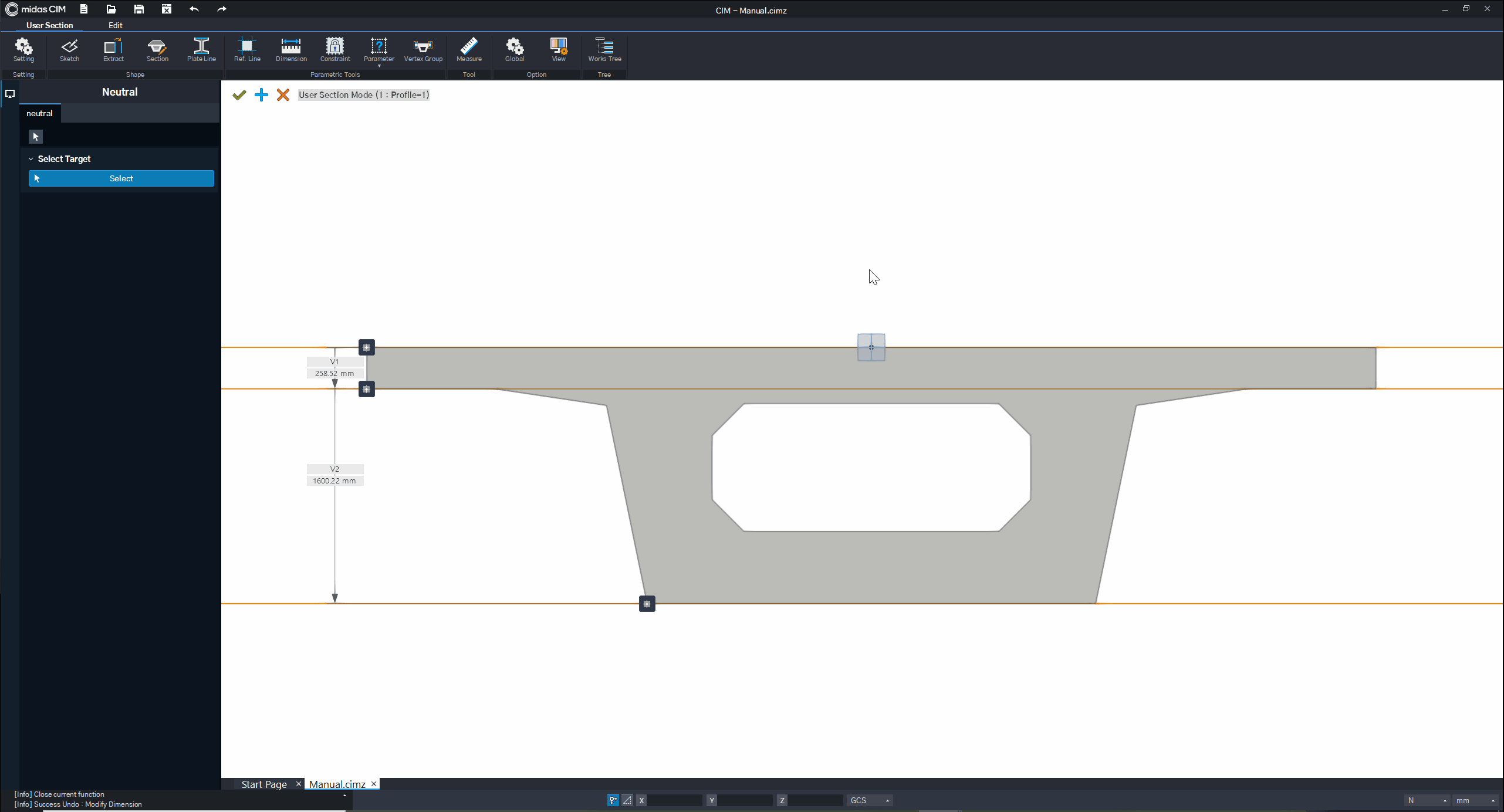

Change the Dimension Value to Change the User-Defined Section Shape
Change the dimension value to change the section shape through interoperability.
[Dimension]
Parameter : To use the parameters to change the section shape, select the section dimensions to parameterize.
Parameter : Parametrize and change the selected dimension to change the section shape.
Note
The user can change the section shape by changing the values in the property window only if dimension and constraint conditions are appropriately connected.
