Shape Change using Property Window (Point Library)

Summary

• Change the library shape by changing the coordinates of the constraint point.

How to Run

[Point Library Mode]

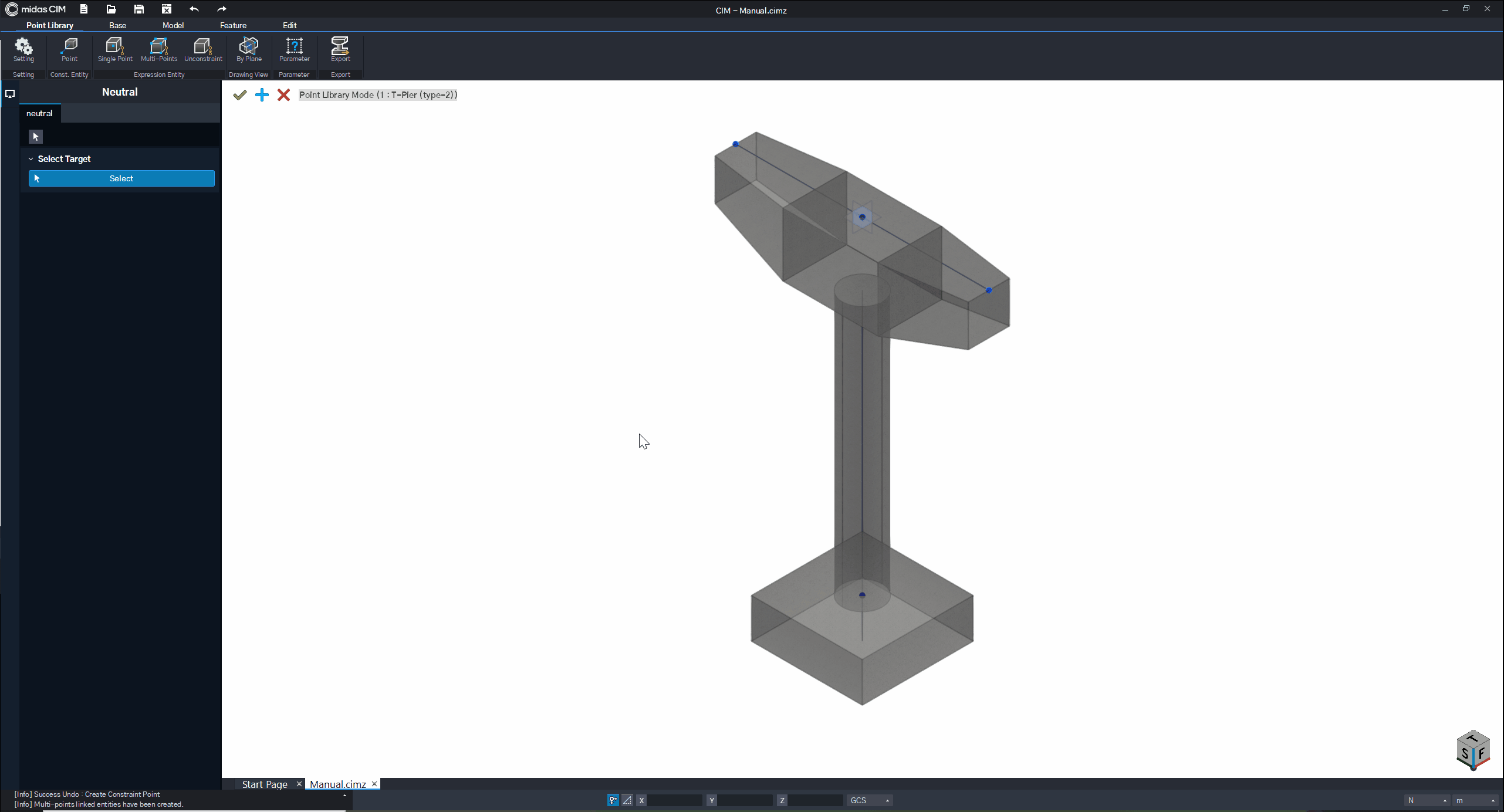

• Select the constraint point on the screen

Explanation

Change the Library Shape by Changing the Coordinates of the Constraint Point

Change the library shape by using the parameter feature.

[Geometry]

Parameter (X) : Link the x-coordinates of the constraint point with a parameter.

Parameter (Y) : Link the y-coordinates of the constraint point with a parameter.

Parameter (Z) : Link the z-coordinates of the constraint point with a parameter.

Note
The objects in the library need to be first constrained to multiple constraint points using the multi-points feature of the point library. Then the library shape can be changed by changing the coordinate values of the constraint point.
Reference - Multi-Points Linked Entity

Reference Materials

Constraint Point

Multi-Points Linked Entity
