Summary
- Change the properties of 1D analytical elements.
How to Run
[Analysis Mode]
- Ribbon Menu > [Analysis] Tab > [Property] Group > Change
Explanation
Change the longitudinal direction of 1D elements
Reverses the longitudinal direction of 1D elements.

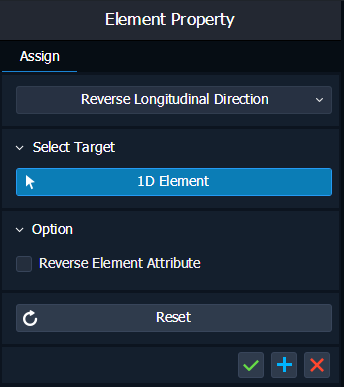

[Element Property Type]
Select the attribute type of the element you want to change.
Reverse Longitudinal Direction : Reverse the longitudinal direction of 1D elements.
[Select Target]
Select the target(1D Element).
[Option]
Reverse Element Attribute : Changes the direction of 1D Element.
If true, changes the element's forward direction to the opposite direction.
[Reset]
1D members with Reverse Longitudinal Direction settings applied are initialized to the state before applying the settings.
