Summary
- Convert 1D members to Tapered Section Groups when connecting to Civil.
How to Run
[Analysis Mode]
- Ribbon Menu > [Analysis] Tab > [Property] Group > Tapered Group
Explanation

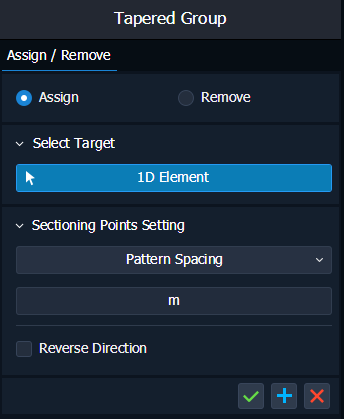

Tapered Section Group Conversion
Convert 1D members to Tapered Section Group.
[Tapered Group Type]
Select whether to assign Tapered Section Group attributes.
Assign : Assign Tapered Section Group attributes.
Remove : Remove Tapered Section Group attributes.
[Select Target]
Select the target(1D Member).
[Sectioning Points Setting]
Set the sectioning points of Tapered Section Group.
Arrangement Type : Select an array type.
Value : Enter the array value.
Reverse Direction : Sets the direction of the array.
Pattern Spacing : Receives the number and spacing and arranges as many as can be inserted at set intervals. It does not arrange the remainder with a value smaller than that interval.
Uniform Divisions : Receives the number of divisions to be divided, calculates values that do not exceed the input interval, and arranges them at equal intervals.
User Defined : Receives the number and spacing in a user-defined format and arranges them. (Enter as 'count@interval' rule. (ex. 3@0.2m))
