Divide

Summary

• This feature divides the Concrete Member into pour units.

How to Run

• [Construction Mode] Ribbon Menu > [Construction] Tab > [Pouring Part] Group > Divide

Explanation

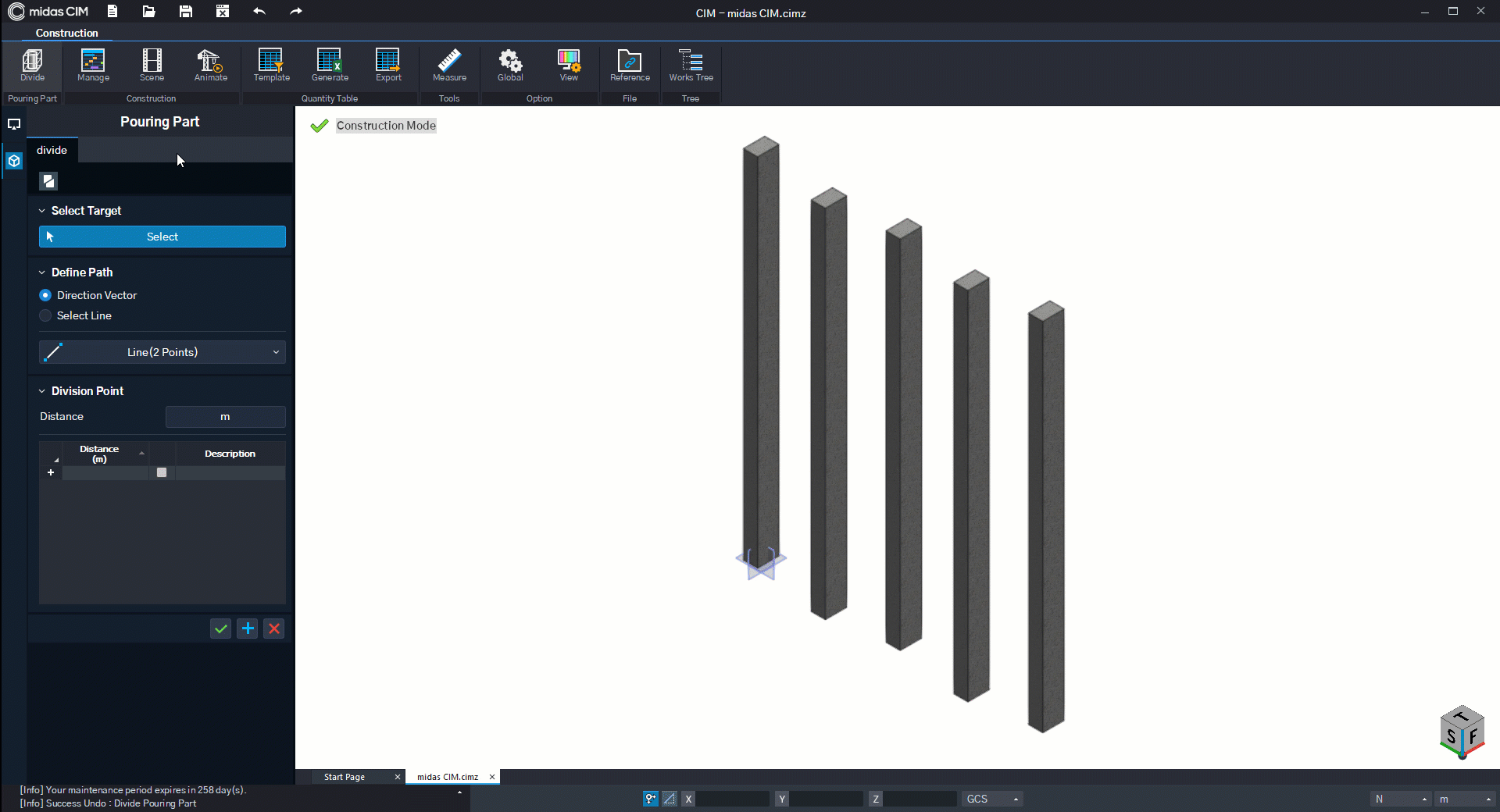

Method to Divide into Pour Units

Divides the concrete object into pour units.

[Select Target]
Select the Concrete Member to divide.

[Define Path]

Select the path to divide vertically.

Direction Vector : Sets the path’s direction on the screen using the 2 Points method.

Select Line : Sets the path direction in the direction of the selected line object.

[Division Point]
Enter the division points.

Distance : Enter the division points in a table using the ‘number of points @ distance’ method.

Table : Enter the division points directly.
