Summary
- Run animations based on Scenes created using the Manage and Scene features.
How to Run
- [Construction Mode] Ribbon Menu > [Construction] Tab > [Construction] Group > Animate
Explanation

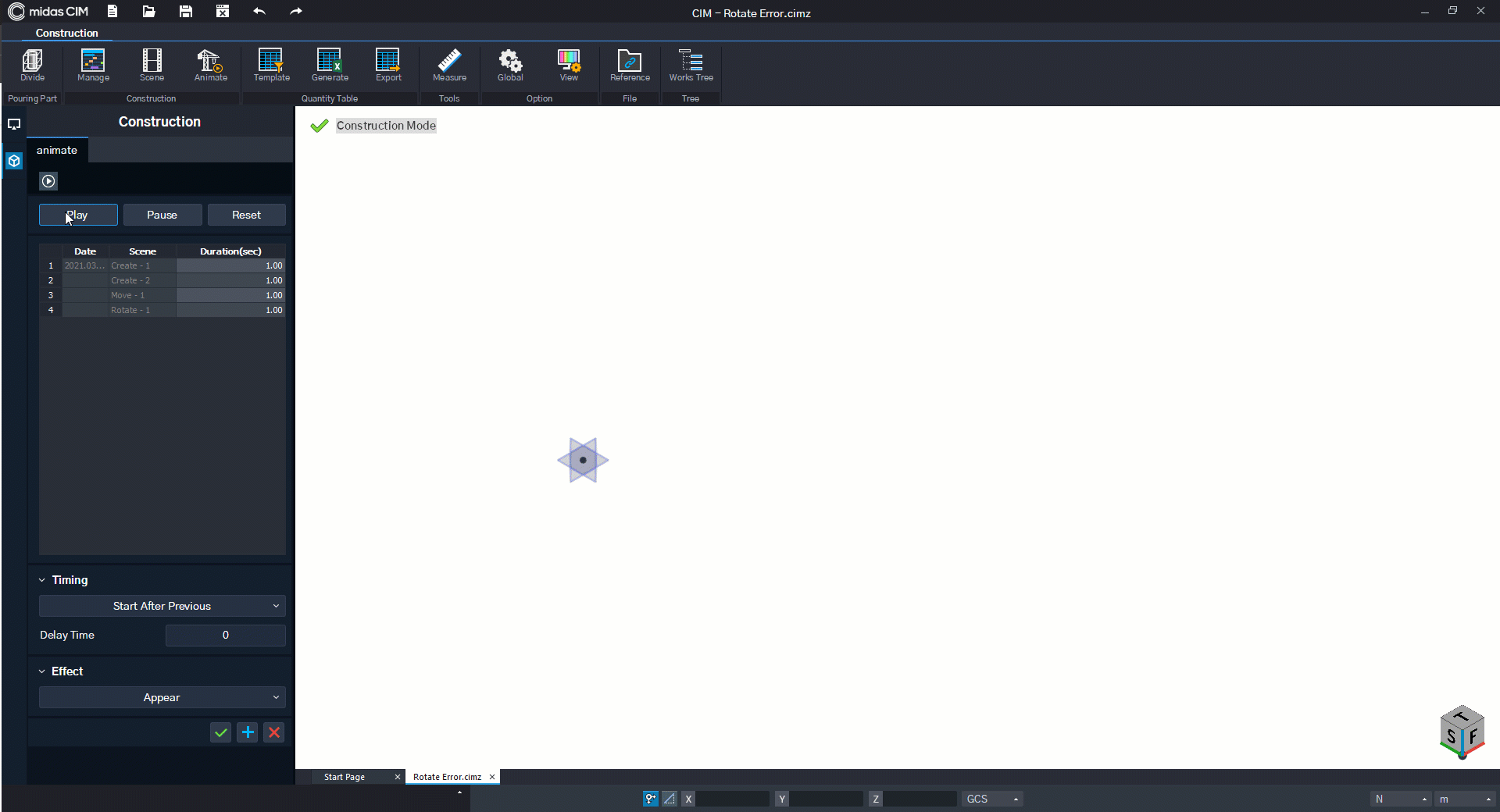

Run Animation
Run animations based on Scenes.
[Button]
Play : Run Animation
Pause : Pause Animation
Reset : Reset Animation
[Table]
Date : Date (Cannot be modified)
Scene : Scene Name (Cannot be modified)
Duration : This is the duration of the Scene. This can be modified.
Set Timing
Sets the timing for the scene.
[Timing]
Set the timing for the scene.
Start With Previous : The scene starts with the previous scene.
Start After Previous : The scene starts after the previous scene.
Delay Time: The scene is delayed by the entered Delay Time.
Set Effect
Set scene-specific effects.
[Effect]
Create Scene
Appear : The scene is created at the end of duration at one.
Fade In : The scene is gradually generated with reduction in transparency.
Move Scene
Constant Speed : The scene moves at a Constant Speed in the given duration.
Skip : The scene moves all at once at the end of the duration.
Rotate Scene
Forward : The scene rotates in the direction of the smaller rotation angle.
Backward : The scene rotates in the opposite direction (direction of larger rotation angle).
Skip The scene rotates all at once at the end of the duration.
Remove Scene
Disappear : The scene disappears all at once at the end of the duration.
Fade Out : The scene gradually disappears with an increase in transparency.
