Summary
- This feature creates the Quantity Table template.
How to Run
[Construction Mode]
- Ribbon Menu > [Construction] Tab > [Quantity Table] Group > Template
Explanation
Set the Quantity Template
Set the Quantity Calculation Template.

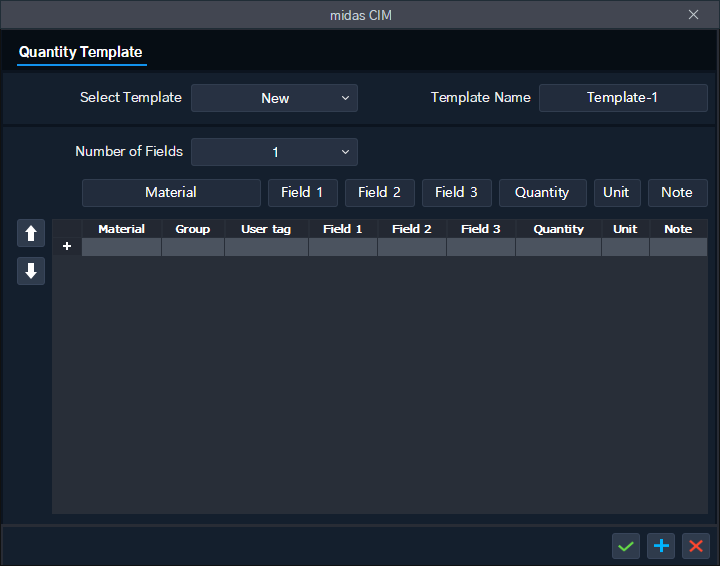

[Dialog] Quantity Template
[Select Template]
Create a new Quantity Calculation template or select an existing Quantity Calculation template.
[Template Name]
Enter the name of the Quantity Calculation template.
[Number of Fields]
Enter the number of Fields. The number of fields input determines the fields available in the Template.
[Template Table]
Sets up the Quantity Calculation template, such as material, subgroups, construction type, and quantity units.
Enter Row in the Configuration Item : Enter the name of each Configuration Item in each column.
Column configuration in the Template Table
Material : Select the Material Type.
Group : Select the Sub Material Type.
User tag : Enter the name of the material to be shown in the Quantity Calculation sheet. (If empty, enter the material)
Field 1 / 2 / 3 : Select the field item based on material.
Quantity : Set the criteria for quantity calculation. (Volume / Area / Length / Weight / Number)
Unit : Select the unit according to the quantity calculation criteria. The unit items depend on the quantity calculation criteria.
Note : Sets the quantity calculation option for each material type. It is also used as a comment column in the quantity calculation template.
Object Only : Calculates the quantity for objects of that material type.
All : Quantity is calculated including accessories as well as objects of that material type.
Coupler (Rebar) or Anchorage (Tendon) : Calculates the quantity of the accessories of that material type.
Note
For ‘Material Type : Rebar / Tendon’, the quantity calculation option can be set in the Note column.
Coupler : This is a Rebar accesory and its quantity is calculated by number of units.
The quantity is calculated based on the largest diameter of the rebar that is connected to the coupler.
Anchorage : This is a Tendon accesory and its quantity is calculated by number of units.
