Summary
- Show/Hide scenes based on Create/Remove Scenes created using the Manage feature.
- The Move/Rotate Scene according to date.
How to Run
- [Construction Mode] Ribbon Menu > [Construction] Tab > [Construction] Group > Scene
Explanation
Switch screen based on Scene
Display the desired Scene.
[Select Date]
Select the desired date. Only dates defined in the Manage feature can be selected.
Scene List : Scenes associated with the selected dates are displayed.
The task screen’s Show/Hide is adjusted based on the selected Scene.
↑ / ↓ : Move the selected scene up/down.
Add : Add a new Scene.
Modify : Modify the Target information of the selected Scene.
Delete : Delete the selected Scene.

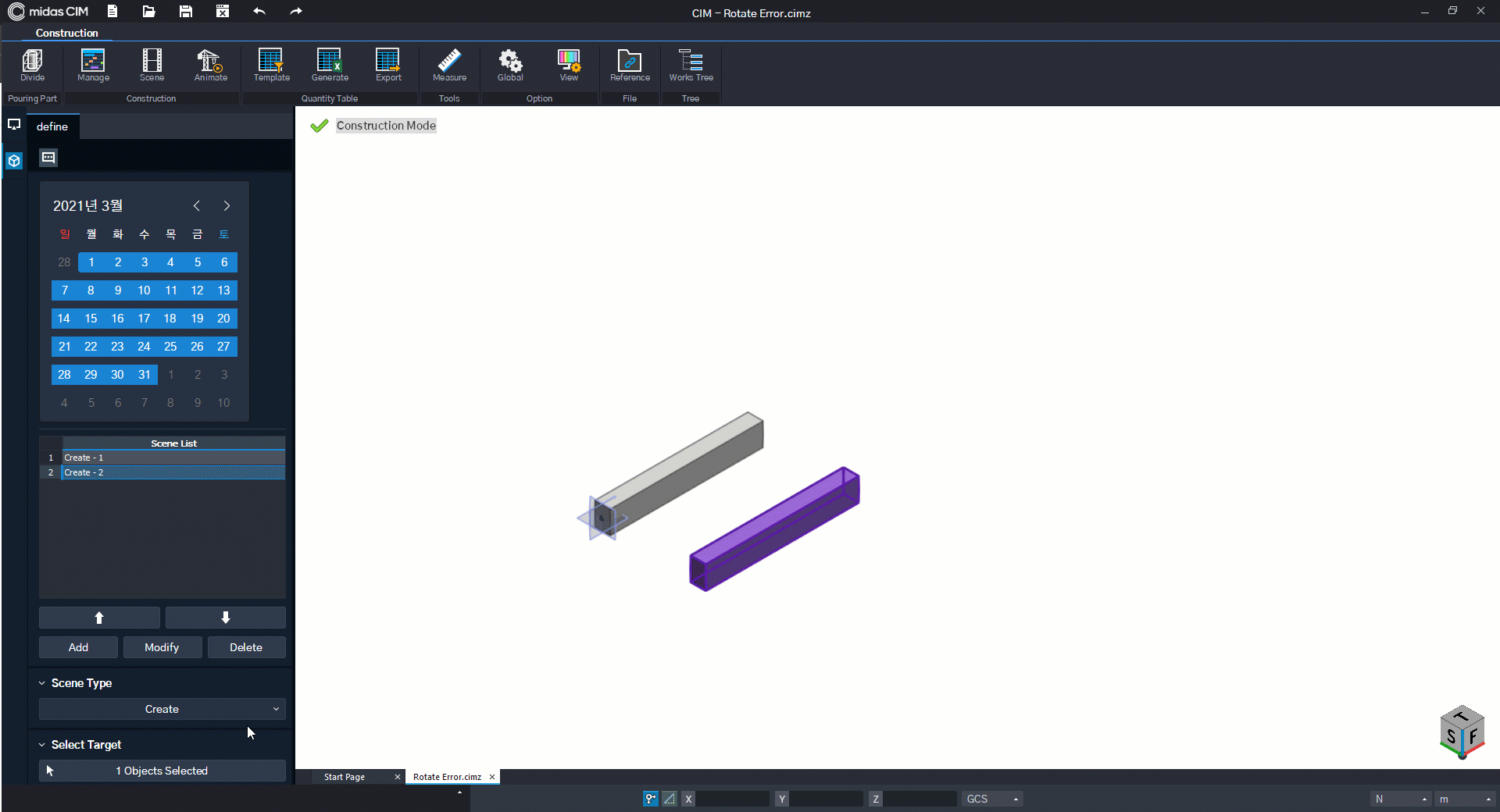

Create a Move Scene
Save the Scene after moving the object.
[Scene Type]
Select Move.
[Select Target]
Select the target object.
[Method]
Select the Movement method.
Note
Reference - Move

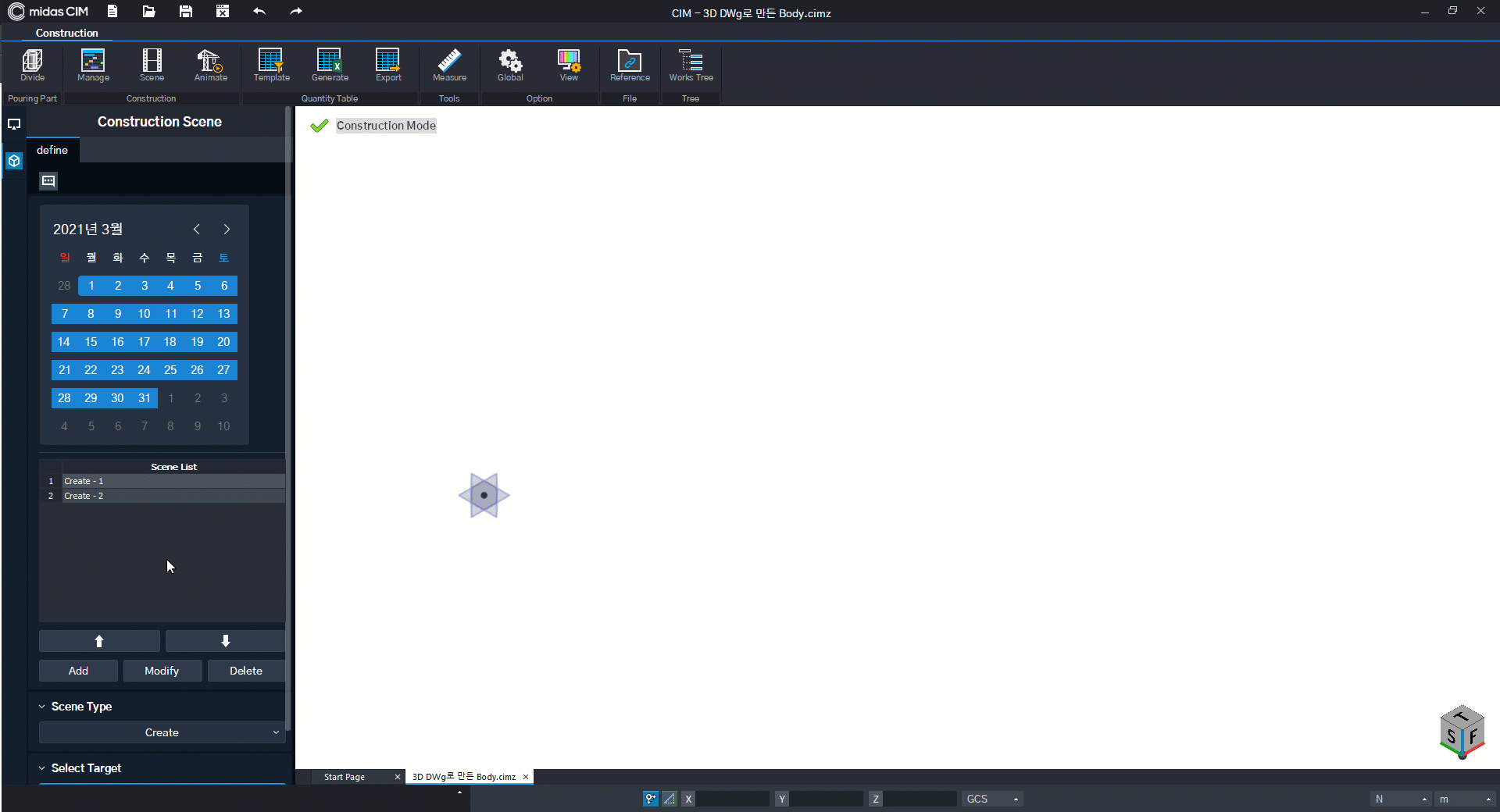

Create a Rotate Scene
Save the Scene after rotating the object.
[Scene Type]
Select Rotate.
[Select Target]
Select the target object.
[Method]
Select the Movement method.
Note
Reference - Rotate
