Summary
- Imports various 3D CAD files.

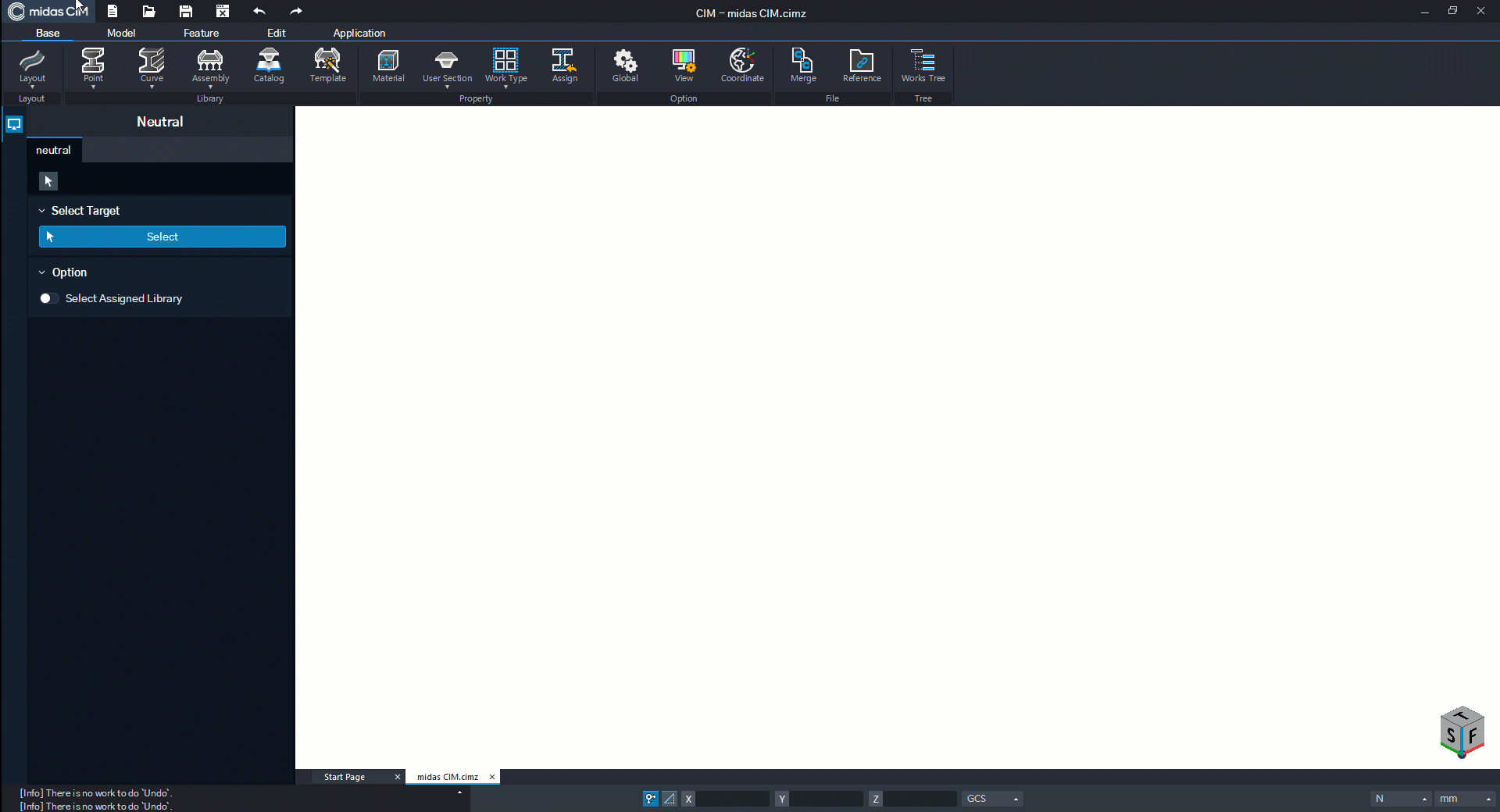

How to Run
[Base Mode] / [Point Library Mode] / [Curve Library Mode] / [Assembly Unit Mode]
- File Menu > Import > DWG/DXF > 3D CAD
Explanation
Import 3D CAD model
Imports *.x_t, *.x_b, *.xmt_txt, *.xmt_bin files.
[Search]
Select the 3D CAD file to import. Once selected, the file will be imported.
Detailed Explanation (Import supported 3D CAD)
Parasolid (*.x_t, *.x_b, *.xmt_txt, *.xmt_bin)
