Summary
- Imports a mct file (*.mct) from MIDAS CIVIL.
How to Run
[Base Mode]
- File Menu > Import > MIDAS CIVIL
Explanation
Import MCT model
Imports a *.mct file.
[Search]
Select the *.cimz file to import. Once selected, the Phase below will be displayed.
[Fit Model]
An option to merge consecutive elements with the same cross-section and direction into one curve.
Curve Type : Select the Curve Type when replacing consecutive elements with a single curve.

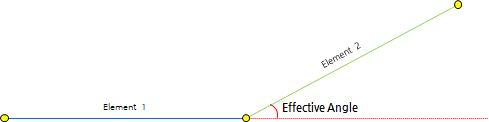

Effective Angle : Only elements with angles less than the set effective angle are replaced with a single curve.
DB/USER Type
Compatibility
The six cross-sections below are not compatible.
Cold-Formed Channel
Upright
U-RIB
Box with Stiffener
Pipe with Stiffener
Excludes Inverted T-Section
Value Type
Compatible
Line Type under General Section is not compatible.
SRC Type
Not Compatible
Combined Type
Not Compatible
PSC Type
Types below are compatible
1 CELL
2 CELL
3 CELL
PSC Value > oPoly
PSC Value > iPoly
Tapered Type
All sections currently compatible and supported are also compatible with Tapers.
Composite Type
Not Compatible
Steel Girder Type
Steel Girder Box Compatible
Steel Girder I Not Compatible
