Summary
- Imports Land XML file (*.xml).
How to Run
[Base Mode]
- File Menu > Import > Land XML
Explanation
[Search]

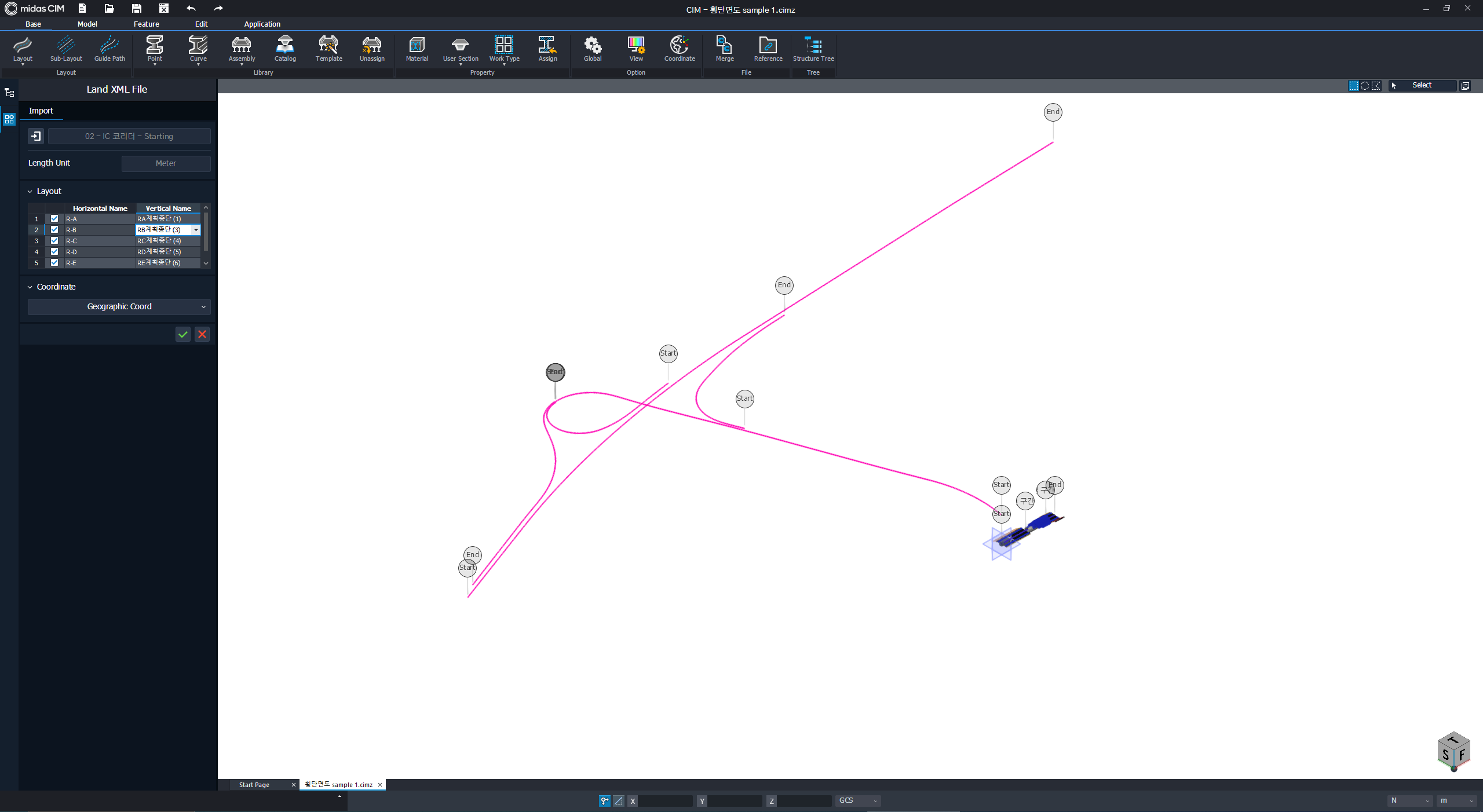

Select the *.ifc file to import. Once selected, the UI below will be displayed.
[Import Button]
Execute File Explorer again.
[File Name]
Outputs the name of the Land XML file.
[Length Unit]
Outputs the length unit set in the Land XML file.
[Layout]
Check the layout information of the Land XML file.
Check Box : Select the layout to import.
Horizontal Name : Name of horizontal alignment
Vertical Name : Name of vertical alignment
If there are multiple vertical alignment information for one horizontal alignment, the desired vertical alignment can be selected and imported.
[Coordinate]
Specifies the creation position of the layout.
Geographic Coord : Import the geographic coordinate system set in the Land XML file.
(X, Y) = (0, 0) : Import as CIM modeling origin coordinates.
