Parasolid

Summary

• Export CIM object as a Parasolid (*.x_t, *x_b).

How to Run

• File Menu > Export > Parasolid

Explanation

Export Parasolid Files

Export as a *.x_t, *x_b file which is a Parasolid text file format.

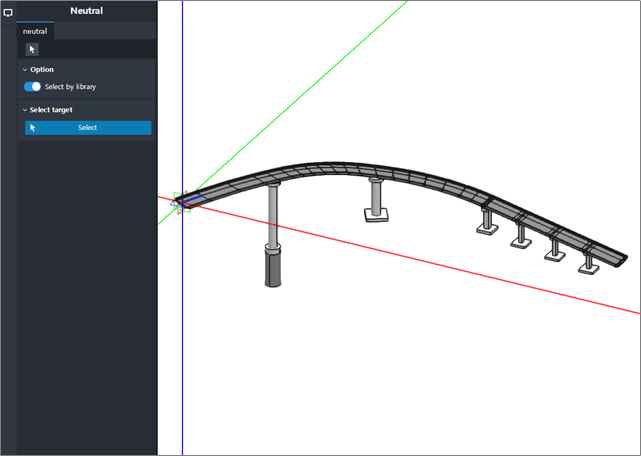

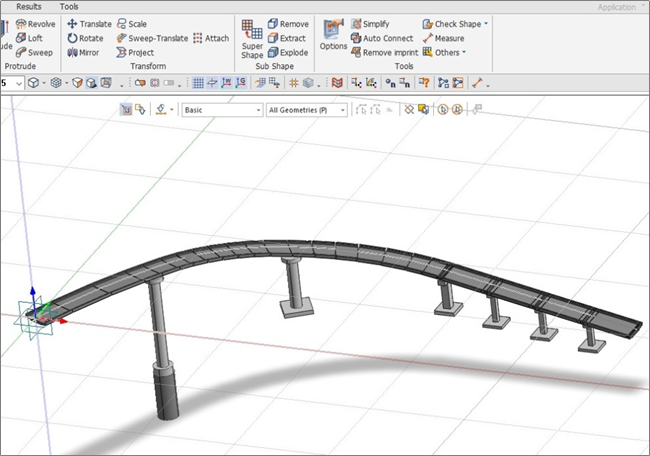

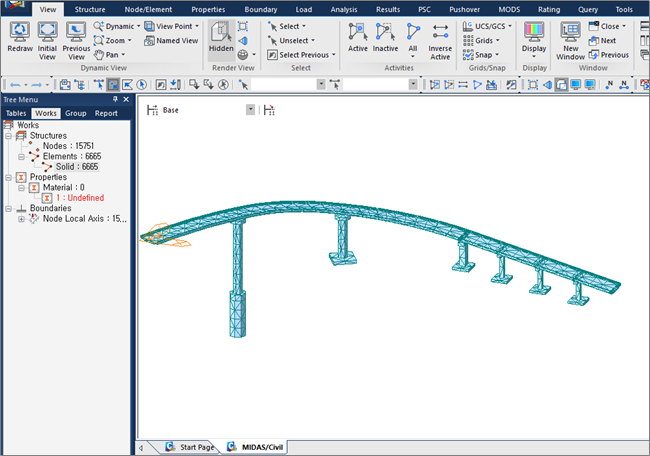

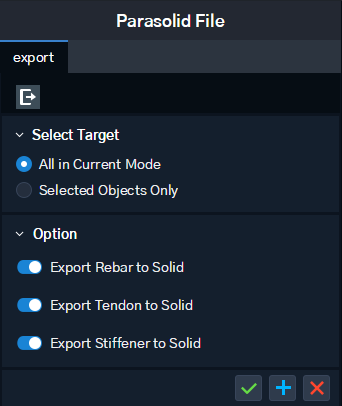

[Select Target]

Select the range of the object to be exported.

All in Current Mode : Export all objects in the current Mode.

Selected Objects Only : Export selected objects only.

[Option]

Export Rebar to Solid : Exports Rebar to Solid.

Export Tendon to Solid : Exports Tendon to Solid.

Export Stiffener to Solid : Exports Stiffener to Solid.

[Search]

Enter the file name of the Parasolid file to display and save by clicking Apply.
