MIDAS CIM

How to Run

• File Menu > Export > MIDAS CIM

Explanation

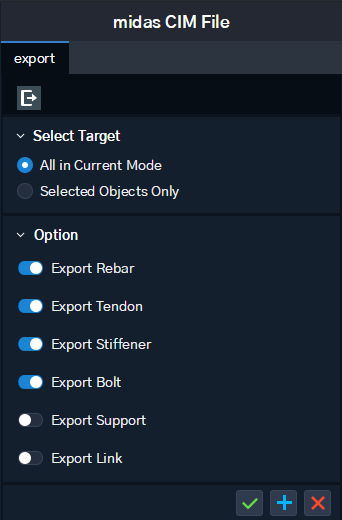

Export CIM Model

Export as a *.cimz file.

[Select Target]

Select the range of objects to be exported.

All in Current Mode : Export all objects in the current Mode.

Selected Objects Only : Export selected objects only.

[Option]

Select Export Options.

Export Rebar : Set whether to export Rebars.

Export Tendon : Set whether to export Tendons.

Export Stiffener : Set whether to export Stiffener.

Export Bolt : Set whether to export Bolt.

Export Support : Set whether to export Support.

Export Link : Set whether to export Link.

[Search]

Enter the file name of the CIMZ file to be displayed and saved by clicking Apply.
