KMZ/KML.

Summary

• Export KMZ/KML (*.kml) files.

How to Run

• File Menu > Export > KMZ/KML

Explanation

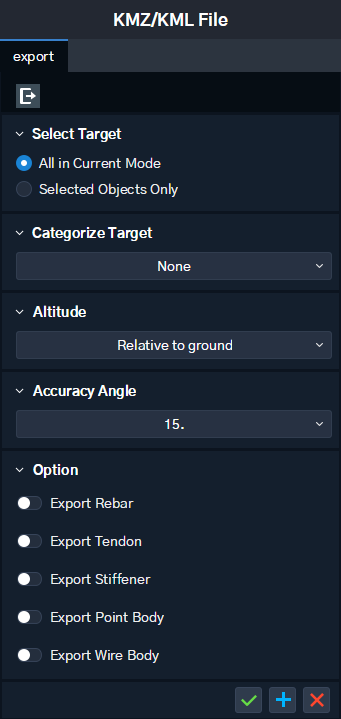

Export KMZ/KML Files

Export *.kml files.

[Select Target]

Select the range of objects to be exported.

All in Current Mode : Export all objects in the current Mode.

Selected Objects Only : Export selected objects only.

[Categorize Target]

None : Form a file classification system of KMZ/KML files based on CIM object type.

Structure : Form a file classification system of KMZ/KML files based on structure information.

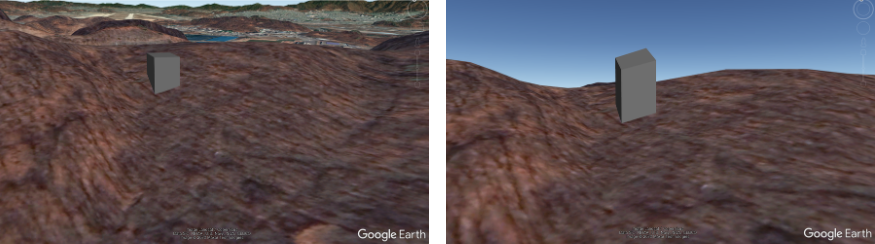

[Altitude]
Set whether the model maintains model geometry or moves above the surface.

Absolute : Maintain current position

Relative to ground: Move to above the surface

[Accuracy Angle]

Sets the accuracy of the object. Smaller the angle, the more detailed the model for export.

[Option]

Option to select additional objects to include in export.

Export Rebar : Select whether to export Rebar as a KML/KMZ file.

Export Tendon : Select whether to export Tendon as a KML/KMZ file.

Export Stiffener : Select whether to export Stiffener as a KML/KMZ file.

Export Point body : Select whether to export Point Body as a KML/KMZ file.

Export Wire body : Select whether to export the Wire Body as a KML/KMZ file.
