3D PDF

Summary

• Export a CIM object as a 3D PDF (*.pdf).

How to Run

• File Menu > Export > 3D PDF

Explanation

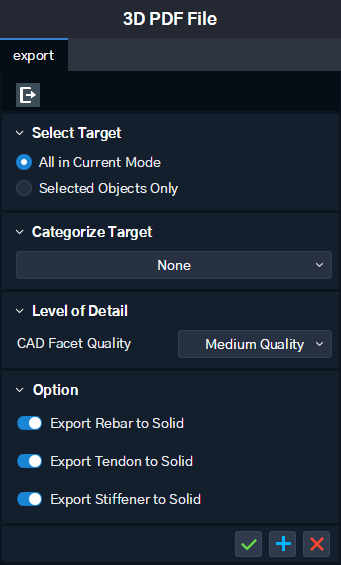

Export 3D PDF Files

Export as a *.pdf file.

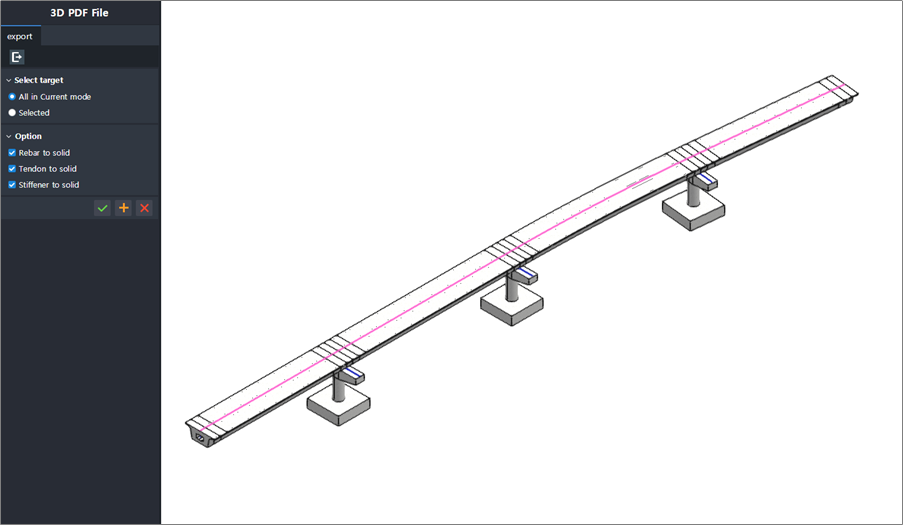

[Select Target]

Select the range of objects to be exported.

All in Current Mode : Export all objects in the current Mode.

Selected Objects Only : Export the selected object using the Select button.

[Categorize Target]

None : Form a file classification system of 3D PDF files based on CIM object type.

Structure : Form a file classification system of 3D PDF files based on structure information.

[Option]

Export Rebar to Solid : Set whether to export Rebars.

Export Tendon to Solid : Set whether to export Tendons.

Export Stiffener to Solid : Set whether to export Stiffener.

[Search]

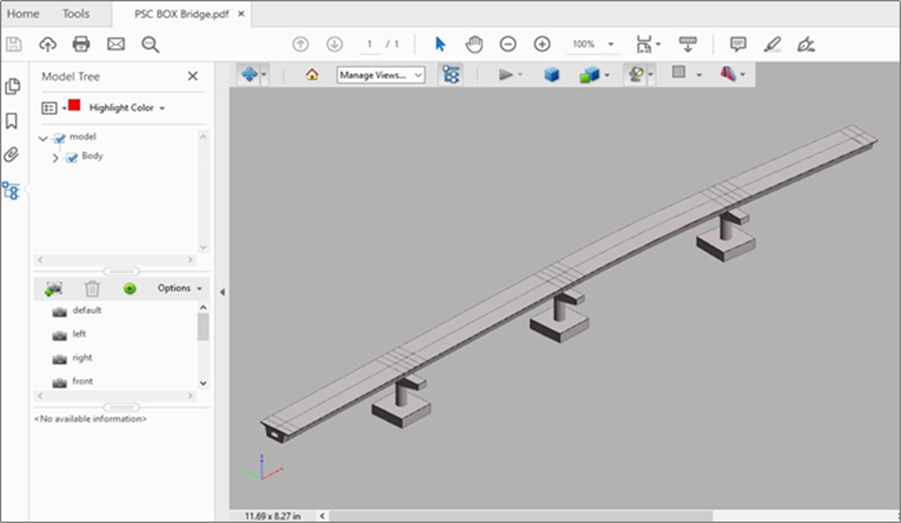

Enter the file name of the PDF file to display and save by clicking Apply.
