DWG/DXF

Summary

  • Export a CIM object as a 2D CAD or 3D CAD file (*.dwg, *.dxf).





How to Run

  • File Menu > Export > DWG/DXF





Explanation

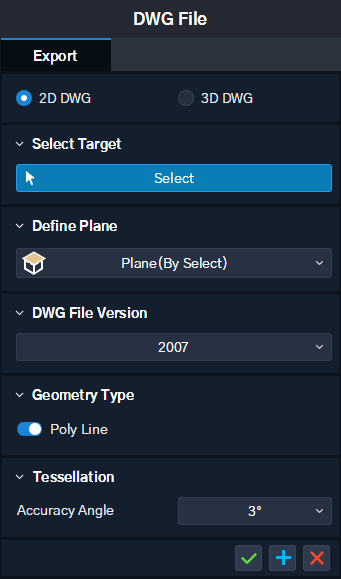

Export 2D CAD Files

Export specific cross-sections of selected objects as 2D *.dwg, *.dxf files.





[Select Target]

Select the target object when creating a CAD file.



[Define Plane]

Define the plane to be used to cut selected objects.



[DWG File Version]

Select the version of the DWG file to be exported.



[Geometry Type]

Set whether to create curves in the cross-section using the Poly Line Mesh method.



[Tessellation]

Represents the angle between lines when creating a shape using the Poly Face Mesh method. Smaller angles can create shapes similar to a circle but this increases the number of lines which leads to an increase in the file size.

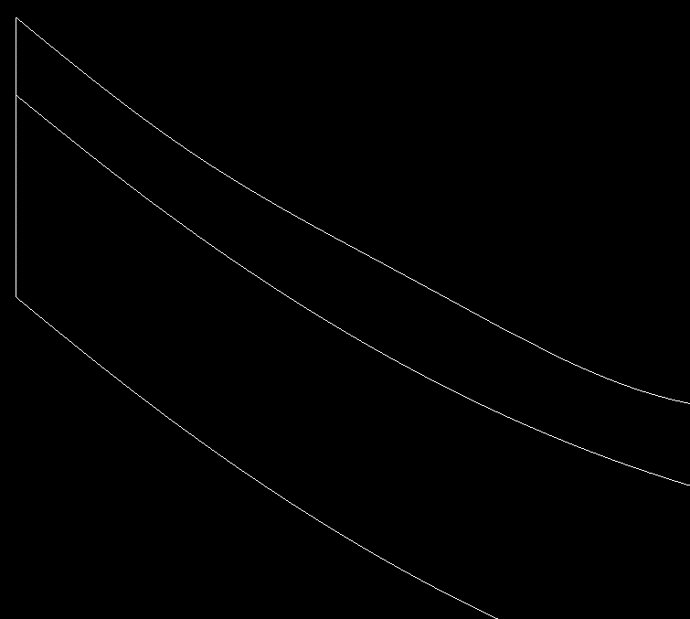

Difference in Shape of Each Accuracy Angle



2D Export 1 degree.png

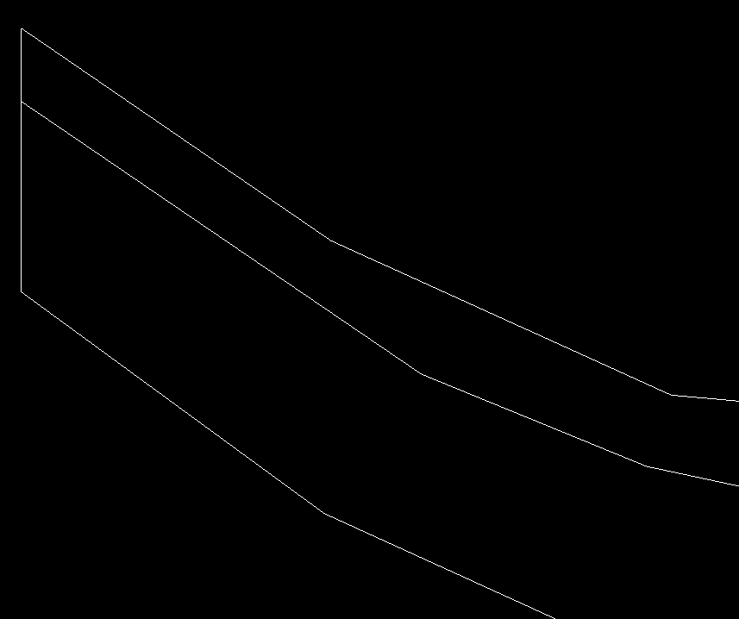

15˚

2D Export 15 degree.png

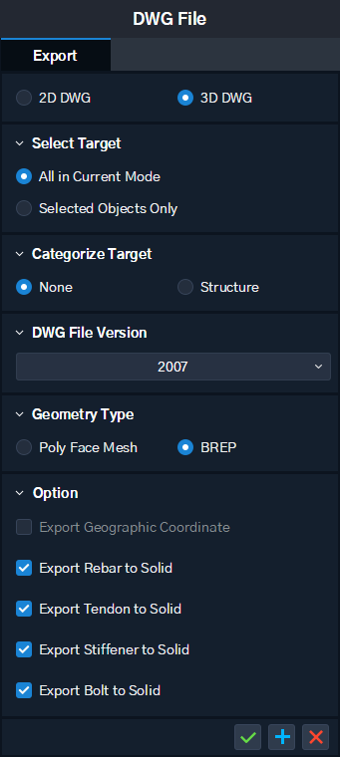

Export 3D CAD Files

Export selected objects as 3D *.dwg, *dxf files.




[Select Target]

Select the range of objects to export when creating a CAD file.

All in Current Mode : Export all objects in the current Mode.

Selected Objects Only : Export selected objects only.



[Categorize Target]

None : All objects are uncategorized and exported as Layer=0.

Structure : Configures and export layers of a DWG file using the structures defined by each object.

A layer in a DWG file does not have a hierarchy, so a single structure level is selected for export.



[DWG File Version]

Select a DWG file version for export.



[3D Geometry Type]

Select the type of 3D geometry of the DWG file to be exported. Auto CAD supports and provides both types.

BREP(Recommended) : A method of exporting a 3D surface in a triangular mesh shape.

Poly Face Mesh : This is a method to represent the surface of a 3D object using triangular mesh.

This is used when interchanging between SW and DWG file formats that cannot import BREP geometries.

Difference in shape between BREP and Poly Face Mesh methods

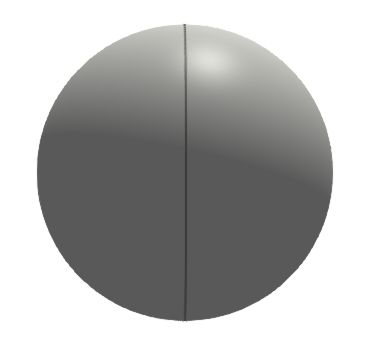

BREP

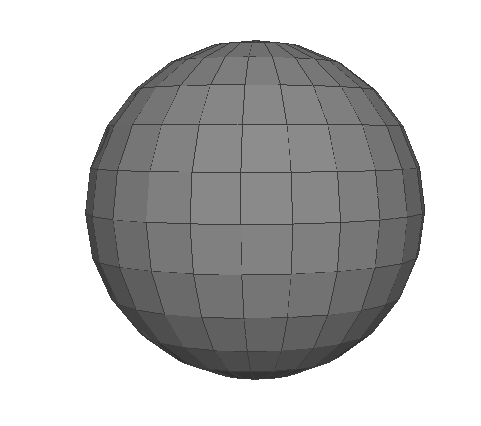

Poly Face Mesh

Poly Face Mesh.png





[Tessellation]

Represents the angle between lines when creating a shape using the Poly Face Mesh method. Smaller angles can create shapes similar to a circle but this increases the number of lines which leads to an increase in the file size.

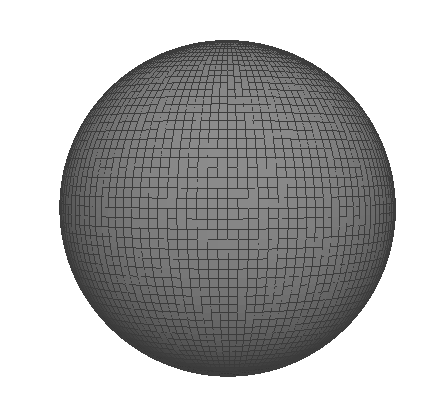

Difference in Shape of Each Accuracy Angle



Accuracy Angle_3.png

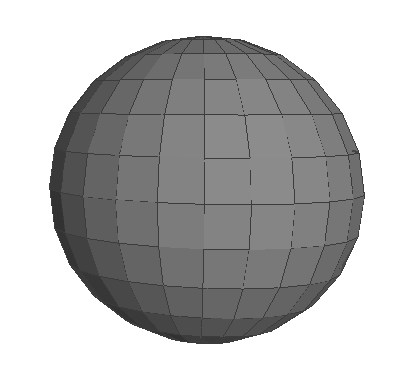

15˚ (Default)

Accuracy Angle_15.png

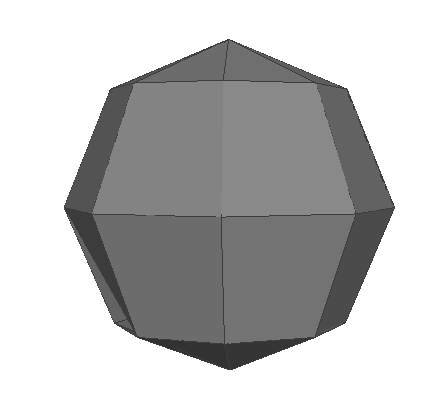

45˚

Accuracy Angle_45.png





[Option]

Export Rebar to Solid : Set whether to export Rebars.

Export Tendon to Solid : Set whether to export Tendons.

Export Stiffener to Solid : Set whether to export Stiffener.

[Search] Enter the file name of the DWG/DXF file to display and save by clicking Apply.
