Summary
- This function defines categories for each type of object.
How to Run
- Ribbon Menu > [Base] Tab > [Data] Group > Category > Object
Explanation
Setting Default Values
Enter a field configuration for each object type.

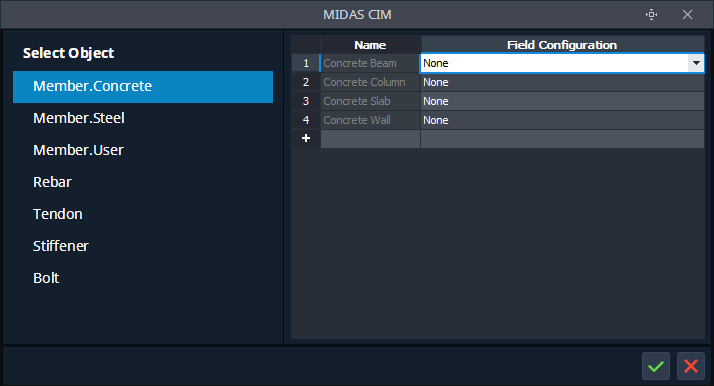

[Select Object]
Member.Concrete
Member.Steel
Member.User
Rebar
Tendon
Stiffener
Bolt
You can configure an Object Category for each of the seven Object Types.
[Define Category]
Each category can have one Configuration assigned to it.
Detailed Explanation (Field Viewer)

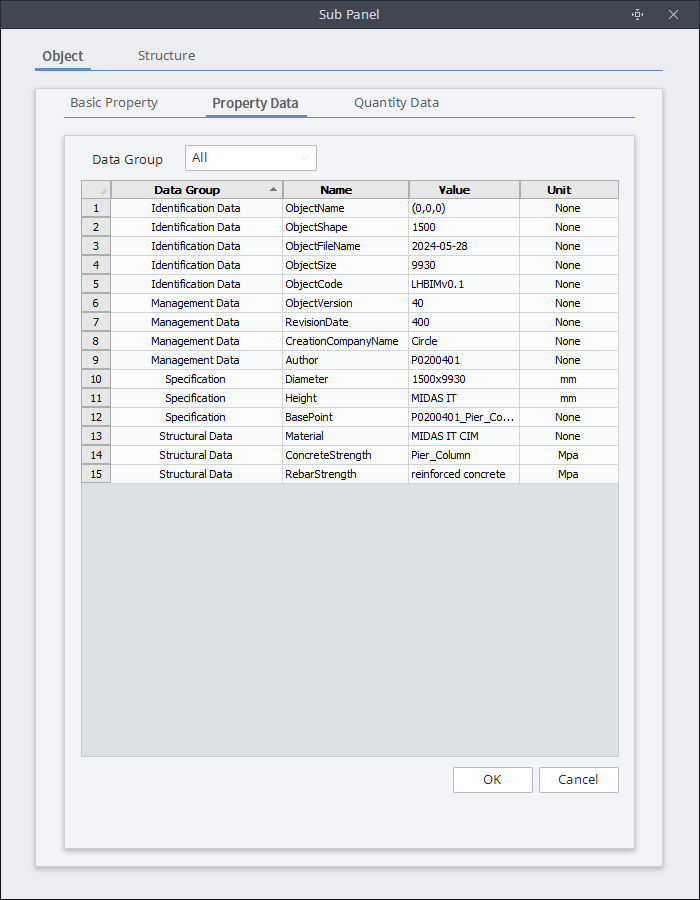

You can view the field configuration via the Field Viewer, where a field scheme corresponds to a single Configuration.
Note
Each category can have one Field Configuration assigned to it and one IFC Element mapped to it, so you need to define as many categories as you need.
Reference Materials
Field Configuration
IFC(Mapping)
