Summary
- This is a function that provides a user mapping environment for exporting to which of IFC's various data.
How to Run
- Ribbon Menu > [Base] Tab > [Data] Group > Mapping > IFC
Explanation

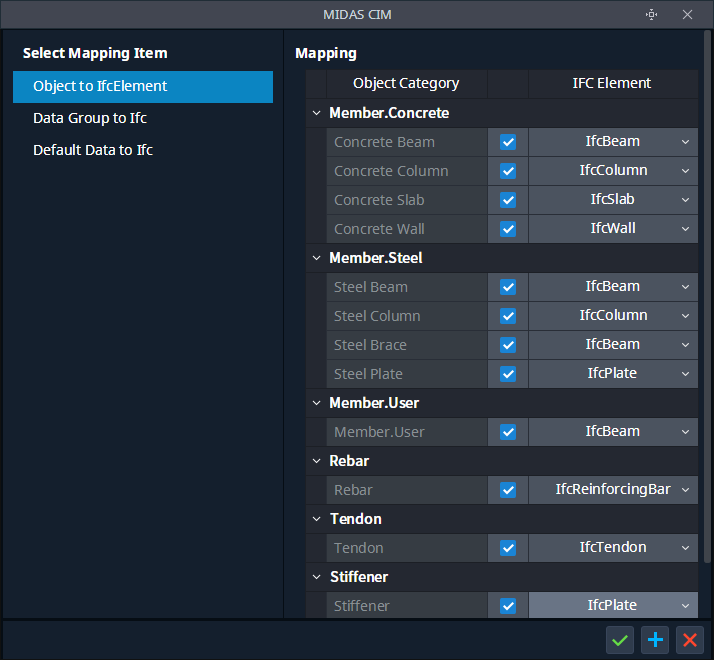

Object to IfcElement
Defines the matching IfcElement per Object Category.
[Select Mapping Item]
Object to IfcElement
For each category registered in the Object Category, you can map elements from IFC, and select whether or not to include them in the IFC export via a checkbox.
[Mapping]
Object Category
List of user-set Object Categories
Check Box
Check On : Include objects set to this category in the IFC export.
Check Off : Do not include objects set to this category in the IFC export.
IFC Element
Select the IfcElement element corresponding to the Object Category

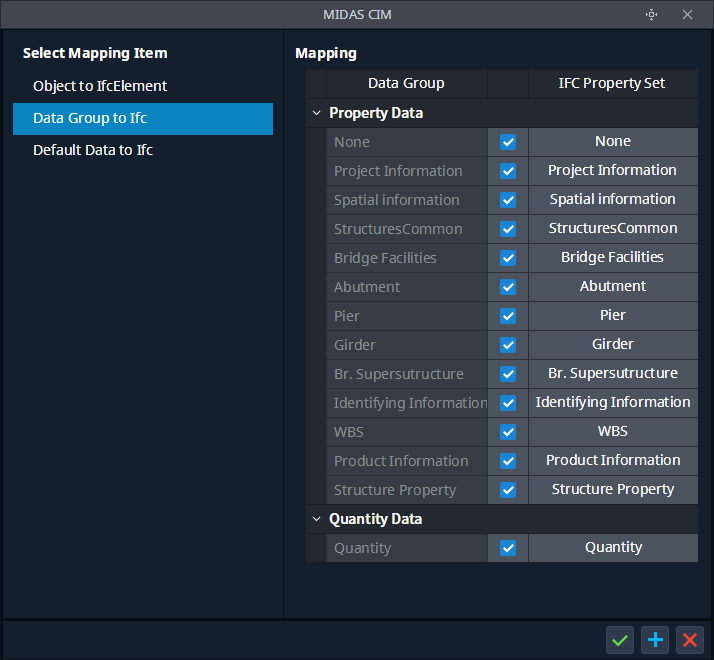

Data Group to Ifc
Defines the corresponding IfcPropertySet/IfcQuantitySet name for the Data Group.
[Select Mapping Item]
Data Group to IfcPropertySet
For each group registered in Data Groups, you can map IFC's PropertySet/QuantitySet and select whether to include it in the IFC export via a checkbox.
[Mapping]
Data Group
List of user-set Data Groups
Check Box
Check On : Include objects set to this Data Group in the IFC export.
Check Off : Do not include objects set to this Data Group in the IFC export.
IFC Property Set
By default, it is set to the same name as the Data Group.
Users can change it to any name.

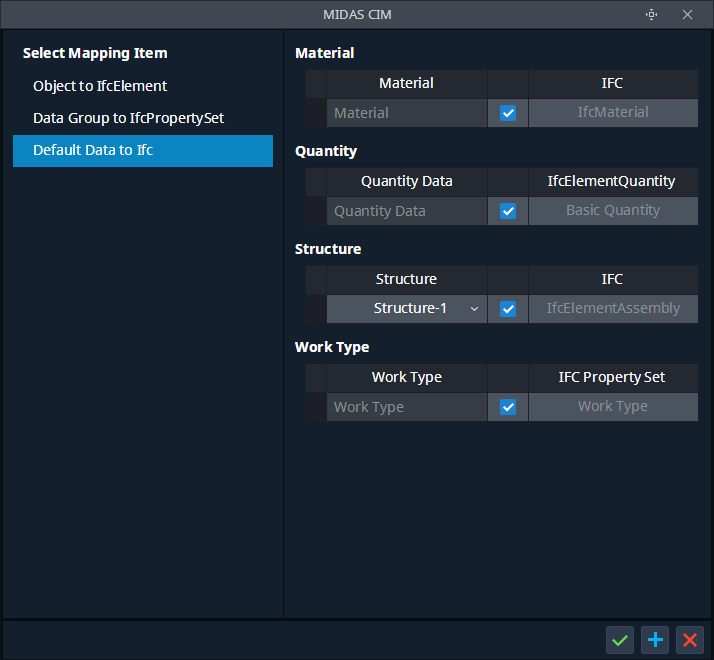

Default Data to Ifc
Define the IFC mapping of basic property information.
[Select Mapping Item]
Default Data to Ifc
Defines the IFC mapping of default property information not defined as a Field.
[Material]/[Quantity Data]/[Work Type]
Matching IFCs are defined and can only be checked by a checkbox to be included in the IFC Export.
[Structure]
Select the structures to include in the IFC Export
