Summary
CAD ID tree is mainly composed of CIM View Mode, CAD View Mode, Properties, Object.
However, in CAD View mode, Draw Lib.(element tree required to create 2D CAD drawings) are added.
Explanation

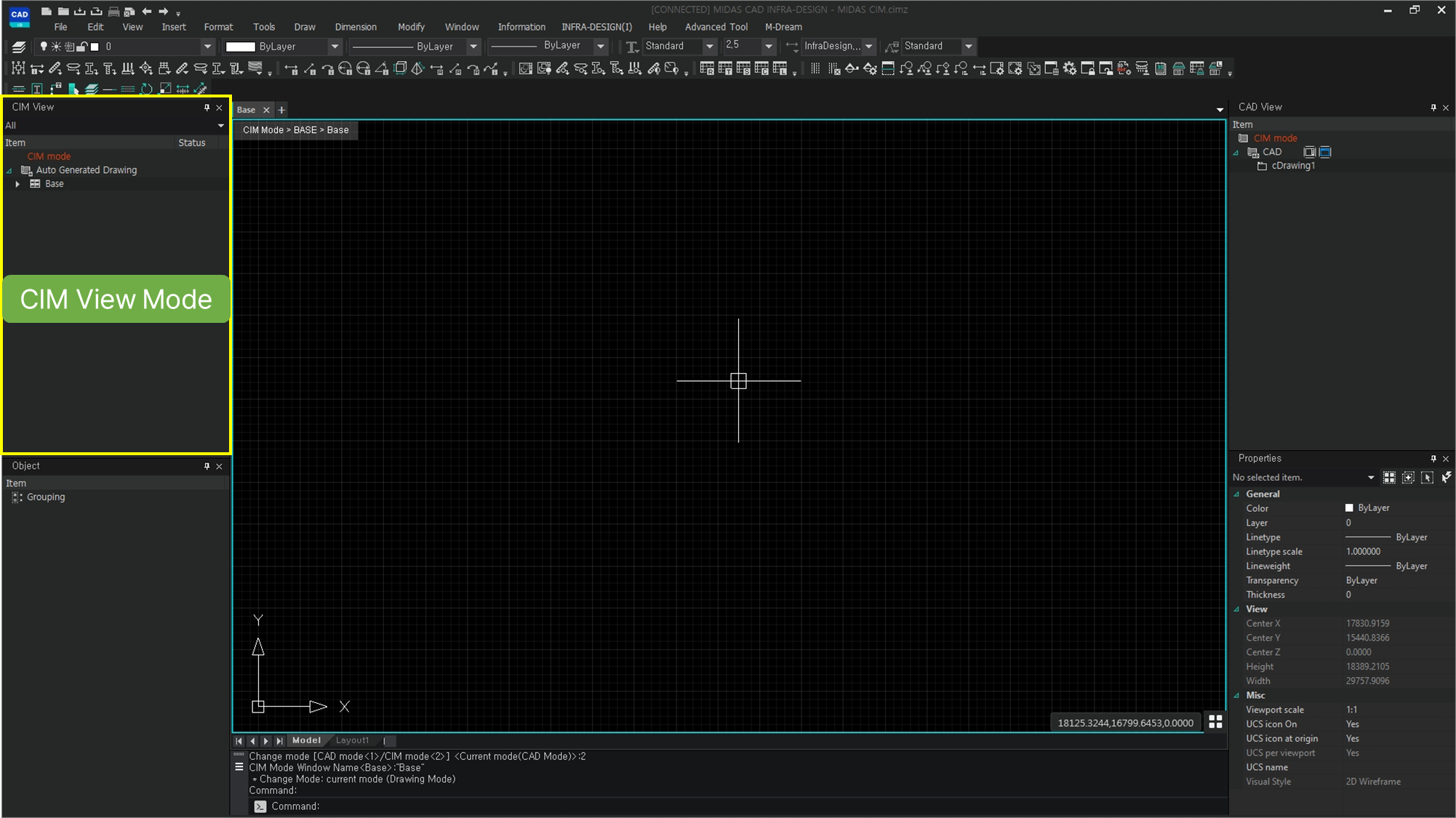

CIM View Tree
Tree Filter

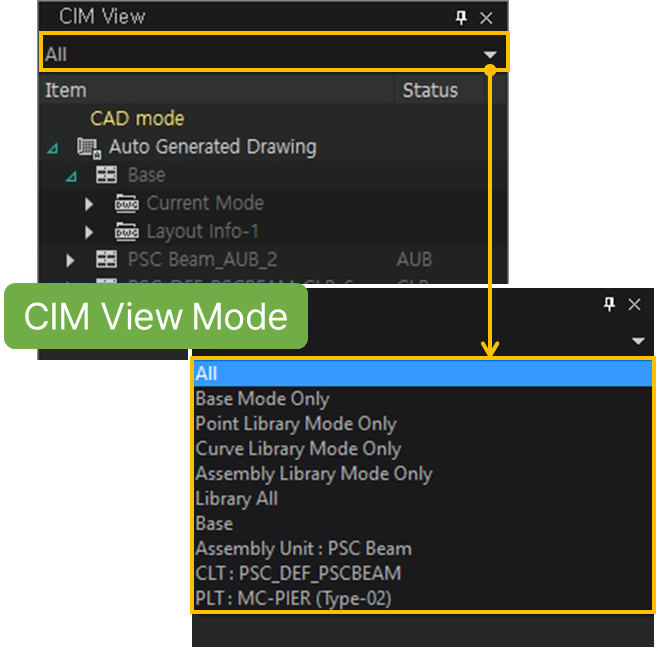

The user can use the Tree Filter to display only the collection of Views needed.
[All] : Displays a list of views in all of CIM BASE Mode and Library Mode.
[Base Mode Only] : Displays the list of views that exist in CIM Base Mode.
[Point Library Mode Only] : Displays a list of views that exist in CIM Point Library Mode.
[Curve Library Mode Only] : Displays a list of views that exist in CIM Curve Library Mode.
[Assembly Unit Library Mode Only] : Displays a list of views that exist in the Assembly Library Mode of CIM.
[Library All] : Displays a list of views of all libraries regardless of library type.
[BASE] : ' View group name ' : Displays a list of views belonging to the View Group in BASE mode.
View List Conventions

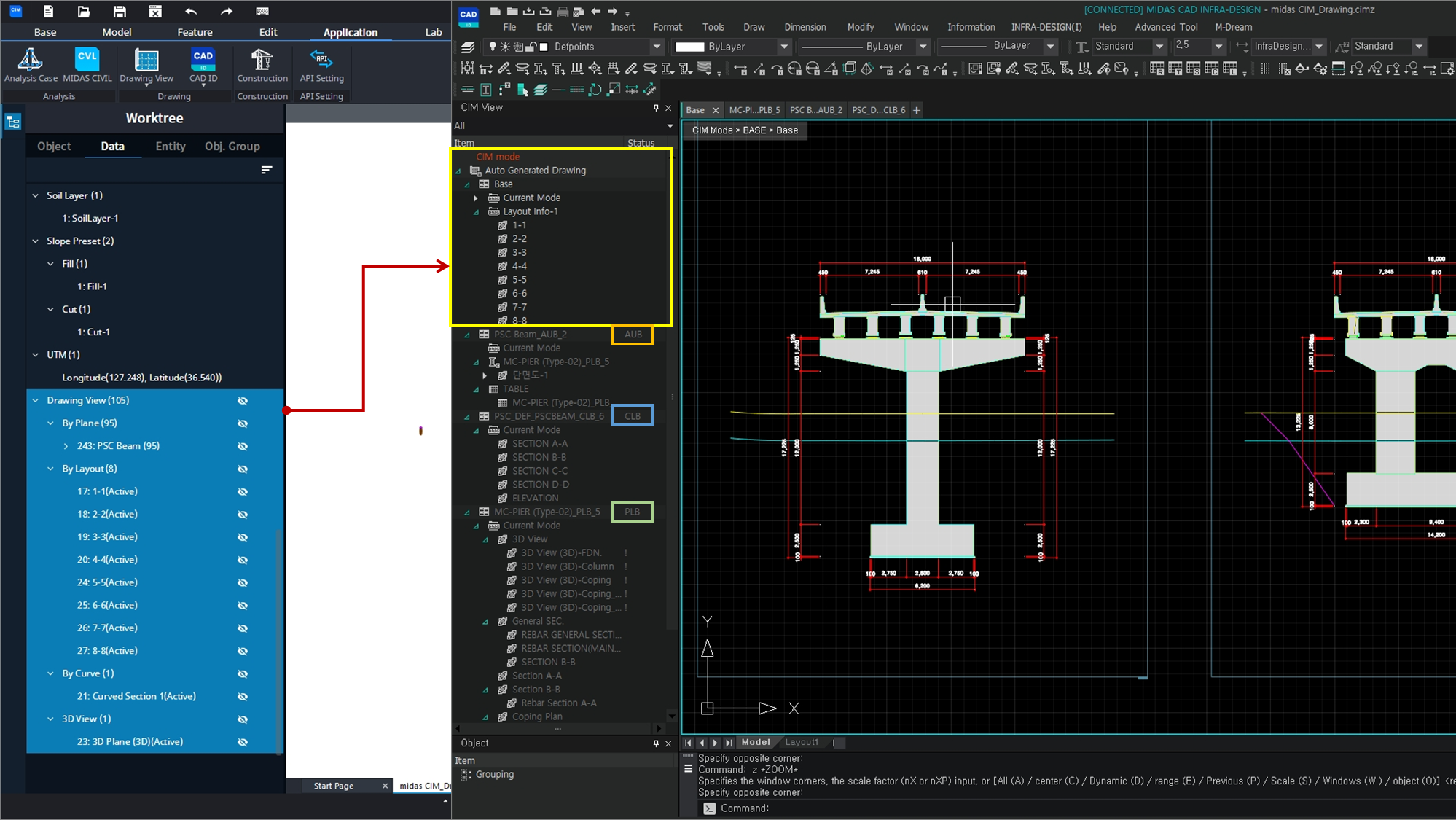

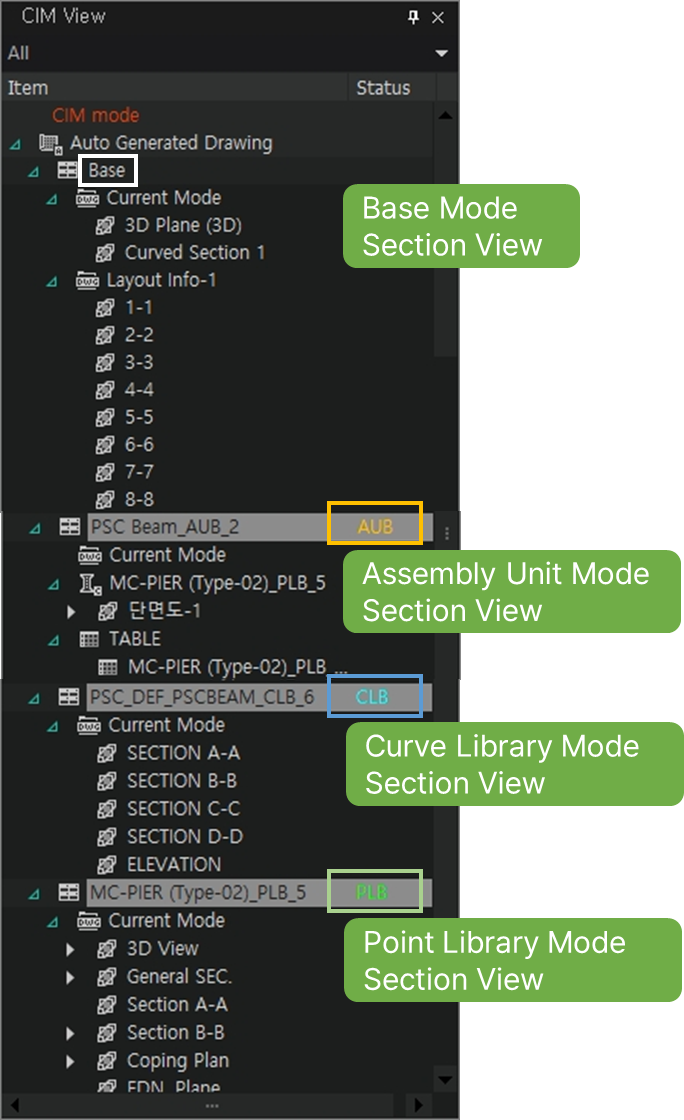

Lists the views in CIM Base Mode at the top of CAD ID’s CIM View Mode Tree, and lists the views in Library mode below it.
- Views in CIM Base Mode are listed separately under Section Group, with the name of the view directly created in the
Base group and the name of the view automatically created in the Base Mode from the Library.
- Views in Library Mode are listed as View Names under the Library Mode Name.
- If the view is in a library, the view is arranged under the library name, and the type of library is indicated on the right
side of the view group. (PLB, CLB, AUB)
- In addition, only the library or Base Mode tree to which the current view belongs is activated and the others
are deactivated.
CAD View Tree
Tree Configuration & Details

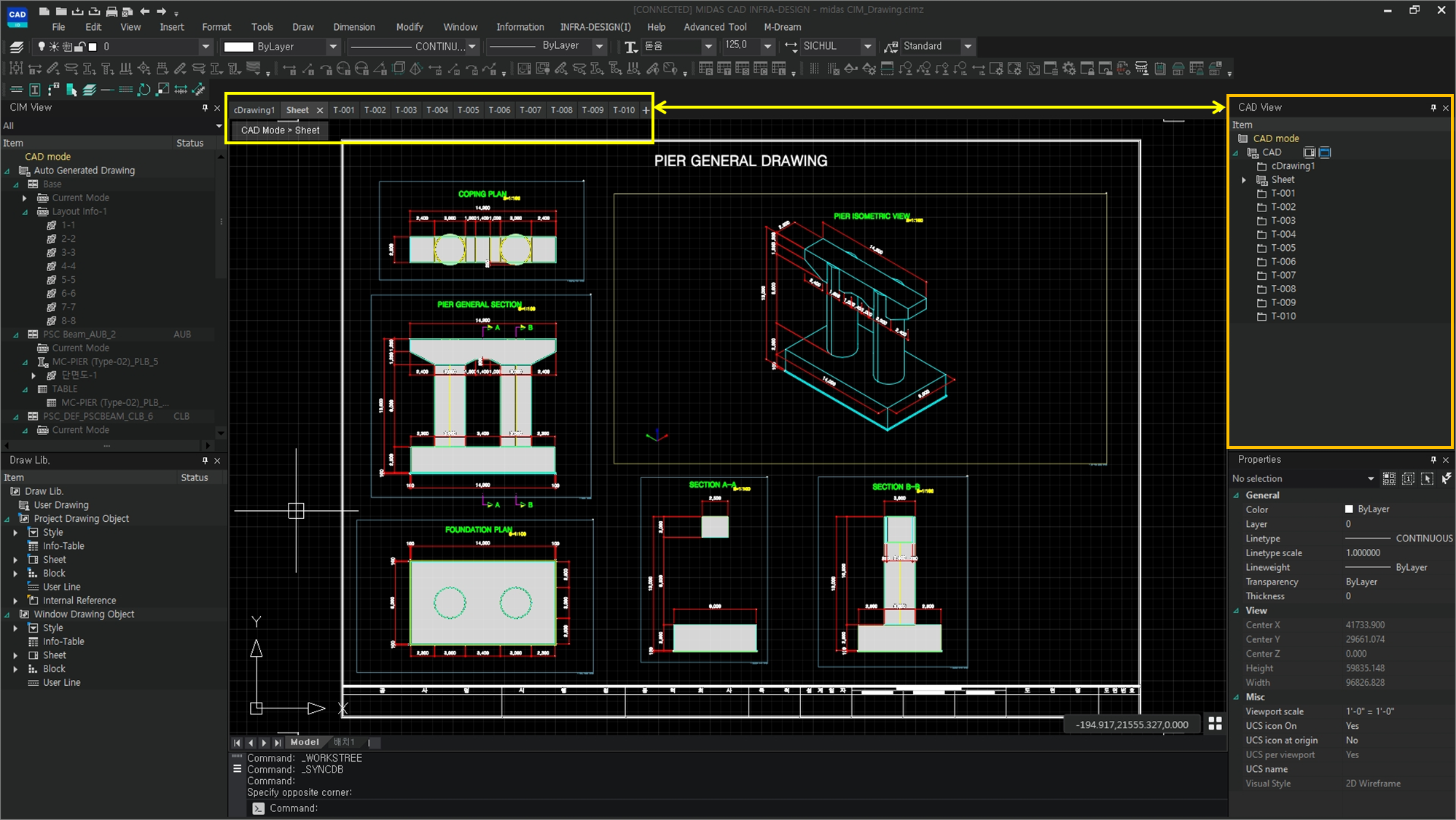

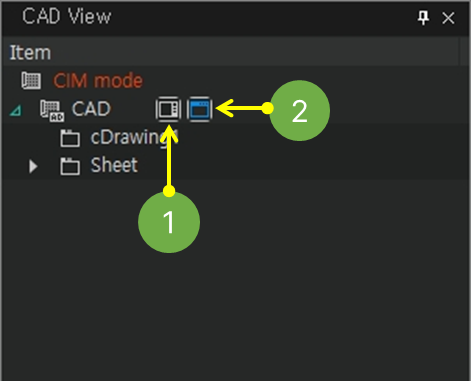

Window Tree is a tree representing a list of DWG units in CAD mode.
① Click the Divide by Sheet icon to sort the tree by Sheet.
② Click the Sort by View icon to sort the Tree by View (DWG).
It is displayed as the name of the View (DWG), and when double-clicked, it moves to the corresponding View (DWG).
CAD ID's CAD mode allows the user to open multiple DWGs at the same time and manage them as a group.
The user can also save any combination of these DWGs as bundles. (mdwg file format).
Properties Tree
Tree Configuration & Details

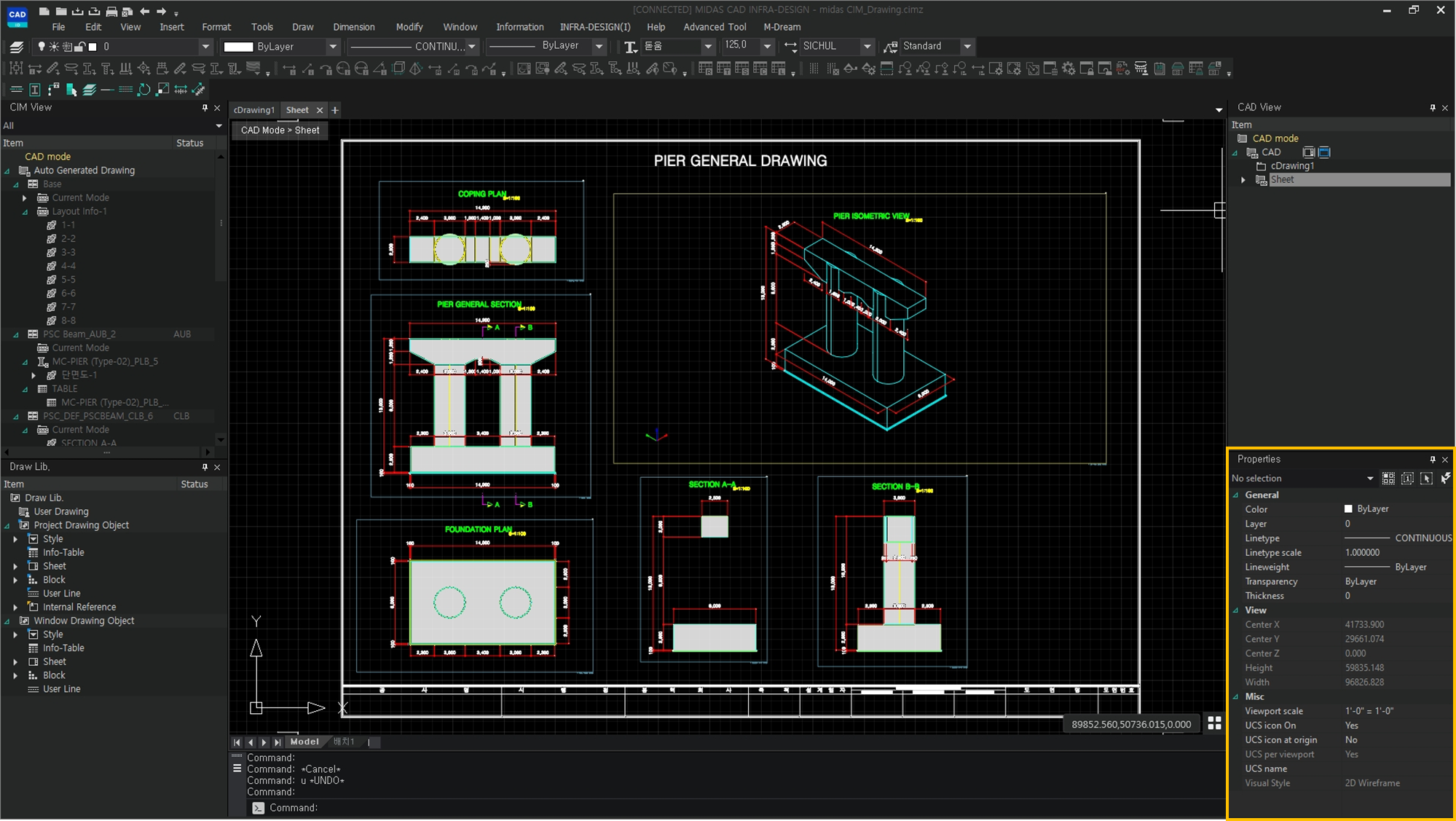

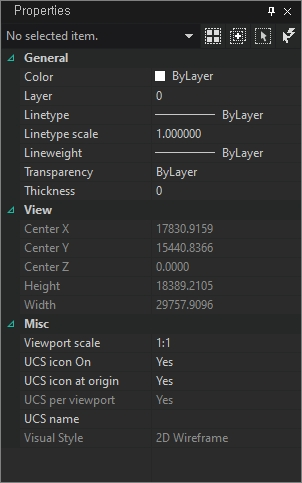

The Properties Tree displays property information for all objects in CIM Mode and CAD Mode.
*Refer to the midas iCAD function manual for the description of the detailed tree menu
Object Tree
Tree Configuration & Details

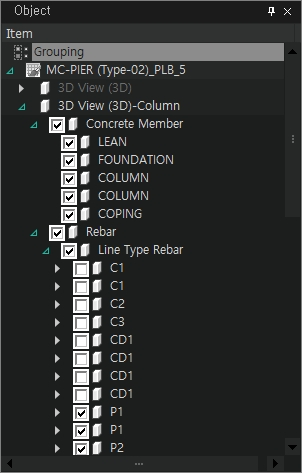

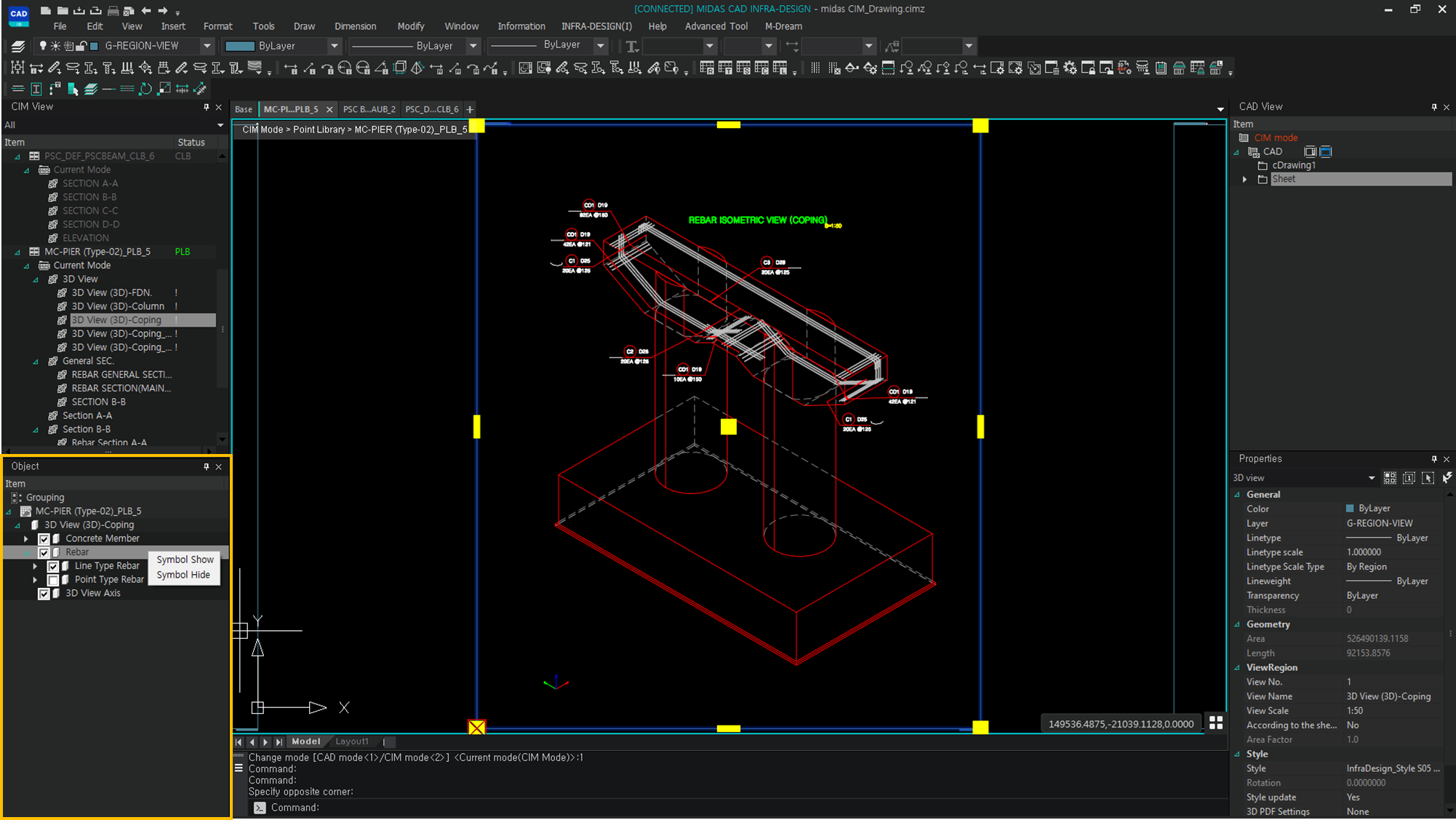

The Group Member Tree is a function that displays the list of objects in CIM View Mode.
- When the user selects a View Box in CIM View Mode, a list of objects in that View Box is displayed.
- When the Check Box is turned On/Off, the corresponding object is Shown or Hidden, respectively.
- When the Check Box is turned On/Off, the Check Box object is also Shown or Hidden below.
- Show / Hide settings can also be set with the [HIDEDRAWINGOBJECT] and [UNHIDEDRAWINGOBJECT] functions.
In the case of rebar, you can right-click on the item to show or hide the symbol.
