Summary
This is a function that allows you to display the name of the section created in CIM View Mode.
How to Run
[CIM View Mode]

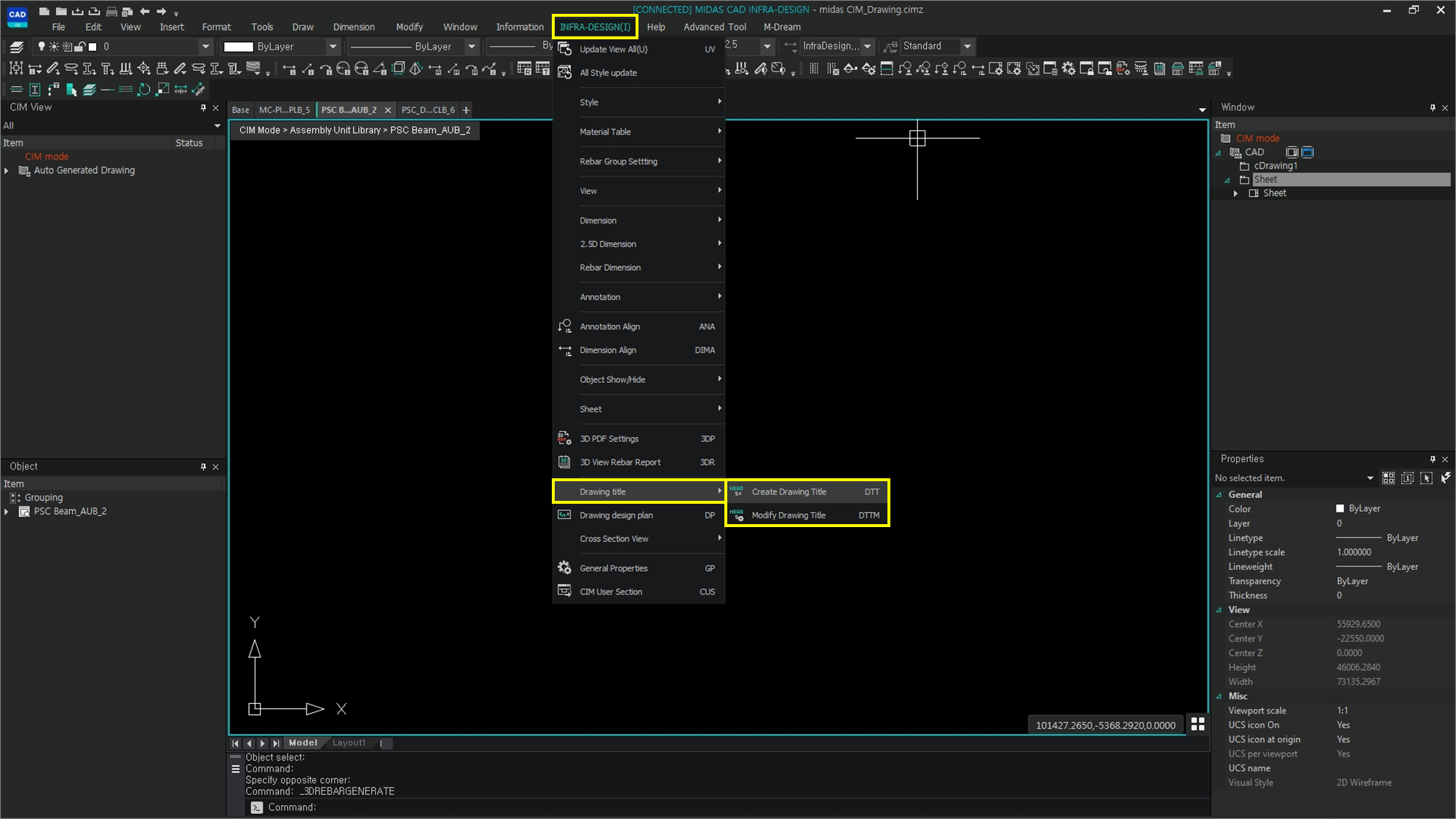

Ribbon Menu > [INFRA-DESIGN] Tab > Create Drawing Title [DTT] / Modify Drawing Title [DTTM]
Explanation

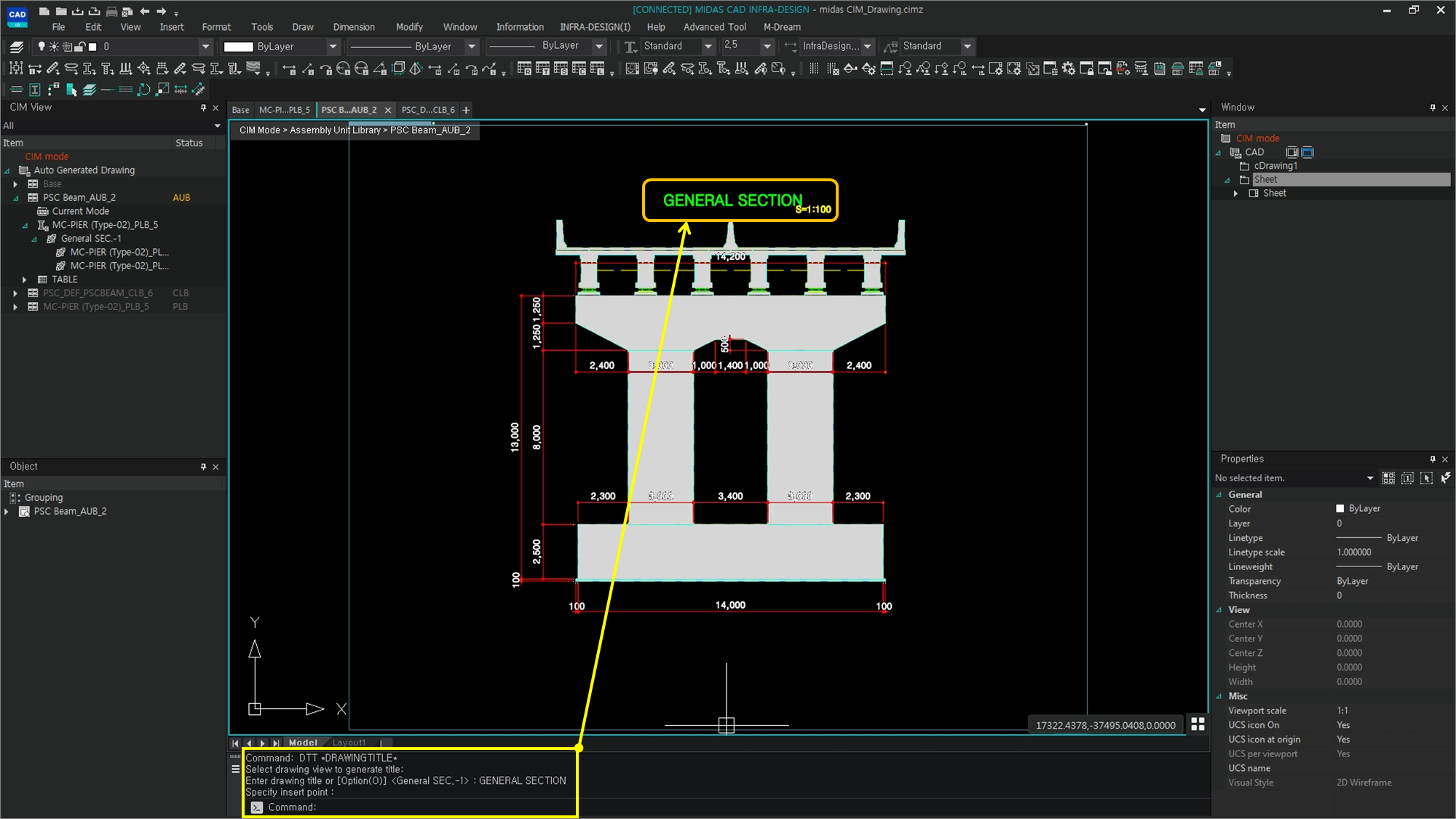

How to use Create Drawing Title.
Run the Create Drawing Title [DTT] command or execute the Create Drawing Title function of the INFRA-DESIGN menu tab.
[Command]
Select drawing view to generate title :
Select the View Box where you want to display the drawing name.
Enter drawing title or [Option(S)] <Section View Name> :
When you press Enter, the name of the corresponding section view is applied.
Enter a different drawing name directly.
Entering option S will display a dialog box to apply the option.

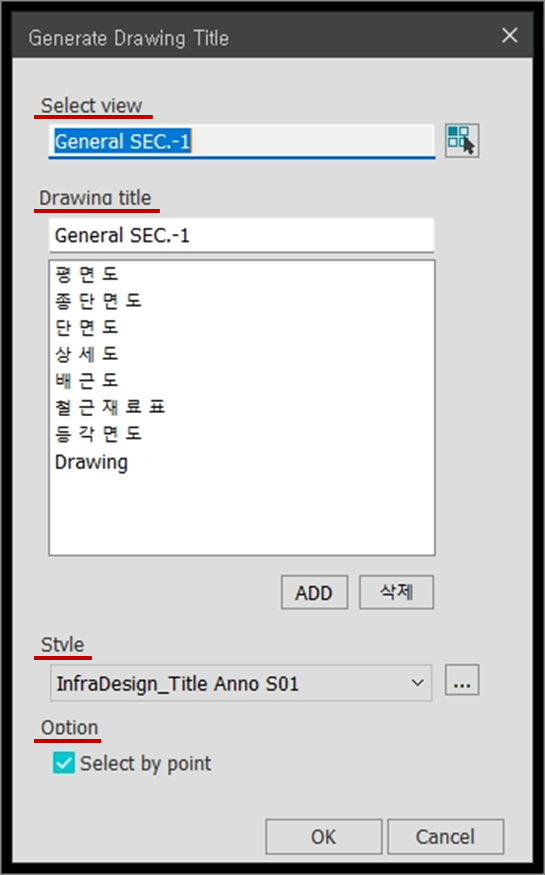

Options dialog box
This is the dialog box content for selecting an option.
Select View :
If you click the check mark on the right, you can select the View Box where you can enter the drawing name.
Drawing title :
You can select the default name or enter a custom drawing name and use it.
Style :
You can select and apply a Drawing title style file.
Option :
If you clear the option, the drawing name will be placed at the top center of the view box, and if you set the option, you can specify the location of the drawing name directly.

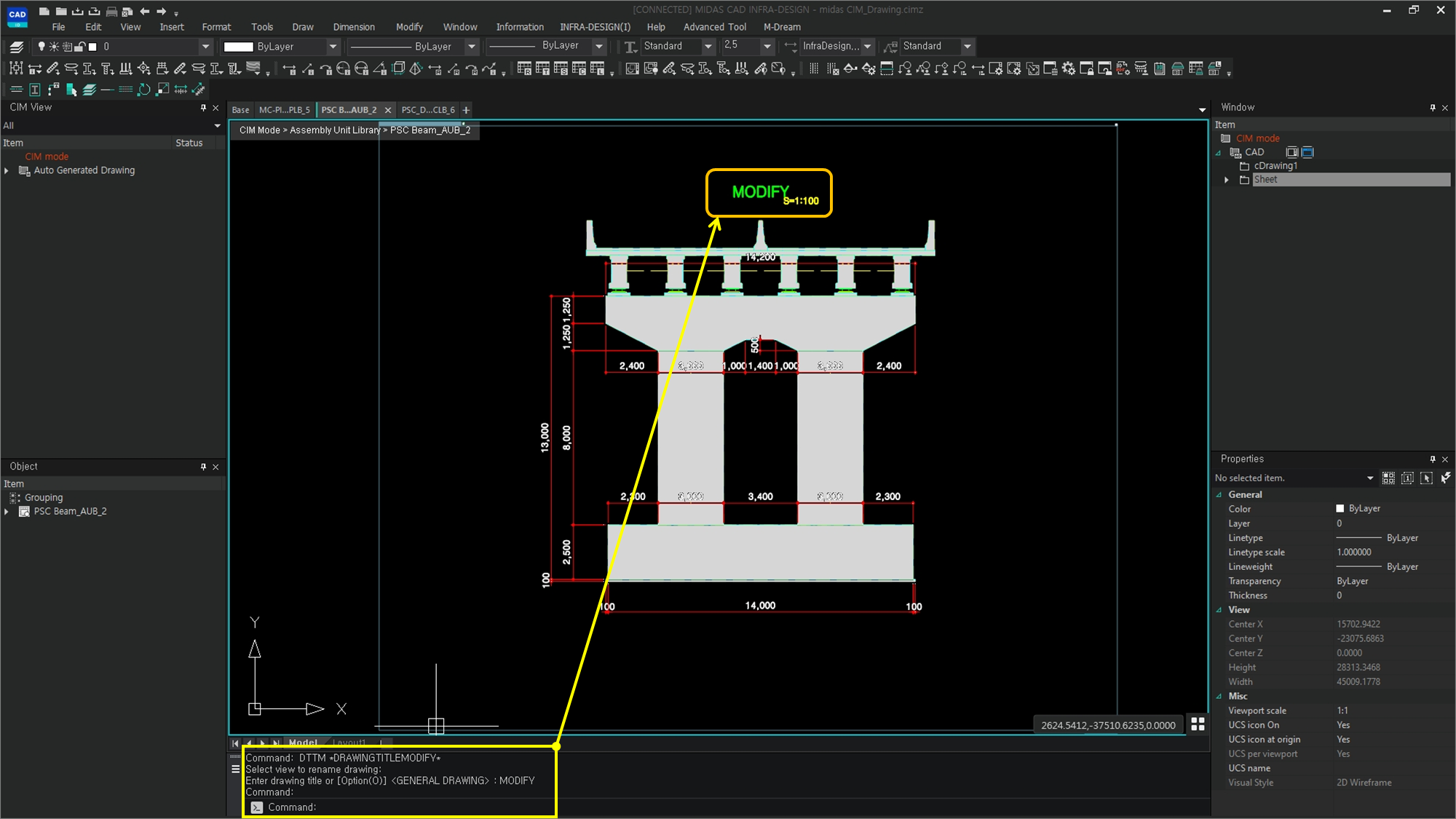

How to use Modify Drawing Title.
Run the Modify Drawing Title [DTTM] command or execute the Modify Drawing Title function of the INFRA-DESIGN menu tab.
[Command]
Select view to rename drawing :
Select the View Box for which you want to change the drawing name.
If you select a View Box without a drawing name, the message “No drawing title in the selected view” is displayed.
Enter drawing title or [Option(S)] <Section View Name> :
When you press Enter, the name of the corresponding section view is applied.
Enter a different drawing name directly.
Entering option S will display a dialog box to apply the option.
