Summary
This is a setting function to output the content drawn in CIM View Mode as a 3D PDF file.
How to Run
[CIM View Mode]

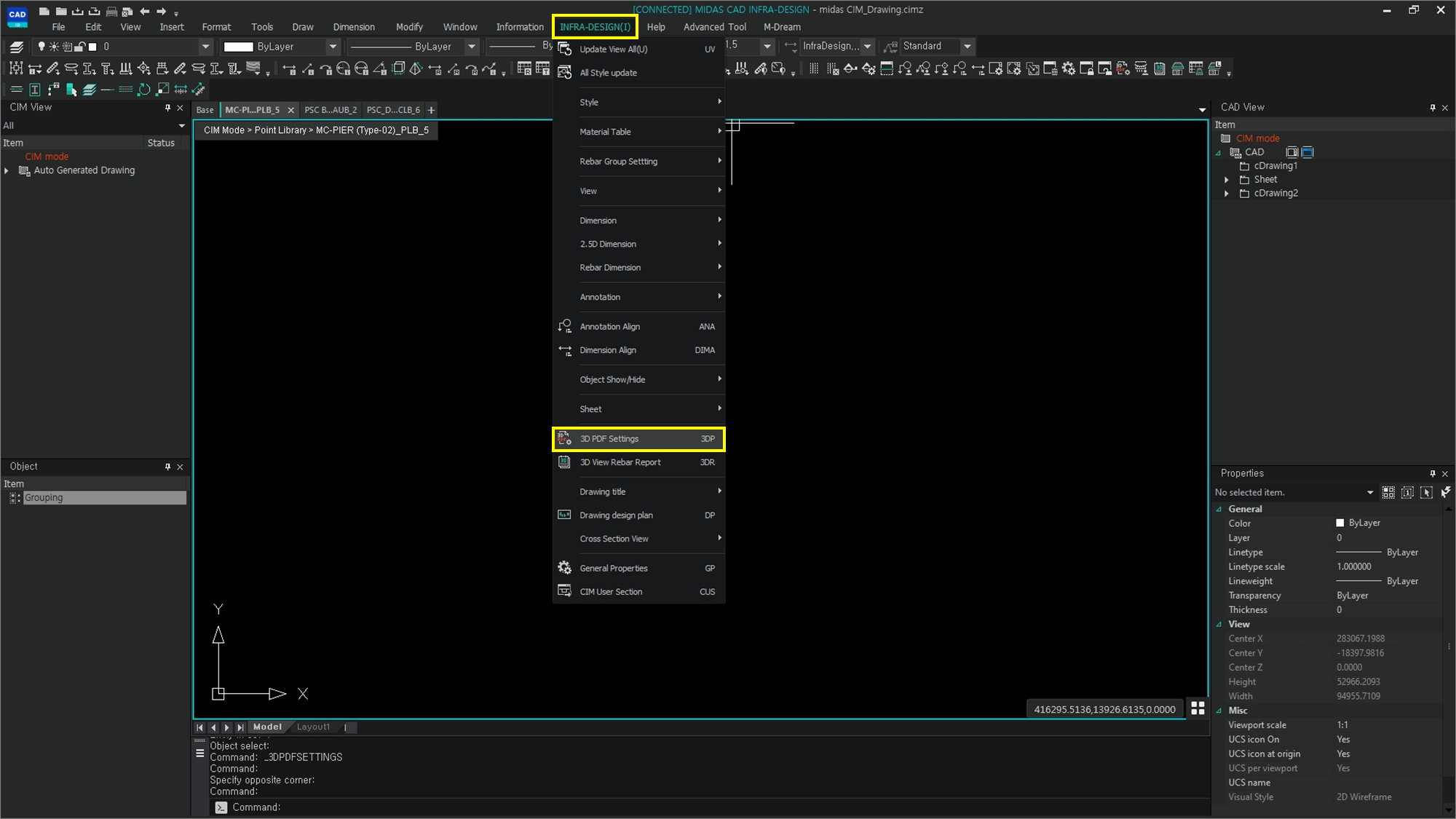

Ribbon Menu > [INFRA-DESIGN] Tab > 3D PDF Settings [3DP]
Explanation
How to use 3D PDF Settings.
Run the 3D PDF Settings [3DP] ommand or execute the 3D PDF Settings function of the INFRA-DESIGN menu tab.
[Note]

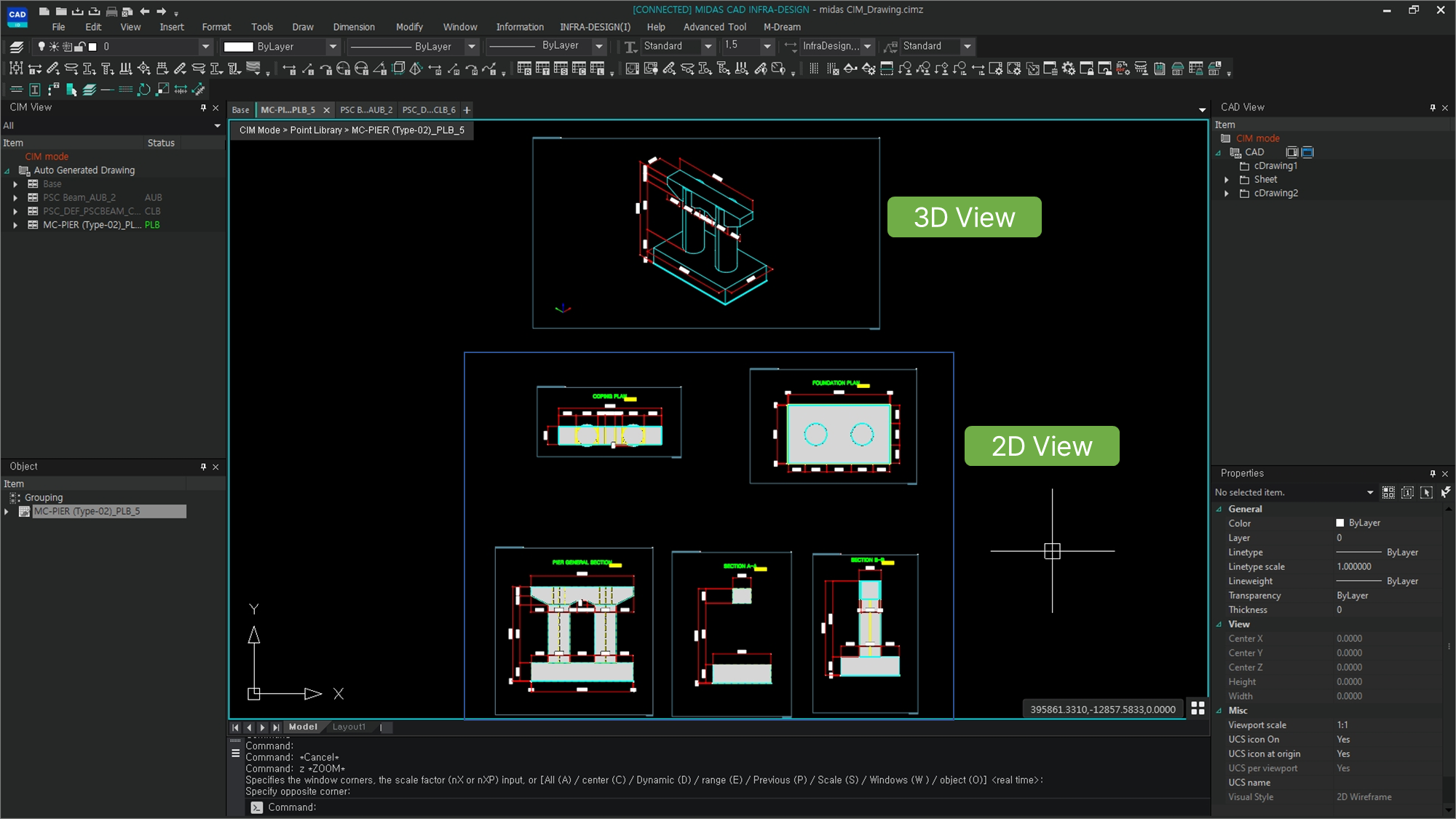

- In 3D PDF Settings, settings are made for 3D PDF printing. To use the function, one 3D View section
and at least one 2D View section must be created.
- Dimensions and annotations drawn on the 2D View cross section defined in CIM are assigned to the
3D View cross section and appear in PDF.
- The assigned 3D View can be output with the PLOT function, which is commonly used with CAD objects
such as 2D drawings or text in CAD View mode..

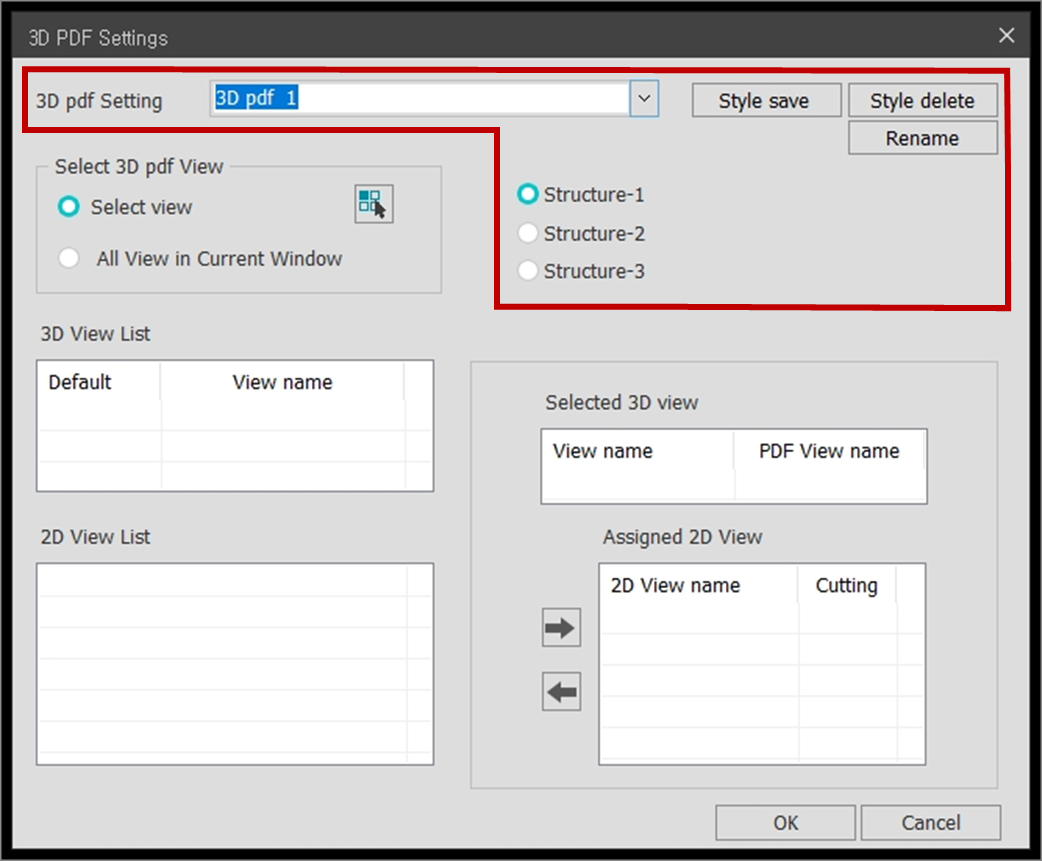

[3D PDF Settings]
3D PDF Setting Name : Displays the 3D PDF setting name.
Style Save : When saving settings, the 3D PDF settings are saved in the settings value list.
Style Deleting : When deleting a setting, the 3D PDF setting contents are deleted from the settings value list.
Rename : Change the name of the 3D PDF settings.
Select Structure Type :
You can select the structure set in Work Type, and check the structure contents in PDF WorkTree.

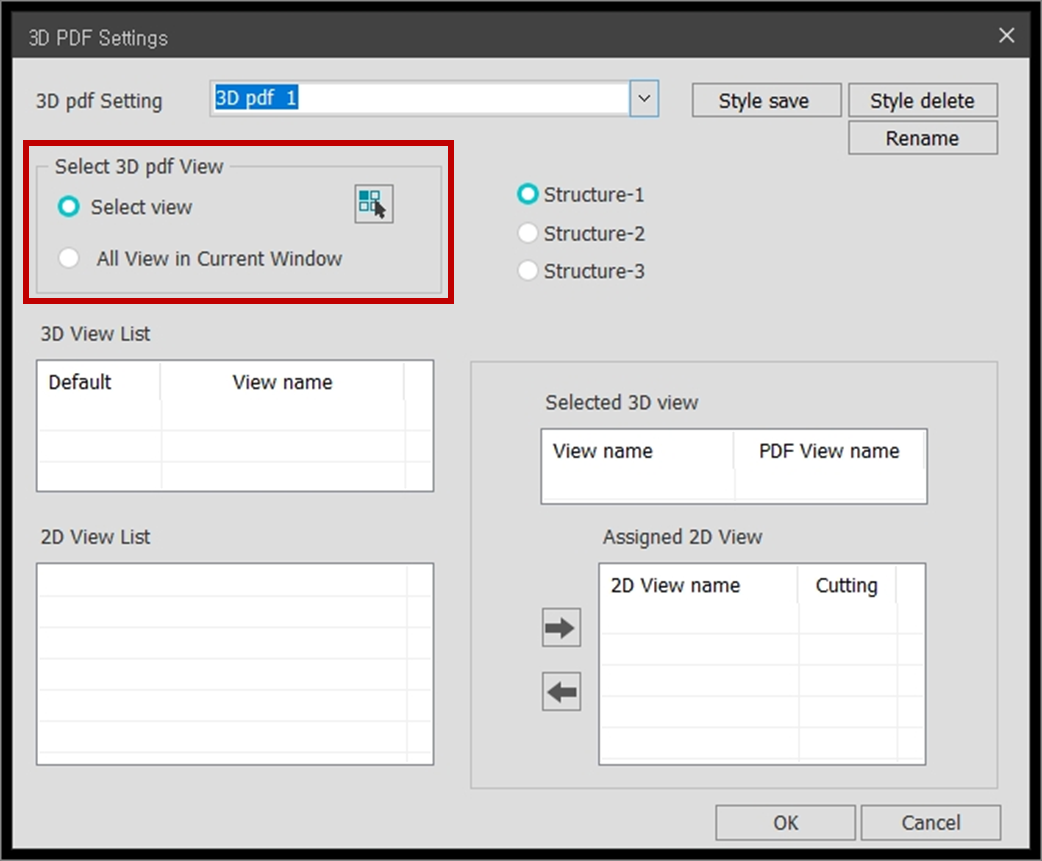

[Select 3D Pdf View]
Select the view to output to 3D PDF.
View selection : Select the view to be used for 3D PDF creation among the views created in CIM mode.
Current Window Select all views : All drawings in the current dwg are selected.

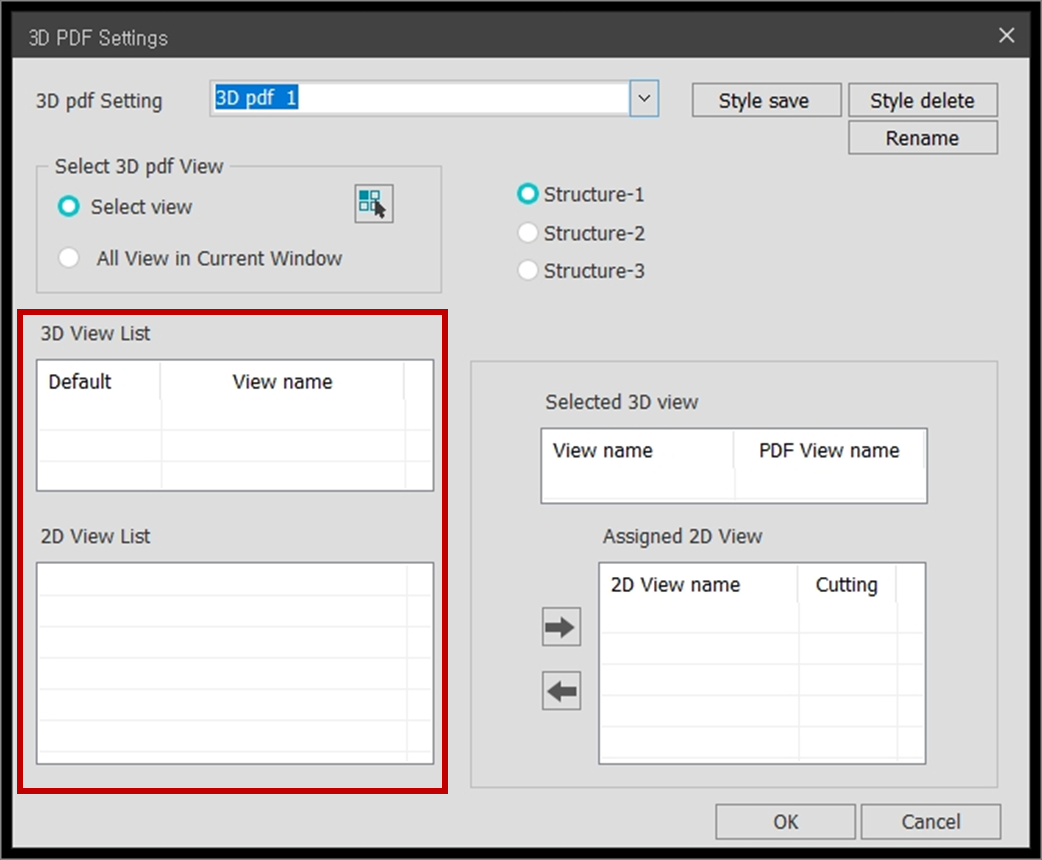

[Select 3D and 2D View]
A list of selected views is automatically registered.
3D View List : It is an item corresponding to the 3D view among the selected views.
Drawings checked in Default are created as 3D PDFs.
2D View List : It is an item corresponding to 2D View among the selected Views.
Views created in the list can be removed with the delete key.

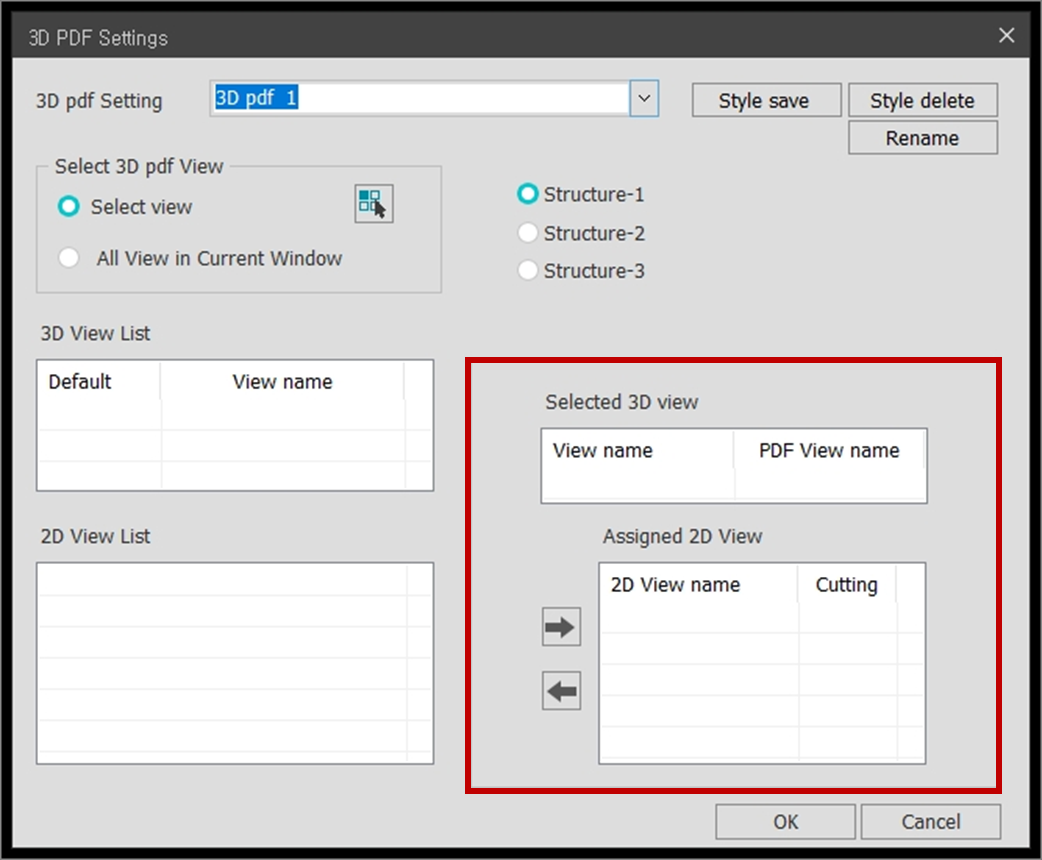

[Selected 3D View / Assigned 2D View]
Assigns a 2D view to the selected 3D View.
Selected 3D View : The 3D view item selected from the 3D View list is displayed.
Assigned 2D View : Assigns a 2D view to the 3D view selected in Selected 3D view.
Select a 3D view from the 3D View list.
Select the 2D View the user wants to assign from the 2D View list and use the arrow buttons to assign/exclude.
[Setting results]

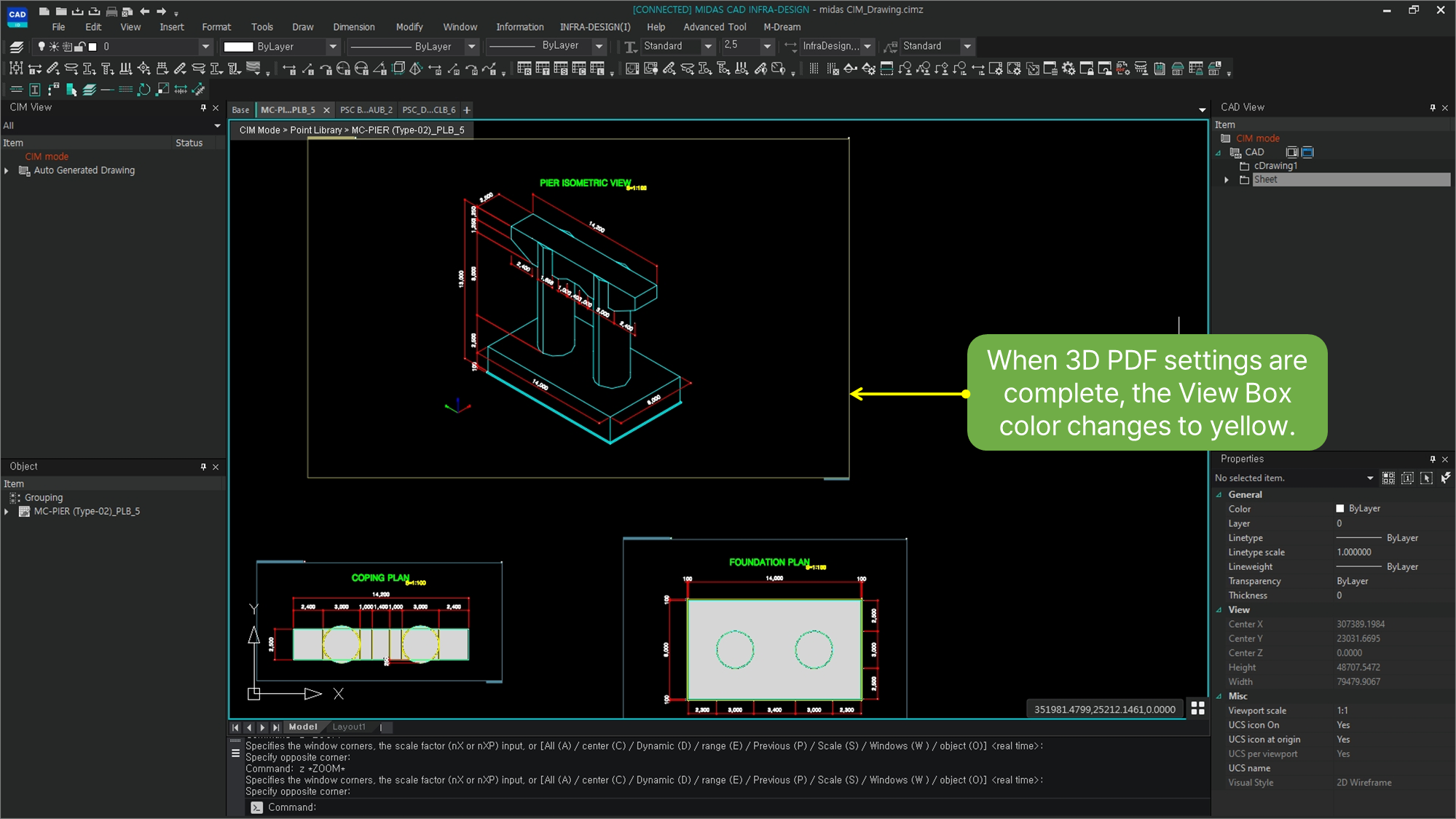

For the 3D View section where 3D PDF settings have been completed, the color of the View Box changes to yellow.
[Video Using the 3D PDF Settings Function]
① Select 3D and 2D View to create 3D PDF
② Select Representative 3D View and Assigned 2D View

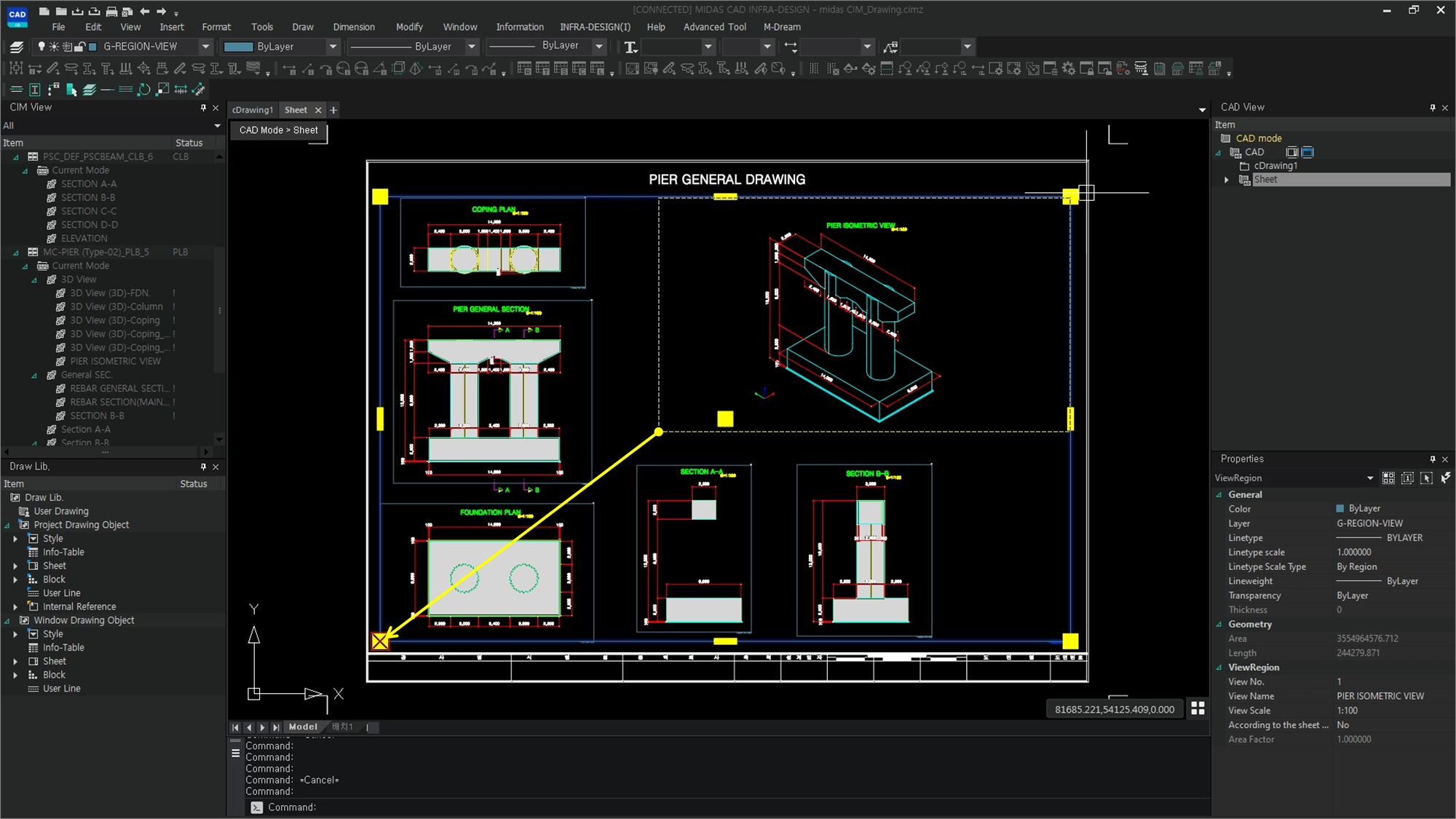

③ Move to CAD View Mode and place the cross section with 3D PDF set on the outline.
④ PLOT / Printer Driver must select 3D PDF Printer.3dm

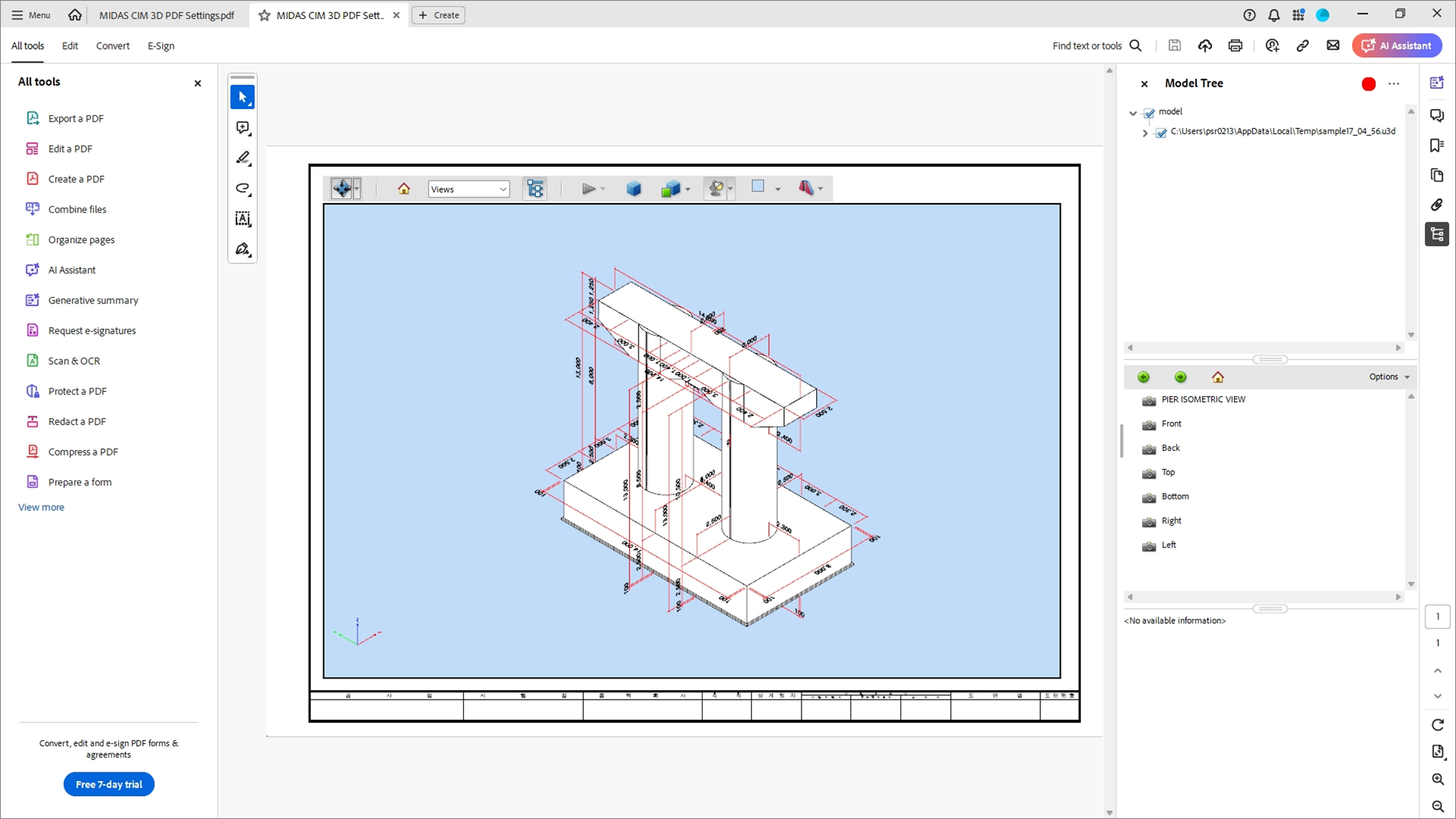

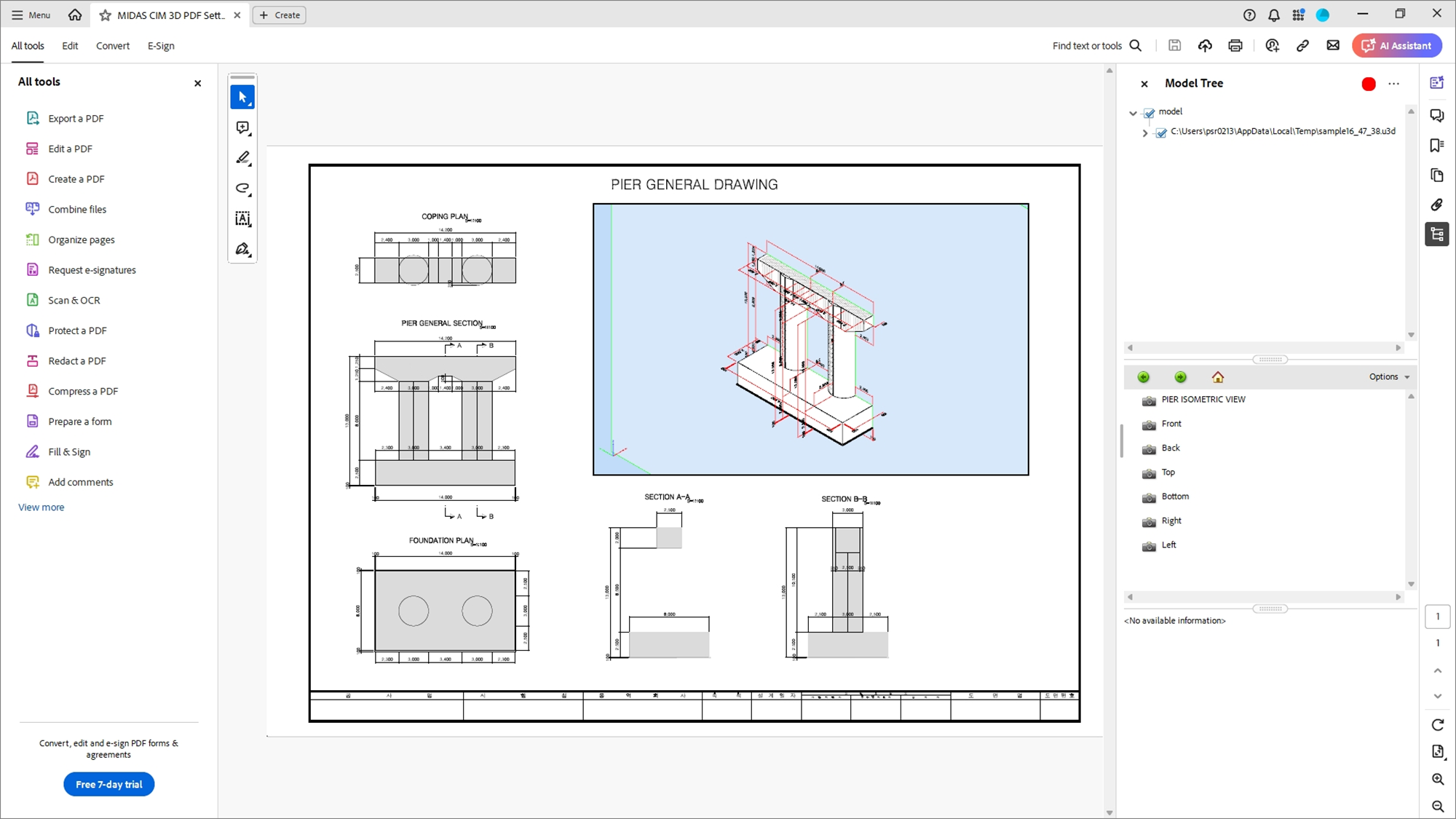

⑤ Open and use files using PDF Viewer (recommended to open with Adobe Acrobat Reader or higher)
[Utilizing 3D PDF]
Increase the size of the single-sided view box in CAD View Mode and print it so that it appears larger in the 3D PDF Viewer.
