Summary
This is an Dimension align function available only in CIM View Mode. It is a function that batch-aligns dimension objects defined in CIM to the user's desired location.
How to Run
[CIM View Mode]

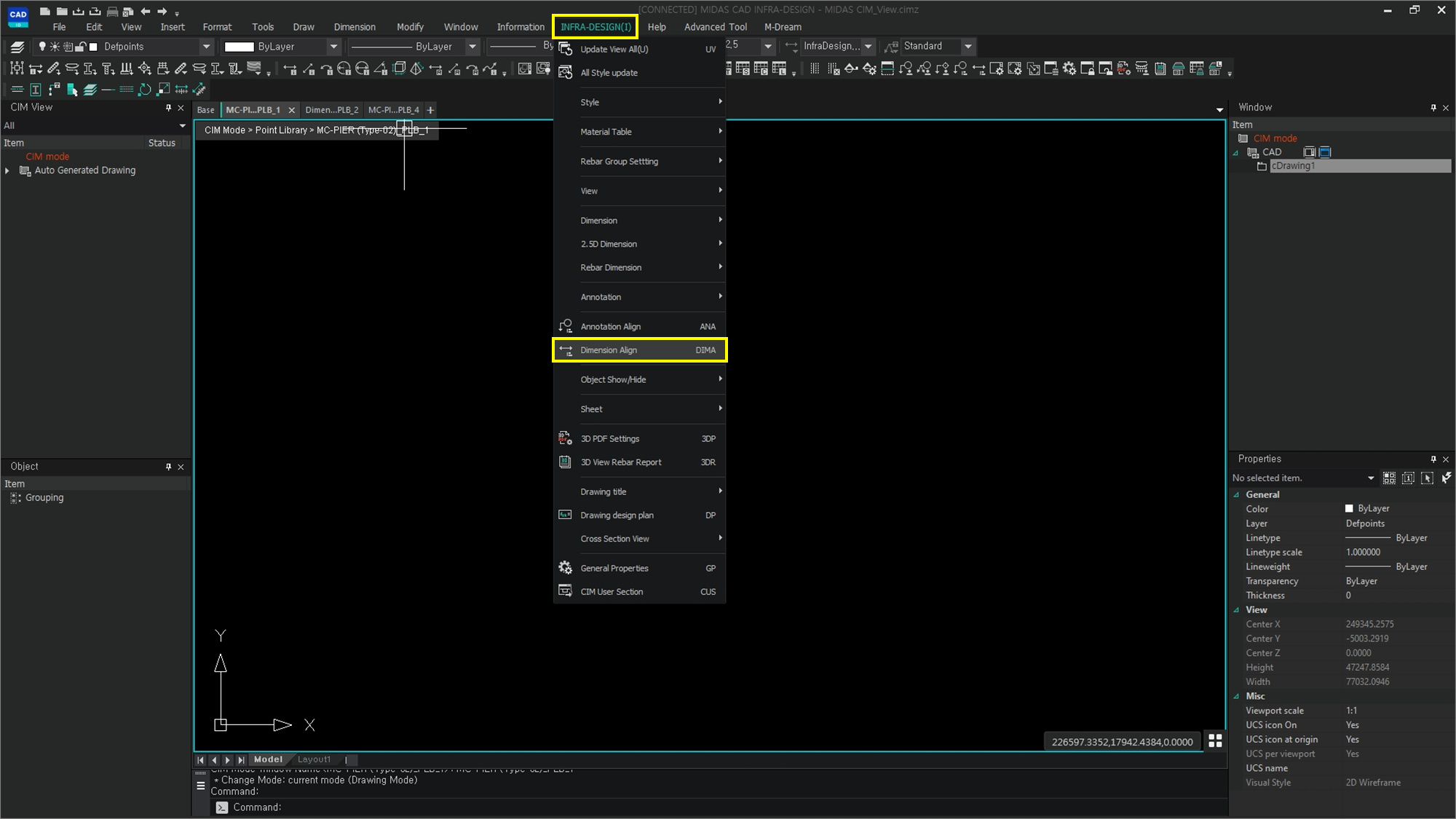

Ribbon Menu > [INFRA-DESIGN] Tab > Dimension Align [DIMA]
Explanation
How to use Dimension Align.
Run the Dimension Align [DIMA] command or execute the Dimension Align function of the INFRA-DESIGN menu tab.
Run Option #1
[Command]
Define dimension location to be aligned [Top(T)/Bottom(B)] <T> : T
This is an option to set the position of the dimension to be aligned.
Top : Options for aligning text positions in dimension objects.
Select Dimension object to be aligned [Offset(O)] <0.000> :
Select the dimensions you want to align.
By using the Offset value, you can align dimensions at a certain distance from the structure's outline line.
Offset Length Setting from Ref. Align Line <0.000> :
When setting the Offset setting, the dimensions are aligned at an offset distance from the dimensions
alignment reference line.
Specify first point :
Specifies the first point to become an arbitrary reference line by which dimensions can be aligned.
Specify next point :
Specifies a second point to become an arbitrary reference line by which dimensions can be aligned.
<Dimension align completed>
Run Option #2
[Command]
Define dimension location to be aligned [Top(T)/Bottom(B)] <T> : B
This is an option to set the position of the dimension to be aligned.
Bottom : Option to align dimension extension lines.
Select Dimension object to be aligned [Offset(O)] <0.000> :
Select the dimensions you want to sort.
Specify first point :
Specifies the first point to become an arbitrary reference line by which dimensions can be aligned.
Specify next point :
Specifies a second point to become an arbitrary reference line by which dimensions can be aligned.
<Dimension align completed>
