Summary
This is an Annotation align function available only in CIM View Mode. It is a function that batch-aligns annotation objects such as rebars, tendons, steel materials, and bolts defined in CIM to the user's desired location.
How to Run
[CIM View Mode]

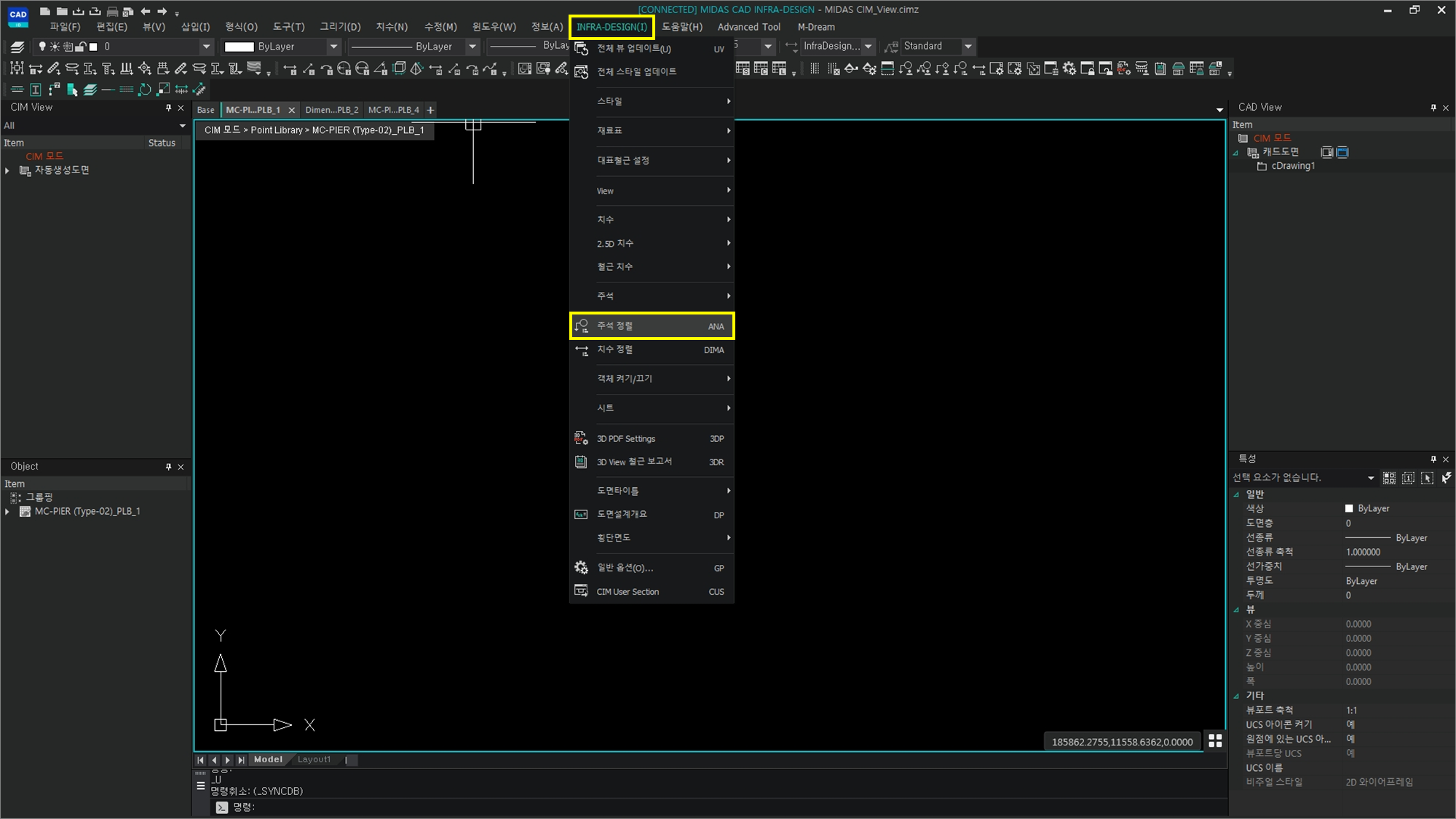

Ribbon Menu > [INFRA-DESIGN] Tab > Annotation Align [ANA]
Explanation
How to use Annotation Align.
Run the Annotation Align [ANA] command or execute the Annotation Align function of the INFRA-DESIGN menu tab.
[Command]
Define annotation location to be aligned [Top(T)/Bottom(B)] <T> : T
This is an option to set the position of the annotation to be aligned.
Top : Options for aligning text positions in annotation objects
Select Annotation object to be aligned [Offset(O)] <0.000> :
Select the annotations you want to sort.
By using the Offset value, you can align annotations at a certain distance from the structure's outline line.
Offset Length Setting from Ref. Align Line <0.000> :
When setting the Offset setting, the annotations are aligned at an offset distance from the annotation
alignment reference line.
Specify first point :
Specifies the first point to become an arbitrary reference line by which annotations can be aligned.
Specify next point :
Specifies a second point to become an arbitrary reference line by which annotations can be aligned.
<Annotation align completed>
Run Option [Bot.]
[Command]
Define annotation location to be aligned [Top(T)/Bottom(B)] <T> : B
This is an option to set the position of the annotation to be aligned.
Bottom : Annotation leader alignment options for grouped objects.
Select Annotation object to be aligned [Offset(O)] <0.000> :
Select the annotations you want to sort.
Specify first point :
Specifies the first point to become an arbitrary reference line by which annotations can be aligned.
Specify next point :
Specifies a second point to become an arbitrary reference line by which annotations can be aligned.
<Annotation align completed>
