Summary
CAD ID is connected with CIM via real-time interworking.
The model is modified in CIM and updates are delivered to CAD ID; furthermore, only the view that the user wants to update on CAD ID can be selectively updated by reflecting the latest model changes.
Explanation
Update View Process
CAD ID's View Update is updated through the following process.

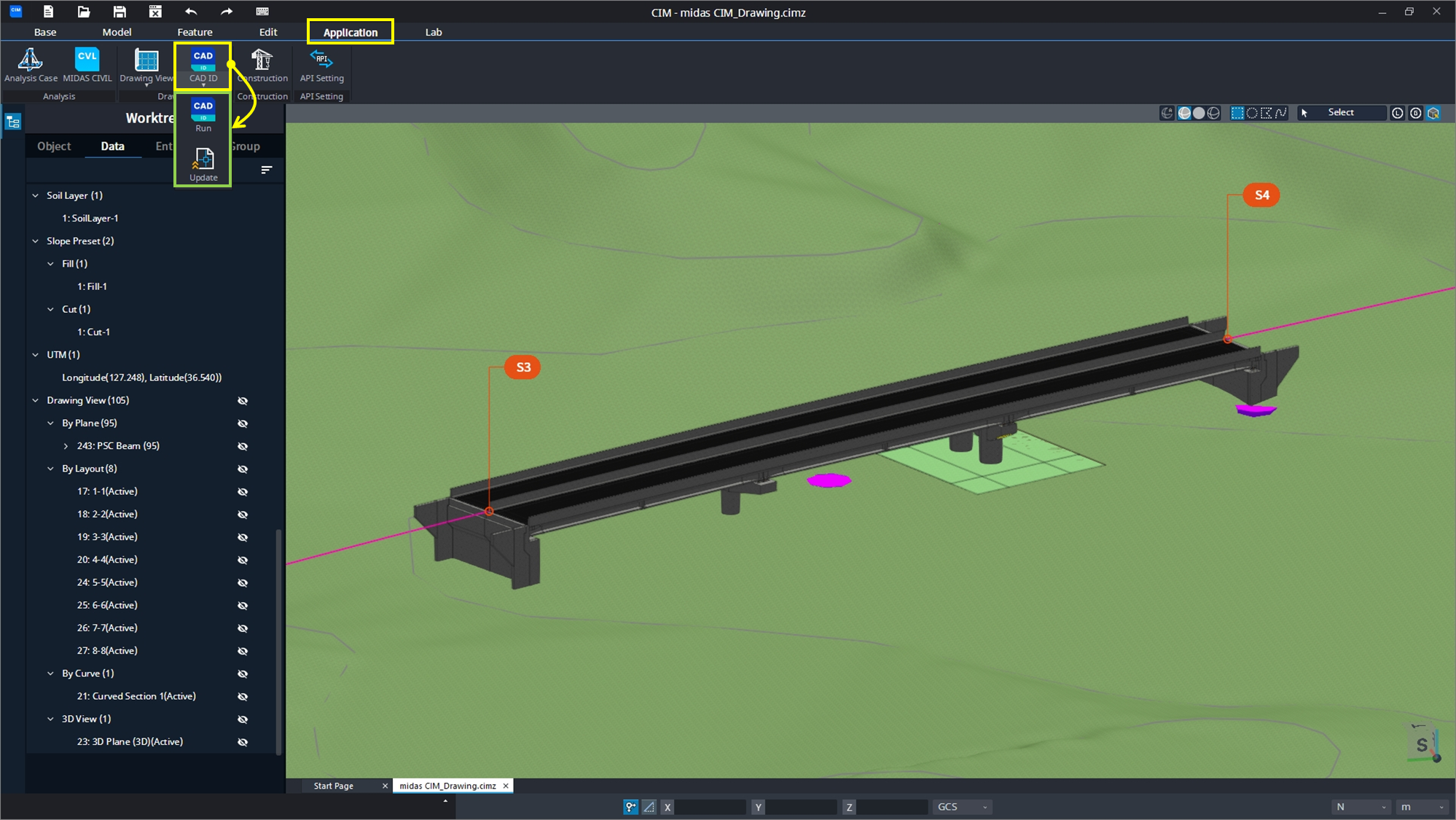

Step 1 : CIM > Application> CAD ID Function Execution
After creating or modifying the model in CIM, execute the Application > Update function to deliver the update to CAD ID.
Before CAD ID execution
: CAD ID is executed, and the [CONNECTED] message is displayed in green at the top center of the product.
Executing linkage with CAD ID
: In the CAD ID Command window, the [_SYNCDB] message linking data is displayed after the [_UPDATEFILE] message.
After executing the Update function in CIM, it returns to CAD ID..
Step 2 : CAD ID > INFRA-DESIGN >

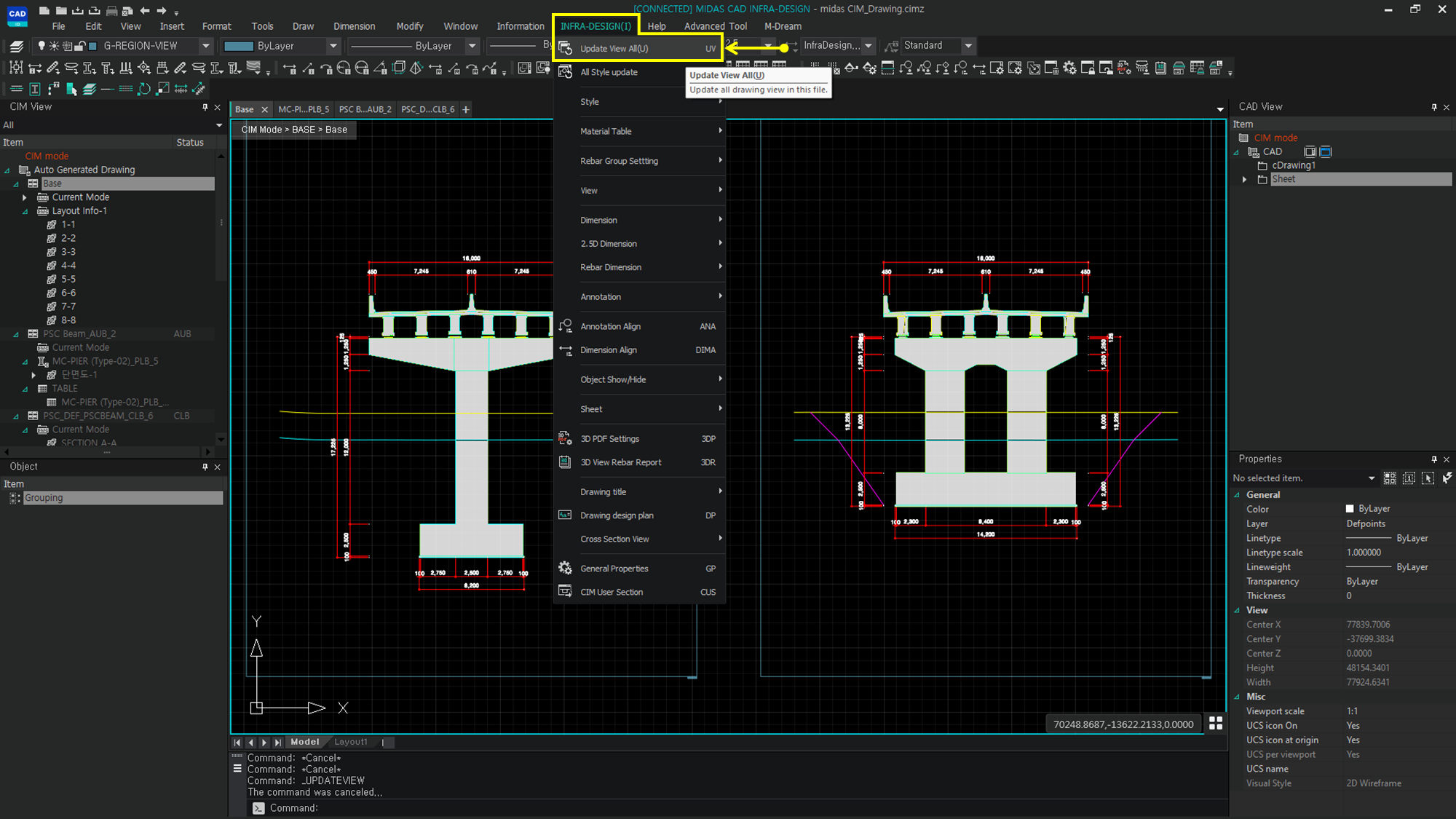

① Update all views

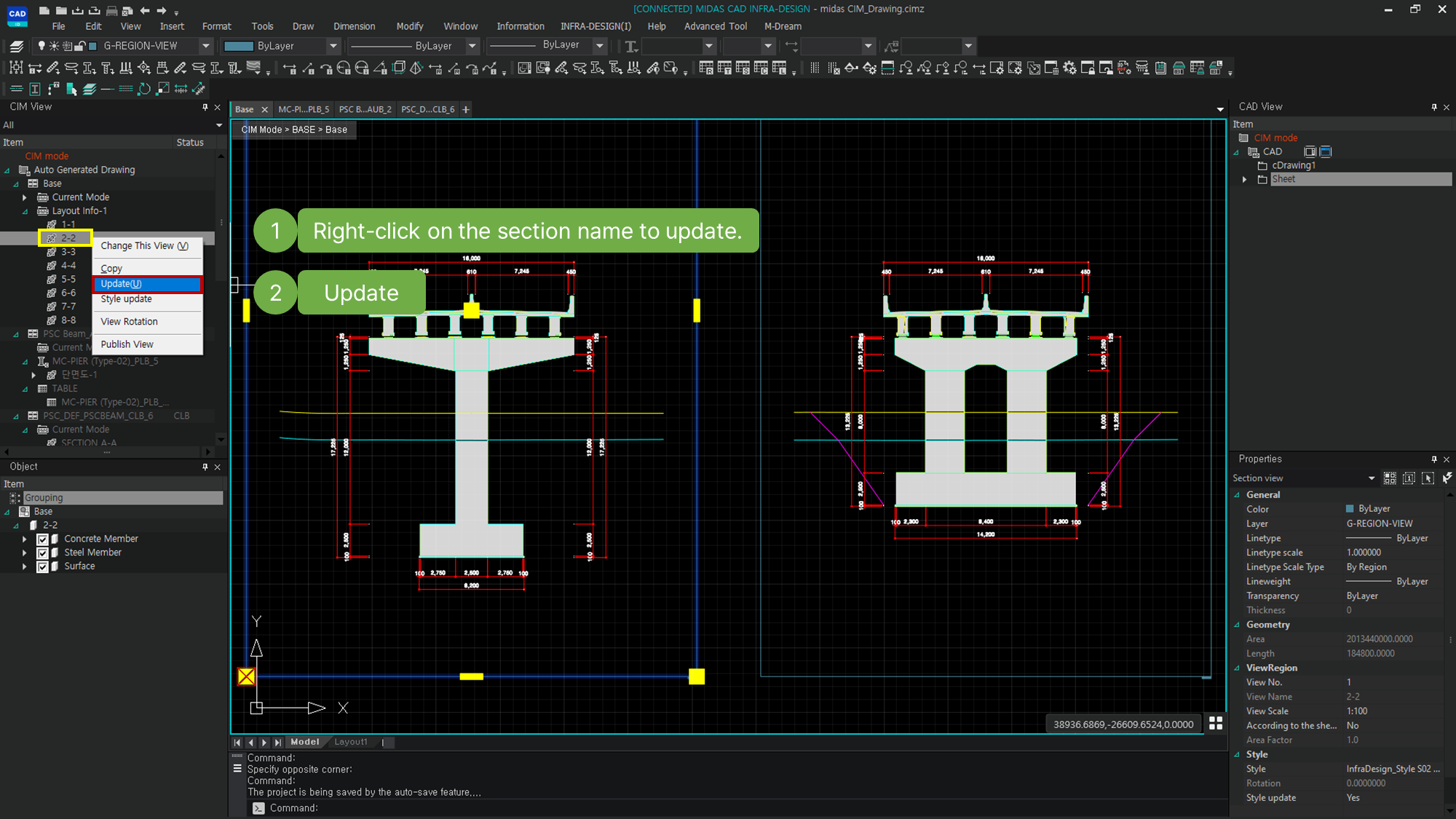

② Right-click a view and update the selected view
③ Right-click the view in the tree and update it
Operation status after calling CAD ID from CIM
① Update all views
: All views connected to CIM in CAD ID are updated.
(If there are many linked sections, the update time may increase because the entire section is updated.)

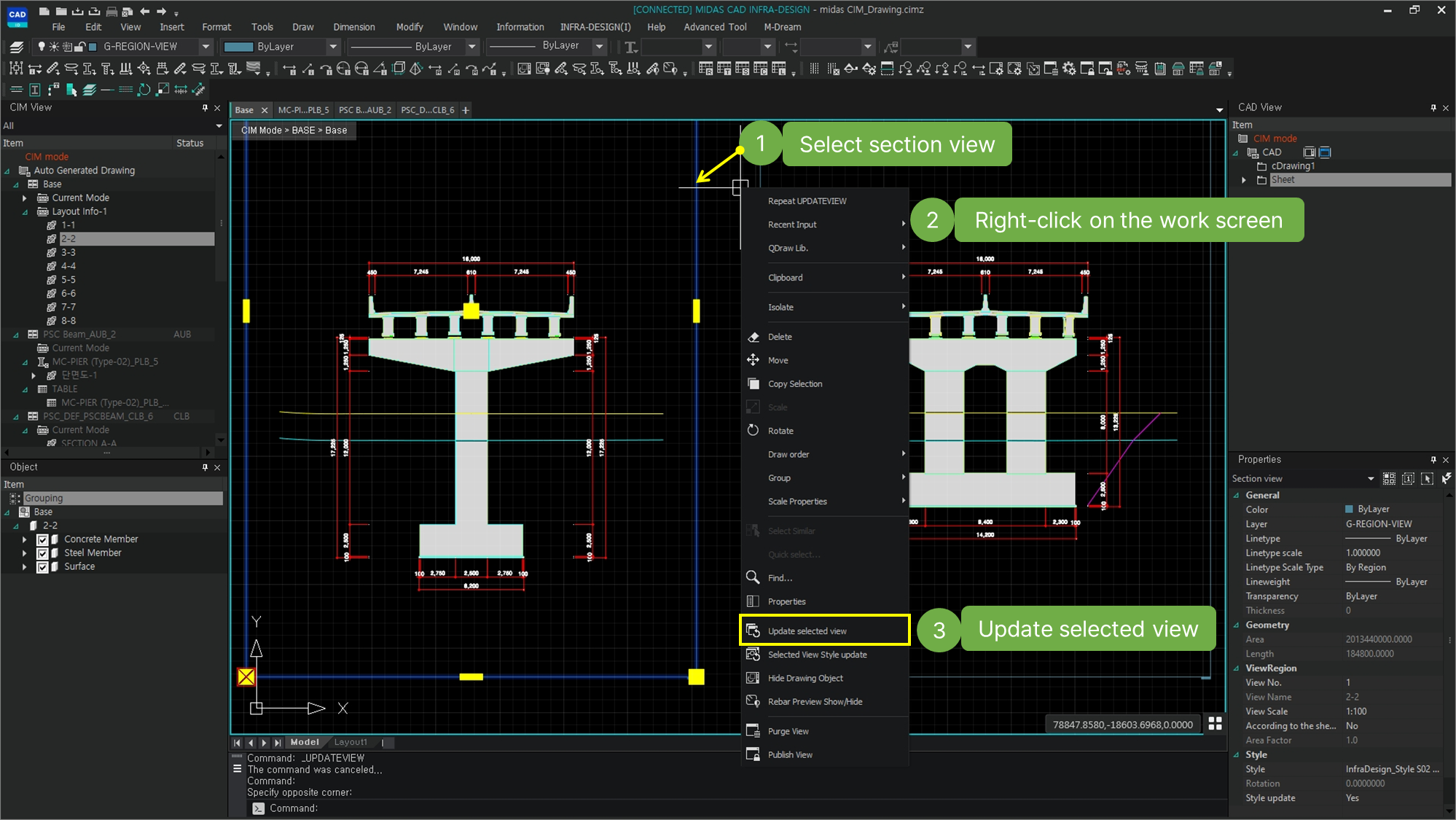

② Right-click a view and update the selected view
: Only the view selected on the screen is updated.
③ Right-click the view in the tree and update it
: Single or Multi-selected View in the tree is updated.
If the view the user does not want to update is updated, the user can revert it by using the Ctrl+Z command. If the user multi-selects an item other than the View in the Tree menu, it will not be updated.
Changes when Updated
When CAD ID's View is updated, the following items are also reflected.
ㆍChanges in CIM's model
ㆍChanges in CIM’s View
ㆍCAD ID's Style Changes
ㆍView of CIM Mode referenced in CAD Mode
ㆍMaterial List (Rebar Schedule, Steel Member Table, Tendon Coordinate Table, etc)
