Rebar Group Setting / Delete Rebar Group Setting

Summary

The Rebar Group Setting is a feature that selects and expresses only the main rebars among the grouped rebars.

How to Run

[CIM View Mode]

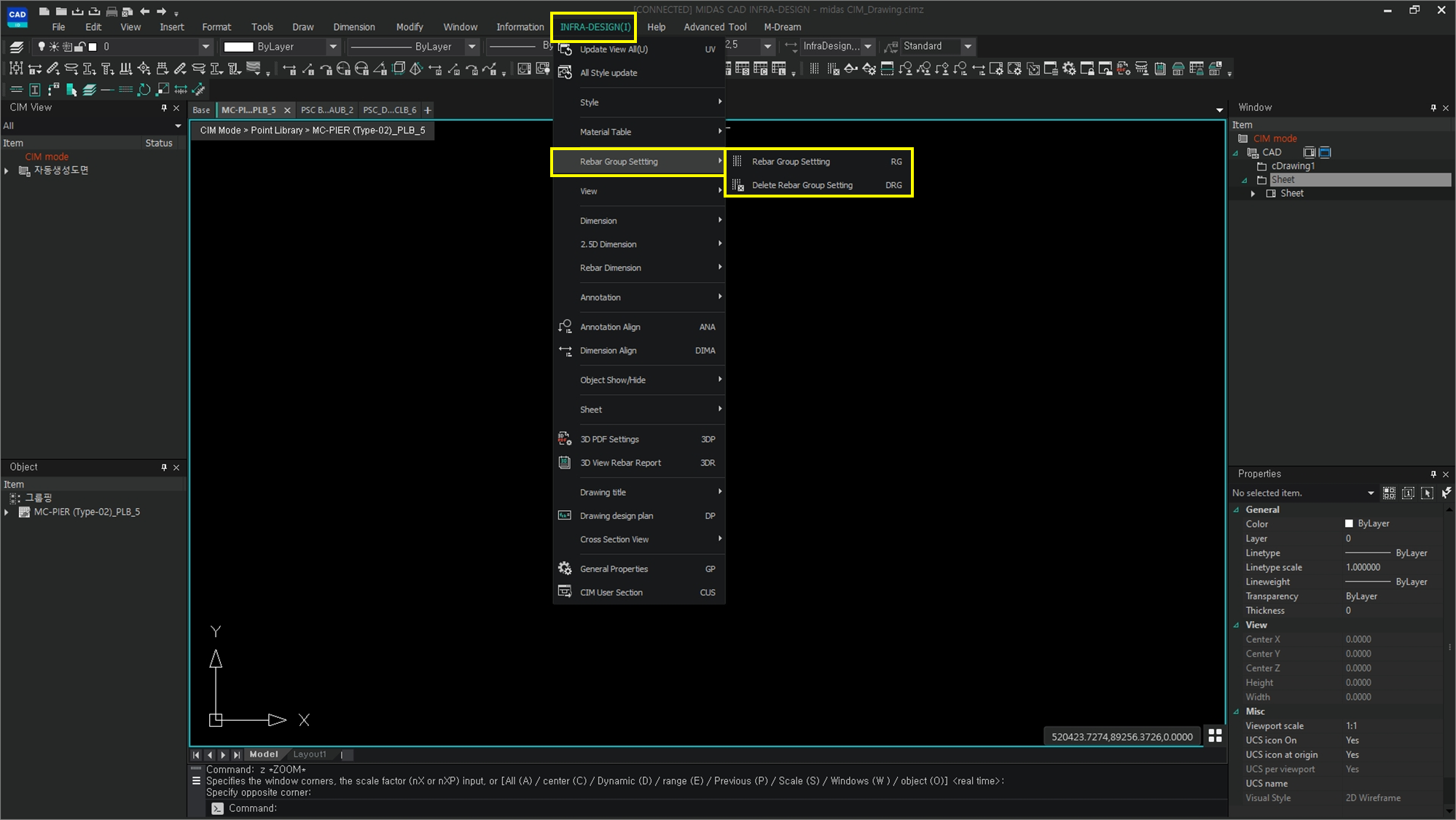

Ribbon Menu > [INFRA-DESIGN] Tab> Rebar Group Setting (RG) / Delete Rebar Group Setting (DRG)

Explanation

How to Rebar Group Setting

After executing the Rebar Group Setting command, set the main rebar of the group in the order shown in the figure above.
This setting takes precedence over the Group Rebar Type setting of Rebar Style.

Rebar Group Setting, Shortcut key : RG	Commentary contents

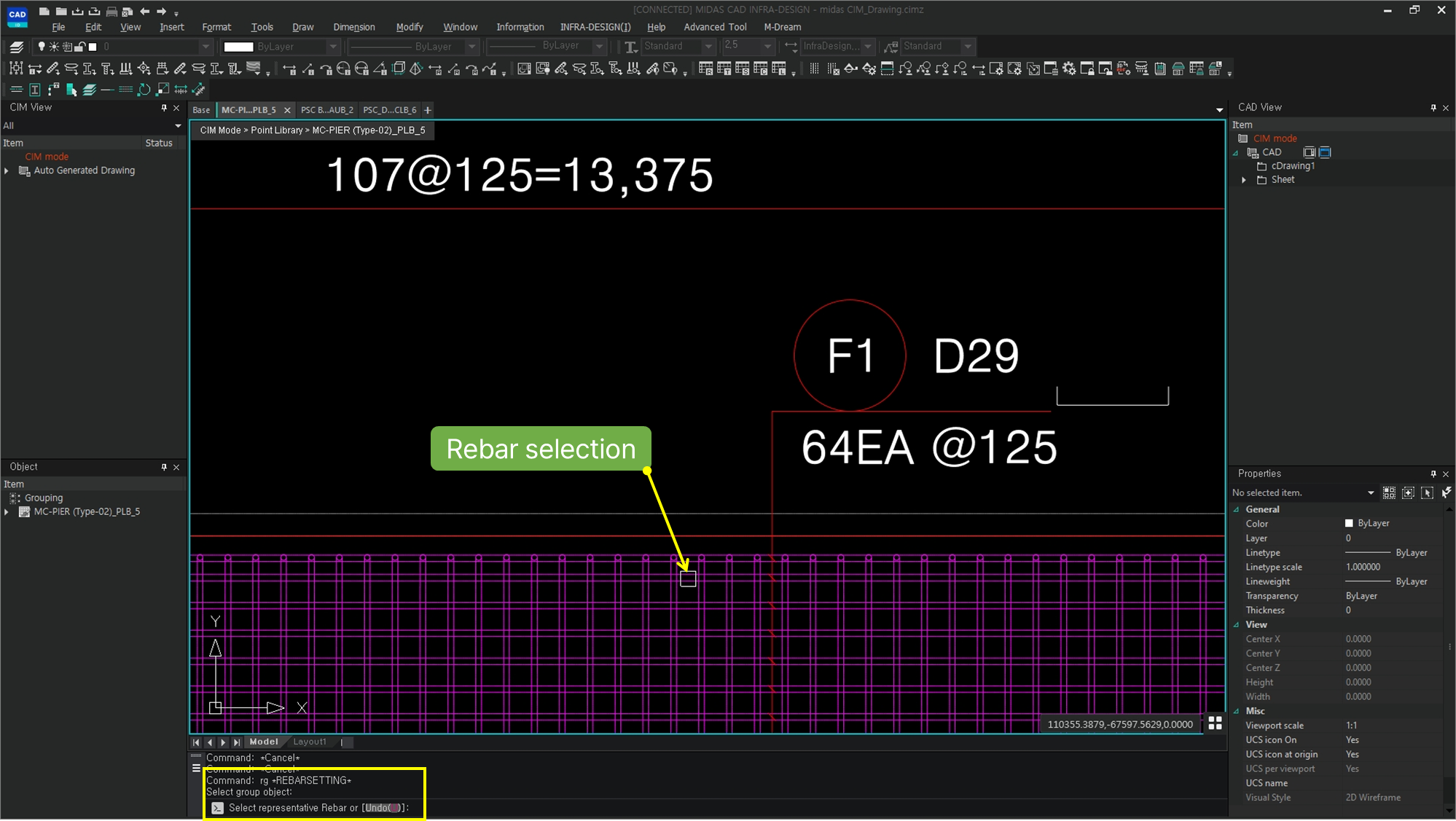

	[Command] Select representative Rebar or [Undo(U)] : Select a grouped rebar group.

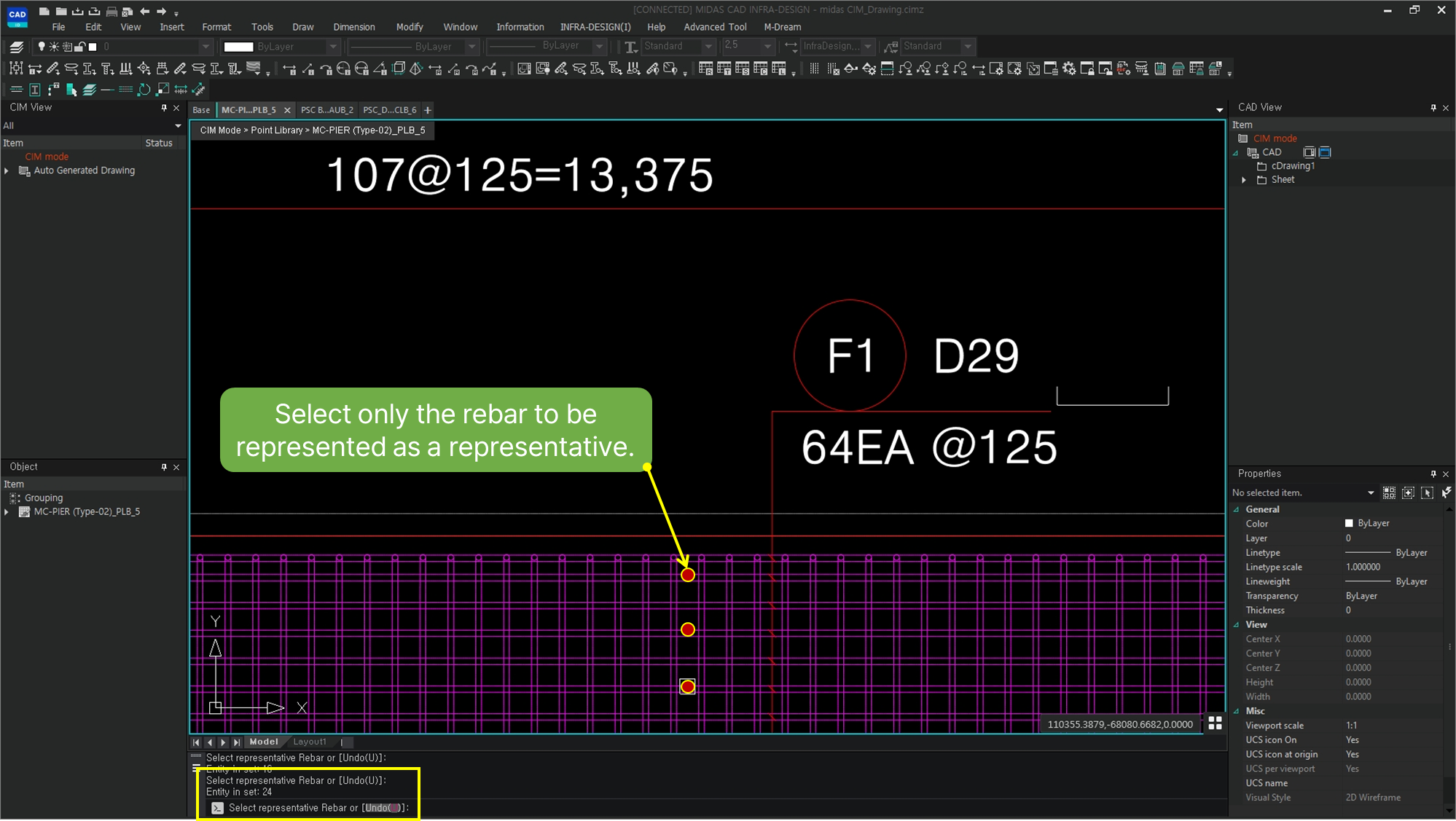

	[Command] Select representative Rebar or [Undo(U)] : Entity in set : ** Select only the rebars to be represented in the section.

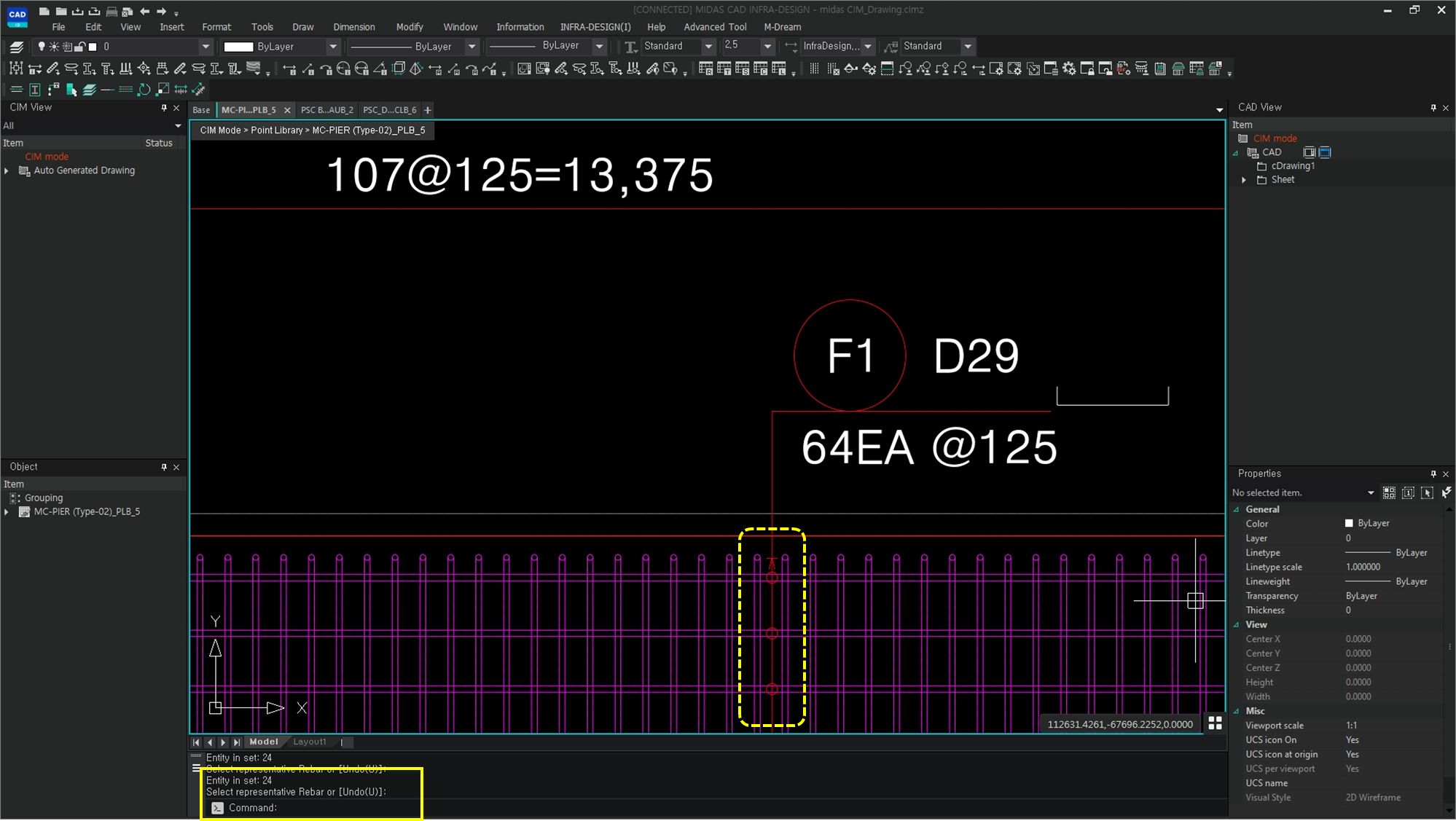

	[Command] Select representative Rebar or [Undo(U)] : Entity in set : ** Select representative Rebar or [Undo(U)] : Among the grouped rebars, only the representative rebars are displayed.

Note
After rebar group setting, the settings are initialized when the selected rebar is updated due to a model change, the location changes, or the relevant rebar is deleted.

How to Delete Rebar Group Setting

Delete the main rebar designation setting.

Object : Deletes only the settings of the selected rebar object.

View : Deletes the main rebar settings of all rebar objects belonging to the selected view.

All : Deletes the main rebar settings of all rebar objects in the current workspace (based on the Tab shown above).
