Summary
Feature to set the object expression style of the concrete member.
Through this setting, the user can turn on or off the expression of the visible range of an object, fill in the section color or set a layer, etc.
Explanation

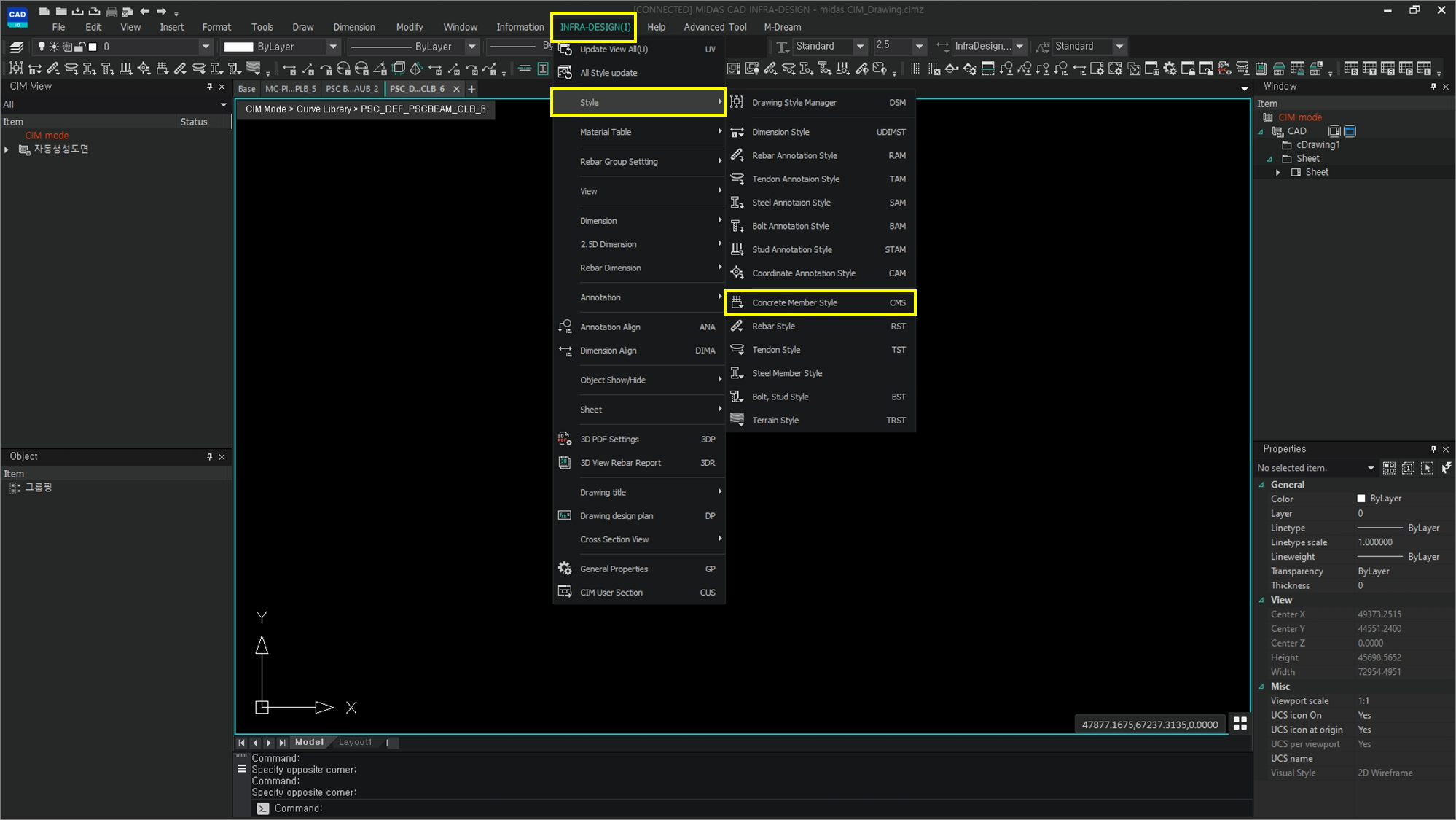

INFRA-DESIGN > Style > Concrete Member Style

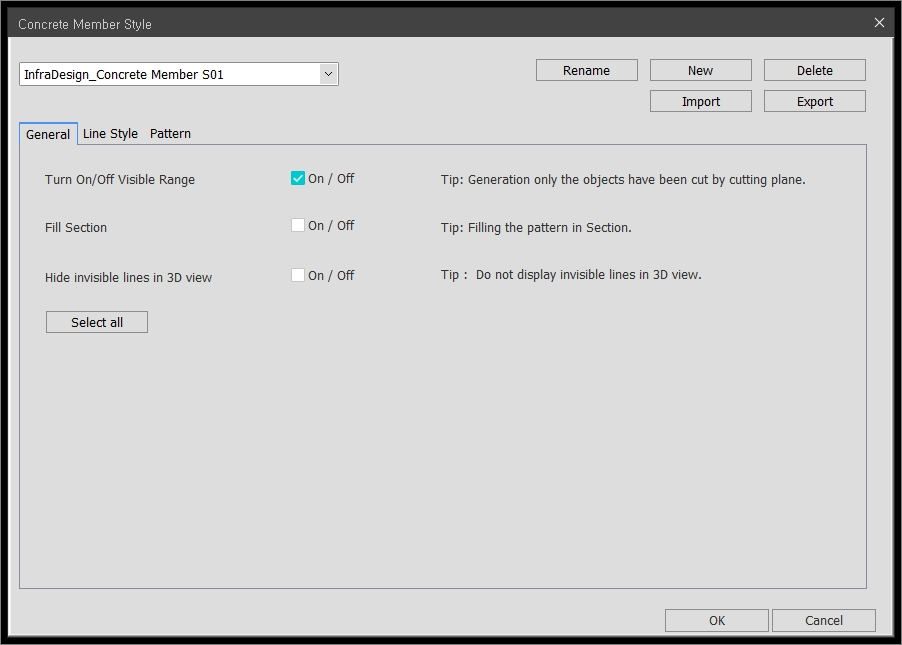

General Style Settings
General Style Settings

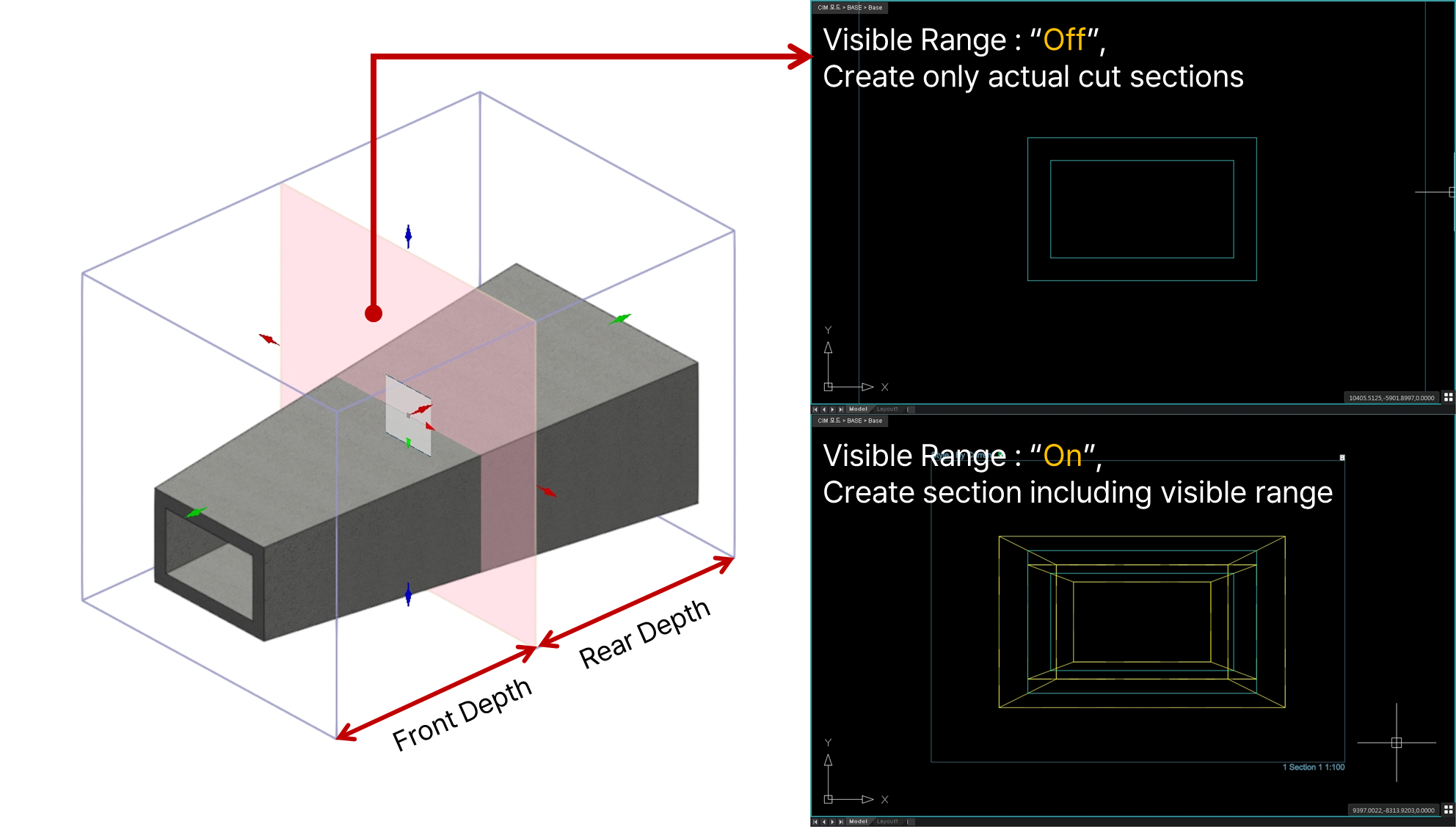

Turn On/Off Visible Range
: Turns on/off the visible range of the concrete member.
Fill Section
: Fills the concrete part section with a pattern.
Depending on the setting, different patterns can be filled in the cutting section and the section created by the visible range.
Hide Invisible line in 3D View
: Invisible lines in the 3D view section are hidden.

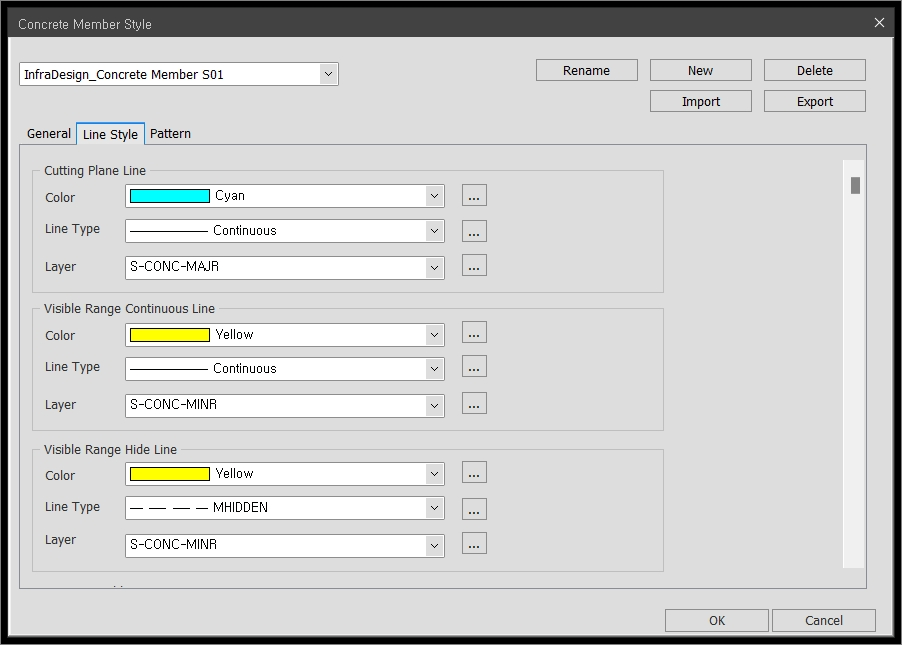

Line Style Setting
Line Style Setting
Cutting Plane Line
: Set the line color, line type, and layer of the section cut by CIM's Cutting View Box.
Visible Range Continuous Line
: Set the color, line type, and the layer of the continuous line connecting the cut section within the visible range and the cut section in the visible range.
Visible Range Hide Line
: Set the line color, line type, and the layer of the section cut by the visible range.
3D Exposed Line
: Set the color, line type, and layer of the line actually visible in the section of the 3D View.
3D Hidden Line
: Set the color, line type, and layer of lines that are not visible in the section of the 3D View.

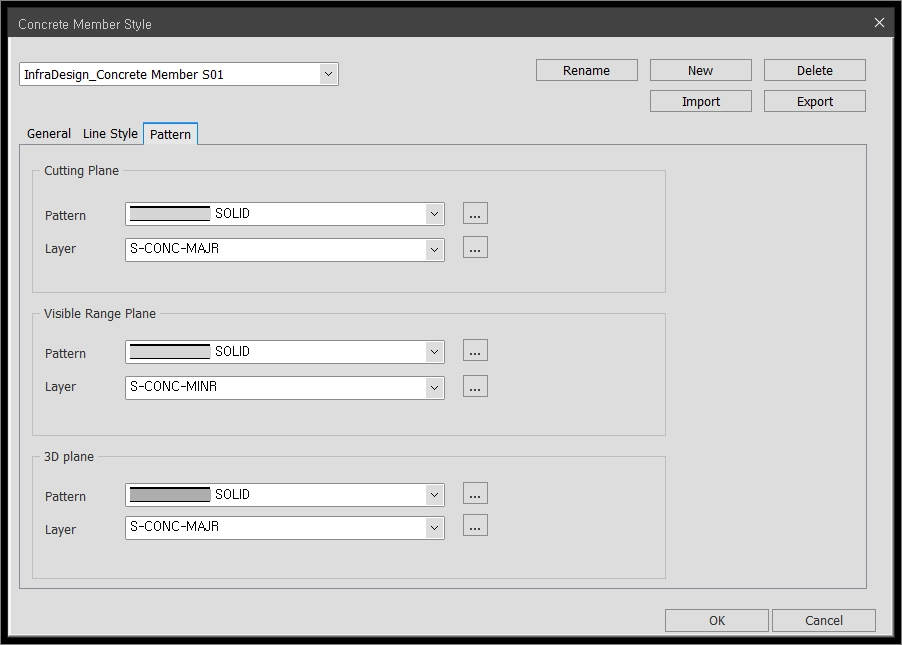

Pattern Style Setting
Pattern Style Setting
Cutting Plane
: Set the pattern and layer to fill the section cut by CIM's Cutting View Box.
Visible Range Plane
: Set the pattern and layer to fill the section cut by the visible range.
3D Plane
: Set the pattern and layer to fill the 3D View section.
