Summary
Feature to set the expression style of Tendon.
hrough this setting, the user can show or hide the tendons that exist in the visible range, or set the center line or line expression of the tendons.
Explanation

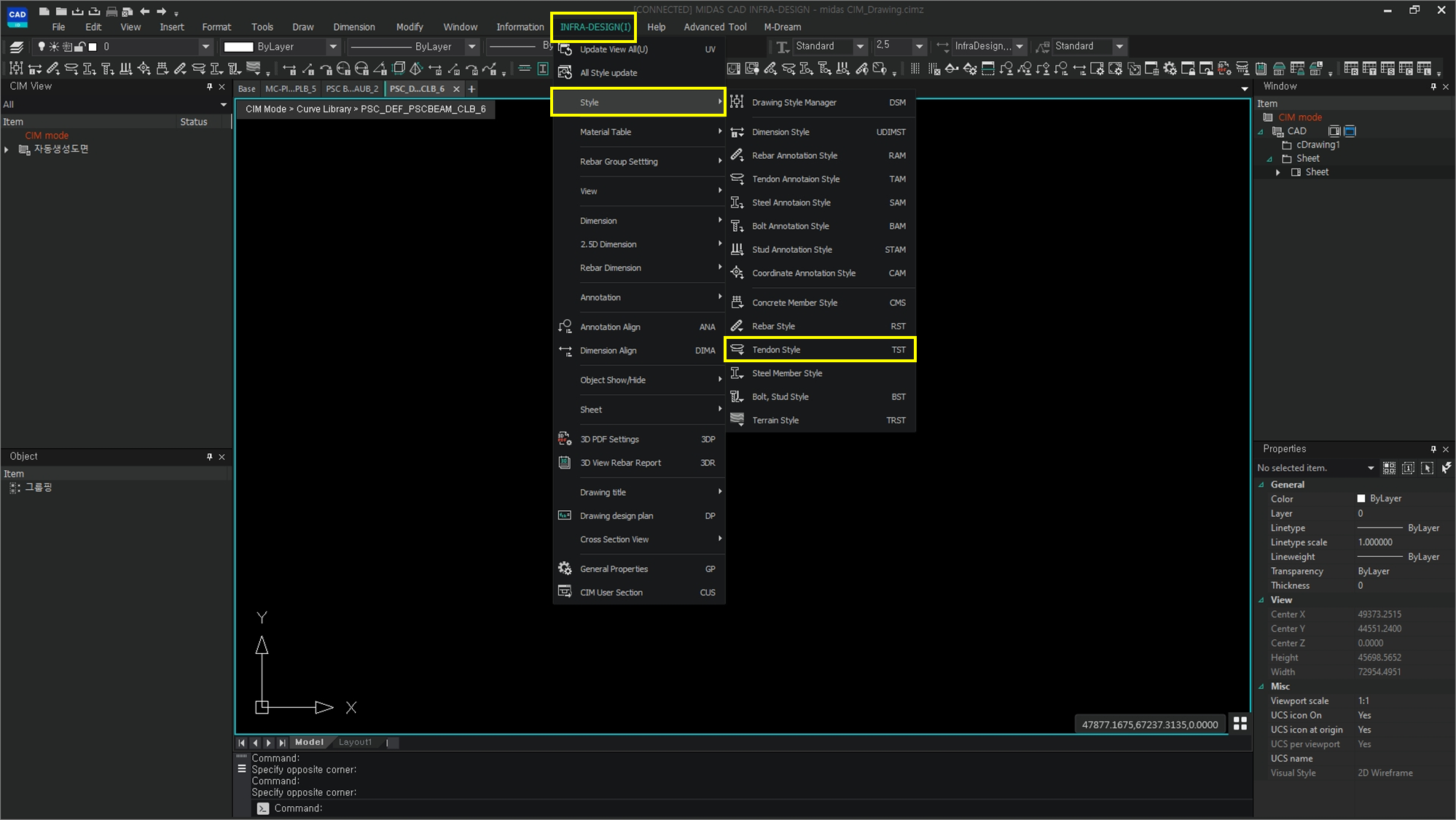

INFRA-DESIGN > Style > Tendon Style

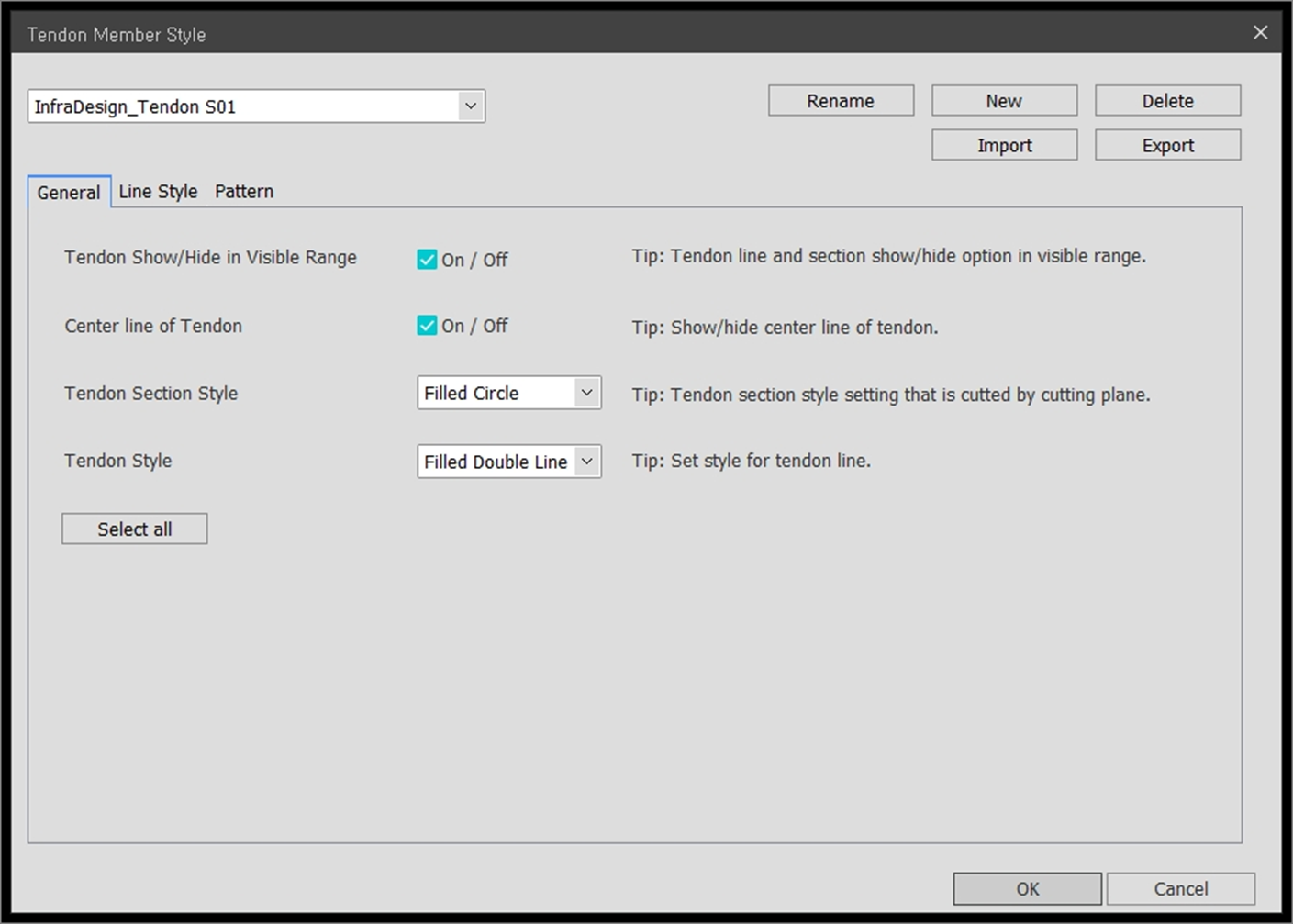

General Style Settings
General Style Settings

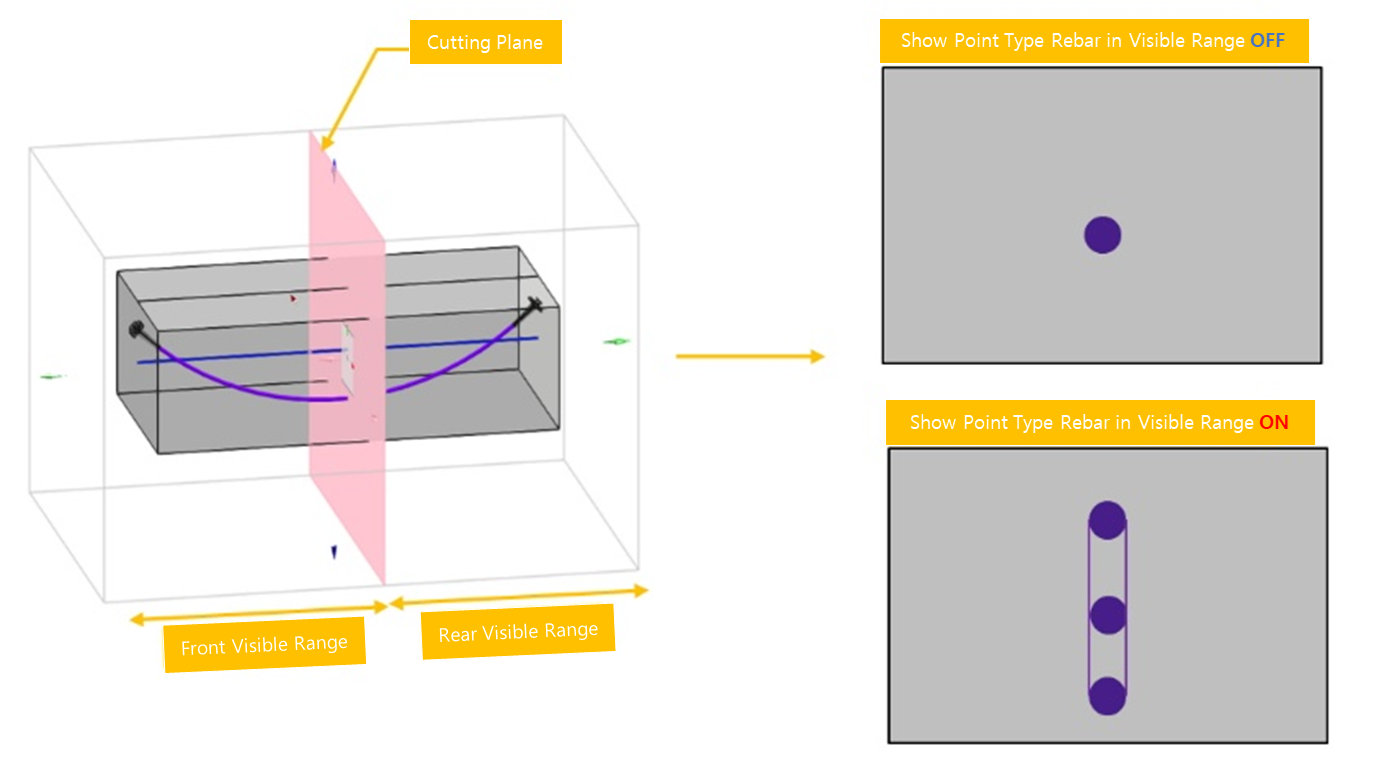

Tendon Show/Hide in Visible Range
: Shows or hides the shape of a tendon that exists in the visible range.
Center line of Tendon
: Displays the center line of the Tendon.

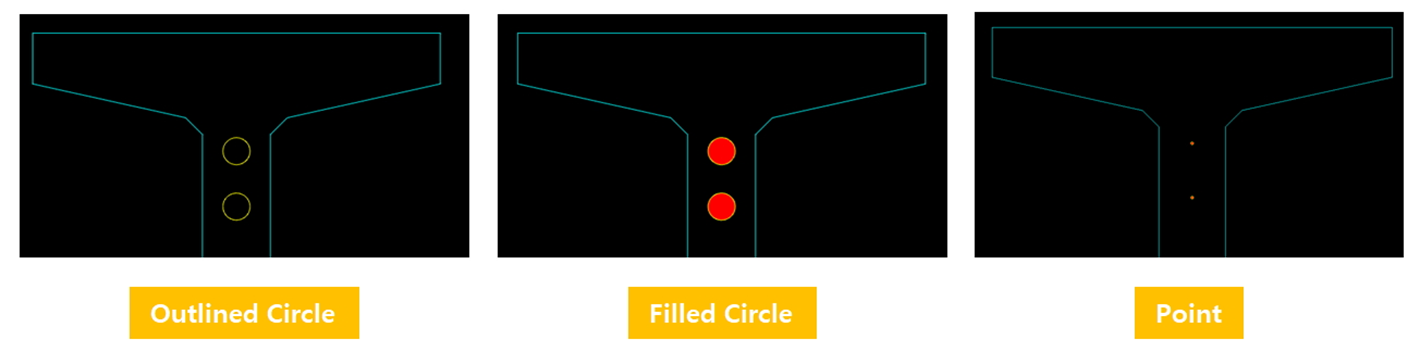

Tendon Section Style
: Sets the method of expressing the section of the Tendon when the Tendon intersects the cutting surface of the Cutting Box.
Options are provided to display as hollow Outlined Circle / Filled Circle / Point.

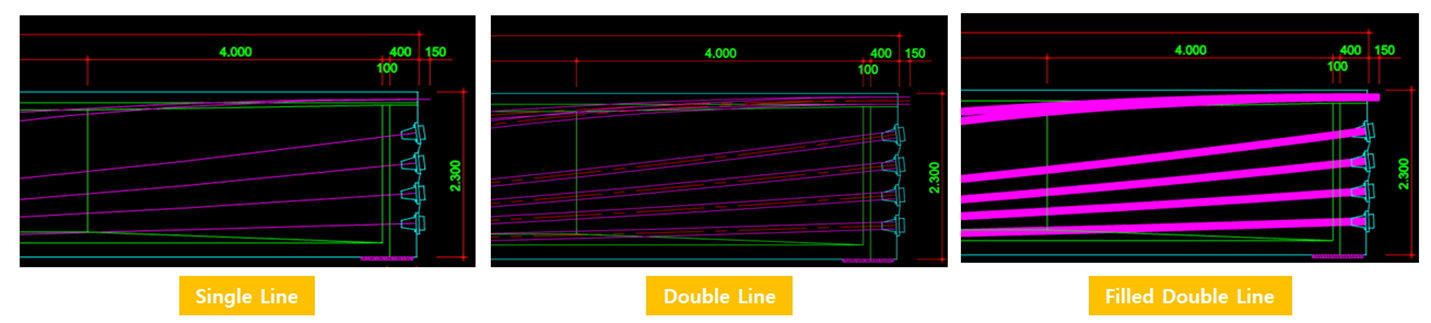

Tendon Style
: Sets the style for the Tendon expressed as a line.
Options are provided to display as hollow Single Line / Duble Line / Filled Double Line.

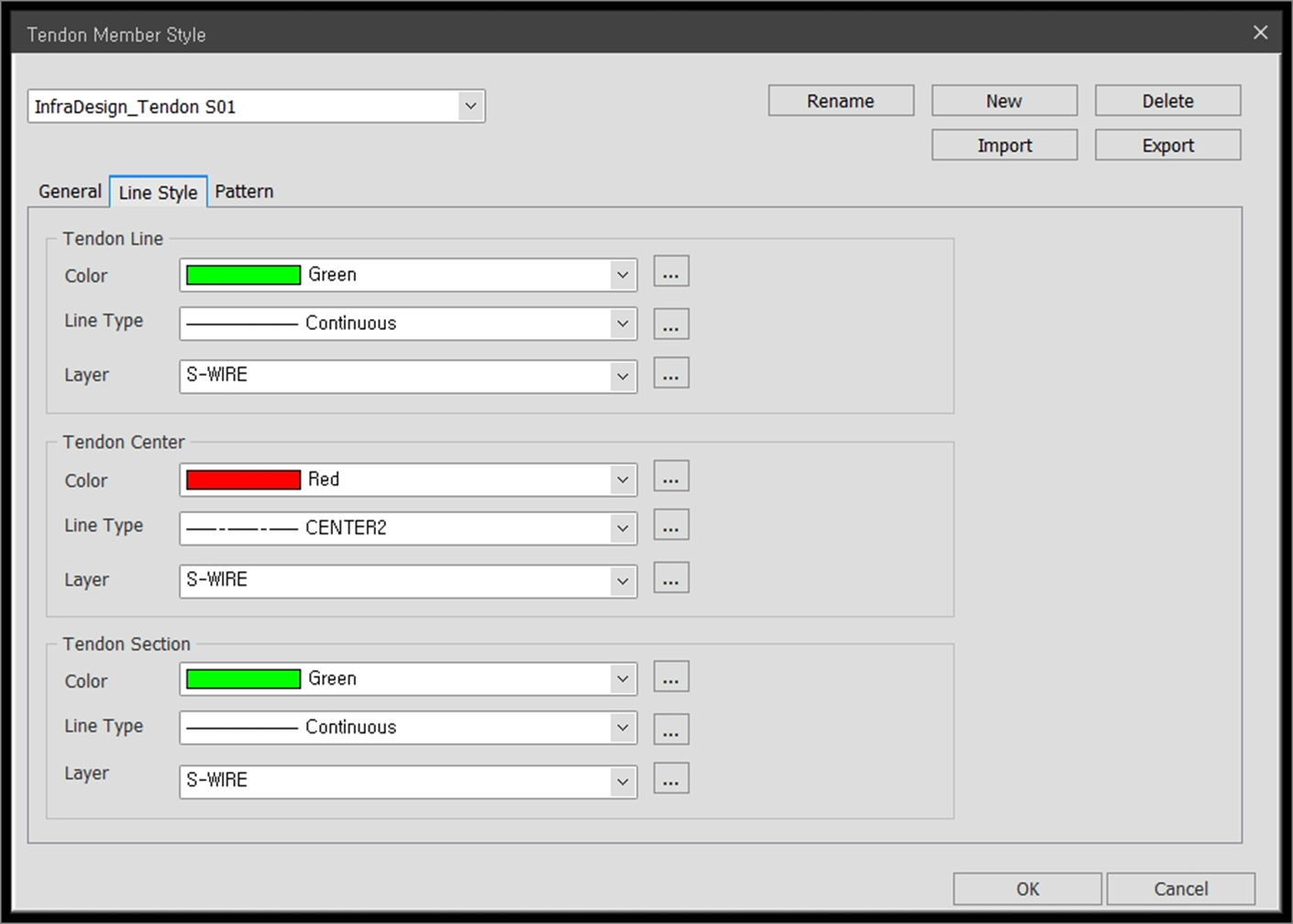

Line Style Settings
Line Style Settings
Tendon Line
: Defines the line color, line style, and layer of the Line Type Tendon.
Tendon Center
: Defines the line color, line style, and layer of the tendon center line.
Tendon Section
: Defines the line color, style, and layer of the Tendon section line.

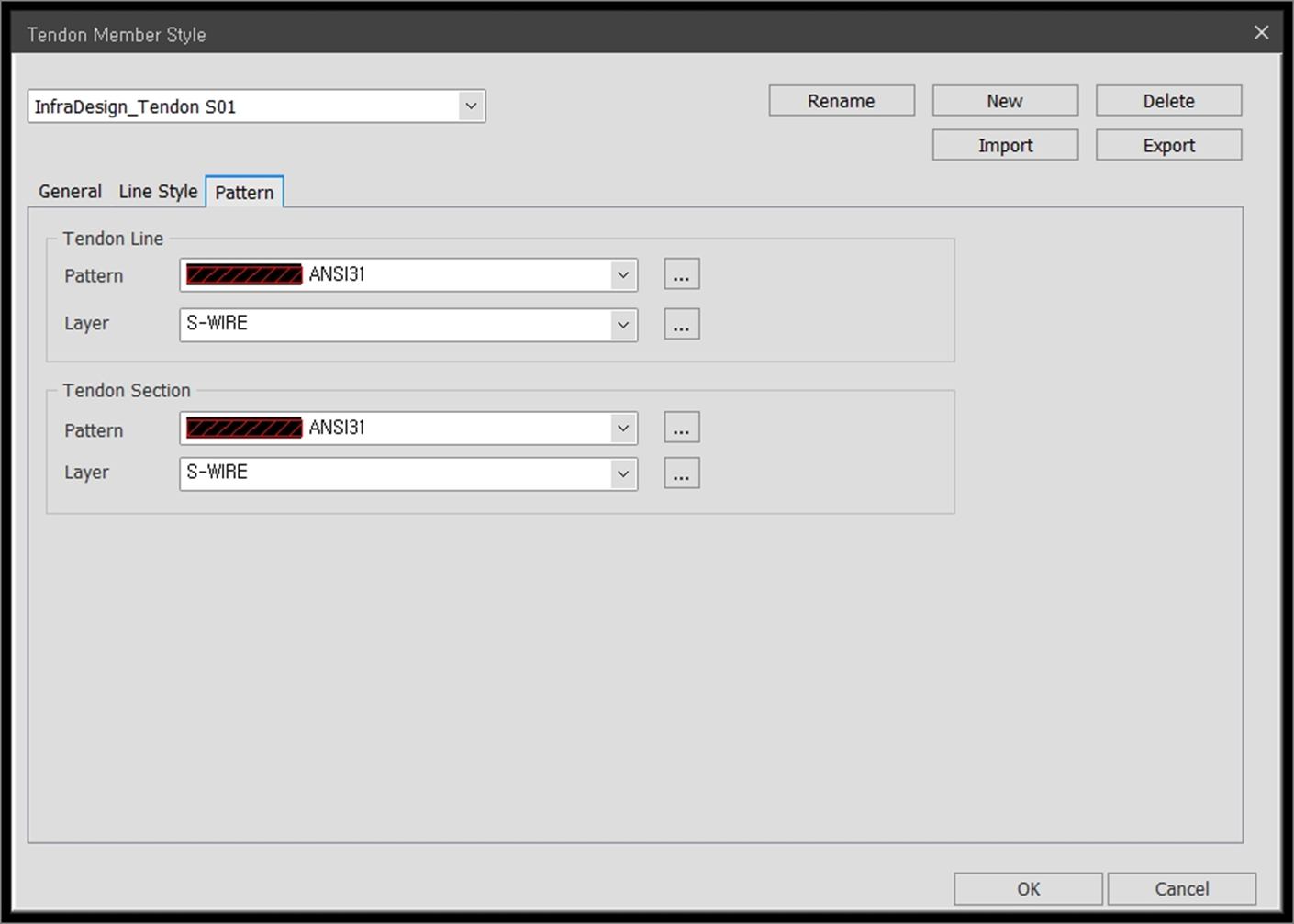

Pattern Style Settings
Pattern Style Settings
Tendon Line
: Set the fill color and layer of Tendon Line Type.
Tendon Section
: Set the fill color and layer of Tendon Point Type.
