Feature to set the display style of Coordinate annotations
Explanation

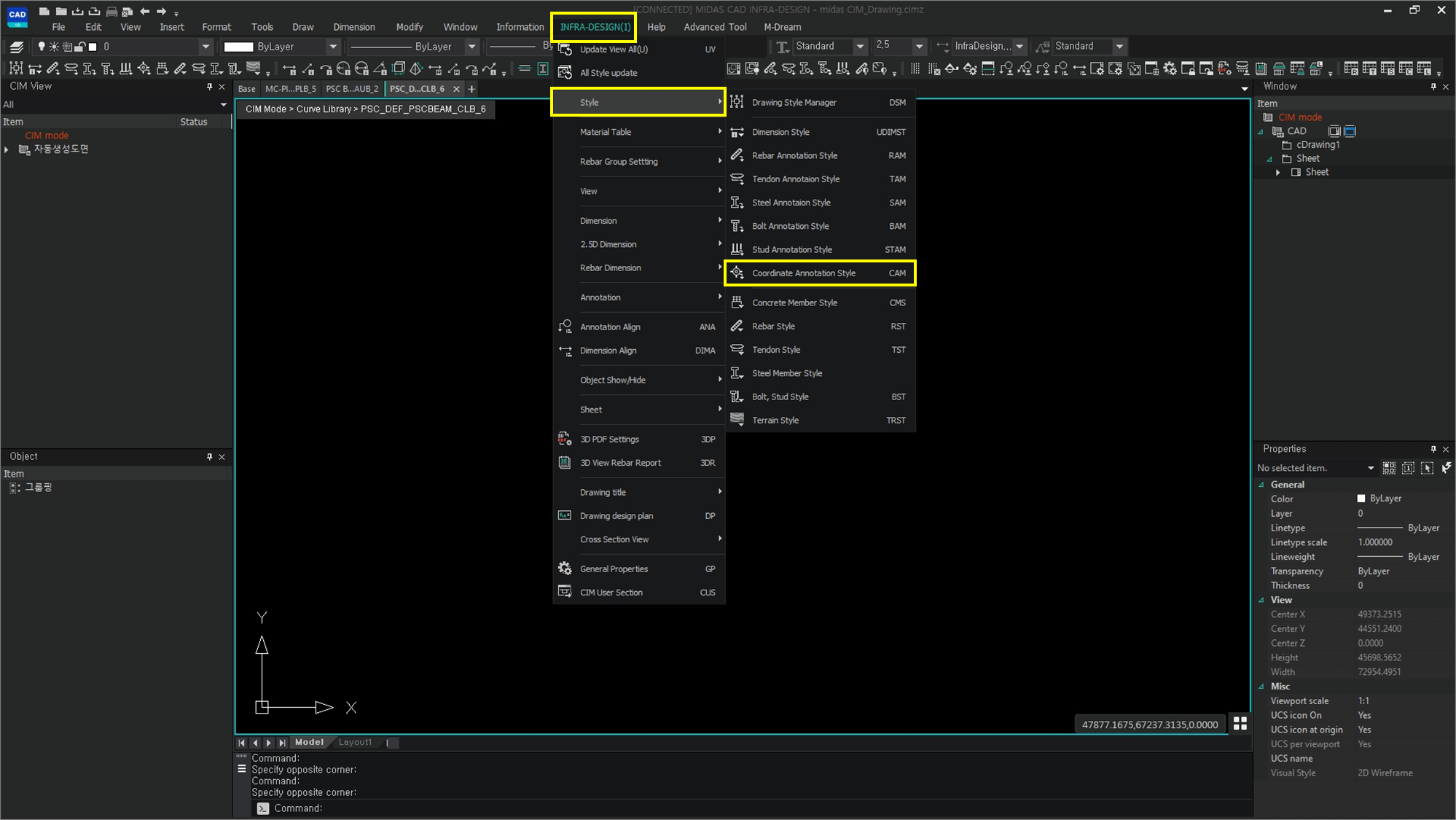

INFRA-DESIGN > Style > Coordinate Annotation Style
Style Dialog Box Configuration
Field Code Area
Field Code Area

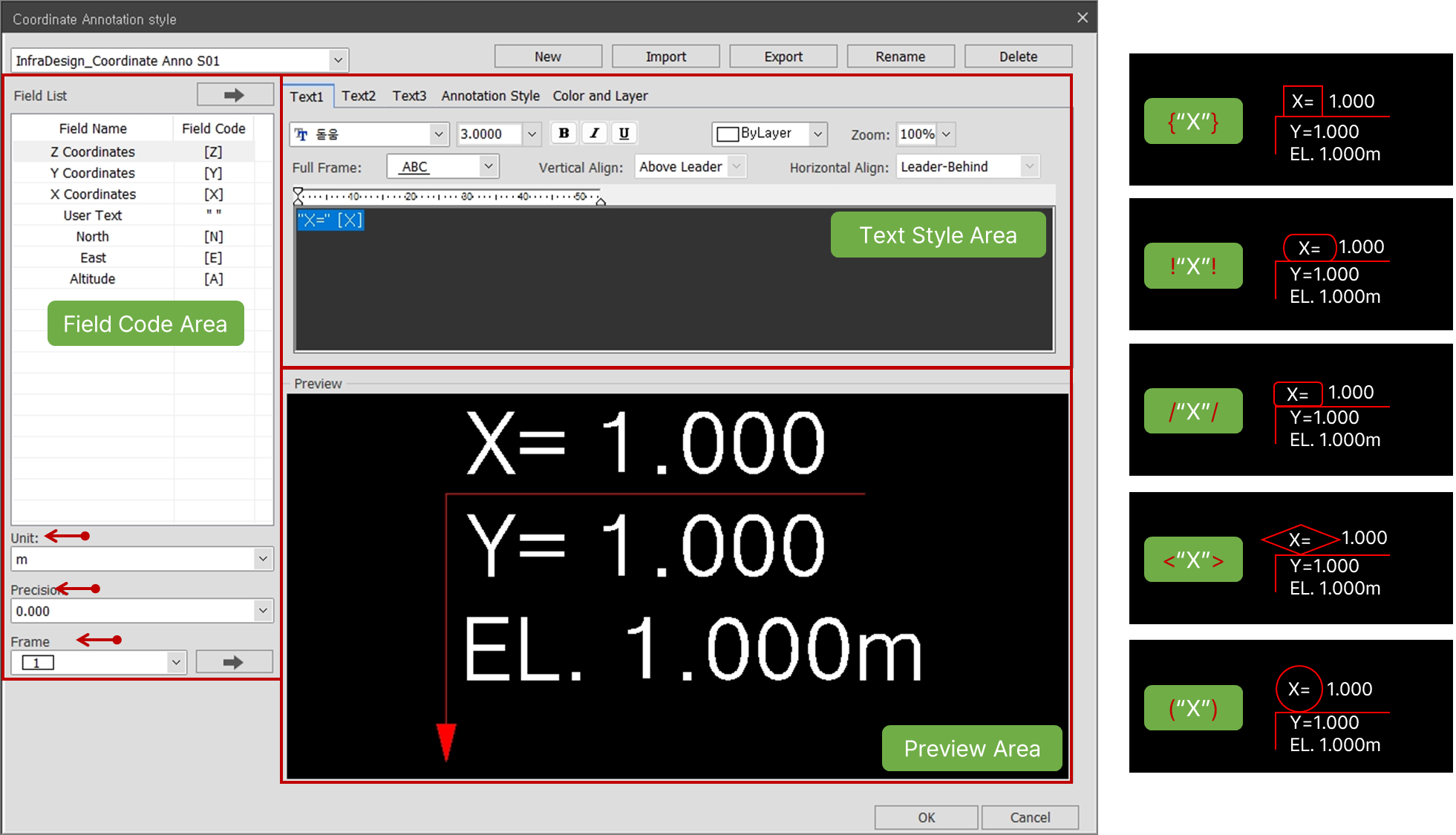

When displaying Coordinate information from a CIM model as Coordinate annotations in a drawing, you can create the desired Coordinate annotation style by inserting available field codes.
A Filed code is used to set the type of annotation information to be displayed.
Set the annotation style by freely arranging the information items of the Coordinate to insert in Text1, 2, and 3 areas.
Unit
: Below the field code table, the user can set the unit for each field code.
Based on the information in the CIM model, the unit setting value set in the Coordinate symbol style is matched and displayed.
Precision
: Set the precision of the units based on information from the CIM model.
Frame
: Insert a symbol frame within the text area to represent it as an annotation.
After selecting the desired shape, use the Add button to insert the code for entering the shape in the text area.
If the user puts a value between the inserted codes, the value is expressed by putting it in the shape.

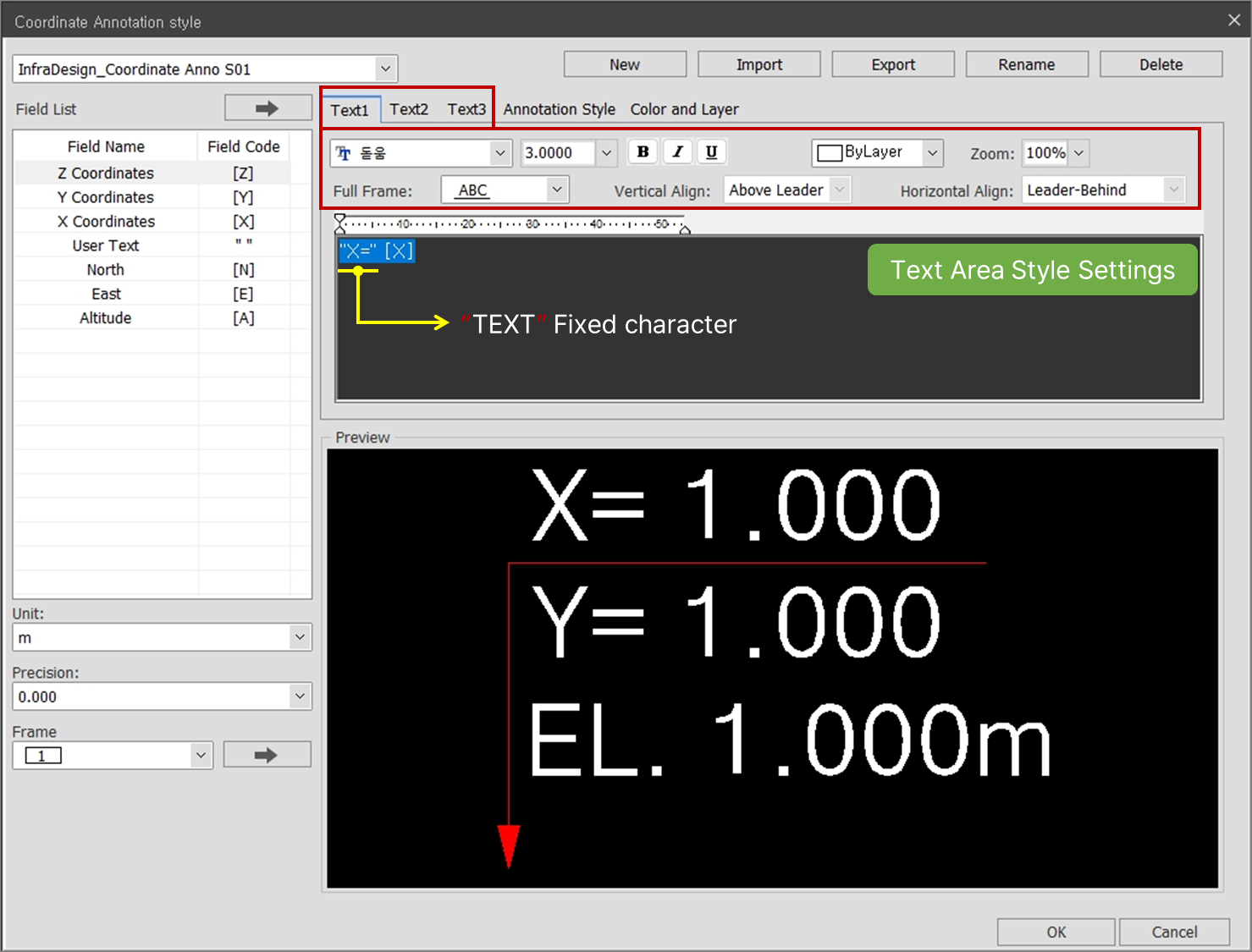

Text Area Style Settings
Text Area Style Settings
The information to be displayed as a Coordinate annotation can be displayed by dividing it into three areas with
Text 1, 2, and 3.
Set the leader line display method for each type of Coordinate annotation.
Specifies the format to be displayed for Text.
The Text area is divided into 3, Text1, Text2, and Text 3, and each text area can be placed at the desired location.
Font setting : Set the Text Font of Text1, Text2, and Text3.
Color & Scale Setting : Set the color of the annotation text and set the view magnification of the Preview.
Full Frame : Covers the entire Text1 area.
Vertical Align
: Set the vertical alignment position of the Text1 area.
(The vertical position of Text1 cannot be changed. Only the areas of Text2 and Text3 can change the vertical alignment position.)
Horizontal Align
: Set the horizontal alignment position of the Text1 area.
(The horizontal position of Text1 cannot be changed. Only the areas of Text2 and 3 can change the horizontal alignment position.)

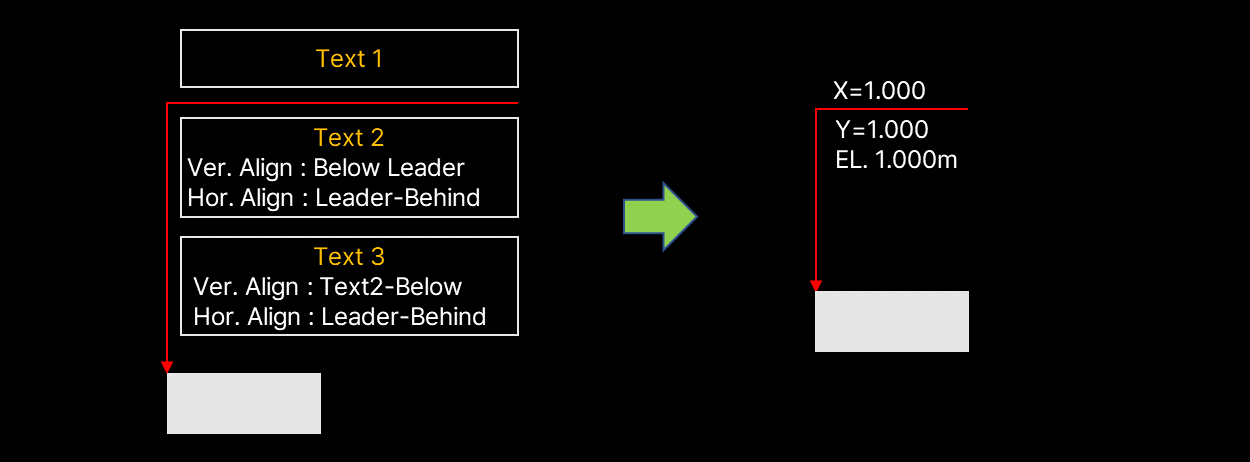

Example of using text area

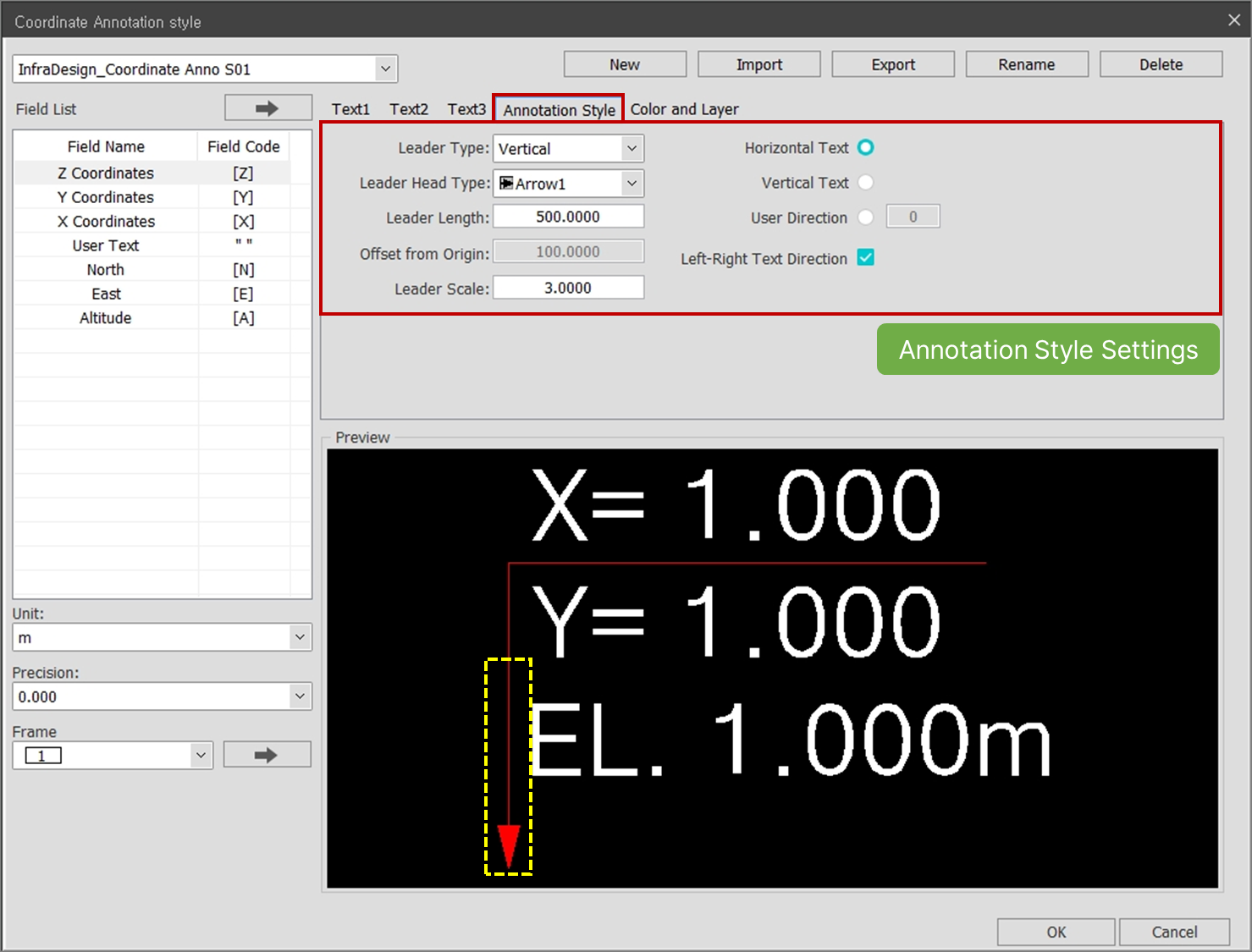

Annotation Style Settings
Annotation Style Settings
Set the style of Coordinate symbol annotation.
Leader Type
: Set the direction of the leader line of the Coordinate annotation.
When set to Vertical, the leader extends in a vertical direction, and when Diagonal is selected, the leader extends in a diagonal direction.
Leader Head Type
: Choose the shape of the leader’s head: Arrow, Blank Arrow, Circular, or Diagonal.
Leader Length : Set the default length of the leader line.
Leader Scale : Sets the scale of the leader arrowhead.
Horizontal Text : Text is always displayed in the horizontal direction on the screen where it is viewed.
Vertical Text : Text is always displayed in the vertical direction on the screen where it is viewed.
User direction : Text is displayed according to the angle specified by the user.
Left - Right Text Direction
: Make sure that the text area is always aligned from left to right.
If this option is cleared, the text position is mirrored in the direction of the annotation.

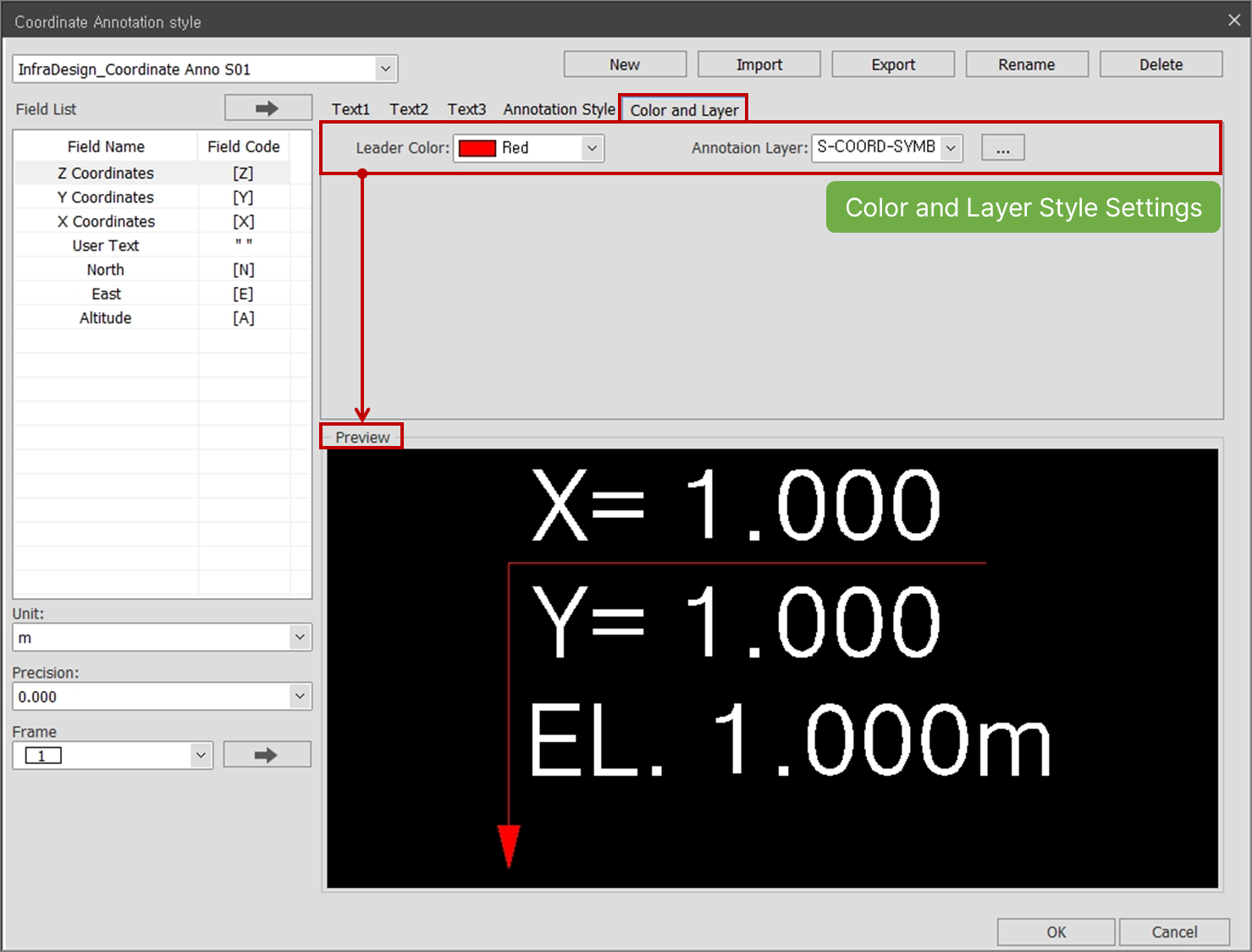

Color and Layer Style Settings
Color and Layer Style Settings
Sets the support line color and layer of the annotation.
Leader Color : Set the color of the coordinate annotation leader line.
Annotation Layer : Set the layer of coordinate annotation.
Preview Area
The user can check the set Style in advance through the preview.
