Summary
This function purges the section created in CIM View Mode.
View purge allows you to efficiently manage the section by organizing the object information included in the section view that is not displayed on the screen.
To regenerate the information of a section view that has been erased, you can update the information through either the Update View All or the Update selected view functions.
How to Run
[CIM View Mode]

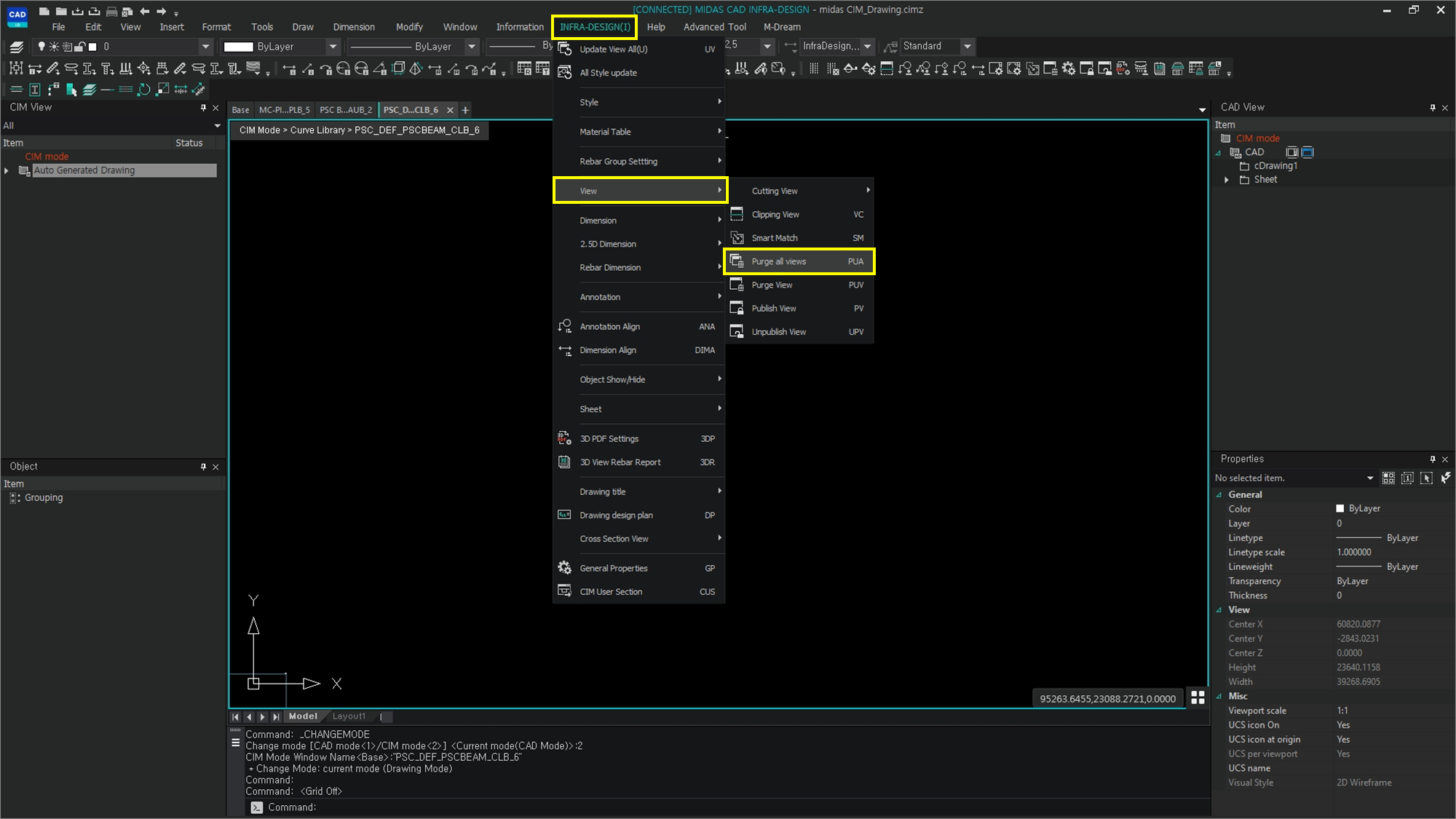

Ribbon Menu > [INFRA-DESIGN] Tab > View > Purge all views[PUA]
Explanation
How to use Purge all views
The feature can be executed by using the Shortcut Command Purge all views [PUA] or by selecting the Purge all views feature in the View tab of the INFRA-DESIGN menu.

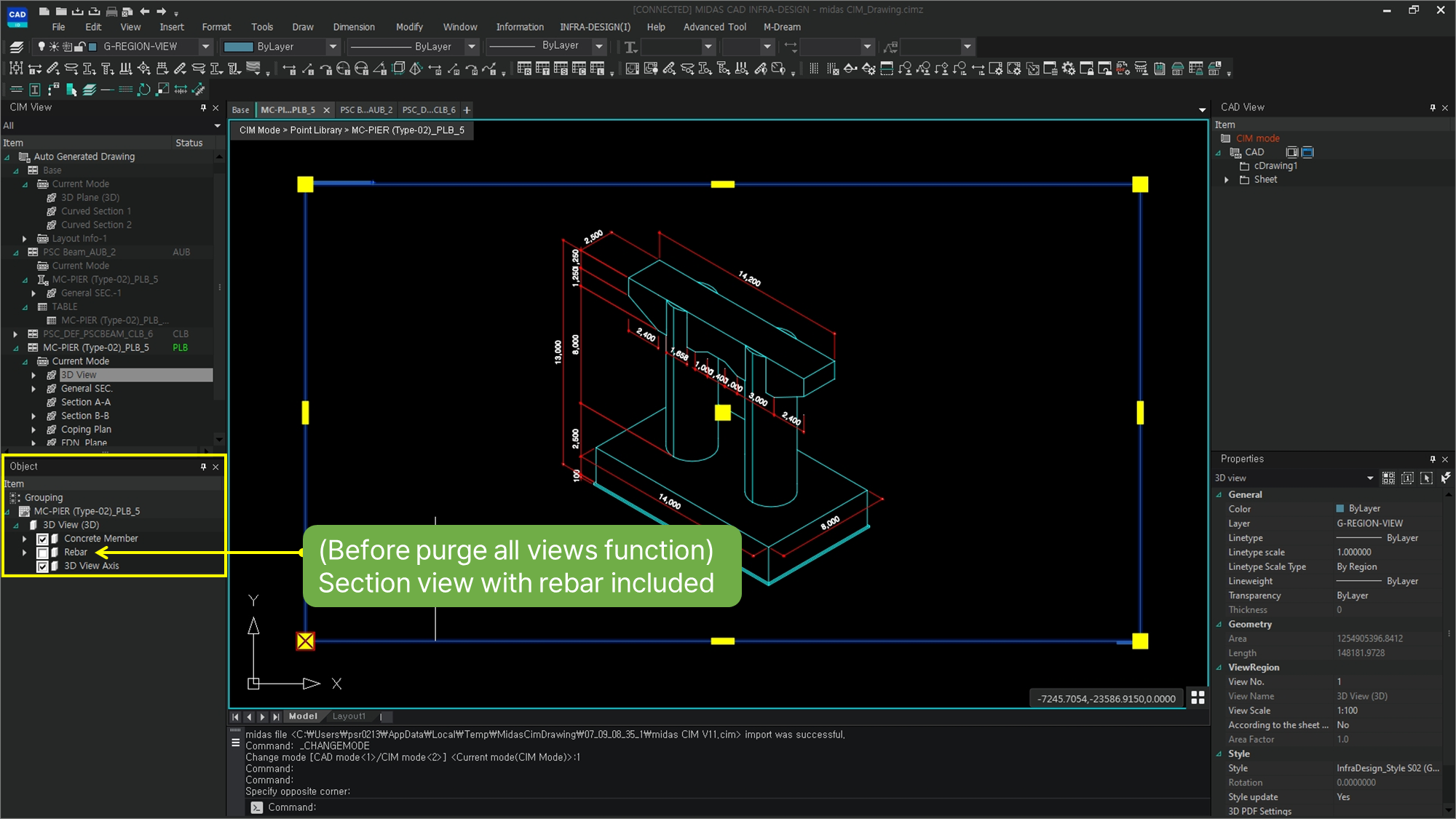

Before purge all views function
When you select a section view, you can check object information in the object tree at the bottom left.

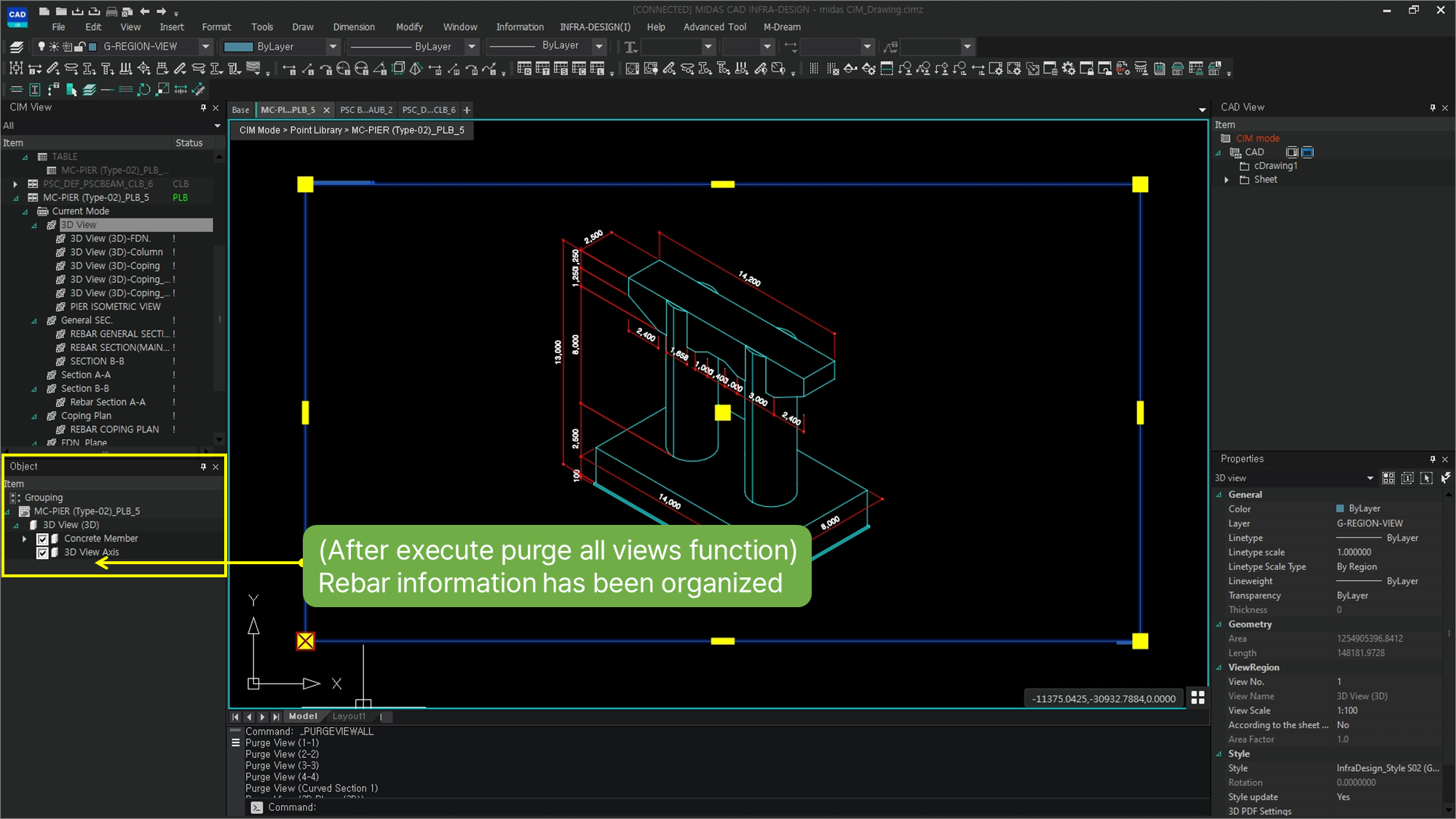

After execute purge all views function
When you select a section view for which the entire view has been erased, only the information that appears on the screen is cleaned up in the Object tree at the bottom left.
In the example image, rebar information that did not appear on the screen has been organized.
