Summary
Edit (Combine and Divide) created dimensions.
How to Run
[CIM View Mode]
Command > DimensionsCombine [DC]
Command > DimensionsDivide [DD]
Explanation
DIMENSIONS COMBINE
Combines separate dimensions.
[Command]

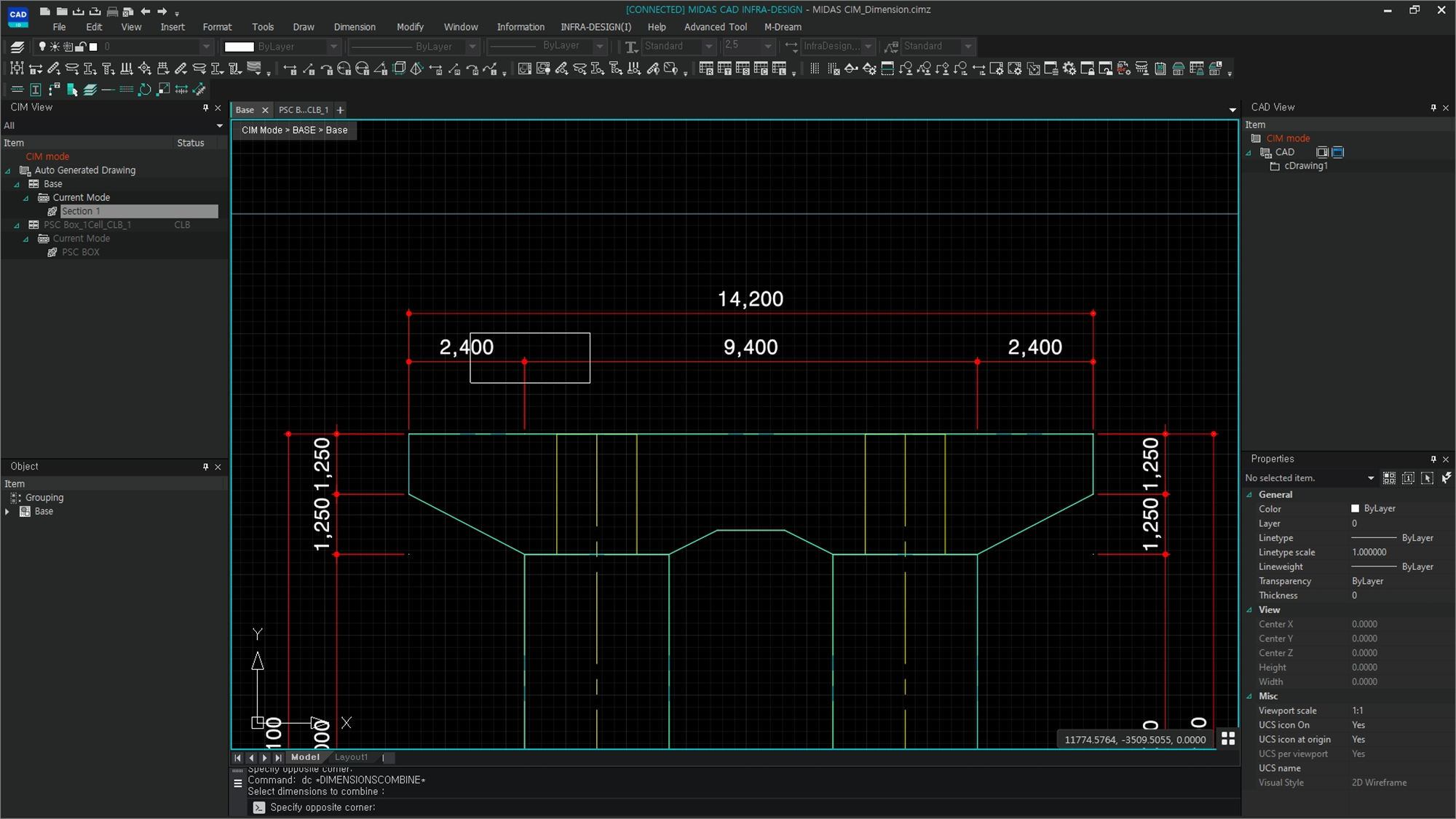

In the command window, type DIMENSIONSCOMBINE (DC).
Select the dimensions you want to combine simultaneously and then click Enter or Space Bar.
Continue the action in the same way.
DIMENSIONS DIVIDE
Divide the dimension by selecting the Vertex of the member for the dimension to be divided.
[Command]
In the command window, type DIMENSIONS DIVIDE (DD).

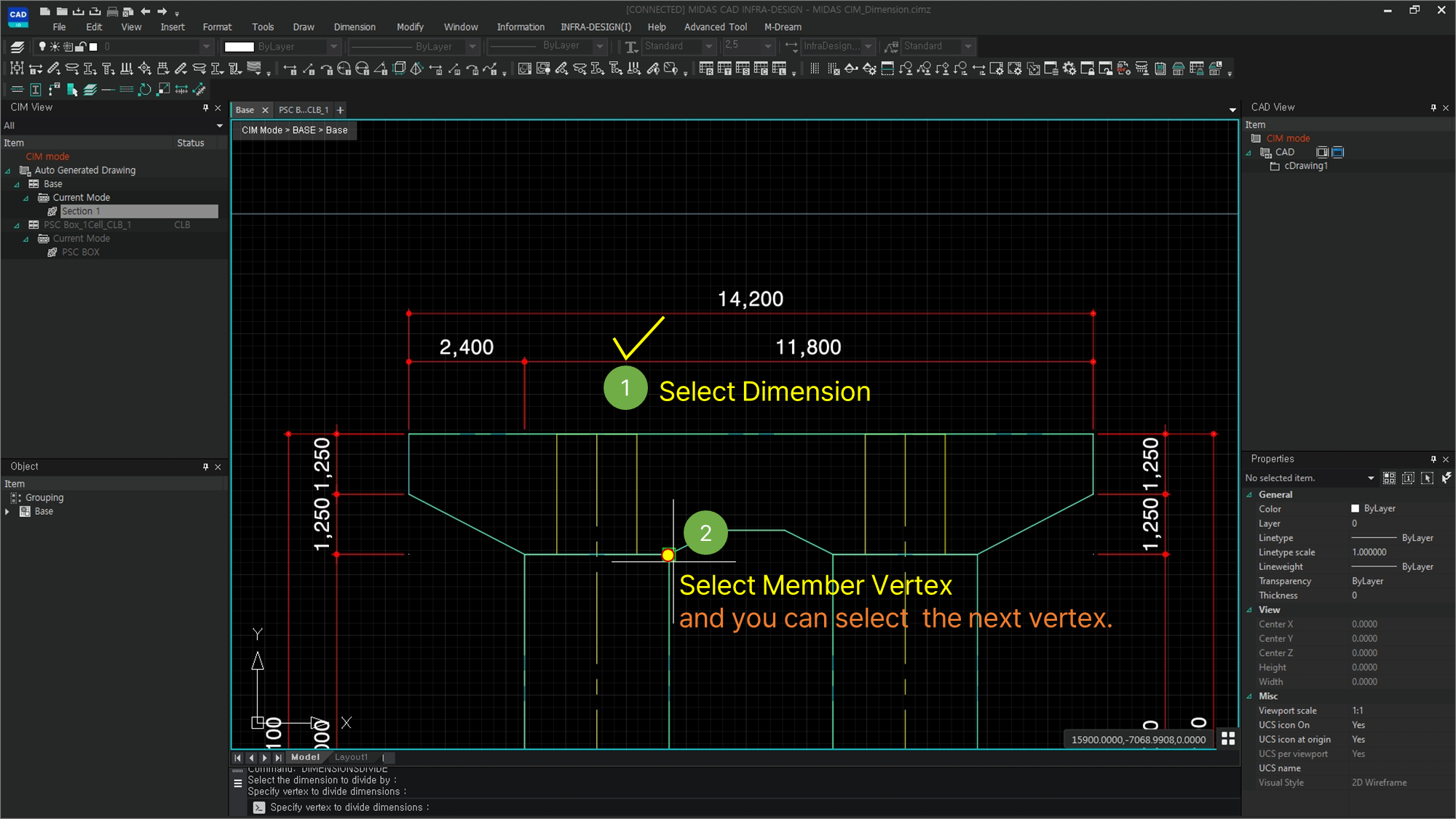

① Select the dimension to divide.
② Select the Member Vertex of the location point to be divide. (Dimension divide complete)
The dimension is split based on the vertex addition selection.
