Summary
Creates multiple (multi-layer) dimensions, which are used when a part requires multiple layer of dimensions.
How to Run
[CIM View Mode]

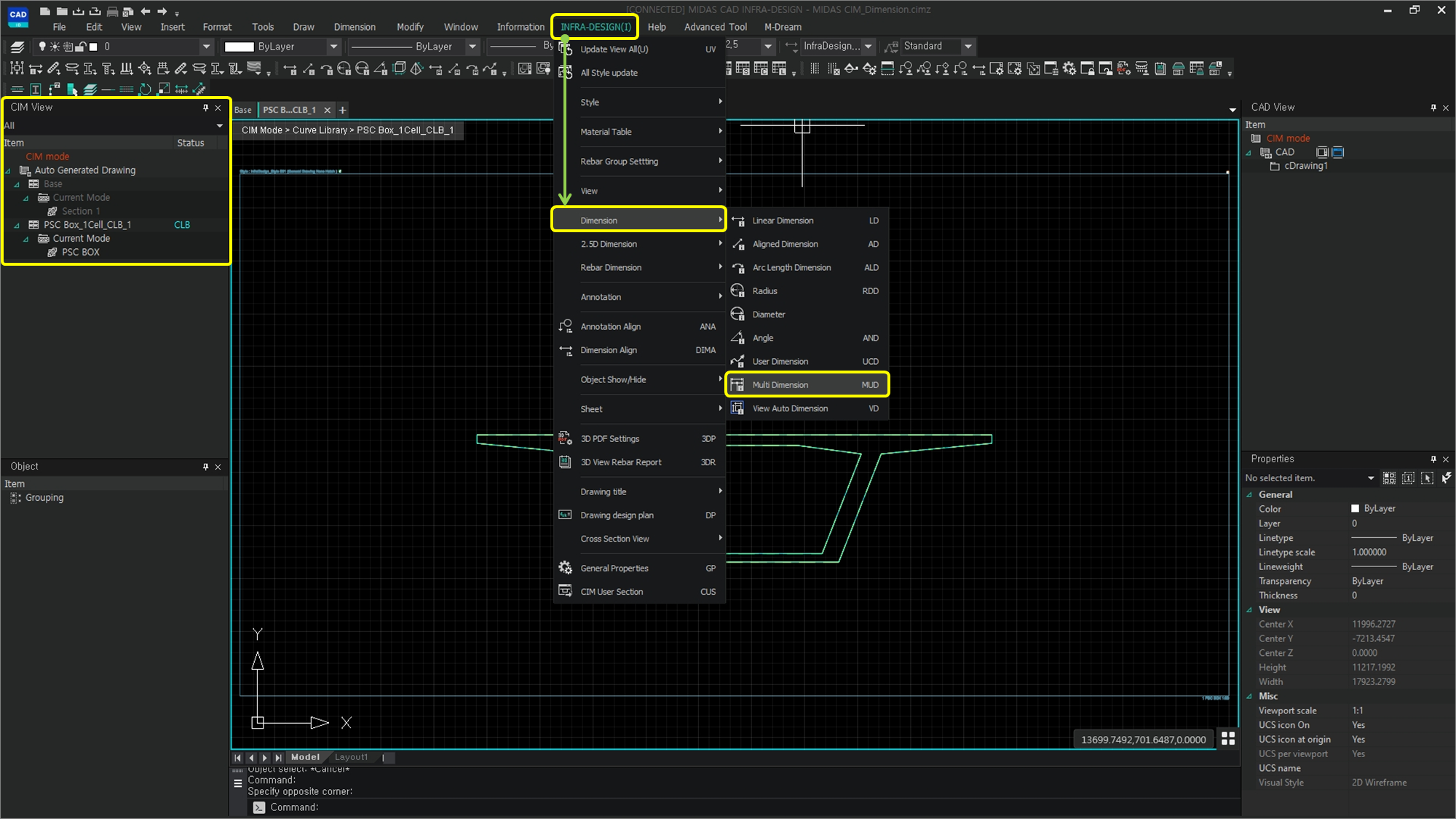

Ribbon Menu > [INFRA-DESIGN] Tab> Dimension > Multi Dimension [MUD]
Explanation
How to Create Multi Dimensions (Multi Dimension, MUD)
Create customized multiple (multi-layer) dimensions on the object.
Step.1
[How to run]
Launch MultiDimension (MUD) from the tree menu or from the Command window.
Creation of relevant dimensions is supported only for sections linked to CIM. (CIM View Mode Only)
Step.2
[Command]

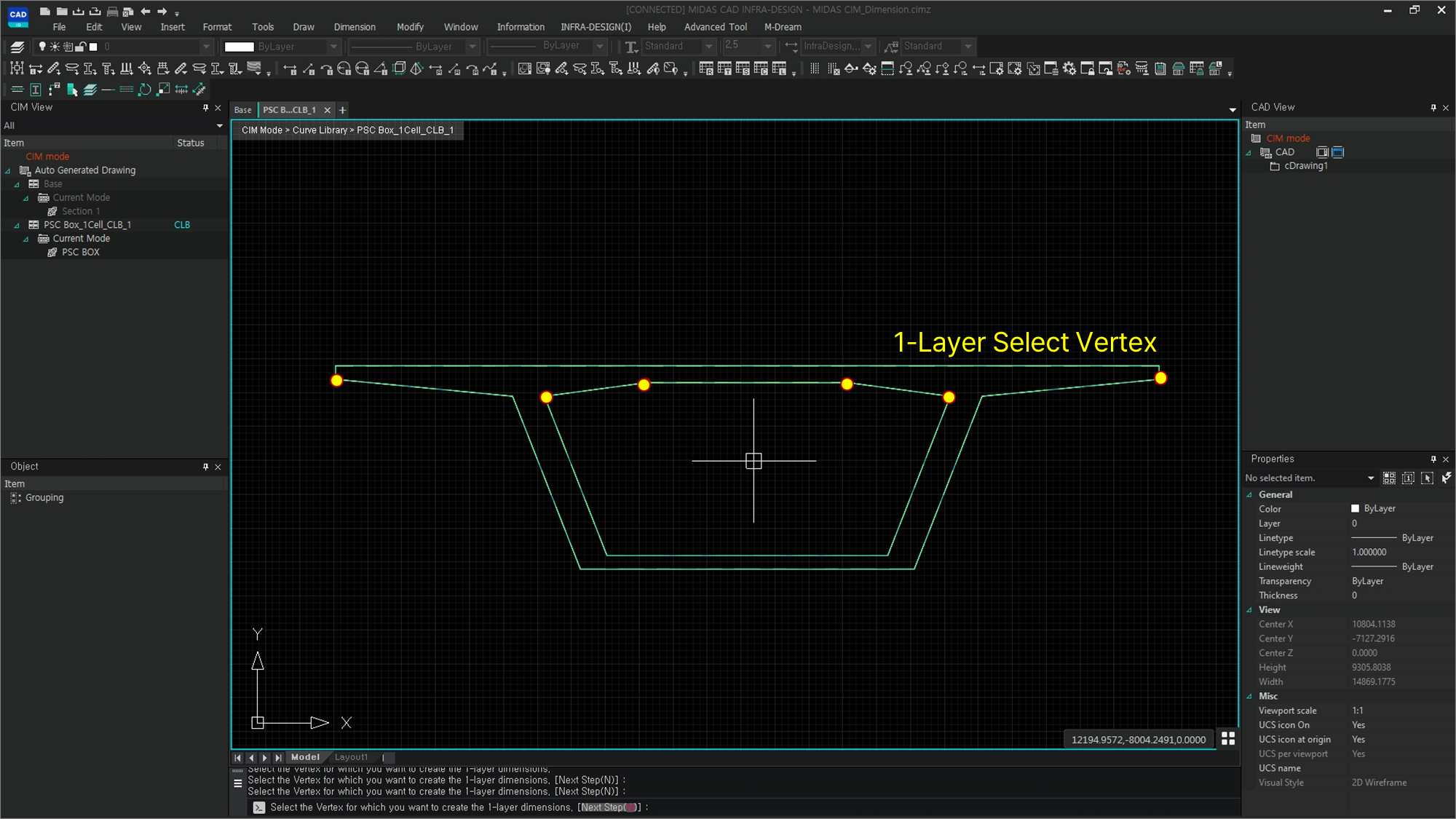

Select the Vertex for which you want to create the 1-layer dimensions. :
Select the vertex for which dimensions will be created for the object by dragging it with the mouse.
Step.3
[Command]

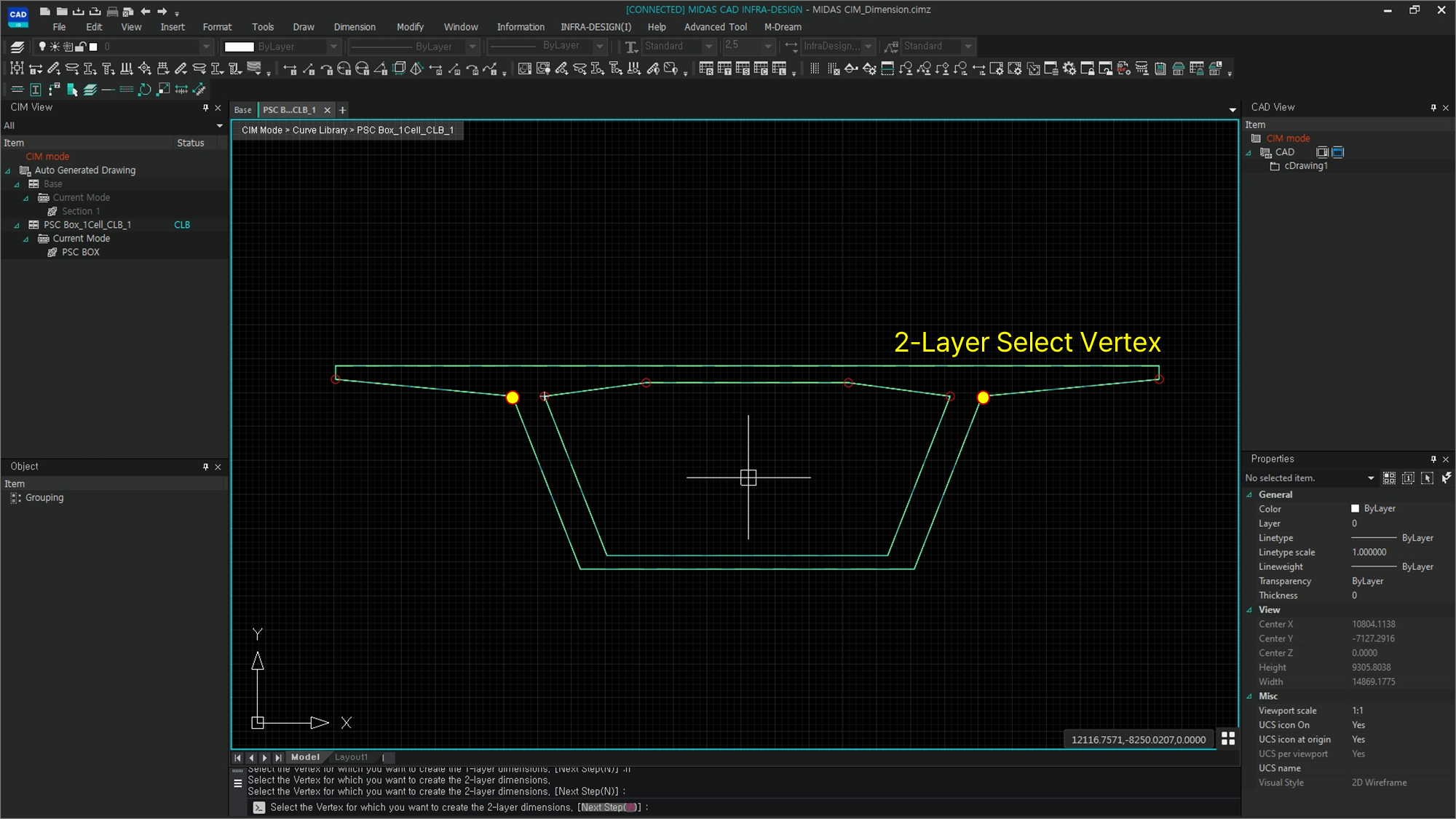

Select the Vertex for which you want to create the 2-layer dimensions. [ Next Step(N) ] :
If there are no dimensions to add, click Enter or the Space Bar to create them.
If you need dimensions to be added in multi-stage, enter Nin the next step to select additional vertex.
Step.4
[Command]

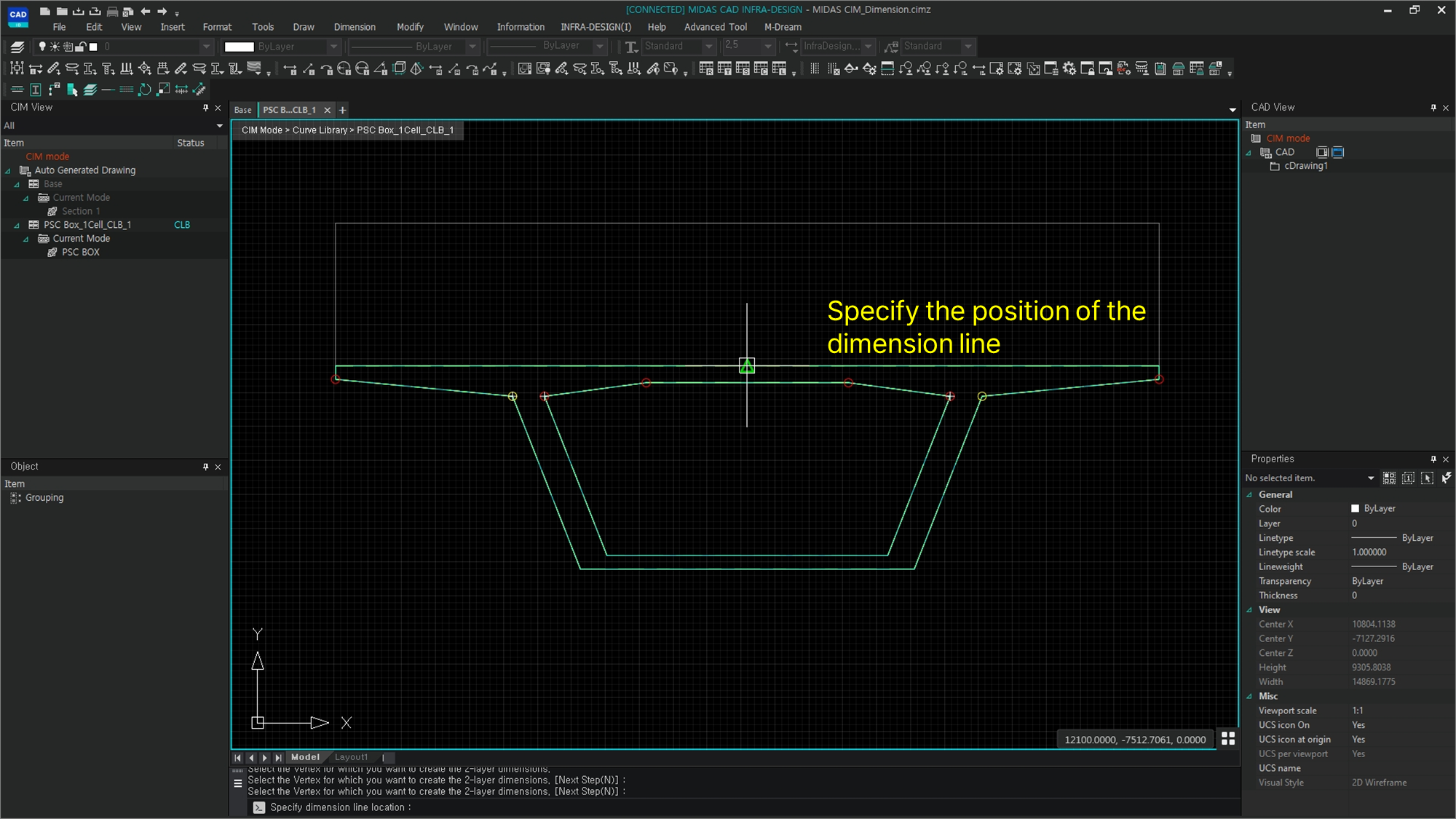

Specify dimension line location : When you click Enter or the Space Bar after selecting the vertex for which you want to create a dimension, the message “Specify dimension line location” will appear and you can specify the location for creating the dimension on the screen.
Step.5
[Command]

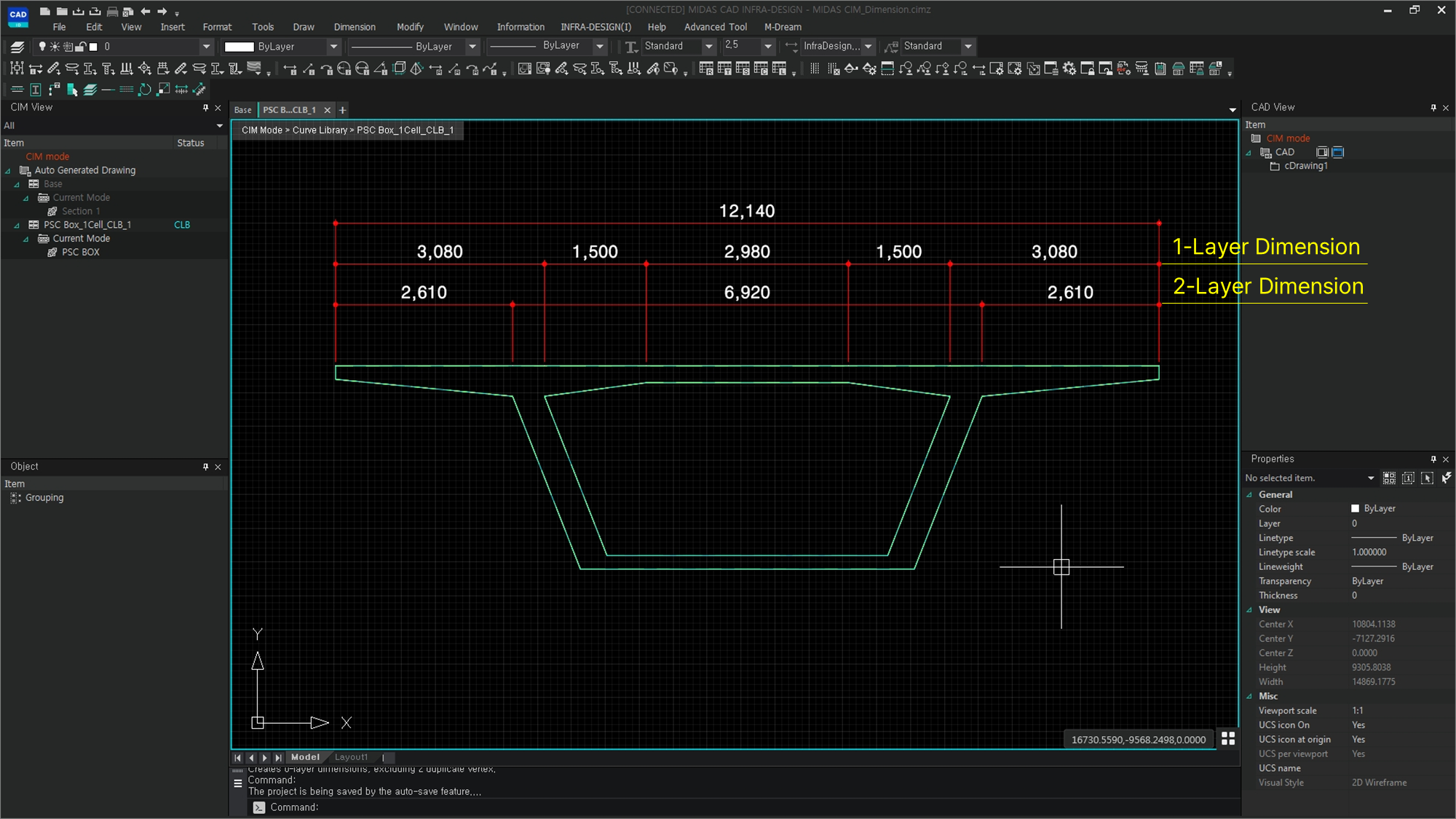

Multi-layer (multiple) dimensions created.
Multi-layer dimensions can be created in 2 to 4 levels.
