Summary
Create automatic dimensions for section views.
How to Run
[CIM View Mode]

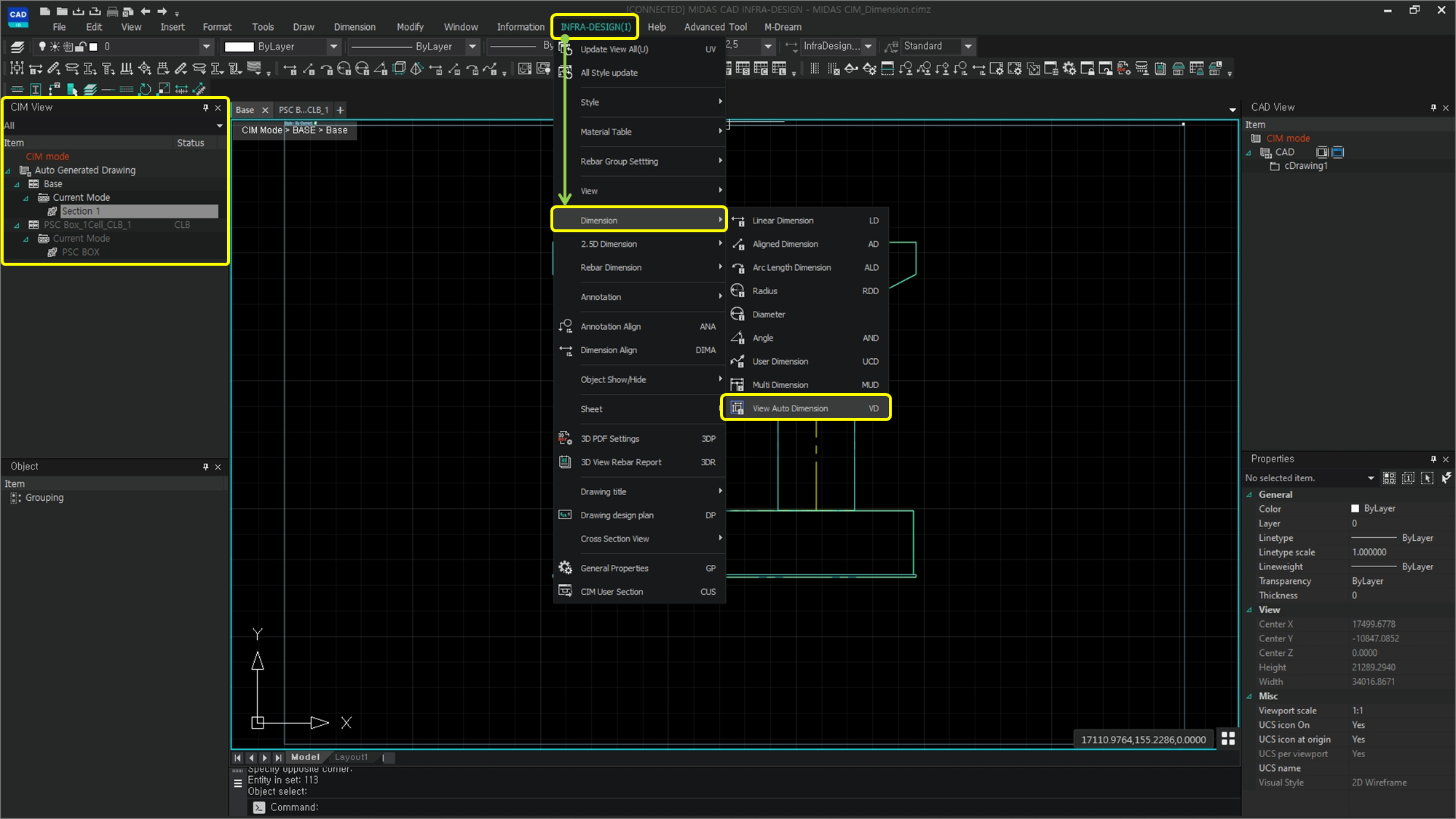

Ribbon Menu > [INFRA-DESIGN] Tab> Dimension > View Auto Dimension [VD]
Explanation
CHow to create view auto dimensions when in CIM
When setting up a CIM section, dimensions are automatically created in the section view.
[How to Run]

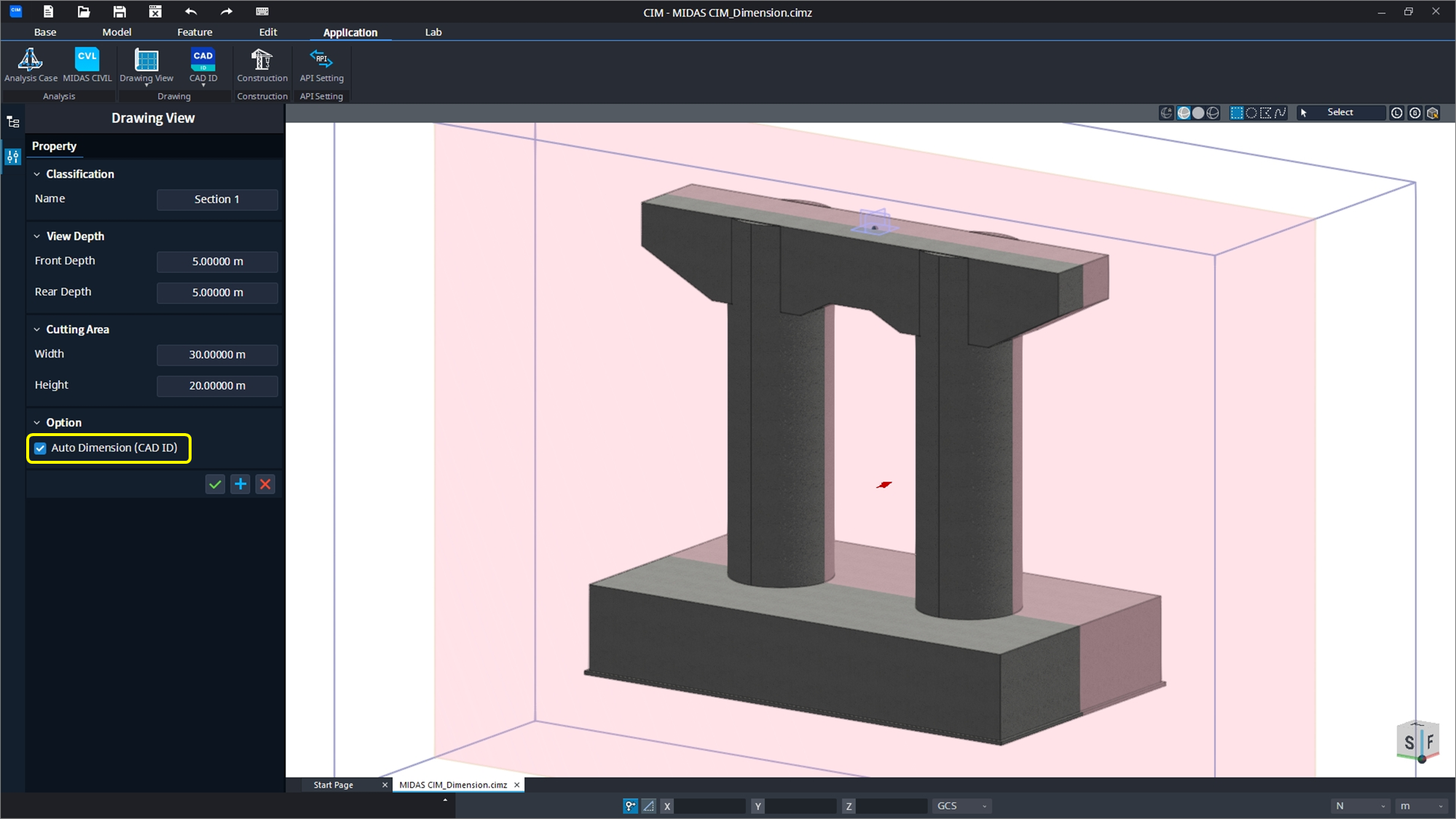

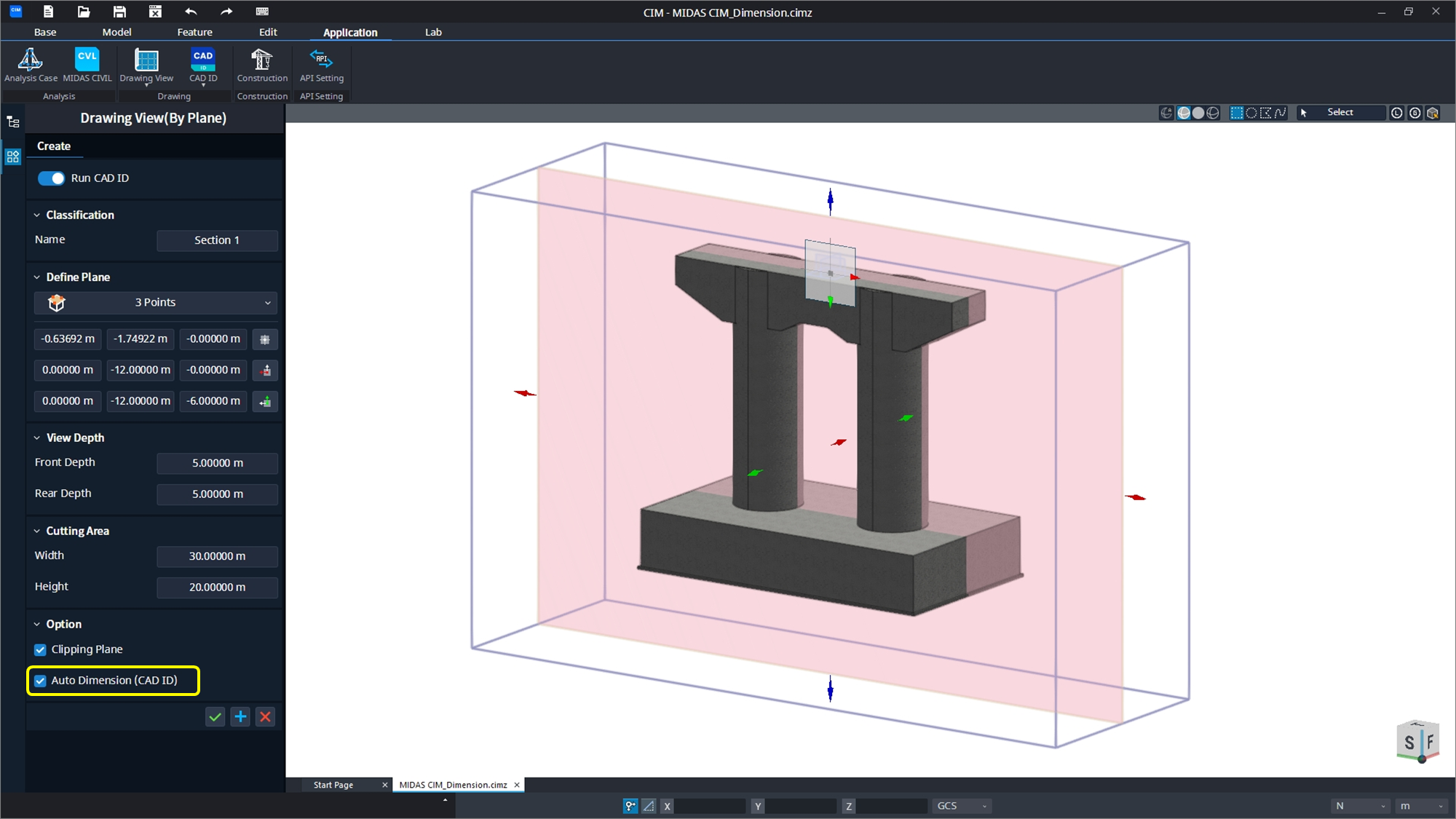

When create a 2D cross section using By Plane in CIM, you can immediately create and check dimensions on the 2D cross section by applying the Auto Dimension (CAD ID) option.

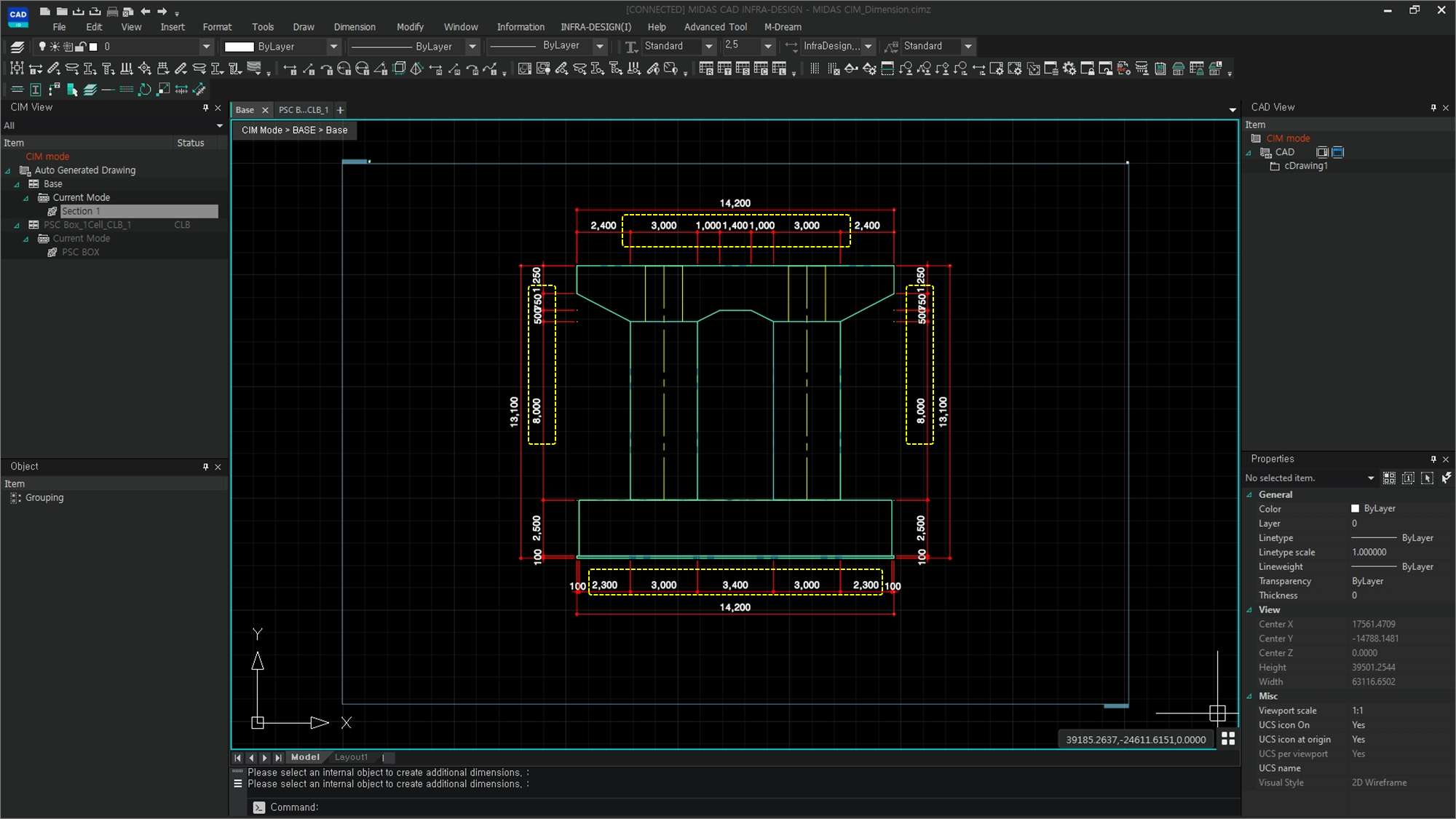

Dimension notation result
[Command]
View auto dimensions complete.
View auto dimensions can only be applied to Member (Concrete, Steel) objects when creating a 2D section using By Plane.
[Modify]

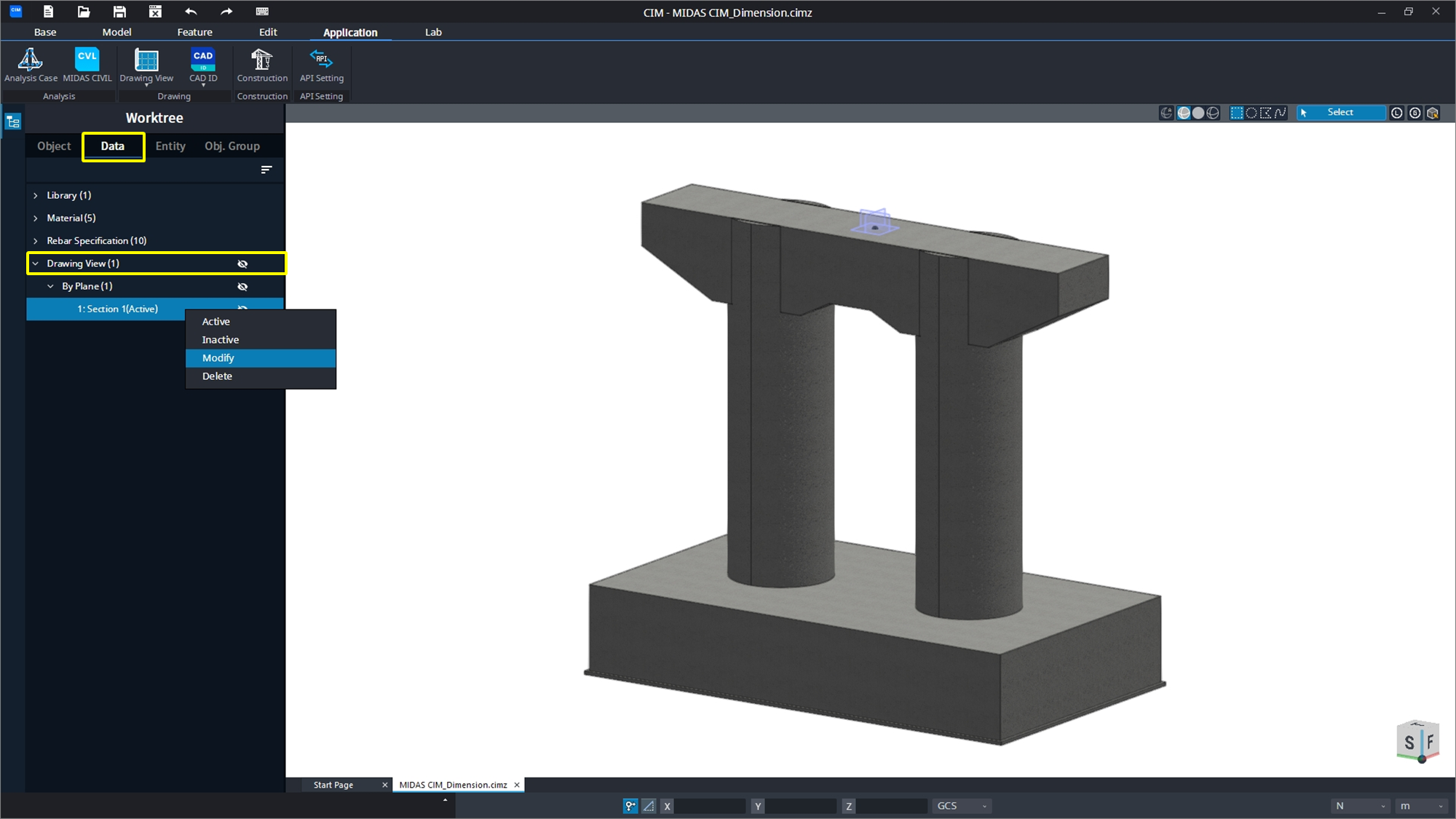

The Modify environment for applying the Auto Dimension (CAD ID) option can be found in the Worktree > Data Tab > Drawing View > By Plane list.
How to create view auto dimension in CAD ID (View Auto Dimension, VD)
Automatically creates dimensions in section views.
[How to Run]
Run View Auto Dimension from the tree menu or ViewAutoDimension (VD) from the Command window.
Creation of relevant dimensions is supported only for sections linked to CIM. (CIM View Mode Only)
[Command]

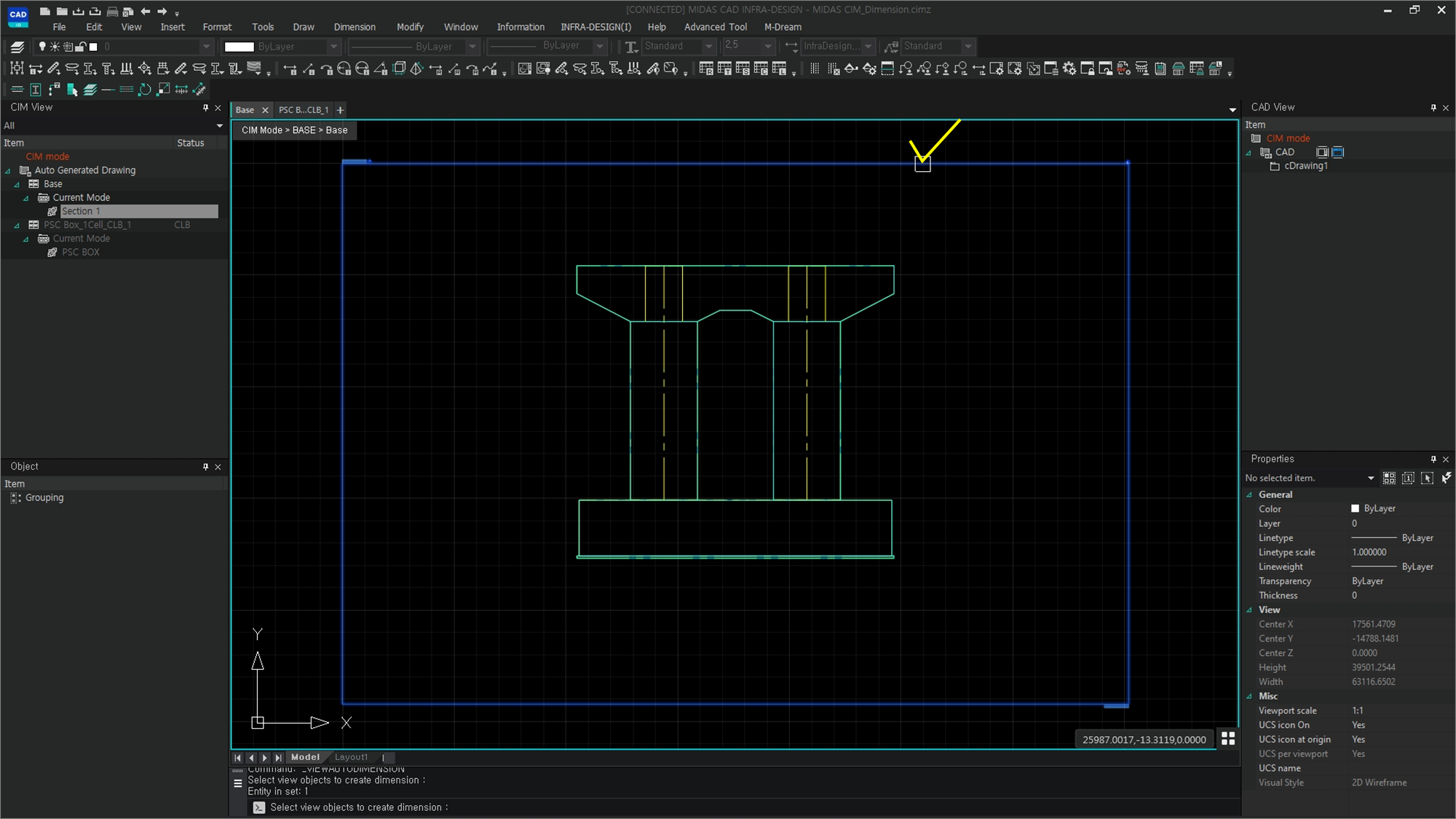

Select view objects to create dimension :
Select the section view for which you want to create dimensions.
[Command]
Please [Set(S) ] or [Create(N) ] the dimension. <N> If no additional setup steps are required, click Enter or Space Bar to create the dimension.
[Command]
Create to View auto dimensions complete.
#1 Option settings
[Command]
Please [ Set (S) ] or [ Create (N) ] the dimension : S
Set the dimensions using the settings options.

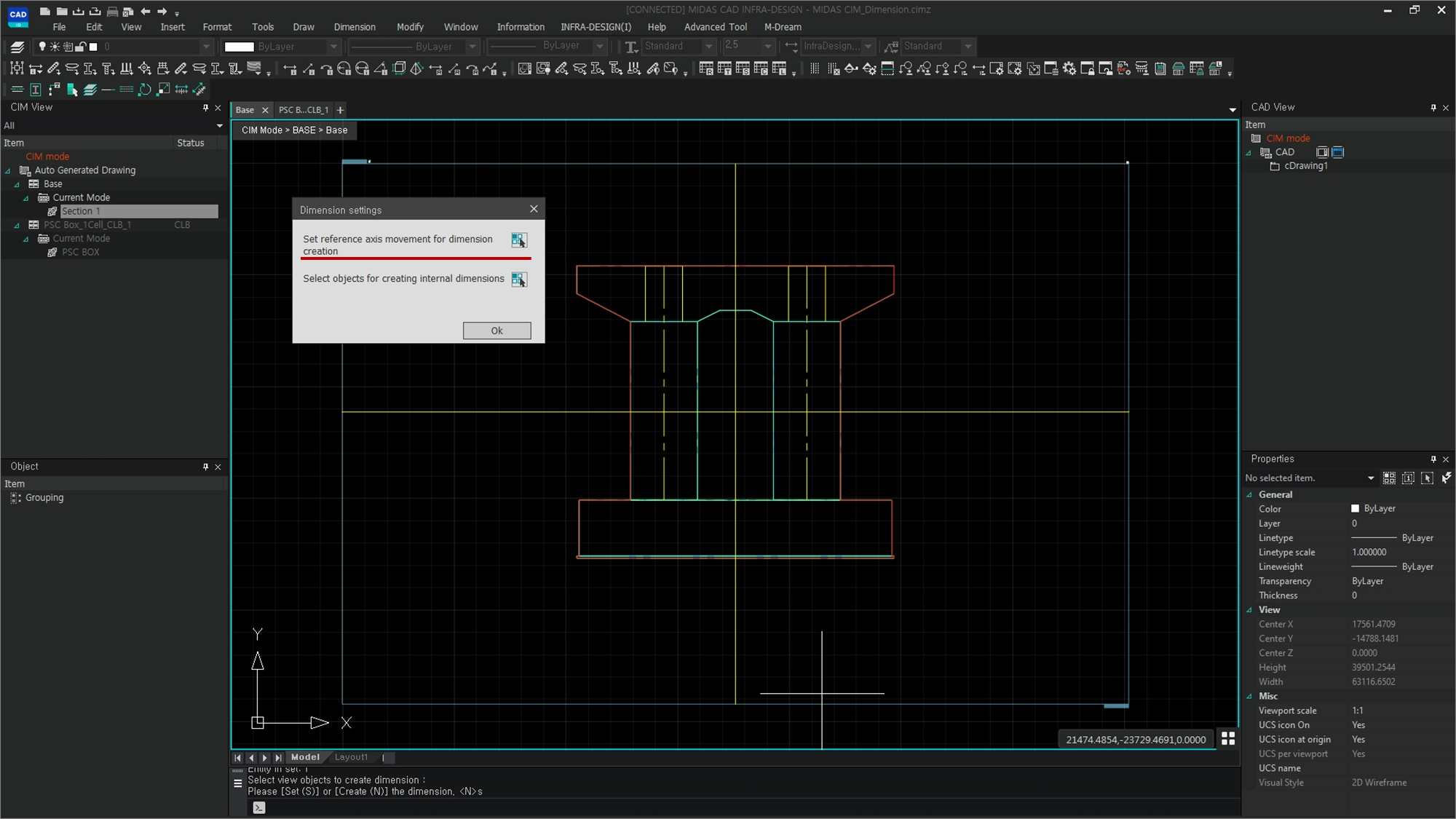

Set reference axis movement for dimension creation
When you run Settings, a crosshair will appear in the section view.

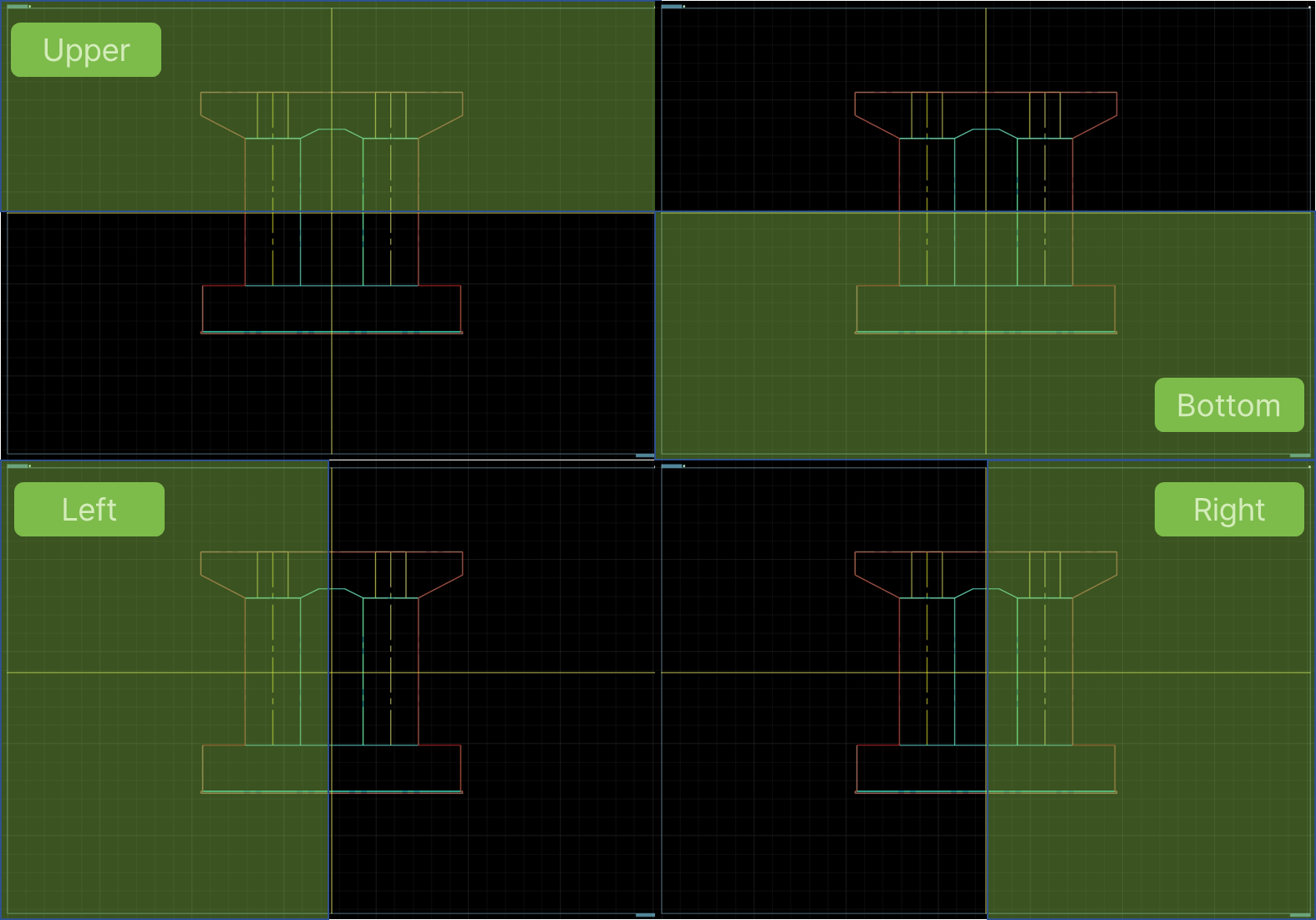

Based on the center of the crosshair, the range to be expressed as dimensions in the four directions - upper, bottom, left, and right - is specified, and the center of the crosshair can be moved according to option settings.
#2 Option settings
[Command]
Please [ Set (S) ] or [ Create (N) ] the dimension : S Set the dimensions using the settings options.

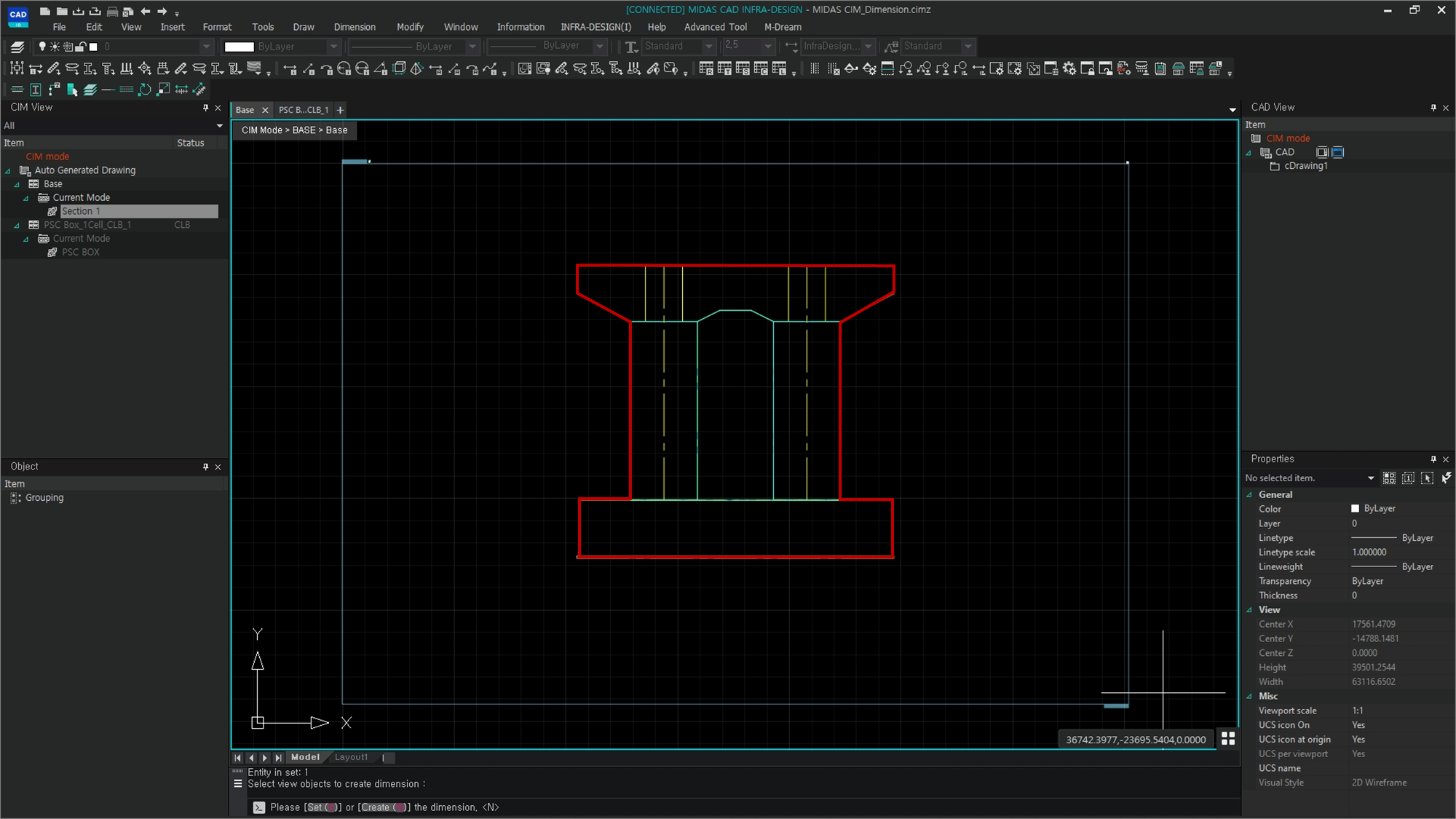

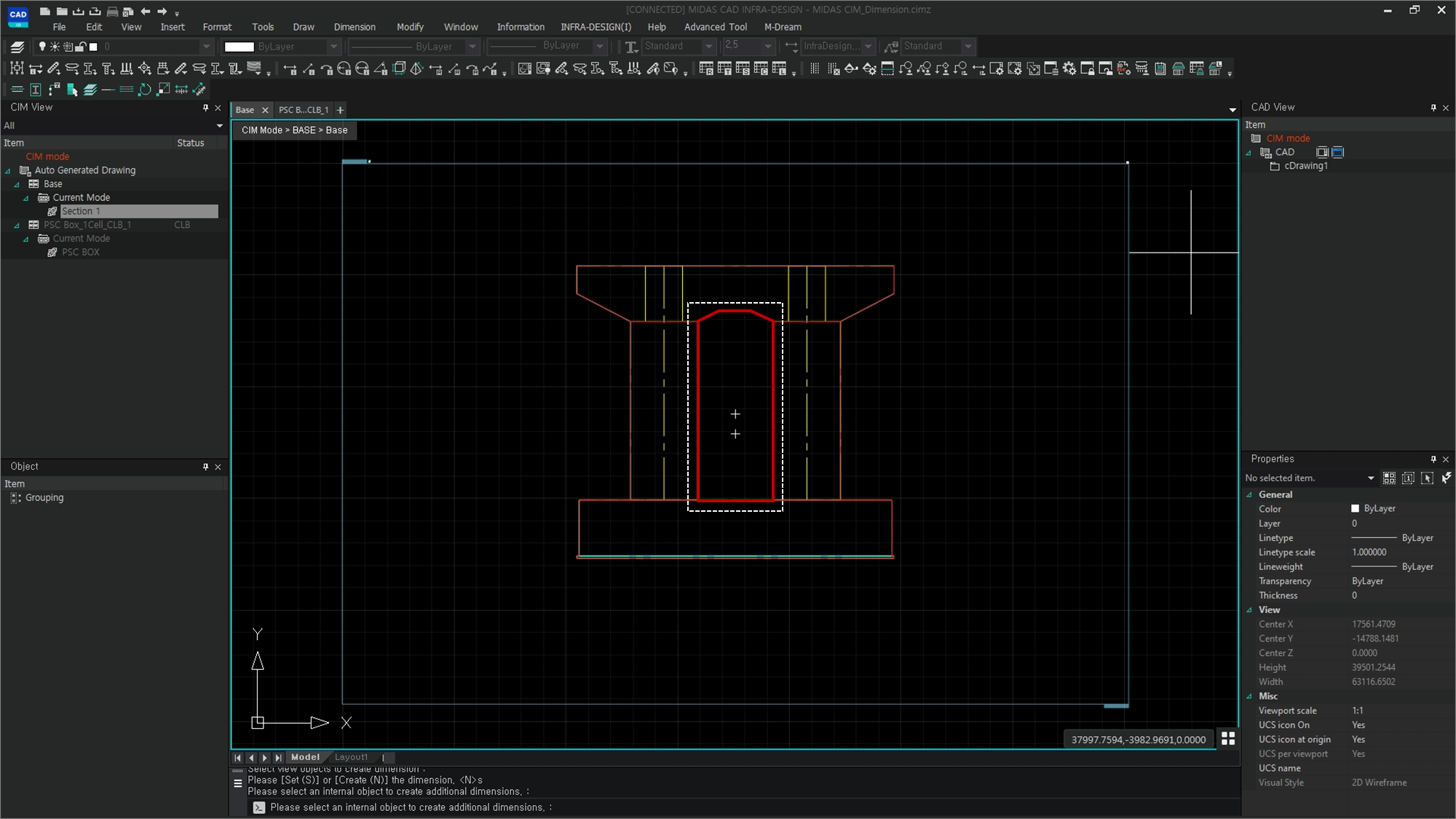

Select objects for creating internal dimensions
For parts that require dimension marking outside of the closed area, such as hollow sections inside the structure, select the object and mark the dimension.

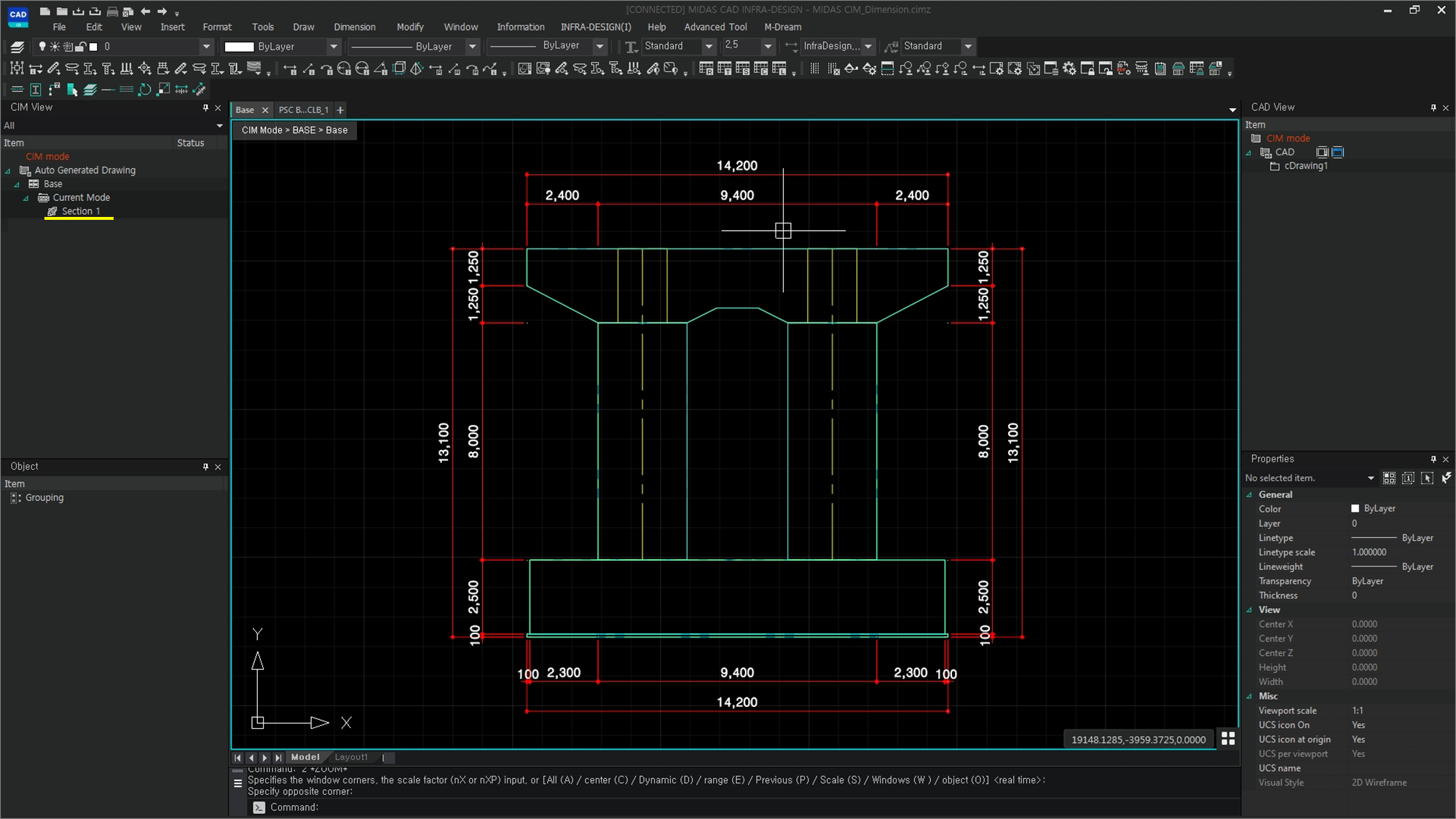

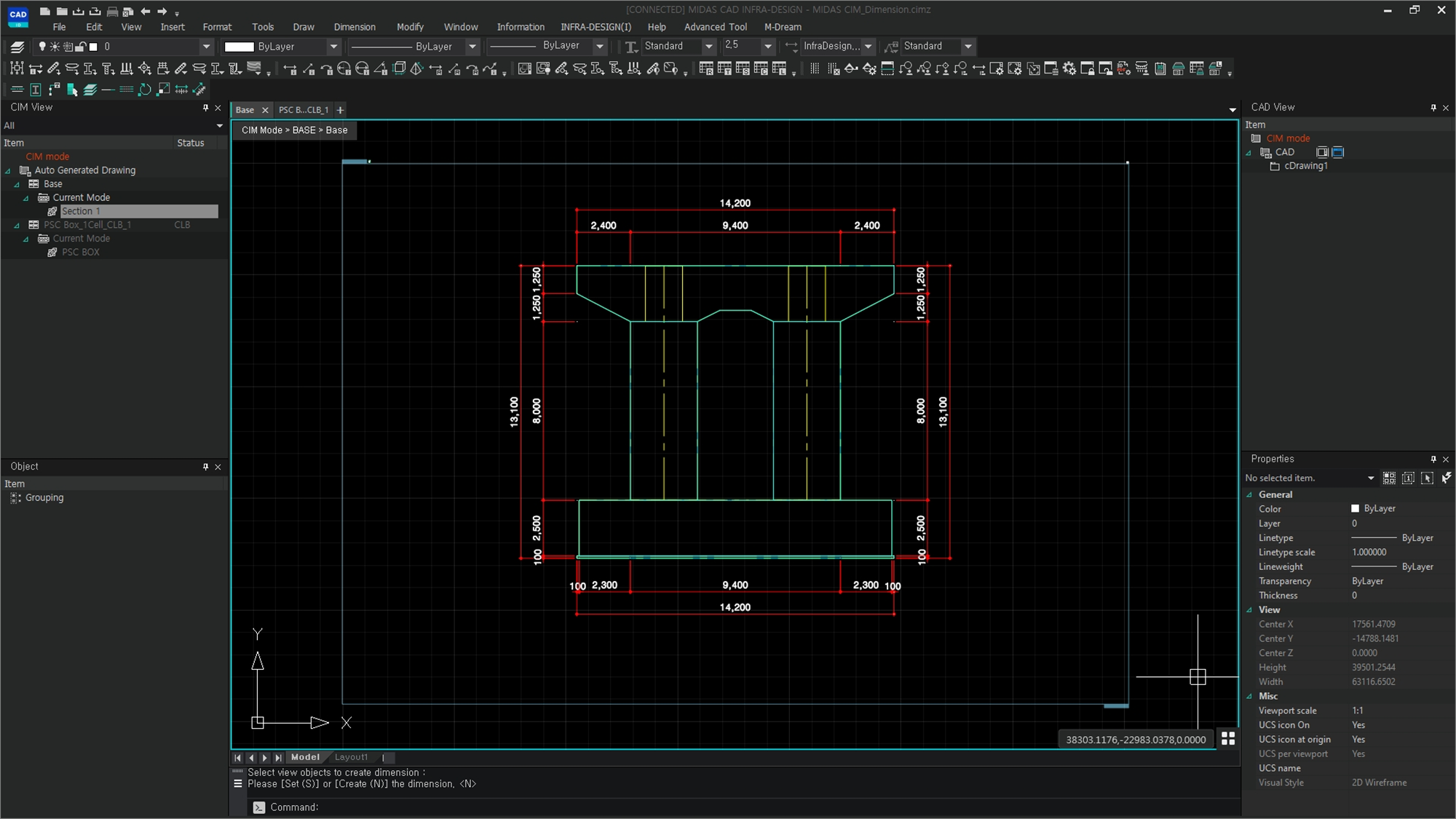

Dimension notation result
