Summary
This dimension function is only available in CIM View Mode.
If you set this dimension feature on a section, the dimensions will update as the section changes, even if the section is updated. Additionally, these dimensional features can be copied to other objects via Smart Match.
How to Run
[CIM View Mode]

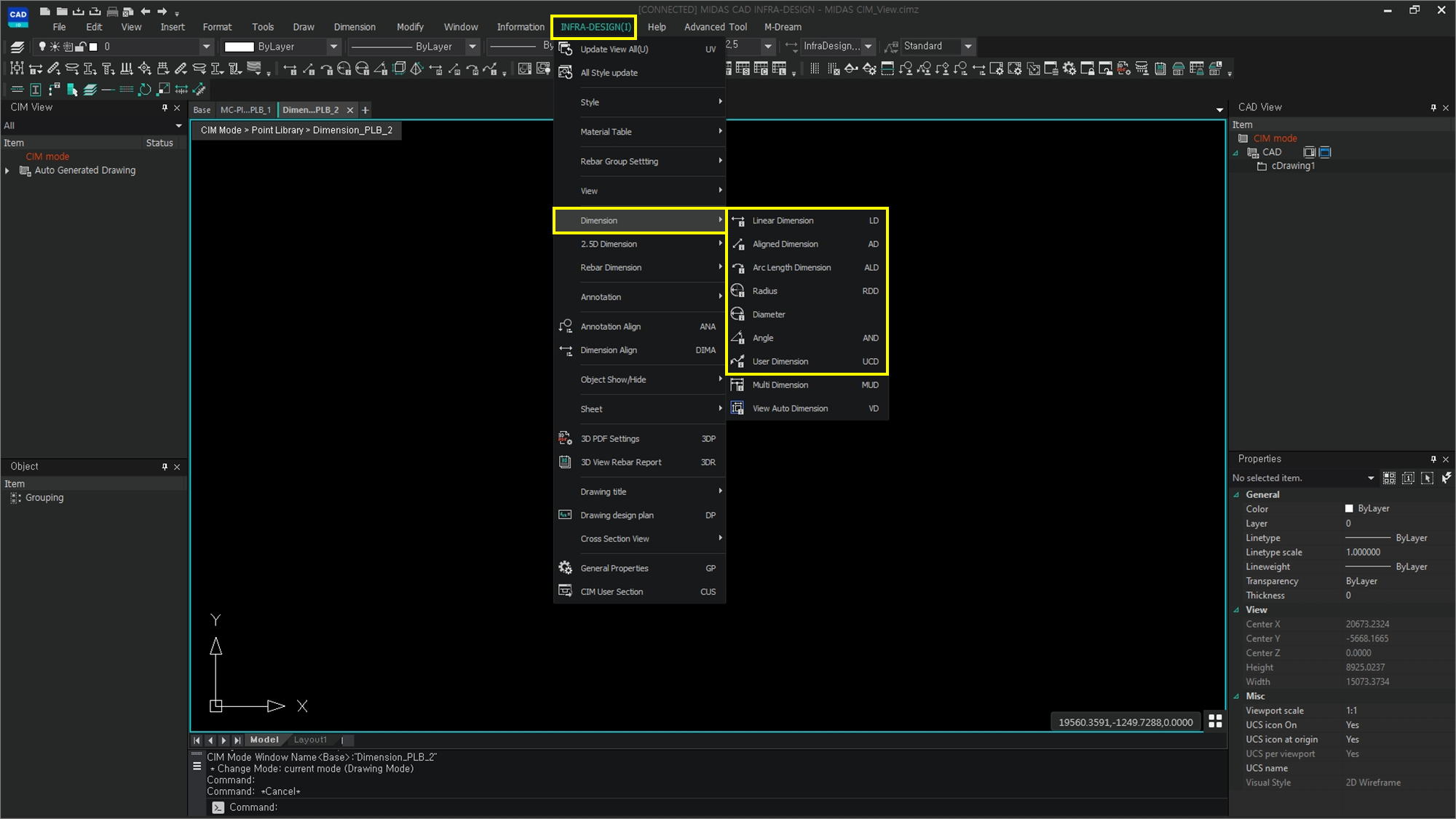

Ribbon Menu > [INFRA-DESIGN] Tab > Dimension >
Linear Dimension [ LD] / Aligned Dimension [ AD] / Arc Length Dimension [ ALD] / Radius [ RDD] /
Diameter [ DID] / Angle [ AND] / User Dimension [ UCD]
Explanation
How to use dimensions
Detailed dimension functions can be executed for dimensions either through the respective dimension commands or from the INFRA-DESIGN menu tab.

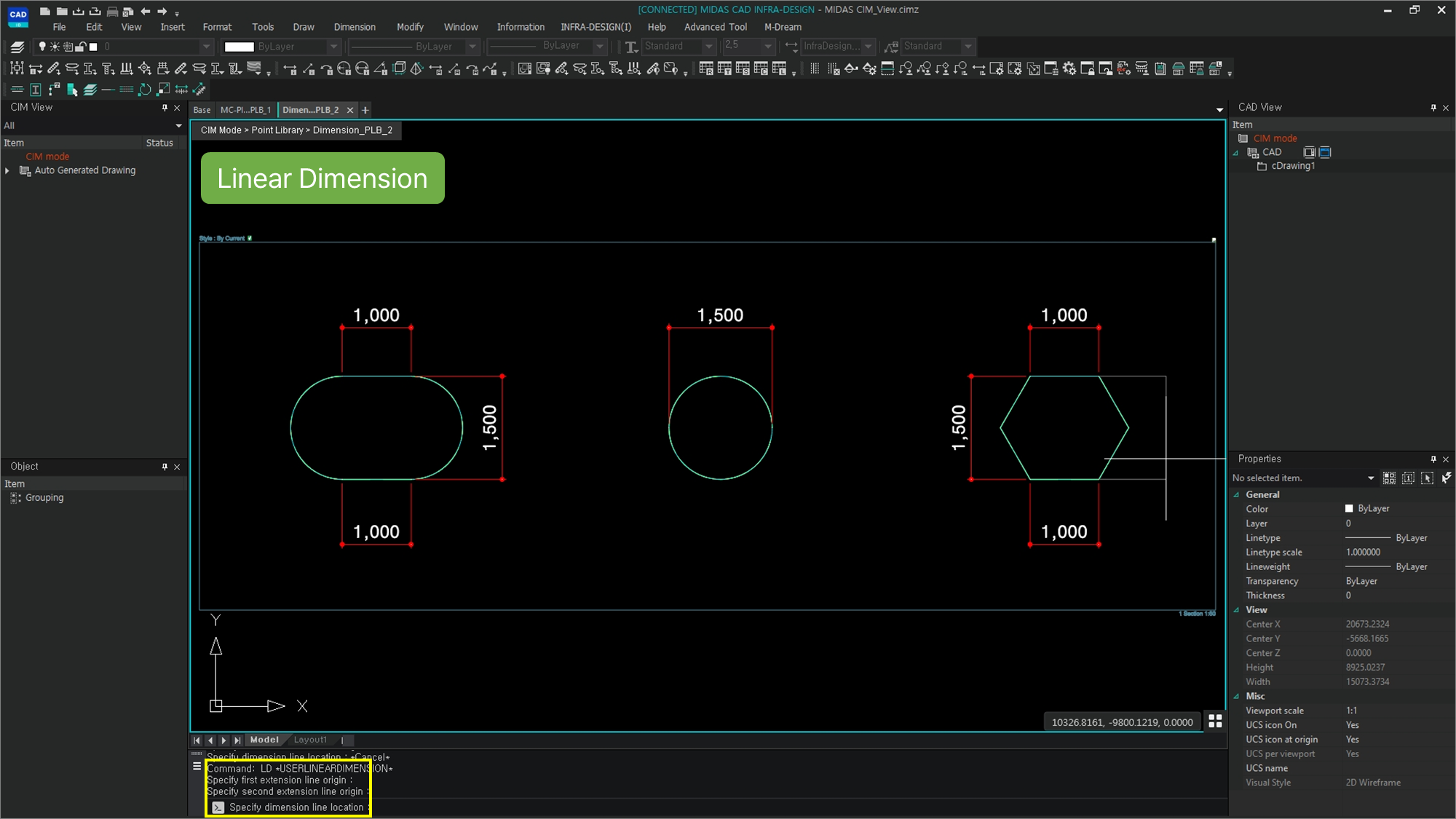

Linear Dimension [Shortcut key : LD]
: This is a linear dimension creation function created in the orthogonal direction based on the CAD workspace X and Y planes.
[Command]
Specify first extension line origin :
Select the first point to create the dimension.
Specify second extension line origin : Pick a second point to create the dimension.
Specify dimension line location : Specify the position for creating dimensions with the mouse or enter the length value in the Command dialog.
When creating a continuous dimension, select the next point where the dimension will be created.
Aligned Dimension [Shortcut key : AD]
: This is an aligned dimension creation function created by connecting two arbitrary points.
[Command]
Specify first extension line origin : Select the first point to create the dimension.
Specify second extension line origin : Pick a second point to create the dimension.
Specify dimension line location : Specify the position for creating dimensions with the mouse or enter the length value in the Command dialog.
When creating a continuous dimension, select the next point where the dimension will be created.
Arc Length Dimension [Shortcut key : ALD]
: This is a function to create arc length dimensions to display the arc length.
[Command]
Select object : Select a Member to represent the arc length.
Specify dimension line location : Point the mouse in the direction you want the dimension to appear.

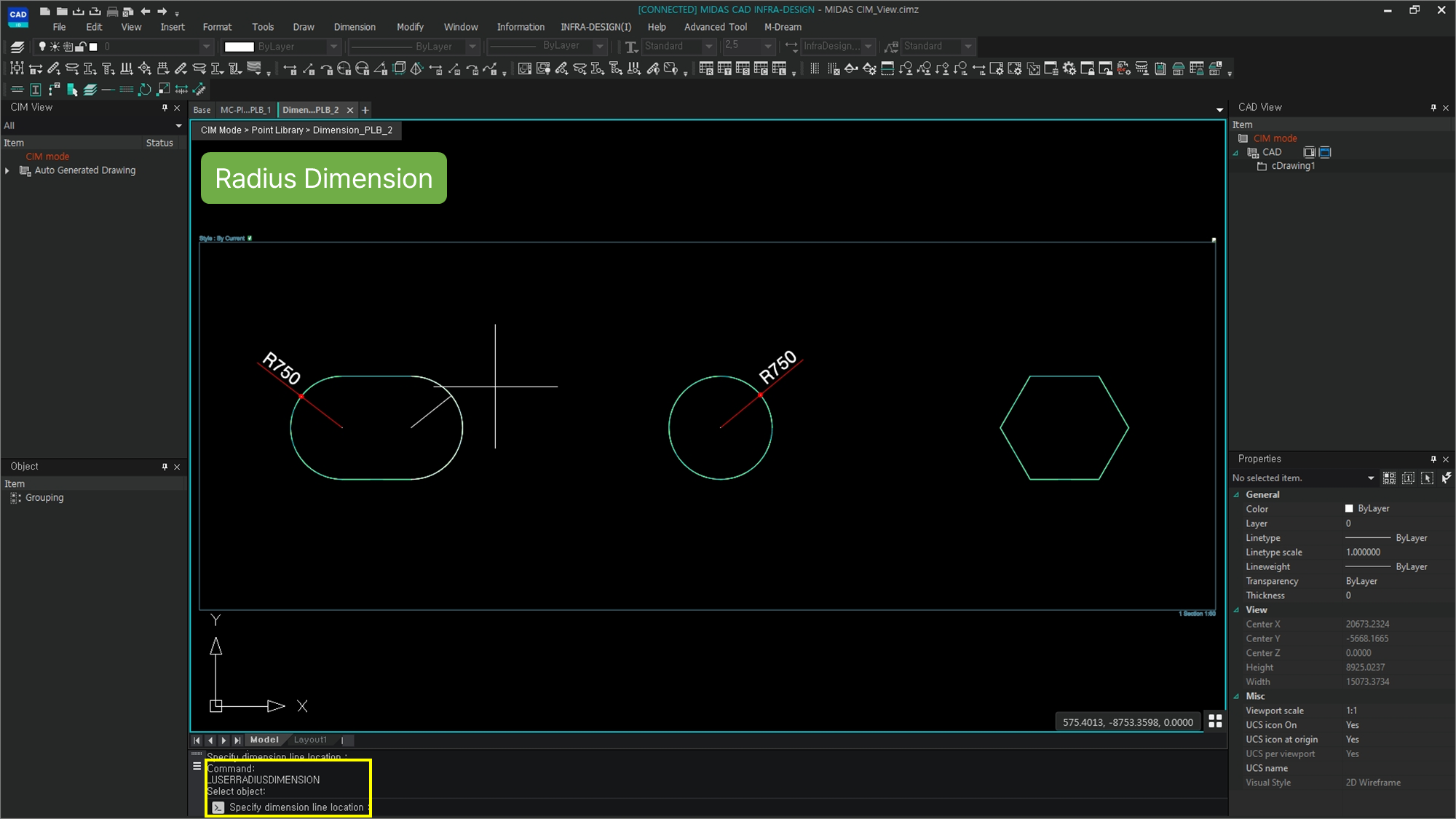

Radius [Shortcut key : RDD]
: This is a function to create a radius dimension to display the radius.
[Command]
Select object : Select a Member to represent the radius.
Specify dimension line location : Point the mouse in the direction you want the dimension to appear.
Diameter [Shortcut key : DID]
: This is the function to create a diameter dimension to indicate the diameter.
[Command]
Select object : Select a Member to represent the diameter.
Specify dimension line location : Point the mouse in the direction you want the dimension to appear.

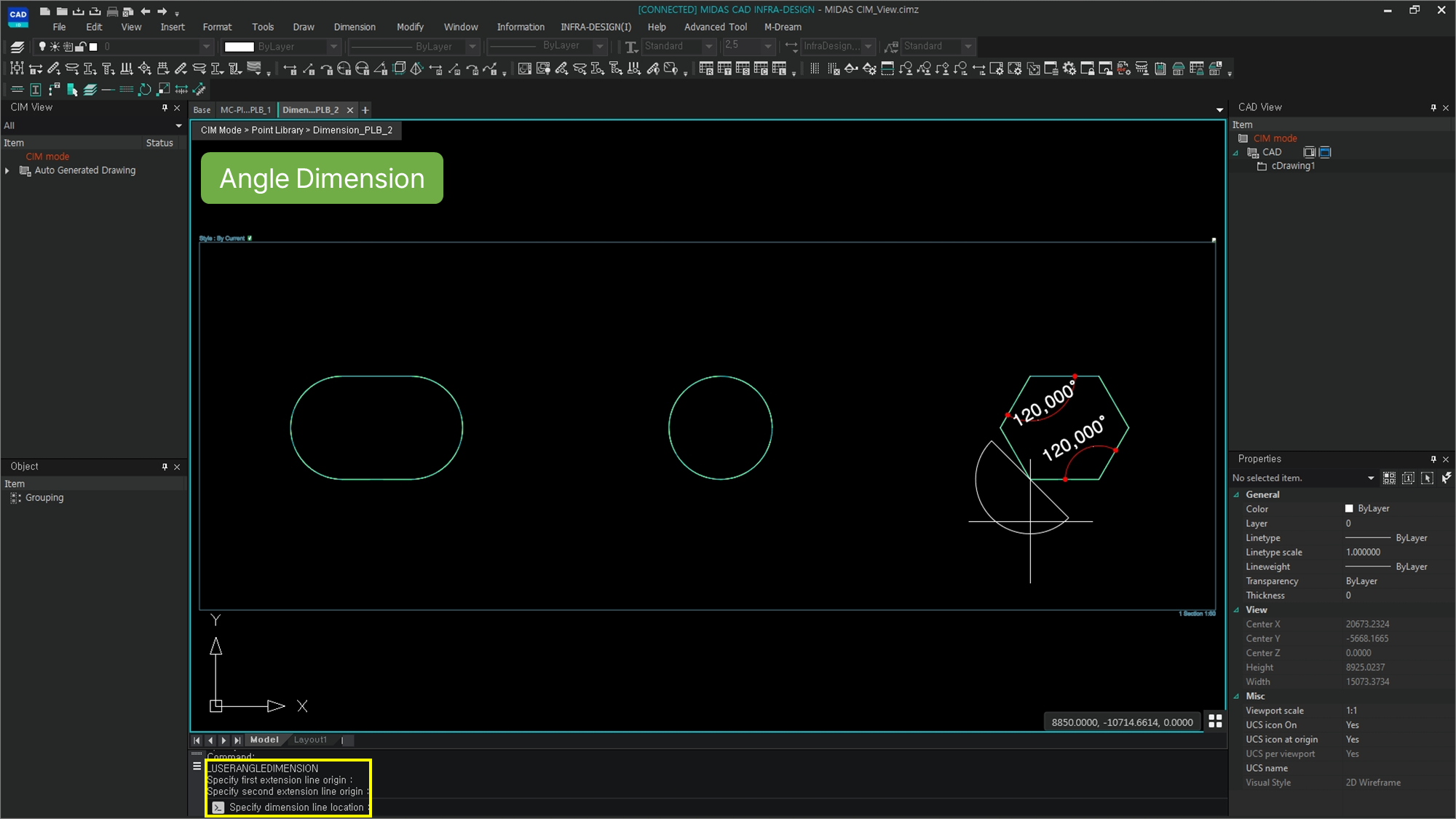

Angle [Shortcut key : AND]
: This is a function to create angle dimensions to display angles.
[Command]
Specify first extension line origin : Select the first point to create the dimension. (Select Member edge)
Specify second extension line origin : Pick a second point to create the dimension. (Select Member edge)
Specify dimension line location : Point the mouse in the direction you want the dimension to appear.

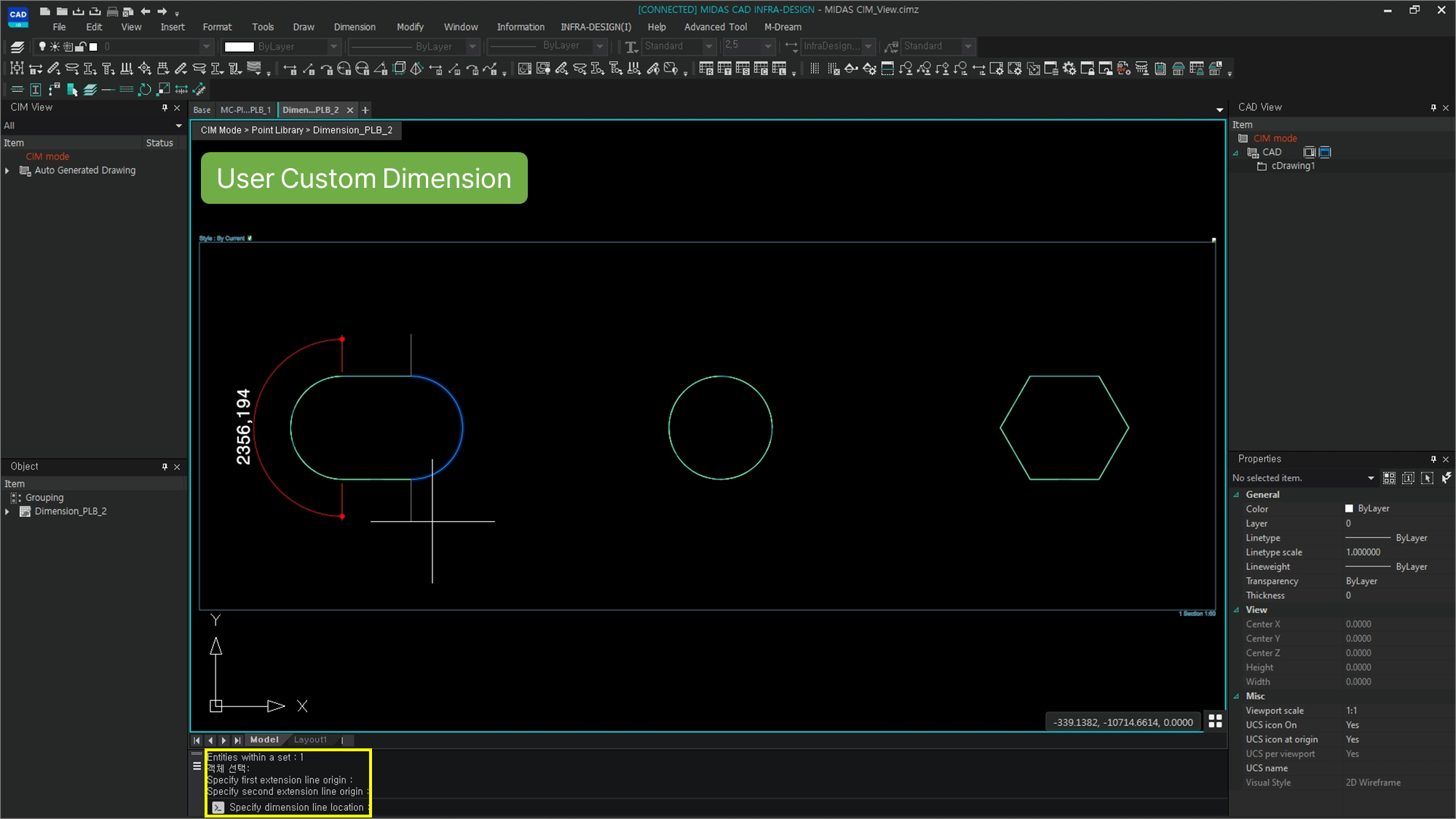

User Custom [Shortcut key : UCD]
: This is a user dimension creation function that allows you to immediately display arc lengths, etc.
Similar to an arc length dimension, but expressed as a length dimension without the arc symbol.
[Command]
Select object : Select an object for creating dimensions. (Select Member Edge)
Specify first extension line origin : Select the first point to create the dimension.
Specify second extension line origin : Pick a second point to create the dimension.
Specify dimension line location : Point the mouse in the direction you want the dimension to appear.
