Summary
The rebar dimensioning feature is only available in CIM view mode. Spacing is automatically expressed based on rebar model information defined in CIM.
How to Run
[CIM View Mode]

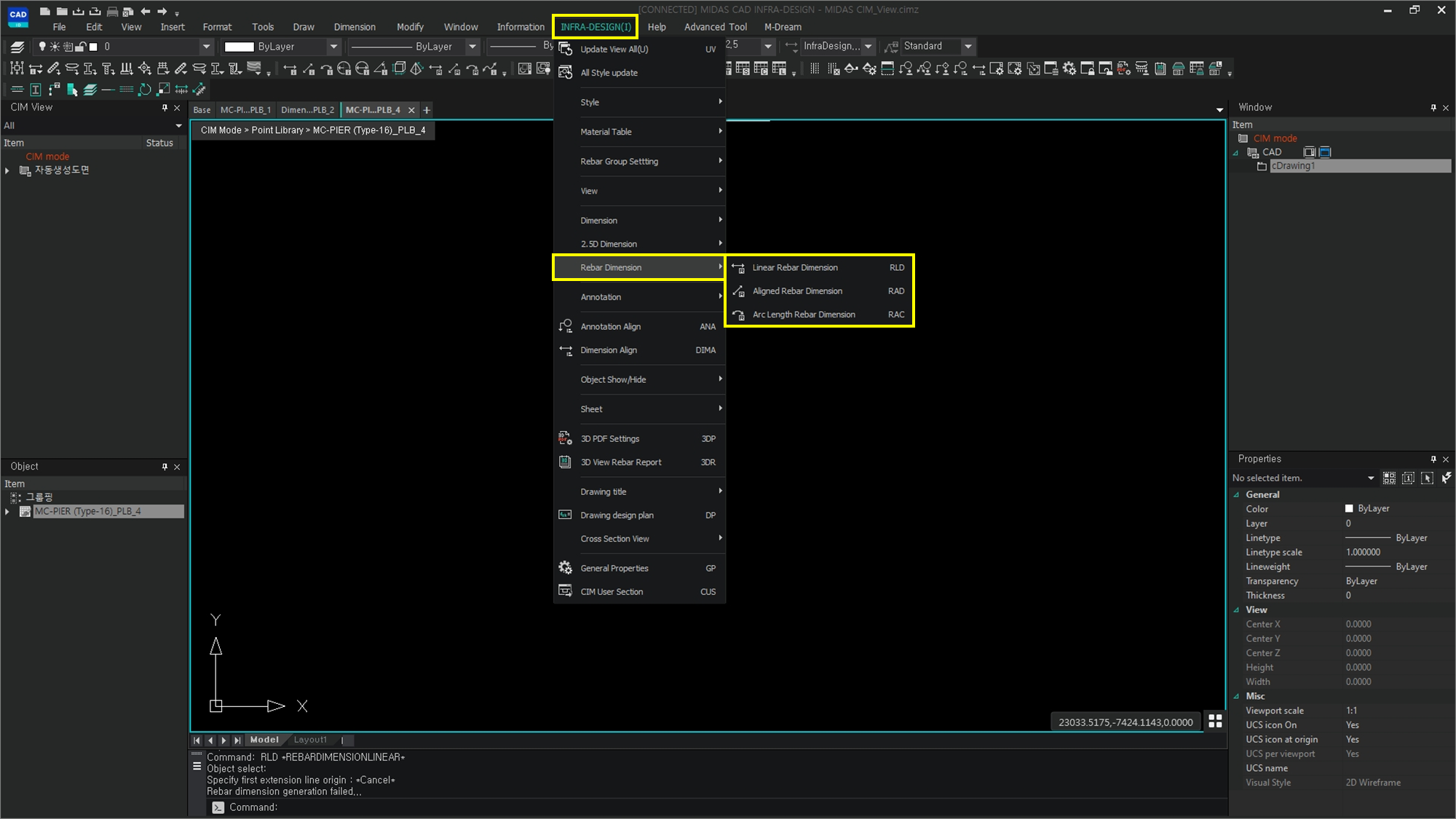

Ribbon Menu > [INFRA-DESIGN] Tab > Rebar Dimension > Linear Rebar Dimension [RLD] / Aligned Rebar Dimension [RAD] / Arc Length Rebar Dimension [RAC]
Explanation
How to use Rebar dimensions
The rebar dimension function can be executed through each rebar dimension command or by activating the detailed dimension function in the INFRA-DESIGN menu tab.
Linear Rebar Dimension [Shortcut key : RLD]
: Used to create rebar dimension in which the text on the dimension is aligned horizontally or vertically.
[Command]
Object select :
Select the rebar object for which you want to create dimensions..
Specify first extension line origin : Select the first point to create the dimension.
If the starting point of the dimension is a structure, the distance (cover) value from the first point to the nearest rebar is displayed.
Specify second extension line origin : Pick a second point to create the dimension.
Specify dimension line location : Specify the position for creating dimensions with the mouse or enter the length value in the Command dialog.
Aligned Rebar Dimension [Shortcut key : RAD]
: Used to create a rebar dimension in which the text on the dimension is inclined in the direction of the object.
[Command]
Object select : Select the rebar object for which you want to create dimensions.
Specify first extension line origin : Select the first point to create the dimension.
If the starting point of the dimension is a structure, the distance (cover) value from the first point to the nearest rebar is displayed.
Specify second extension line origin : Pick a second point to create the dimension.
Specify dimension line location : Specify the position for creating dimensions with the mouse or enter the length value in the Command dialog.
Arc Length Rebar Dimension [Shortcut key : RAC]
: Used to create dimension for rebars arranged in a circle.
[Command]
Object select : Select the rebar objects placed on the arc.
Object select : Select a concrete object for dimension.
Specify dimension line location : Point the mouse in the direction you want the dimension to appear.
