Summary
CIM View Mode에서만 사용 가능한 주석 생성 기능으로, CIM 모델 정보를 기반으로 좌표 주석을 표현합니다.
How to Run
[CIM View Mode]

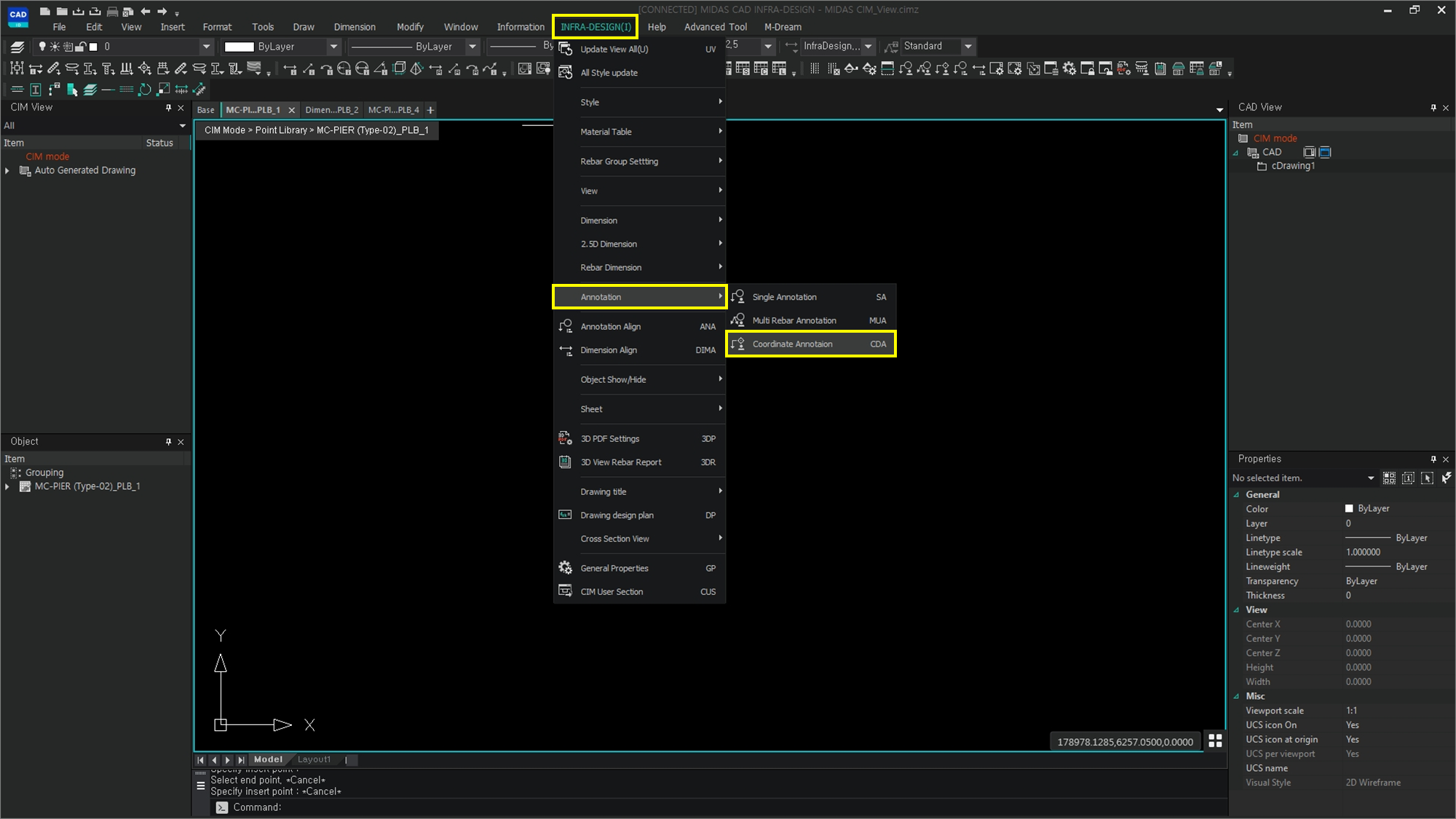

Ribbon Menu > [INFRA-DESIGN] Tab > Annotation > Coordinate Annotation [CDA]
Explanation
How to use Single Annotation
Run the Coordinate Annotation [CDA] command or execute the Coordinate annotation function in the annotation section of the INFRA-DESIGN menu tab.
[Command]
Set coordinate point. :
Select the vertex of the object from which coordinate annotation information can be retrieved.
Select BASE Point. : If you specify the location where the coordinate annotation will be created, the annotation will be generated.
