Summary
This function turns on or off the preview function of the rebar shape that can be displayed in the rebar annotation.
How to Run
[CIM View Mode]

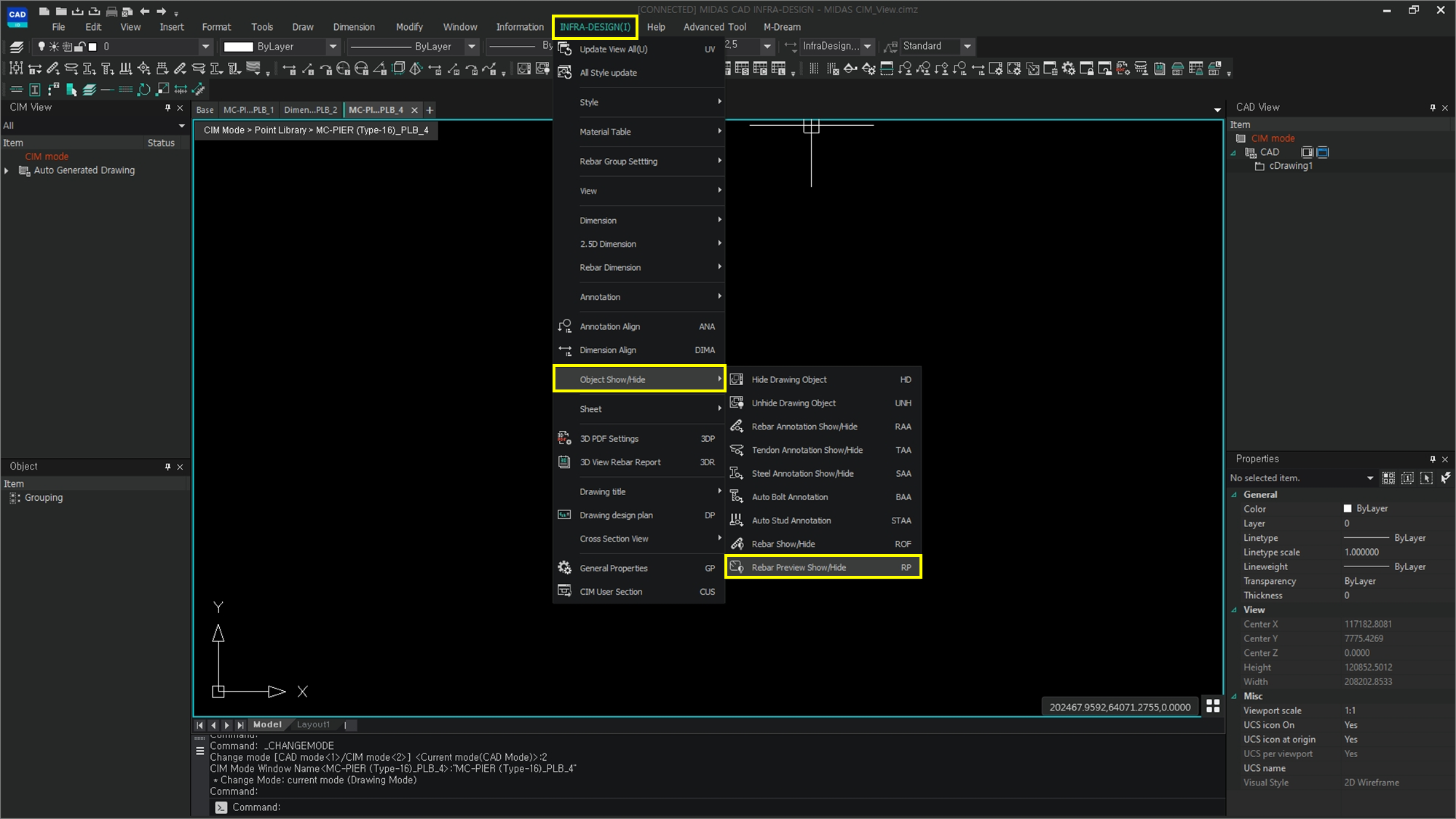

Ribbon Menu > [INFRA-DESIGN] Tab > Object Show/Hide > Rebar Preview Show/Hide [RP]
Explanation
How to use Show or Hide Rebar Object.
Run the Rebar Preview Show/Hide (RP) command or execute the Rebar Preview Show/Hide of Object Show/Hide function of the INFRA-DESIGN menu tab.
Run
[Command]

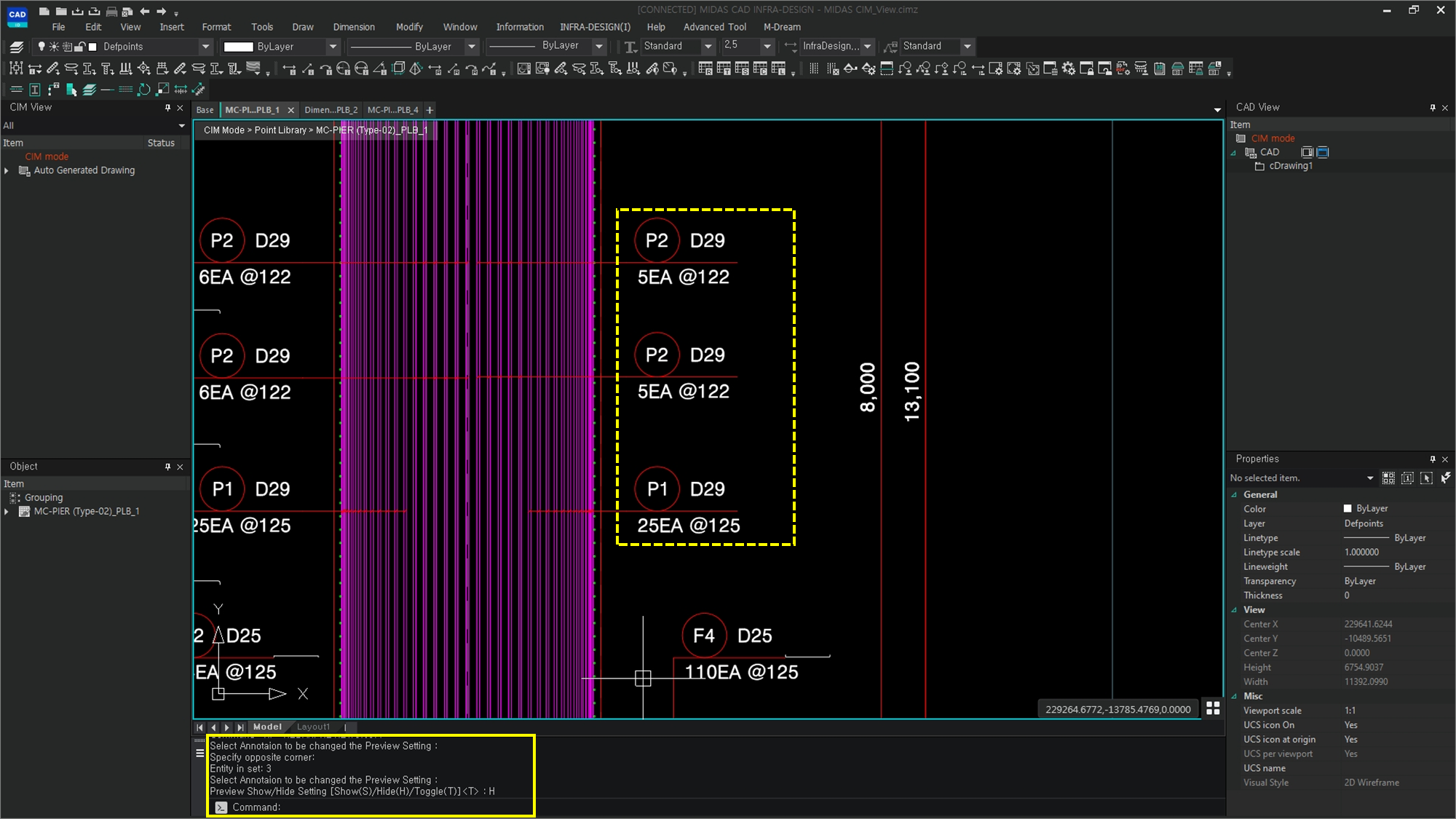

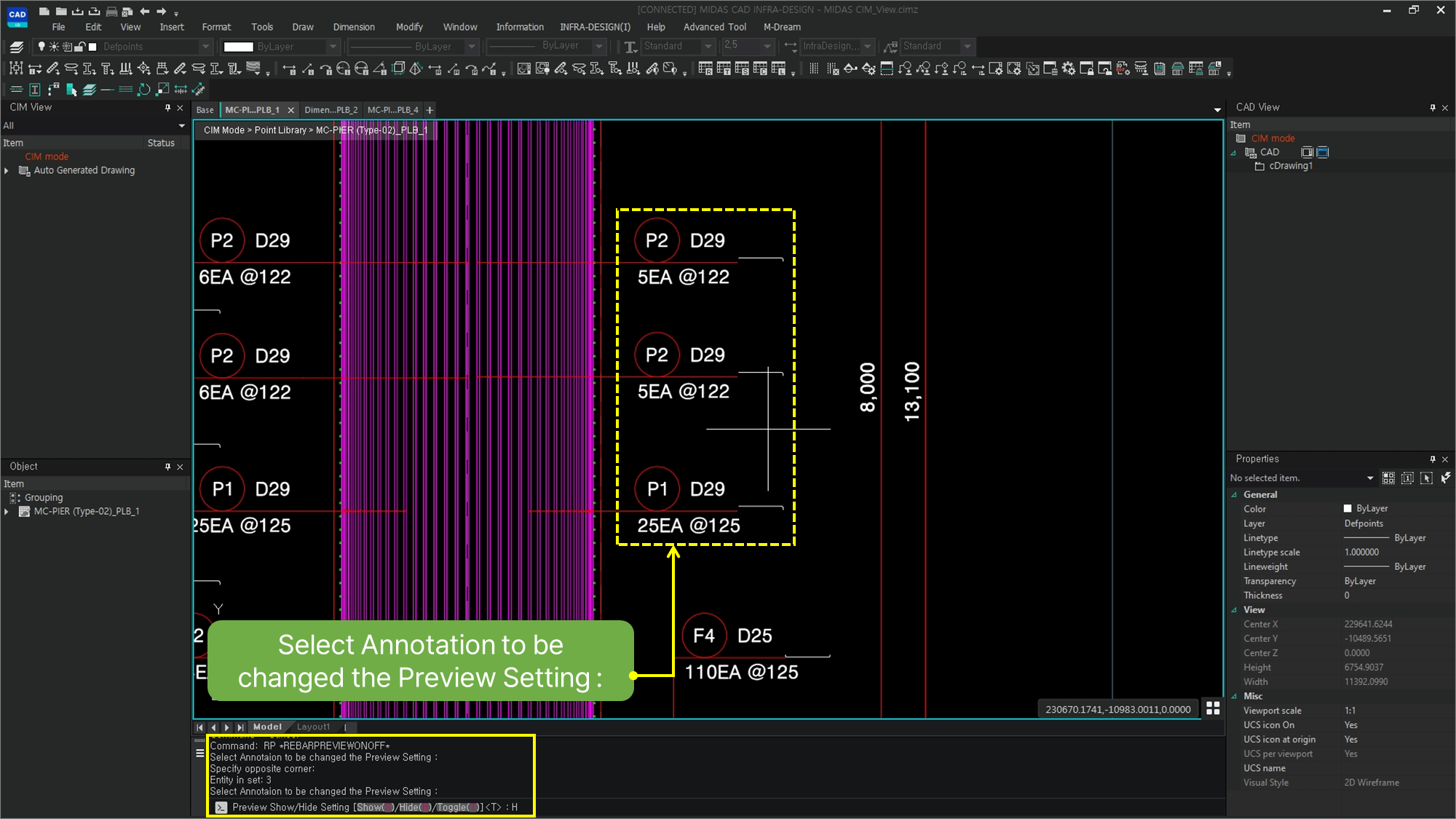

Select Annotation to be changed the Preview Setting :
Select the annotation for which you want to change the rebar preview settings.
Preview Show/Hide Setting [Show(S)/Hide(H)/Toggle(T) <T> :If you select Show(S), Rebar shape preview will be turned on so that they can be displayed.
If you select Hide(H), Rebar shape preview will be turned off so that they can be hidden.
Selecting Toggle(T) will turn off Rebar shape preview if they are currently on, and turn them on if they
are currently off.

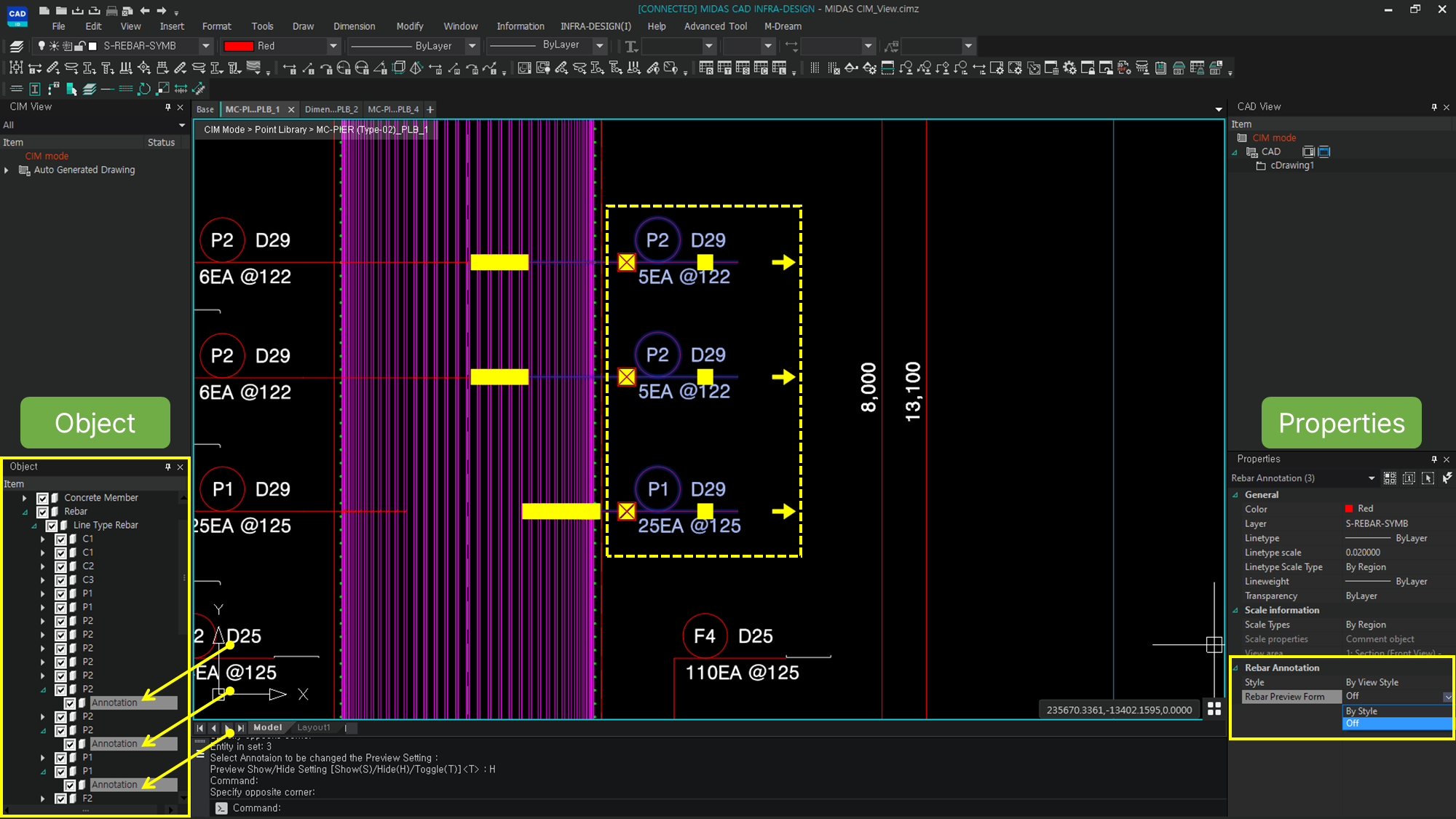

Result of hiding rebar shape preview
Note
Separately, when a rebar annotation is dragged and selected, the rebar items in the Object window on the left are tracked and displayed.
Additionally, the style of the rebar preview items can be optionally changed in the properties window on the right.
